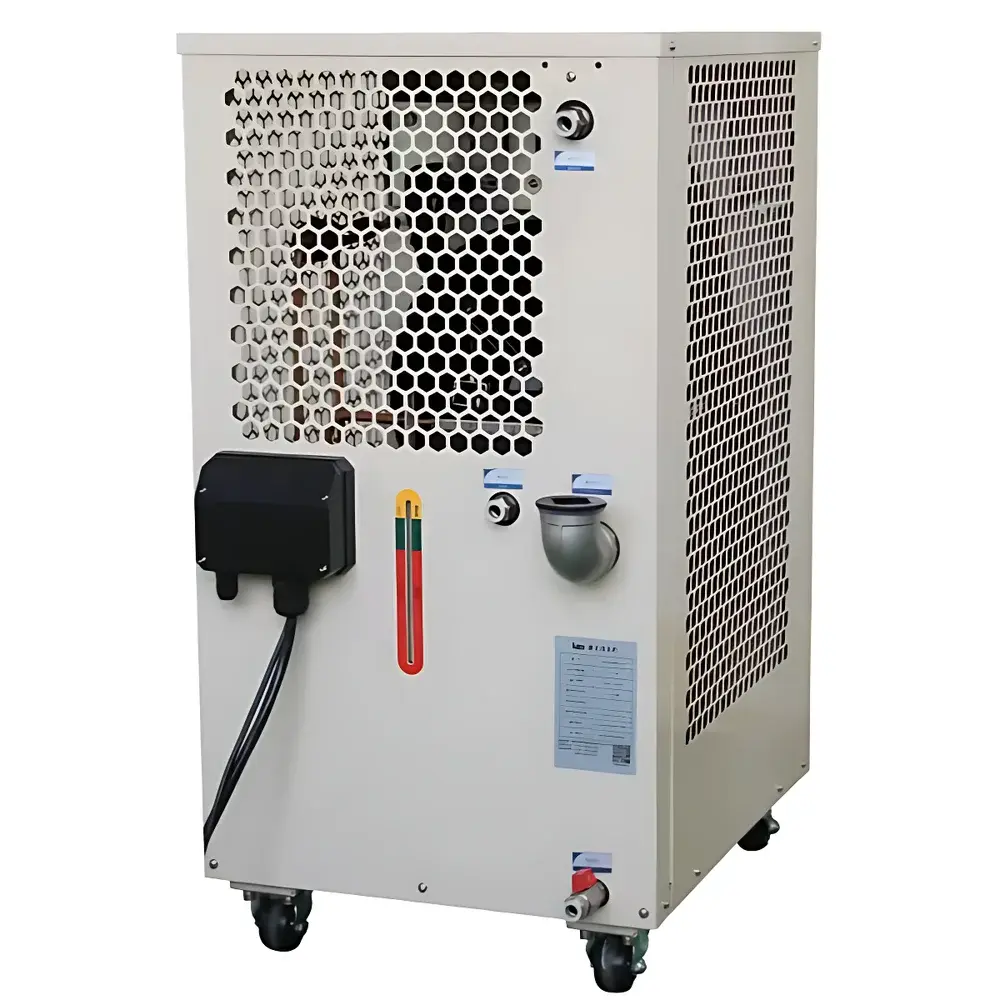

Saintins SY-5200S High-Precision Air-Cooled Circulating Chiller

Overview

The Saintins SY-5200S is an integrated, air-cooled circulating chiller engineered for high-precision thermal management in demanding laboratory and industrial environments. It employs a hermetic scroll compressor with R410a refrigerant and a dual-stage temperature control architecture—combining PID-regulated electronic expansion valve modulation with independent electric heating—to achieve ±0.1 °C temperature stability across its full operating range of 8–30 °C. Unlike tap-water-dependent cooling solutions, the SY-5200S establishes a closed-loop circulation system delivering constant flow (32 L/min), regulated pressure (up to 3.6 bar), and consistent thermal output (5200 W nominal cooling capacity). Its design prioritizes long-term operational reliability under continuous duty cycles, making it suitable for mission-critical applications where thermal drift directly impacts measurement integrity, process repeatability, or equipment longevity.

Key Features

• Integrated air-cooled architecture with optimized finned condenser and low-noise axial fans for stable performance in ambient temperatures up to 40 °C
• PID-controlled dual-mode thermal regulation: simultaneous compression-based cooling and 500 W resistive heating enable rapid setpoint acquisition and minimal overshoot
• High-flow, high-head circulation pump (36 m head, 32 L/min at rated pressure) compatible with multi-instrument daisy-chaining and elevated loop configurations
• 14.5 L stainless-steel reservoir with integrated 5-inch deionized water filtration system to suppress particulate ingress and corrosion in sensitive downstream instrumentation
• RS485 serial interface compliant with Modbus RTU protocol for integration into centralized building management systems (BMS) or laboratory automation platforms
• Comprehensive safety architecture including flow loss detection (trip threshold: ≤1.5 L/min), high-pressure cut-off, overtemperature lockout, and refrigerant leak monitoring
• Industrial-grade enclosure (IP20 rating) with vibration-dampened compressor mounting and EMI-filtered power input for electromagnetic compatibility in shared lab infrastructure

Sample Compatibility & Compliance

The SY-5200S is designed to support a broad spectrum of heat-transfer fluids—including deionized water, 20–30% ethylene glycol/water mixtures, and other non-corrosive, low-conductivity coolants—ensuring compatibility with optics, electronics, and vacuum-compatible instrumentation. Its temperature stability and flow consistency meet the operational prerequisites of ISO/IEC 17025-accredited laboratories for instrument qualification protocols. The unit complies with IEC 61000-6-3 (EMI emission) and IEC 61000-6-2 (immunity) standards. While not certified for medical device use per ISO 13485, its design aligns with GLP and GMP environmental control expectations for analytical instrument cooling in pharmaceutical QC labs—particularly when paired with audit-trail-capable SCADA systems via RS485 logging.

Software & Data Management

The chiller operates autonomously via its embedded microcontroller and front-panel LCD interface, supporting local parameter configuration, real-time monitoring of outlet temperature, flow rate, compressor status, and fault codes. For networked operation, the RS485 port enables bidirectional communication using standard Modbus RTU registers. Users may log operational data—including cumulative runtime, compressor cycles, and thermal deviation history—at configurable intervals (1–60 min) into external PLCs or LIMS databases. No proprietary software is required; integration leverages open protocol stacks compatible with LabVIEW, Ignition SCADA, and Python-based monitoring scripts. All critical events (e.g., flow interruption, temperature excursion >±0.3 °C for >30 s) trigger Modbus alarm flags and can be mapped to facility-wide notification systems.

Applications

• Analytical Instrumentation: Stable cooling for NMR spectrometers (cryoprobes and console electronics), SEM/TEM column chillers, XRD goniometers, and high-resolution mass spectrometer ion sources—where sub-0.2 °C thermal noise directly affects spectral resolution and signal-to-noise ratio
• Materials Synthesis & Processing: Temperature-controlled condensation in rotary evaporators, jacketed reactor cooling in catalytic screening, and crystallization baths in API development workflows
• Laser Systems: Thermal stabilization of CO₂ laser tubes, fiber laser diode arrays, and ultrafast amplifier chillers—maintaining wavelength stability and beam pointing accuracy
• Electronics Testing: Thermal conditioning of semiconductor probe stations, wafer-level test fixtures, and RF power amplifier burn-in racks under controlled junction temperature conditions
• Industrial Process Support: Mold temperature control in precision injection molding, coolant supply for CNC machining centers, and fermentation vessel jacketing in bioprocess scale-down models

FAQ

What is the minimum recommended coolant conductivity for use with the SY-5200S?
Deionized water with conductivity < 5 µS/cm is strongly recommended; glycol mixtures must be formulated to avoid galvanic corrosion in mixed-metal loops.
Can the SY-5200S maintain setpoint during ambient temperature fluctuations above 35 °C?
Yes—the unit is rated for continuous operation up to 40 °C ambient, though cooling capacity decreases by approximately 1.2% per °C above 30 °C ambient (per ISO 5149 test conditions).
Is the RS485 interface capable of remote setpoint adjustment?
Yes—Modbus register 40002 supports write-enabled setpoint modification (0.1 °C resolution) alongside read-only access to all operational parameters.
Does the unit include freeze protection logic?
No—freeze protection requires external low-temperature interlock or glycol-based coolant; the SY-5200S does not operate below 8 °C outlet temperature.
What maintenance intervals are specified for the 5-inch filter cartridge?
Filter replacement is recommended every 6 months under continuous operation with DI water; frequency increases with higher particulate load or glycol use.
