Sanotac ELSD5000 Evaporative Light Scattering Detector

Overview

The Sanotac ELSD5000 is a compact, high-performance evaporative light scattering detector engineered for universal detection in liquid chromatography applications where UV-inactive or weakly absorbing analytes are present. Unlike UV-Vis absorbance detectors—whose response depends on chromophore presence and molar absorptivity—the ELSD5000 operates on the principle of nebulization, solvent evaporation, and light scattering from non-volatile analyte particles. This physical detection mechanism enables quantitative analysis of carbohydrates, lipids, surfactants, polymers, natural products, and other compounds lacking strong UV absorption. The detector integrates a 650 nm semiconductor laser source and a high-sensitivity photomultiplier tube (PMT) within an optimized optical path, delivering low baseline noise (≤0.03 mV) and exceptional long-term stability (drift ≤0.3 mV/30 min). Its modular thermal architecture supports precise, independent control of both nebulizer (ambient to 56 °C) and evaporator (ambient to 130 °C) zones—critical for method robustness across diverse mobile phase compositions and flow rates (0.01–3 mL/min).

Key Features

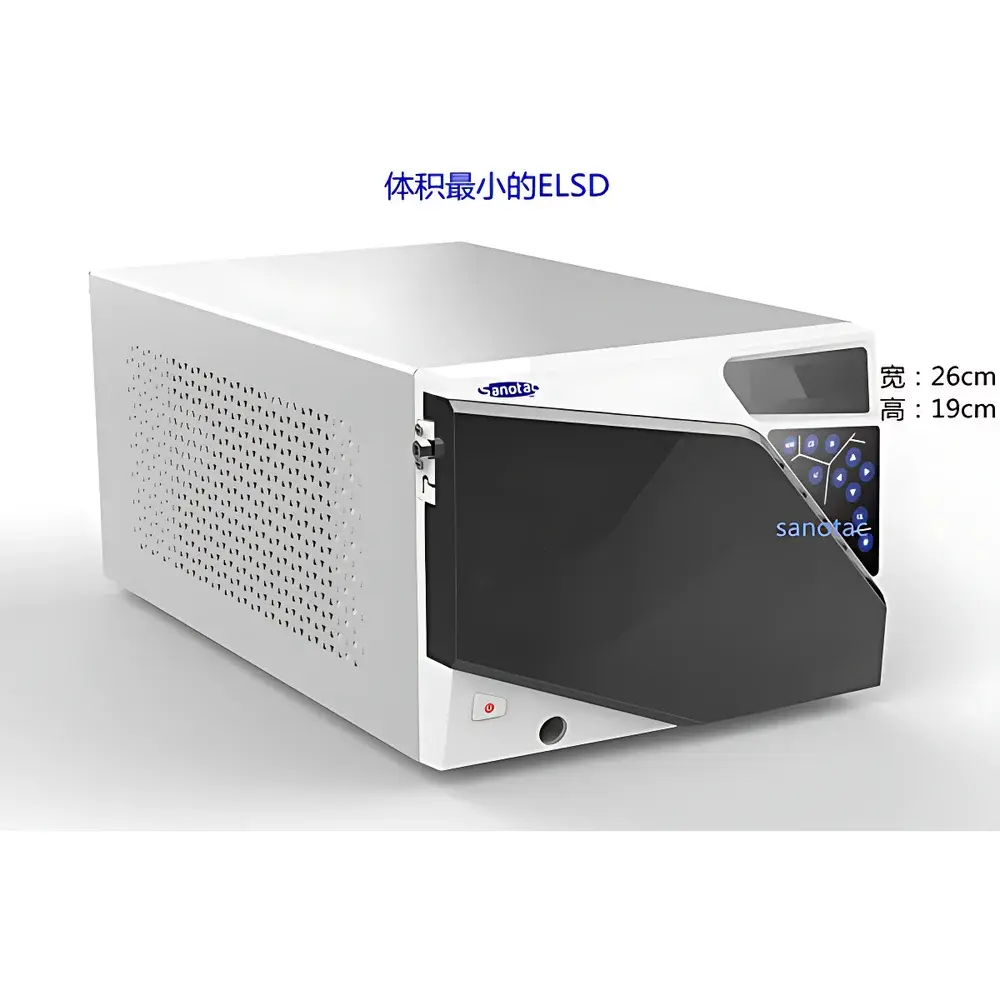

• Ultra-compact footprint (26 × 19 × 46 cm) designed for stackable integration with HPLC, preparative LC, and medium-pressure chromatography systems
• Dual-zone temperature control with ±1 °C accuracy and 1 °C resolution for reproducible particle formation and scattering efficiency
• Integrated gas pressure and flow monitoring (0.01 bar resolution; ≤1% flow control accuracy) to ensure consistent nebulization performance
• 16-point automated self-diagnostic routine covering laser status, heater function, gas valve operation, and PMT response calibration
• Programmable external event handling—including laser shutdown, gas valve actuation, and heater deactivation—for GLP-compliant method sequencing
• Low-power standby mode reducing idle energy consumption without compromising thermal readiness
• Front-panel interface with 16×2 backlit LCD and 10-key keypad for rapid parameter navigation and method recall

Sample Compatibility & Compliance

The ELSD5000 detects any non-volatile or semi-volatile analyte with volatility lower than the mobile phase—making it suitable for gradient elution methods involving volatile solvents (e.g., acetonitrile, methanol, water, THF). It is widely applied in compliance-driven environments including pharmaceutical QC (per ICH Q2(R2) validation guidelines), natural product standardization (AOAC, USP ), and polymer characterization (ASTM D3593). While ELSD itself is not inherently 21 CFR Part 11 compliant, the Sanotac ELSD5000 supports audit-trail-capable data acquisition when paired with Clarity™ software (v8.2+) configured under validated instrument control protocols. All thermal and gas subsystems include hardware interlocks to prevent solvent ingress into the detection chamber—a critical safety feature aligned with ISO 13849-1 functional safety requirements for laboratory instrumentation.

Software & Data Management

The ELSD5000 interfaces natively with Sanotac’s proprietary chromatography control software and fully supports Clarity™ (v7.4+), including its dynamic link library (DLL) architecture for seamless integration with third-party HPLC platforms (e.g., Waters Empower, Agilent OpenLab CDS, Thermo Chromeleon). Data acquisition occurs at 100 Hz, with real-time digital filtering options (20 Hz output) to balance signal fidelity and noise suppression. Method storage accommodates 10 user-defined protocols, each containing up to 25 configurable parameters—including temperature ramps, gas pressure profiles, gain settings, and auto-zero triggers. Raw analog output (−1200 to +1200 mV) is compatible with legacy integrators and DAQ systems, while USB and RS-232 ports enable bidirectional communication for remote diagnostics and firmware updates. Export formats include ASCII (.txt), CSV, and native Clarity binary (.clr) for traceability and regulatory submission.

Applications

• Quantification of sucrose, lactose, and oligosaccharides in food and beverage matrices without derivatization
• Residual solvent and excipient analysis in API purification workflows (e.g., post-column detection after flash chromatography)
• Phospholipid profiling in lipidomics studies using normal-phase or HILIC separations
• Quality control of non-UV-absorbing surfactants (e.g., polysorbates, poloxamers) per USP analytical instrument qualification
• Stability-indicating assays for degradation products lacking chromophores
• Preparative fraction collection triggering based on real-time scattering intensity thresholds

FAQ

What types of mobile phases are compatible with the ELSD5000?
The detector supports all volatile mobile phases commonly used in reversed-phase, normal-phase, and HILIC chromatography—including water/acetonitrile, water/methanol, chloroform/methanol, and THF-based systems. Non-volatile buffers (e.g., phosphate, sulfate) must be avoided unless removed via post-column membrane desalting.

Can the ELSD5000 be used with gradient elution?
Yes. Its low-temperature evaporation design minimizes baseline disturbances during organic modifier ramping, provided the gradient remains within the volatility envelope of the system and gas flow is dynamically stabilized.

Is the ELSD5000 compatible with GMP/GLP-regulated laboratories?
When operated with validated Clarity™ software configurations—including electronic signatures, audit trails, and method locking—the system meets core ALCOA+ data integrity principles required for regulated submissions.

How often does the nebulizer require maintenance or replacement?
Under typical use (≤2 mL/min aqueous-organic flow), the stainless-steel nebulizer assembly requires cleaning every 2–4 weeks; lifetime exceeds 12 months with proper filtration (0.22 µm pre-column filter recommended).

Does the ELSD5000 support analog output to legacy integrators?
Yes. It provides a fully isolated ±1200 mV analog output with user-adjustable gain and offset, enabling direct connection to Shimadzu C-R8A, Waters 746, or similar analog-input integrators.
