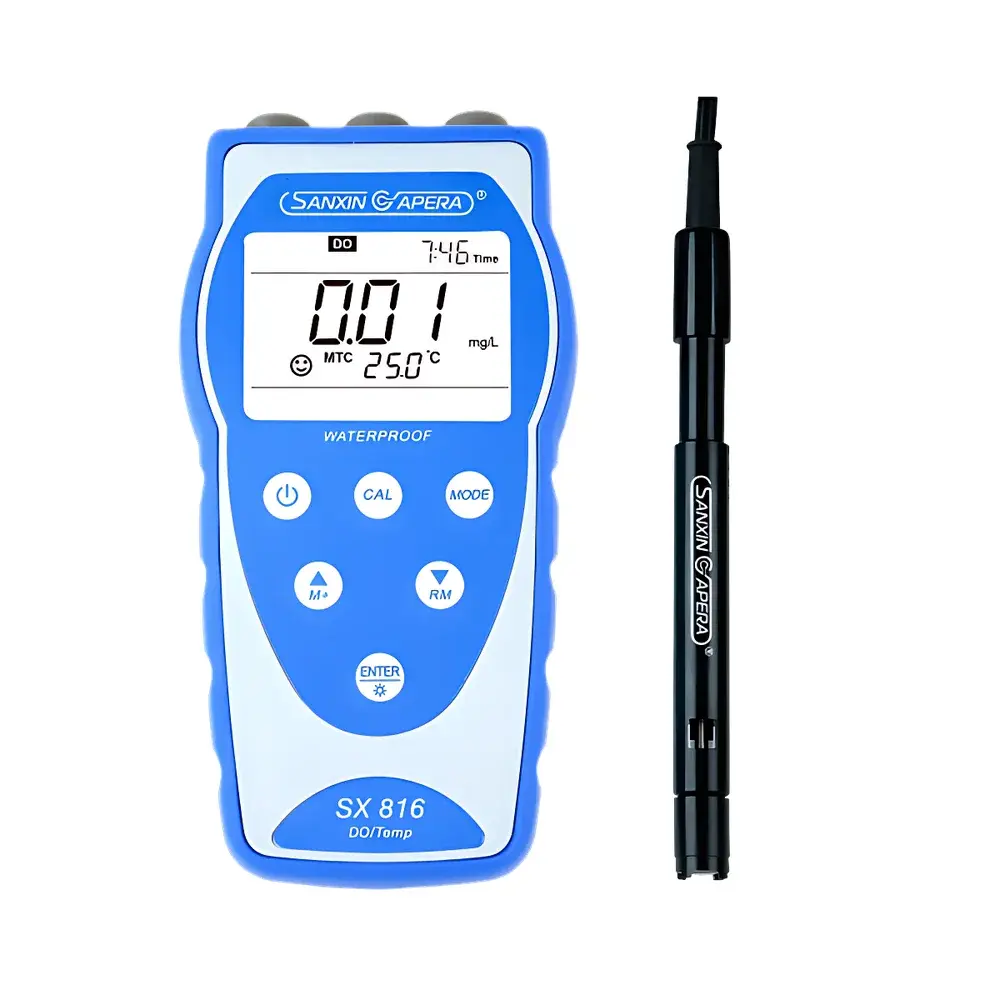

SANXIN SX816 Portable Dissolved Oxygen Meter

Overview

The SANXIN SX816 Portable Dissolved Oxygen Meter is a field-deployable, dual-parameter water quality analyzer engineered for high-reliability measurement of dissolved oxygen (DO) in natural waters, wastewater, aquaculture systems, and industrial process streams. It operates on the Clark-type polarographic principle: oxygen diffuses through a gas-permeable membrane to a cathode where it undergoes electrochemical reduction, generating a current proportional to the partial pressure of dissolved O₂. This analog signal is digitized using precision low-noise circuitry and processed via embedded microcontroller algorithms to yield concentration values in mg/L (ppm) and saturation percentage (%). The instrument integrates automatic temperature, salinity, and manual barometric pressure compensation—critical for accurate DO reporting across diverse environmental conditions. Designed for compliance with international water quality monitoring protocols, the SX816 supports routine field verification, regulatory sampling (e.g., EPA Method 360.1, ISO 5814), and long-term trend analysis in compliance-driven sectors including municipal utilities, environmental consultancies, and research institutions.

Key Features

• IP57-rated enclosure ensures dust resistance and immersion protection up to 1 m for 30 minutes—validated for operation in rain, humid soils, and splash-prone riverbank or effluent channel environments.
• Dual-power architecture: Operates on three standard AA alkaline batteries (typical field life >200 hours) or continuously via 5 V DC USB input—enabling extended logging during fixed-site deployments.
• Intelligent electrode management: Automatically recognizes the DO500 polarographic probe; detects membrane cap installation status and electrolyte level via diagnostic routines.
• Two display modes: “Stable Hold” locks readings once variation falls below ±0.05 mg/L over 5 s; “Auto-Read” updates continuously with real-time noise filtering.
• Ergonomic design includes integrated fold-out stand for benchtop use, soft-grip rubber overmold for slip resistance, and recessed controls to prevent accidental activation during transport.
• Auto-shutdown after 10 minutes of inactivity; low-battery indicator activates at <1.1 V per cell, preserving calibration integrity and stored data.

Sample Compatibility & Compliance

The SX816 is validated for aqueous samples with conductivity between 0.1 µS/cm and 200 mS/cm and suspended solids content <500 mg/L. It accommodates both freshwater (0–5 ppt salinity) and brackish/marine applications (up to 45 ppt) via programmable salinity compensation. All measurements adhere to GLP data integrity requirements: each stored record contains timestamp (RTC), operator ID (user-configurable), probe serial number, calibration history reference, and ambient temperature. The device meets IEC 60529 (IP57), CE marking directives (2014/30/EU EMC, 2011/65/EU RoHS), and is compatible with audit-ready workflows under ISO/IEC 17025-accredited laboratories. Calibration traceability aligns with NIST-traceable DO standards (e.g., Winkler titration reference solutions) and supports multi-point validation per ASTM D888-22.

Software & Data Management

PC-Link software enables bidirectional communication via USB: users can export CSV-formatted datasets (including metadata headers), generate calibration reports with residual error plots, and configure instrument parameters (e.g., pressure offset, auto-save interval, language). All stored entries include full audit trail attributes—no data overwriting or deletion without explicit user authentication. Firmware updates are delivered via signed binary packages; version history and checksum verification ensure firmware integrity. The system supports 21 CFR Part 11–compliant environments when deployed with external identity management (e.g., Windows Active Directory integration), providing electronic signature capability and immutable log archiving.

Applications

• Environmental field surveys: BOD incubation monitoring, stream health assessment, wetland restoration verification.
• Municipal wastewater treatment: Aeration basin optimization, secondary clarifier performance tracking, effluent compliance reporting per EU Urban Wastewater Directive.
• Aquaculture operations: Real-time DO mapping in recirculating aquaculture systems (RAS), feed-triggered oxygen demand profiling.
• Industrial cooling water management: Corrosion risk assessment via dissolved oxygen stratification analysis in closed-loop systems.
• Educational laboratories: Student-led water quality modules aligned with AP Environmental Science and university limnology curricula.

FAQ

What calibration standards are supported for dissolved oxygen?
The SX816 accepts zero-oxygen (sodium sulfite solution) and saturated-air (100% air-saturated water at known temperature/pressure) calibrations. It does not require proprietary buffer kits—standard laboratory-grade reagents suffice.
Can the instrument compensate for altitude-related pressure changes?
Yes—barometric pressure is manually entered (range: 60.0–199.9 kPa) prior to measurement; built-in lookup tables convert kPa to mmHg or inHg for regional reporting compliance.
Is the DO500 probe suitable for continuous immersion?
The DO500 is rated for intermittent field use (≤8 h continuous submersion); for permanent installations, SANXIN recommends the DO600 series with reinforced PTFE membranes and stainless-steel housings.
How is data security maintained during USB transfer?
All exported files contain SHA-256 checksums; PC-Link enforces read-only access to internal memory unless administrator credentials are provided—preventing unauthorized modification of historical records.
Does the SX816 support regulatory submission formats?
Raw CSV exports include ISO 8601 timestamps and SI-unit annotations; third-party LIMS integrations (e.g., LabWare, Thermo Fisher SampleManager) are certified via HL7 and ASTM E1384 interfaces.
