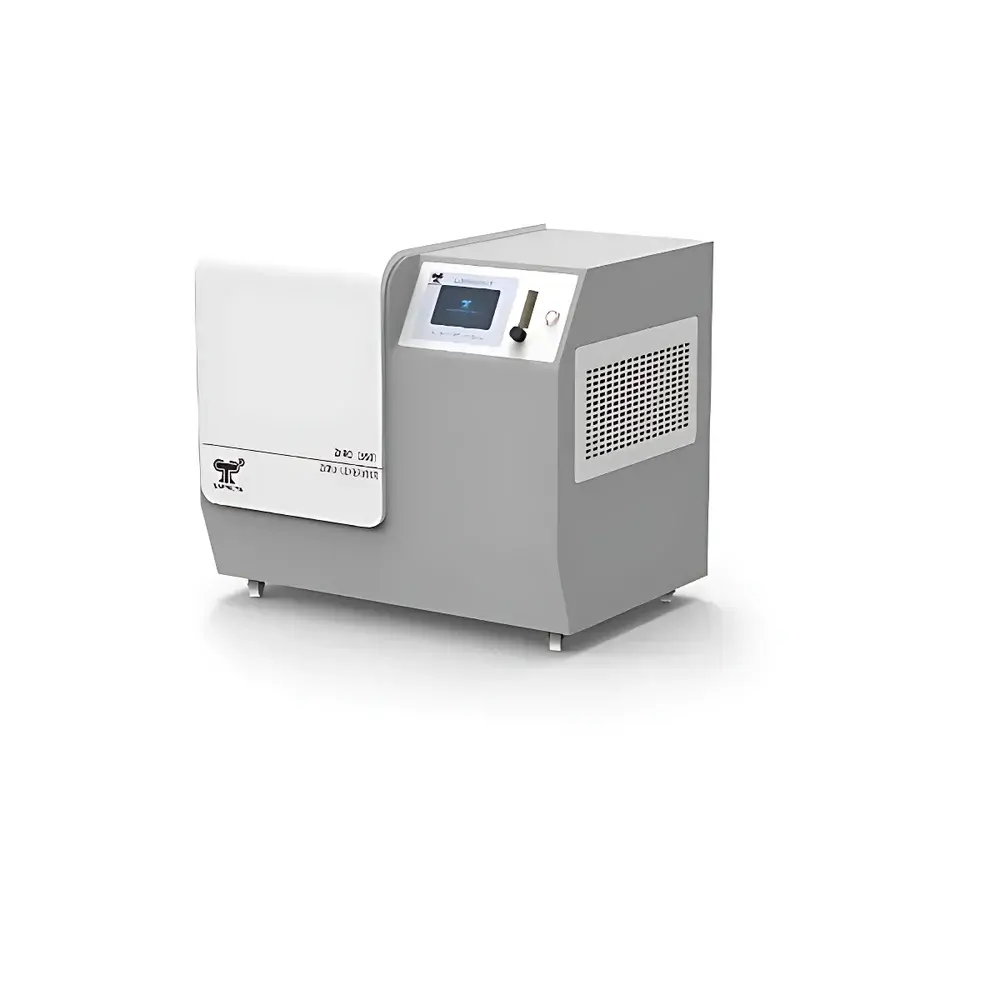

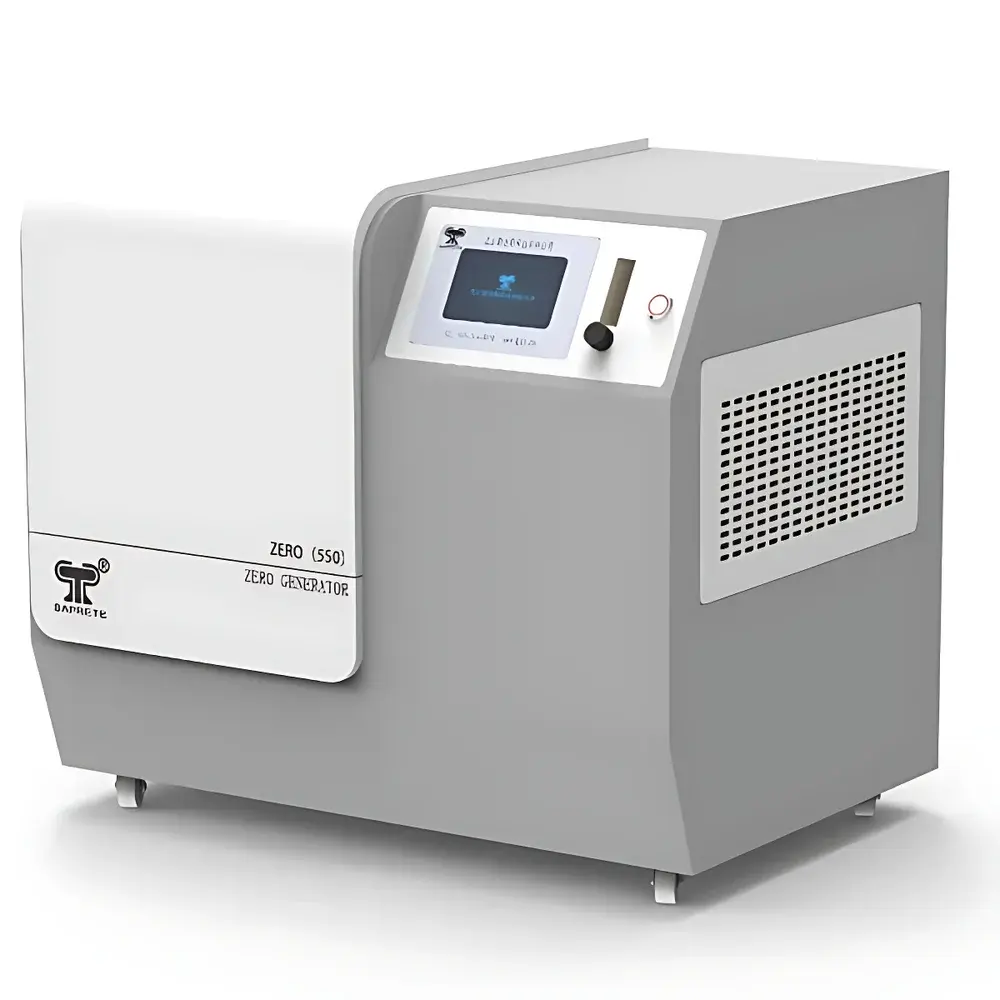

Saprete ZERO-550 Zero-Air Generator
| Brand | Saprete |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |
| Model | ZERO-550 |
| Hydrocarbon Removal Principle | High-Temperature Catalytic Cracking |
| Output Flow Rate | 2000 mL/min |
| Output Pressure Range | 0–0.6 MPa |
| Total Hydrocarbon Content (as methane) | <100 ppm |
| Dew Point | −55 °C |
Overview
The Saprete ZERO-550 Zero-Air Generator is an engineered solution for laboratories requiring ultra-purified compressed air as a carrier or combustion gas in analytical instrumentation. Designed around high-temperature catalytic cracking technology, the ZERO-550 actively decomposes ambient hydrocarbons—including methane, ethane, and other volatile organic compounds—into CO₂ and H₂O over a proprietary noble-metal catalyst bed operating at sustained temperatures above 400 °C. This principle ensures consistent removal of non-methane hydrocarbons (NMHC) to sub-ppm levels, meeting the stringent air purity specifications required by gas chromatography (GC), GC–MS, flame ionization detectors (FID), and nitrogen–phosphorus detectors (NPD). Unlike passive filtration systems, the catalytic architecture delivers stable performance independent of inlet air quality fluctuations, provided input hydrocarbon concentration remains below 100 ppm (as methane). Integrated oil-free diaphragm compression eliminates lubricant contamination risk, while the −55 °C dew point guarantees moisture suppression compliant with ISO 8573-1 Class 2.2.1 requirements for compressed air used in precision analytical environments.
Key Features
- Onboard oil-free diaphragm compressor enabling fully self-contained operation—no external air supply required
- Dual-stage purification: particulate/moisture pre-filtration followed by high-efficiency catalytic hydrocarbon destruction
- Stable output flow adjustable from 0 to 2000 mL/min (calibrated at standard temperature and pressure: 25 °C, 101.3 kPa)
- Regulated output pressure range of 0–0.6 MPa with integrated pressure relief and safety cutoff
- Real-time thermal monitoring of catalyst bed temperature to ensure optimal reaction kinetics and longevity

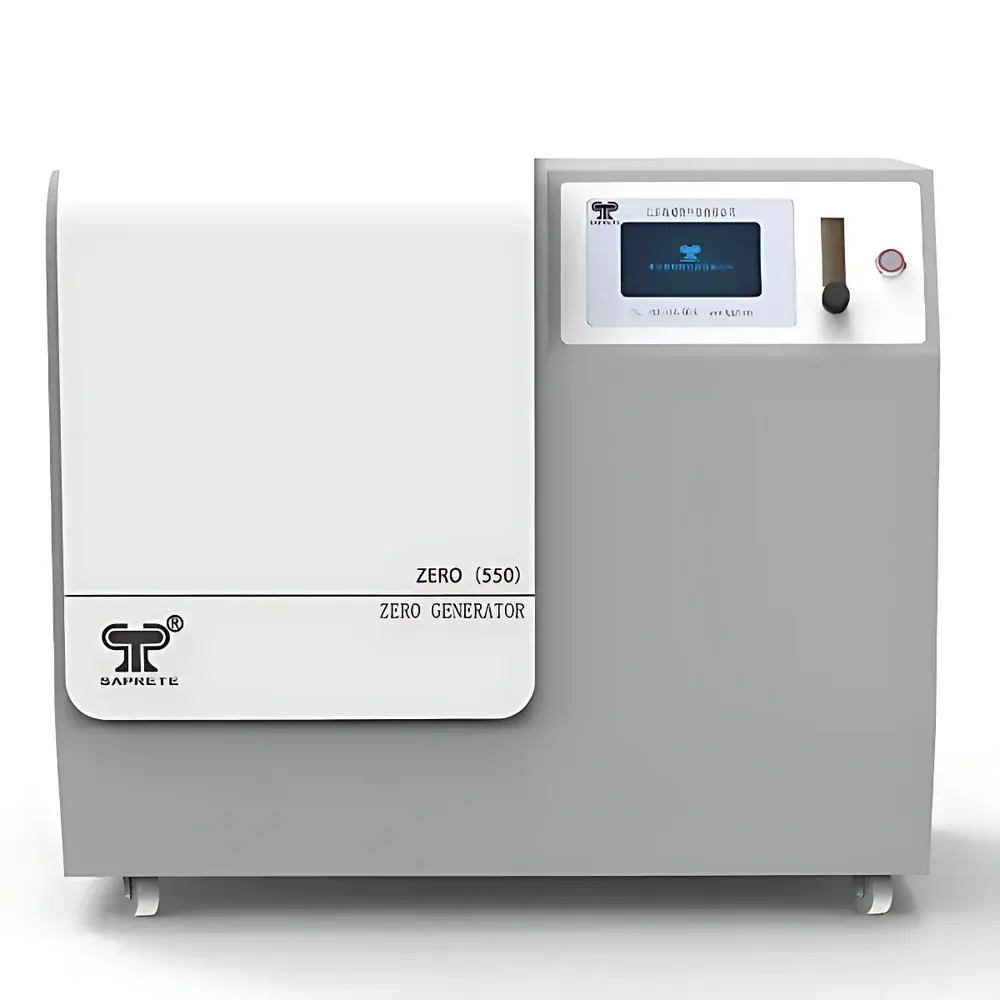

- Front-panel digital display showing operational status, flow rate, pressure, and system temperature
- Low power consumption (≤800 W) and silent operation (<55 dB[A] at 1 m) suitable for benchtop deployment in shared lab spaces
Sample Compatibility & Compliance
The ZERO-550 delivers air meeting ASTM D6216-22 Grade A specifications for zero-air used in ambient air monitoring and laboratory calibration. Its certified hydrocarbon residual level (<100 ppm as methane at inlet; <0.05 ppm as methane at outlet per internal validation protocol) supports compliance with EPA Method TO-15, ISO 16000-6, and USP for GC system qualification. The unit conforms to IEC 61010-1:2010 for electrical safety in laboratory equipment and includes CE marking for EMC and LVD directives. All wetted materials—including stainless-steel gas pathways, fluoropolymer seals, and alumina-based catalyst supports—are inert to common solvents and compatible with GLP/GMP documentation workflows.
Software & Data Management
While the ZERO-550 operates as a stand-alone hardware platform without embedded firmware or network connectivity, it is fully compatible with third-party laboratory information management systems (LIMS) via analog 0–5 VDC or 4–20 mA process signals (optional interface module available). Internal logging of runtime hours, catalyst thermal cycles, and pressure/flow deviations supports preventive maintenance scheduling aligned with ISO/IEC 17025 Clause 6.4.2. Audit trails for service events—including filter replacement dates and catalyst regeneration records—can be maintained manually in accordance with FDA 21 CFR Part 11 requirements when paired with validated electronic notebooks.
Applications
- Carrier and detector gases for gas chromatography systems (FID, NPD, TCD, ECD)
- Calibration gas dilution in environmental air quality analyzers (e.g., ozone, NOₓ, SO₂ monitors)
- Zero-air blanks in trace VOC analysis per EPA Methods TO-14A and TO-15
- Instrument purge gas for FTIR, PTR-MS, and cavity ring-down spectrometers
- Reference air supply in cleanroom particle counters and aerosol measurement systems
- Support gas for plasma cleaning and surface activation in materials science labs
FAQ
Does the ZERO-550 require external compressed air?
No—the unit integrates an oil-free diaphragm compressor and operates autonomously from ambient air intake.
What is the expected catalyst lifetime under normal use?
With inlet hydrocarbon levels ≤100 ppm and continuous operation at rated flow, the catalytic bed maintains specified performance for ≥12,000 hours (approx. 18 months at 24/7 duty cycle), per manufacturer accelerated aging data.
Can output flow be adjusted during operation?
Yes—smooth, stepless flow control is achieved via front-panel needle valve with integrated mass flow indication.
Is the dew point verified per ISO 8573-1?
Yes—the −55 °C dew point is measured using chilled-mirror hygrometry and certified traceable to NIST standards.
Are replacement filters and catalyst cartridges available as consumables?
Yes—Saprete supplies OEM-certified pre-filters (part #ZF-PRF-01), coalescing filters (ZF-COL-02), and catalyst modules (ZF-CAT-550) with documented lot-specific performance certificates.
