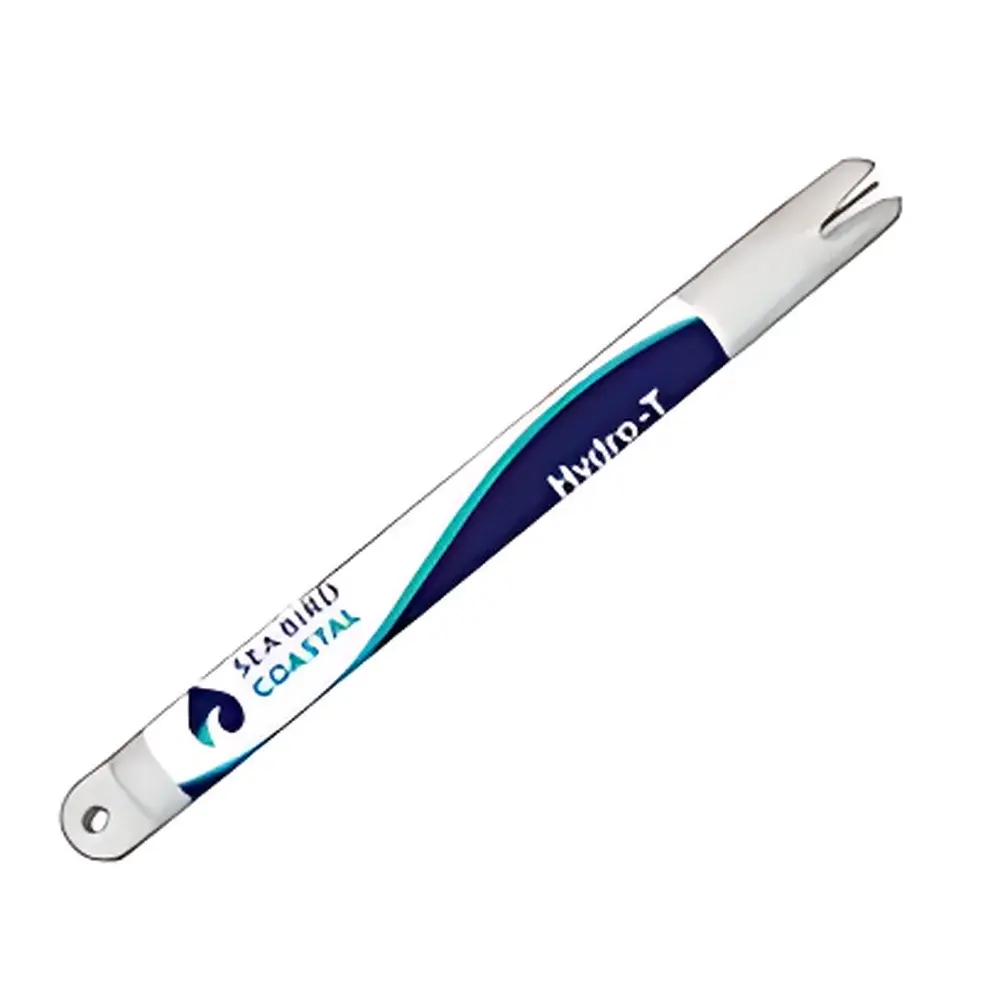

SBE Sea-Bird Coastal Hydro-T Temperature Logger

Overview

The SBE Sea-Bird Coastal Hydro-T Temperature Logger is a rigorously engineered, autonomous submersible instrument designed for high-fidelity, long-term in situ temperature monitoring in marine, estuarine, lacustrine, and fluvial environments. Built upon Sea-Bird Scientific’s decades of expertise in oceanographic sensor design—particularly its foundational work in CTD (Conductivity-Temperature-Depth) systems—the Hydro-T employs a high-stability thermistor-based sensing architecture compliant with the physical principles of thermal resistance measurement. Its core function is continuous, unattended temperature logging with metrological traceability to the U.S. National Institute of Standards and Technology (NIST). The device operates independently after deployment, requiring no external power or data telemetry infrastructure, making it ideal for remote, low-maintenance observational networks where logistical access is constrained.

Key Features

• NIST-traceable 11-point factory calibration: Each Hydro-T undergoes individual calibration across its full operational range (–5 to 45 °C) in Sea-Bird’s ISO/IEC 17025-accredited thermal calibration facility, ensuring documented uncertainty budgets and compliance with international metrological standards.
• Exceptional long-term stability: Achieves typical drift of <0.002 °C per year—validated through accelerated aging tests and multi-year field deployments—enabling extended calibration intervals; users requiring ±0.01 °C total uncertainty may operate the instrument for up to five years without recalibration.
• High-resolution data acquisition: Delivers 0.0001 °C resolution with initial accuracy of ±0.002 °C, supporting detection of subtle thermal anomalies critical in limnological and coastal process studies.
• Robust, deep-rated housing: Constructed from corrosion-resistant engineering polymer rated to 1500 m (4900 ft) depth, suitable for deployment in dynamic nearshore zones, reservoirs, rivers, and deep lakes without pressure-compensation hardware.
• Optimized energy efficiency: Powered by a single Saft LS14500 lithium thionyl chloride battery (3.6 V, hazard-free), supporting >15.9 million sample storage capacity and deployment durations exceeding two years at 15-second sampling intervals.
• Plug-and-play data retrieval: Integrated USB 2.0 interface (cable included) enables direct connection to Windows/macOS/Linux systems; data exports automatically in °C with embedded timestamps and metadata in ASCII CSV format for seamless integration into QA/QC workflows.

Sample Compatibility & Compliance

The Hydro-T is compatible with all natural aqueous media—including seawater, brackish estuaries, freshwater lakes, reservoirs, rivers, and streams—without fouling-sensitive optical components or moving parts. Its solid-state thermistor design eliminates hysteresis and minimizes biofouling impact on thermal response time. The instrument complies with ASTM D5128–22 (Standard Guide for In Situ Monitoring of Water Temperature) and supports adherence to ISO 10523:2022 (Water quality — Determination of pH) and ISO 7888:2012 (Water quality — Determination of electrical conductivity) when used as part of multi-parameter monitoring campaigns. Data integrity meets GLP and GMP-aligned audit requirements, including timestamp traceability and immutable storage—fully compatible with FDA 21 CFR Part 11–compliant data management platforms when paired with validated software protocols.

Software & Data Management

Data extraction is performed via Sea-Bird’s free, platform-independent Hydro-T Utility software (v3.2+), which provides automated file parsing, time-series visualization, and metadata annotation (e.g., deployment/recovery dates, location, operator ID). Raw output conforms to FAIR (Findable, Accessible, Interoperable, Reusable) data principles: each record includes sample number, elapsed time, absolute UTC timestamp (corrected for clock drift), and calibrated temperature value. Export formats include CSV, MATLAB .mat, and NetCDF 4—enabling direct ingestion into Python (Pandas/Xarray), R (tidyverse), or GIS platforms (QGIS/ArcGIS) for spatiotemporal analysis. No proprietary drivers or cloud dependencies are required; all operations occur locally, preserving data sovereignty and enabling offline processing in resource-limited field stations.

Applications

• Long-term thermal stratification profiling in lakes and reservoirs for climate change impact assessment
• Estuarine mixing zone characterization and salinity-temperature coupling studies
• Groundwater discharge detection via thermal anomaly mapping in coastal aquifers
• Regulatory compliance monitoring under EPA Clean Water Act Section 304(h) and EU WFD Annex V
• Calibration reference for co-deployed multiparameter sondes (e.g., YSI EXO, Hydrolab MS5)
• Baseline temperature logging prior to and during environmental remediation projects
• Validation of satellite-derived sea surface temperature (SST) products in coastal validation sites

FAQ

Is the Hydro-T suitable for use in ice-covered freshwater systems?
Yes—its operational range extends to –5 °C, and the housing is rated for mechanical impact resistance consistent with seasonal freeze-thaw cycles in boreal and alpine lakes.
Can the sampling interval be reprogrammed post-deployment?
No—the Hydro-T is a fixed-interval logger; sampling rate must be configured prior to deployment using the Hydro-T Utility software.
Does the instrument support pressure or conductivity measurements?
No—Hydro-T is a dedicated temperature-only logger. For integrated T/C/P measurements, consider the SBE 37-SMP-ODO or SBE 19plus V2 CTD.
What is the recommended procedure for verifying field performance between calibrations?
Users may perform a two-point verification using NIST-traceable reference baths at 10 °C and 25 °C; deviation beyond ±0.005 °C warrants factory recalibration.
Is firmware upgrade capability available?
Firmware updates are provided exclusively by Sea-Bird Scientific and require pre-deployment application; no field-upgrade functionality is supported to preserve measurement integrity and regulatory compliance.
