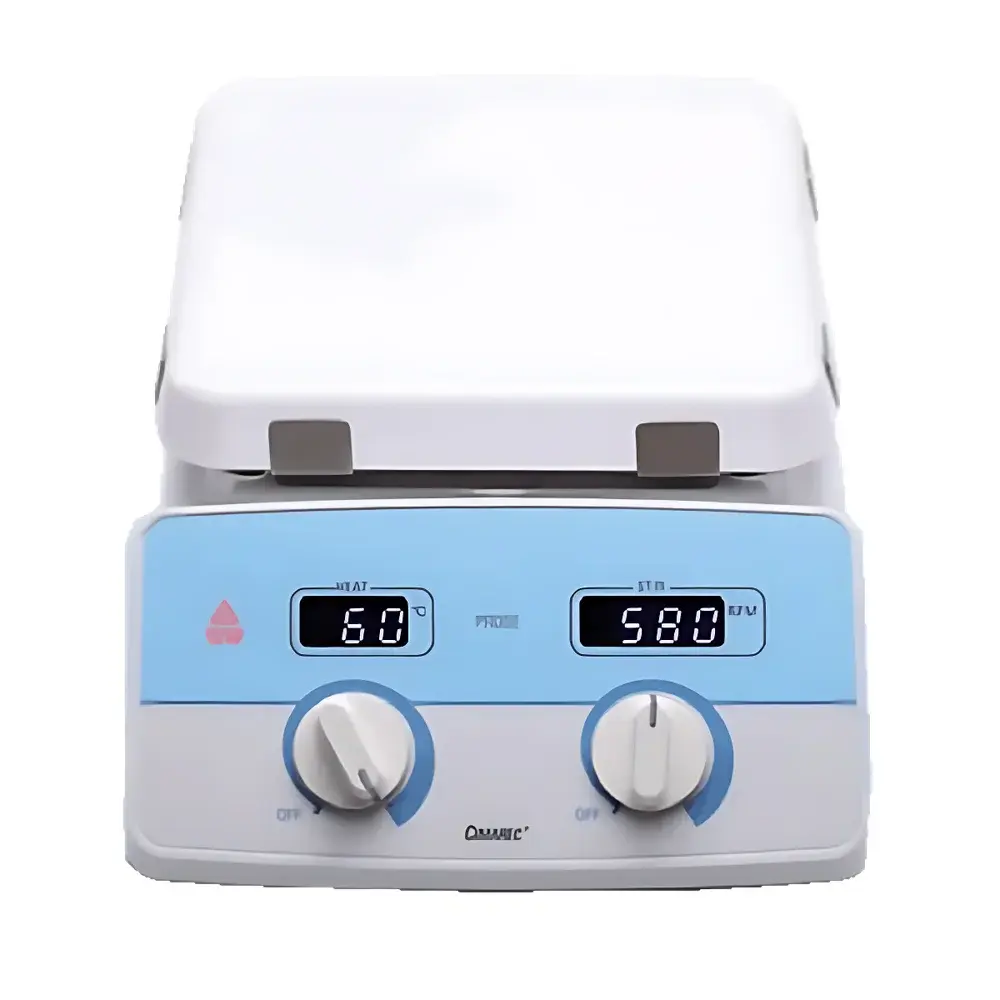

SDL Atlas D441 Ceramic Hotplate Stirrer
| Brand | SDL Atlas |
|---|---|
| Origin | USA |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Origin Category | Imported |
| Model | D441 |
| Pricing | Available Upon Request |
Overview
The SDL Atlas D441 Ceramic Hotplate Stirrer is an engineered laboratory-grade thermal and mechanical processing platform designed specifically for demanding textile dyeing, printing, and colorfastness testing protocols. It integrates precise resistive heating with robust magnetic stirring in a single compact unit, enabling controlled, reproducible sample conditioning under elevated temperatures—critical for simulating industrial dye bath kinetics, leveling agent efficacy trials, and reactive dye fixation studies. The device operates on the principle of electromagnetic induction-driven agitation combined with uniform ceramic-surface resistive heating, ensuring minimal thermal gradient across the work surface and consistent rotational torque delivery across the full speed range.
Key Features
- Ceramic-coated aluminum heating plate (18.4 × 18.4 cm) offering excellent chemical resistance, thermal stability up to 540°C, and rapid heat-up/cool-down response—essential for repeated thermal cycling in ISO 105-C06, AATCC 61, and GB/T 3921 test sequences.
- Digital PID temperature control with ±1.5°C accuracy over the full 0–540°C operating range; programmable ramp-hold profiles support multi-step thermal protocols required in reactive dye fixation validation.
- Brushless DC motor-driven magnetic stirring system delivering stable rotation from 50 to 1500 rpm, with automatic speed compensation to maintain setpoint under variable load conditions (e.g., viscous dye baths or high-liquor-ratio samples).
- Integrated safety architecture including over-temperature cut-off, dry-run protection, and auto-shutdown upon lid removal—compliant with IEC 61010-1 requirements for laboratory electrical equipment.
- Ergonomic front-panel interface with dual LED displays for simultaneous real-time monitoring of temperature and stir speed; tactile push-button controls with haptic feedback minimize operational error during glove use in wet lab environments.
Sample Compatibility & Compliance
The D441 accommodates standard textile test vessels—including ISO-compliant stainless steel beakers (250 mL, 500 mL), glass dye pots, and custom PTFE-lined reaction chambers—without interference from magnetic field dispersion. Its flat, inert ceramic surface resists staining from metal-complex dyes, acid mordants, and alkaline reducing agents commonly used in vat and sulfur dye systems. The instrument meets essential regulatory benchmarks for textile testing laboratories: it supports GLP-aligned operation through traceable calibration logs, is compatible with ASTM D2062 (yarn twist measurement prep), ISO 105-X12 (rubbing fastness sample conditioning), and AATCC TM16 (lightfastness specimen pre-treatment). While not FDA-certified per se, its construction materials comply with USP Class VI biocompatibility standards for non-invasive contact surfaces.
Software & Data Management
The D441 operates as a standalone analog-digital hybrid instrument and does not require proprietary software for basic operation. However, optional RS-232 or USB-to-serial interface modules enable integration with LIMS or custom LabVIEW-based data acquisition systems for automated logging of temperature/stir profiles. When connected, the unit transmits timestamped ASCII data streams compliant with ASTM E1782-16 (standard practice for recording thermal process parameters). Audit trails—including operator ID, start/stop timestamps, and parameter deviations—can be exported in CSV format to satisfy internal QA documentation or external accreditation audits (e.g., ISO/IEC 17025:2017 Clause 7.7).
Applications
- Standardized dye bath preparation per ISO 105-E01 (color fastness to water) and AATCC 107 (water spotting)
- Controlled heating and mixing during disperse dye sublimation testing (ISO 105-X16)
- Pre-conditioning of fabric specimens prior to crocking, perspiration, or washing fastness assessments
- R&D-scale optimization of pH-sensitive dye systems requiring precise thermal-stirring synergy
- Validation of temperature-dependent migration behavior in pigment printing pastes
FAQ
Is the D441 suitable for use with corrosive dye chemicals such as sodium hydrosulfite or sulfuric acid solutions?
Yes—the ceramic coating exhibits high resistance to acidic, alkaline, and reducing agents typical in textile wet processing; however, prolonged exposure to concentrated HF or molten alkali metals is not recommended.
Can the unit maintain ±0.5°C stability at 200°C during a 6-hour continuous run?
Under nominal load (e.g., 400 mL aqueous bath), the D441 achieves ±1.0°C stability over 6 hours; enhanced stability requires optional external PT100 probe feedback loop integration.
Does the stirrer support compatibility with PTFE-coated stir bars of varying geometries?
Yes—it reliably drives standard oval, cross-shaped, and octagonal PTFE-coated stir bars up to 40 mm in length, provided magnetic coupling remains unobstructed by vessel wall thickness or ferromagnetic shielding.
Is calibration documentation supplied with each unit?
Each D441 ships with a factory-issued calibration certificate traceable to NIST standards for both temperature sensor and tachometric output, valid for 12 months from date of shipment.
