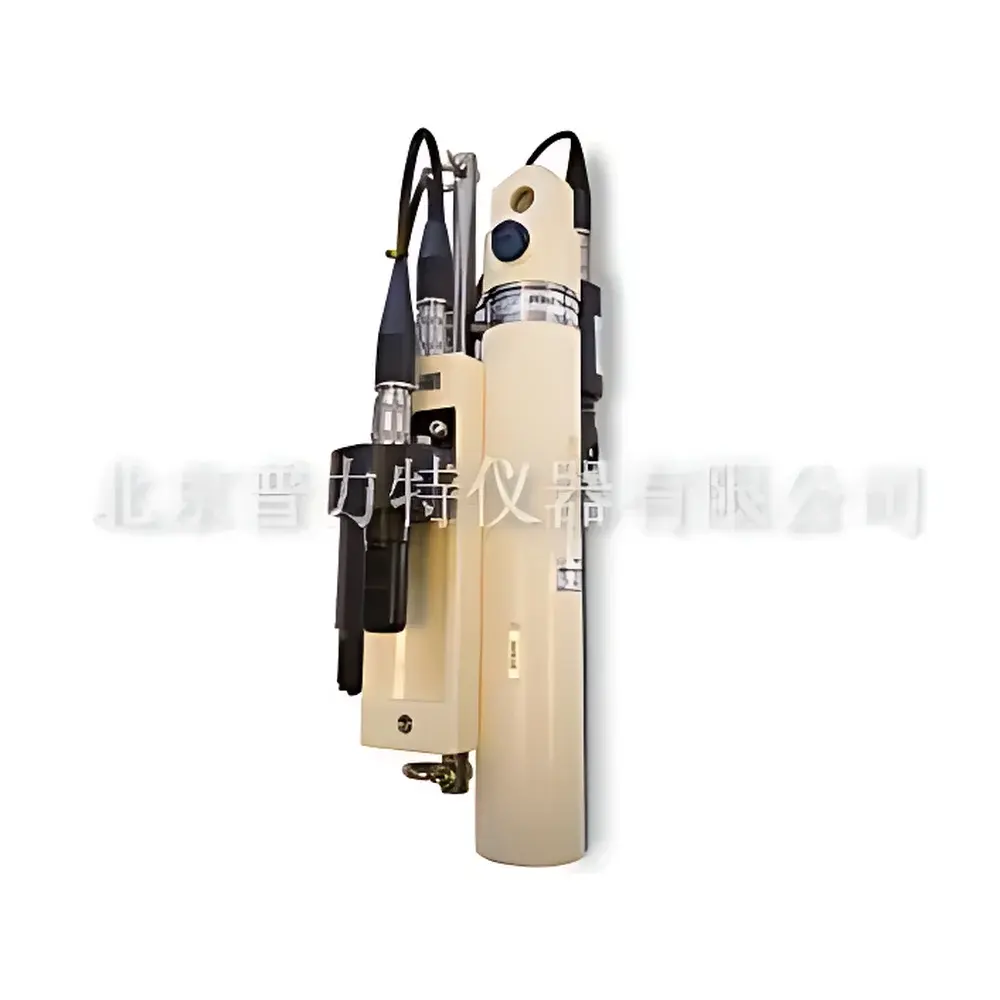

Sea-Bird Scientific SD204 CTD Profiler

Overview

The Sea-Bird Scientific SD204 CTD Profiler is a high-precision, field-deployable oceanographic instrument engineered for autonomous or shipboard profiling of fundamental seawater properties. Based on the established principles of conductivity–temperature–depth (CTD) measurement, the SD204 determines in situ salinity via calibrated electrical conductivity and temperature measurements, computes sound velocity using the UNESCO International Equation of State of Seawater (EOS-80), and derives potential density (σₜ) through thermodynamic algorithms embedded in the SD200W software. Its pressure sensor—rated to 6000 m—enables accurate depth determination with thermal compensation across the full operational temperature range (−2 °C to +40 °C). Designed for long-term stability in corrosive marine environments, the SD204 integrates hardened electronics within a vacuum-cast polyurethane housing combined with titanium alloy structural components, achieving IP68-rated submersion integrity without O-rings or serviceable seals.

Key Features

• Robust pressure-rated housing: vacuum-cast polyurethane encapsulation with titanium end caps ensures mechanical resilience and corrosion resistance at depths up to 6000 m.
• Auto-ranging optical and electrochemical sensors: optional turbidity (12.5–750 FTU, 4 ranges) and fluorescence (chlorophyll-a: 0.03–150 µg/L; CDOM: equivalent) modules dynamically select optimal gain settings during deployment to preserve signal fidelity across variable water masses.
• High-capacity non-volatile memory: 56,000 data records stored in CMOS static RAM retain calibration coefficients and user-defined protocols—even after power loss—supporting unattended missions lasting months.
• Extended battery life: dual replaceable 3.6 V lithium-ion batteries provide ≥12 months of typical operation (1 Hz sampling), minimizing field logistics and enabling seasonal mooring deployments.
• Magnetic actuation interface: sealed magnetic switch eliminates penetrations, preserving waterproof integrity while allowing intuitive start/stop control via handheld magnet or host PC keyboard command.
• Modular communications architecture: compatible with CU901 telemetry module for satellite, GPRS (with embedded web server), GSM, or UHF/VHF bidirectional remote monitoring and firmware updates.

Sample Compatibility & Compliance

The SD204 is validated for use in seawater, brackish estuaries, and freshwater systems where conductivity exceeds 0.1 mS/cm. Its titanium–polyurethane construction complies with ISO 14644-1 Class 8 cleanroom handling standards during assembly and meets IEC 60529 IP68 for continuous submersion at rated depth. Sensor calibrations follow ASTM D1129 (conductivity), ASTM D888 (dissolved oxygen), and ISO 7027 (turbidity), with traceability to NIST-traceable reference standards. Data acquisition adheres to GLP-compliant audit trails when used with SD200W’s calibrated logging mode, and raw ASCII output supports integration into ISO/IEC 17025-accredited laboratory information management systems (LIMS).

Software & Data Management

SD200W—a native Windows application—provides comprehensive post-processing and real-time visualization capabilities. It imports ASCII-formatted CTD data with embedded units (e.g., mS/cm, ppt, °C, dbar, m/s), automatically computes derived parameters (potential density σₜ, sound speed, T-S diagrams), and generates publication-ready plots with customizable axes, overlays, and annotation layers. The software stores calibration coefficients, sensor configuration files, and mission metadata in encrypted non-volatile memory on the instrument itself—eliminating dependency on external configuration files. Export options include CSV, MATLAB .mat, NetCDF 4, and PDF reports compliant with NOAA/NODC metadata conventions. SD200W supports FDA 21 CFR Part 11–compliant electronic signatures when deployed in regulated environmental monitoring programs.

Applications

• Oceanographic profiling: vertical casts for hydrographic section mapping, mixed-layer depth analysis, and identification of thermocline/halocline interfaces.
• Coastal and estuarine monitoring: tracking salinity intrusion, freshwater plume dispersion, and seasonal stratification dynamics.
• Aquaculture site assessment: real-time validation of temperature-salinity-oxygen envelopes critical for species-specific husbandry protocols.
• Moored observatory nodes: paired with CU901 telemetry for near-real-time transmission of water column structure to shore-based data centers.
• Calibration reference: serving as a primary field standard for validating autonomous platforms (e.g., Argo floats, gliders) and fixed-point sensor networks.
• Environmental impact studies: baseline characterization prior to offshore construction and post-event verification of sediment resuspension or thermal effluent dispersion.

FAQ

What is the maximum certified depth rating for the SD204?
The SD204 is pressure-tested and certified to 6000 meters (600 bar), with thermal compensation applied across its full operating temperature range (−2 °C to +40 °C).
Does the SD204 support real-time data streaming during profiling?
Yes—when connected via RS-232 to a host computer or telemetry module (e.g., CU901), it outputs ASCII data packets at user-selectable intervals from 1 second to 180 minutes, including live curve plotting in SD200W.
How are calibration coefficients preserved during battery replacement or power interruption?
All calibration parameters, instrument configuration, and user-defined profiles reside in non-volatile CMOS memory and remain intact regardless of power state or battery exchange.
Can the SD204 be integrated into existing data telemetry infrastructure?
Absolutely—the CU901 communications module provides standardized TCP/IP, HTTP, and SMS interfaces compatible with most SCADA, IoT cloud platforms (e.g., AWS IoT Core, Azure IoT Hub), and national ocean observing networks.
Is the SD200W software validated for regulatory reporting under EPA or EU WFD requirements?
While SD200W itself is not pre-certified, its ASCII output format, audit-log functionality, and metadata tagging comply with data submission templates required by EPA Method 160.1, EU WFD Annex V, and OSPAR Commission QA/QC guidelines when used with documented calibration and chain-of-custody procedures.
