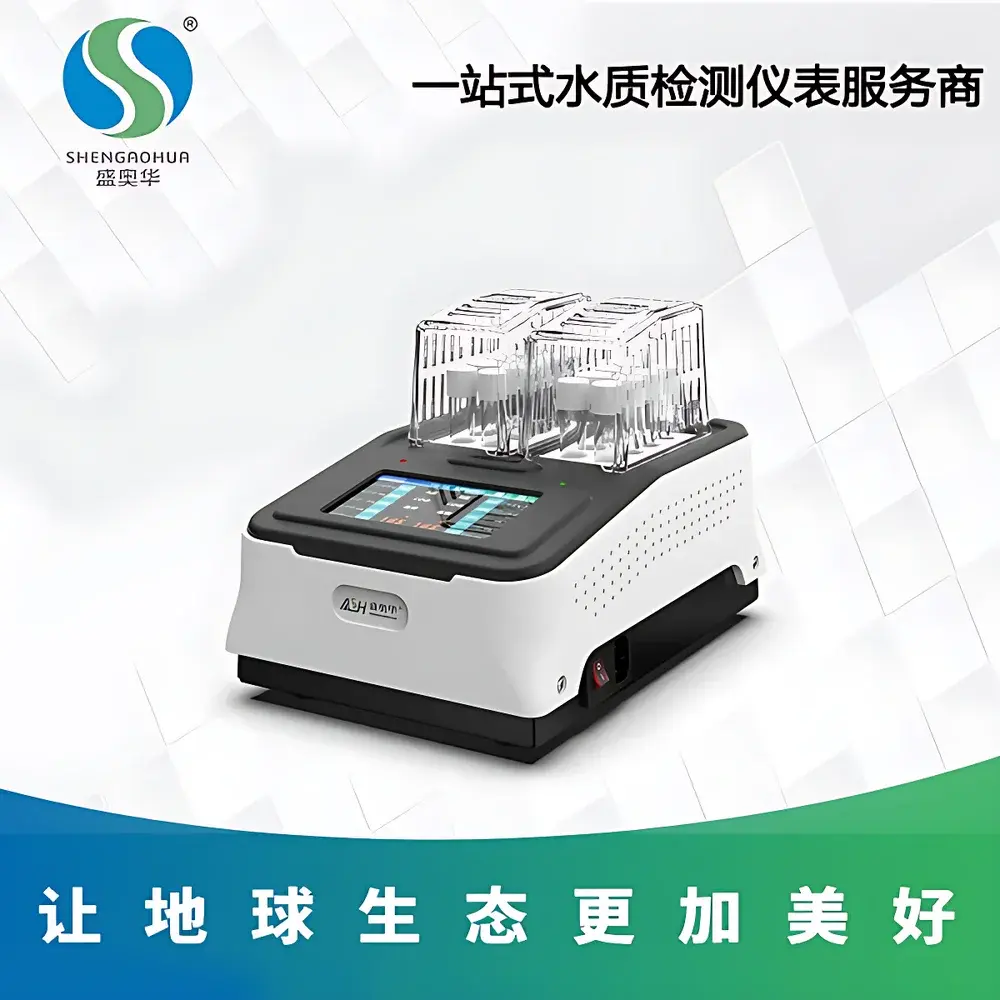

Shengaohua SH-16 Dual-Zone Intelligent COD Digestion Analyzer

Overview

The Shengaohua SH-16 Dual-Zone Intelligent COD Digestion Analyzer is a precision-engineered laboratory instrument designed for rapid, reproducible chemical oxygen demand (COD) sample preparation in accordance with standard methods including ISO 6060, EPA 410.4, and HJ 828–2017. It employs controlled thermal oxidation in acidic potassium dichromate medium under precisely regulated temperature and time conditions to quantify organic pollutant load in aqueous matrices. Unlike single-zone digesters, the SH-16 integrates two thermally isolated heating zones—each independently programmable—enabling simultaneous digestion of samples requiring different thermal protocols (e.g., low-temperature digestion for chloride-rich wastewater and high-temperature digestion for refractory organics). Its modular architecture, combined with adaptive power modulation and airflow-optimized internal geometry, ensures thermal stability, minimal cross-zone interference, and consistent inter-batch repeatability across extended operation cycles.

Key Features

• Independent dual-zone heating system with real-time temperature monitoring per zone, supporting concurrent digestion of heterogeneous sample sets
• 5-inch IPS high-definition capacitive touchscreen with intuitive graphical interface, supporting multilingual menu navigation (English default)
• Preloaded library of 7 standardized digestion profiles aligned with national and international regulatory methods (e.g., 150 °C/120 min for municipal effluent; 165 °C/30 min for industrial discharge)
• 11 user-definable temperature-time profiles with editable ramp rates, hold durations, and cooling logic—stored non-volatile memory retains settings after power loss
• Adaptive heating algorithm dynamically adjusts power output based on tube count and ambient thermal load, maintaining ±0.5 °C accuracy across full 0–16 tube capacity
• Three configurable alarm modes (10 s pulse, 60 s sustained, continuous tone) with visual indicators (breathing LED + on-screen status flag)
• Imported high-stability heating elements embedded in corrosion-resistant aluminum blocks, coupled with magnetic lid interlock for mechanical safety and vapor containment
• Integrated overvoltage and surge protection circuitry compliant with IEC 61000-4-5 transient immunity standards
• Thermally optimized chassis design featuring directional air channels and passive convection pathways—reducing surface temperature rise by >35% versus conventional enclosures

Sample Compatibility & Compliance

The SH-16 accommodates standard 16-mm OD borosilicate glass digestion tubes (15 mL capacity), compatible with both open-reflux and sealed-tube digestion chemistries. Its dual-zone capability supports method-switching without hardware reconfiguration—for example, simultaneous digestion of domestic sewage (150 °C) and electroplating rinse water (180 °C) under parallel QA/QC validation. The instrument meets essential requirements for GLP-compliant laboratories: all temperature/time parameters are digitally logged with timestamped audit trails; firmware enforces write-once parameter locking during active runs to prevent mid-process modification. While not FDA 21 CFR Part 11 certified out-of-the-box, its data export function (via USB 2.0) produces CSV-formatted logs traceable to NIST-traceable reference thermometers used during factory calibration.

Software & Data Management

Operation is fully embedded—no external PC or driver installation required. All user interactions occur via the onboard touchscreen OS, which records each run’s metadata (date/time, zone ID, setpoint, actual profile deviation, completion status) into internal flash memory (≥10,000 cycle endurance). Data export is performed manually via USB-A port; exported files include run ID, operator tag (optional alphanumeric entry), and raw thermal history at 1-second resolution. For integration into LIMS environments, third-party middleware may parse timestamps and deviations for automated QC flagging. Firmware updates are delivered as signed .bin packages validated via SHA-256 checksum prior to installation.

Applications

The SH-16 serves as a core preprocessing tool in environmental testing labs performing routine wastewater characterization, compliance monitoring for discharge permits (e.g., NPDES), and source tracking in watershed management. Its dual-zone functionality is particularly valuable in contract laboratories handling mixed-sample batches from municipal utilities, pharmaceutical manufacturing sites (where solvent residues require higher digestion temperatures), and semiconductor fabs (with high-TDS process waters). Additional use cases include method development for emerging contaminants (e.g., PFAS precursors), validation of alternative oxidants in green chemistry workflows, and educational training in analytical environmental science curricula where comparative thermal kinetics must be demonstrated.

FAQ

Can the SH-16 perform digestion according to ISO 6060 or EPA 410.4?
Yes—the instrument’s preloaded 150 °C/120 min and 165 °C/30 min profiles align with key parameters specified in these standards; final compliance requires verification using certified reference materials and lab-specific validation protocols.
Is it possible to run only one zone while leaving the other idle?
Yes—each zone operates independently; deactivation of either zone does not affect thermal control or power allocation to the active zone.
What maintenance is required to ensure long-term temperature accuracy?
Annual verification with a NIST-traceable RTD probe is recommended; no consumables or recalibration services are required under normal operating conditions.
Does the unit support network connectivity or remote monitoring?
No—it is a standalone instrument with local-only control and USB-based data retrieval; Ethernet or Wi-Fi modules are not available in this model series.
How is tube alignment and thermal uniformity ensured across both zones?
Each heating block features machined recesses with ±0.1 mm positional tolerance; thermal mapping per zone confirms ≤1.2 °C spatial variation across all 8 positions at 185 °C.
