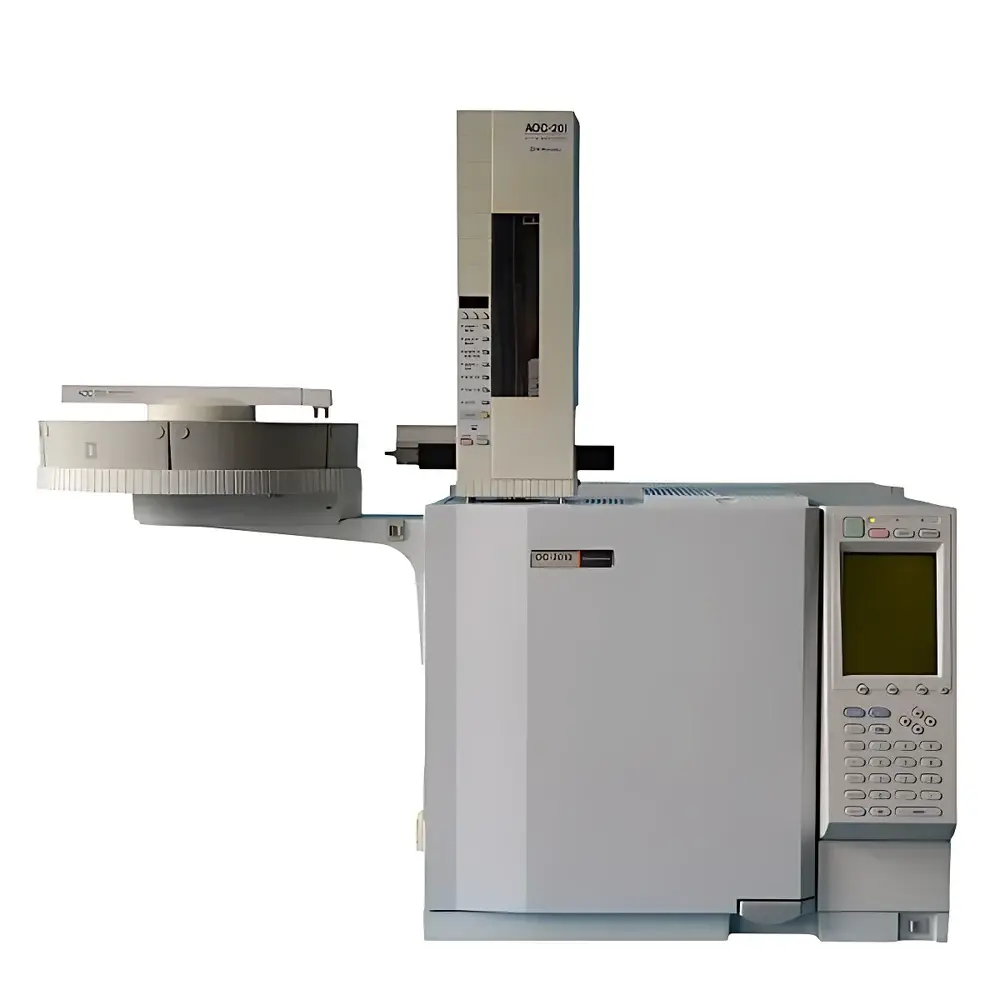

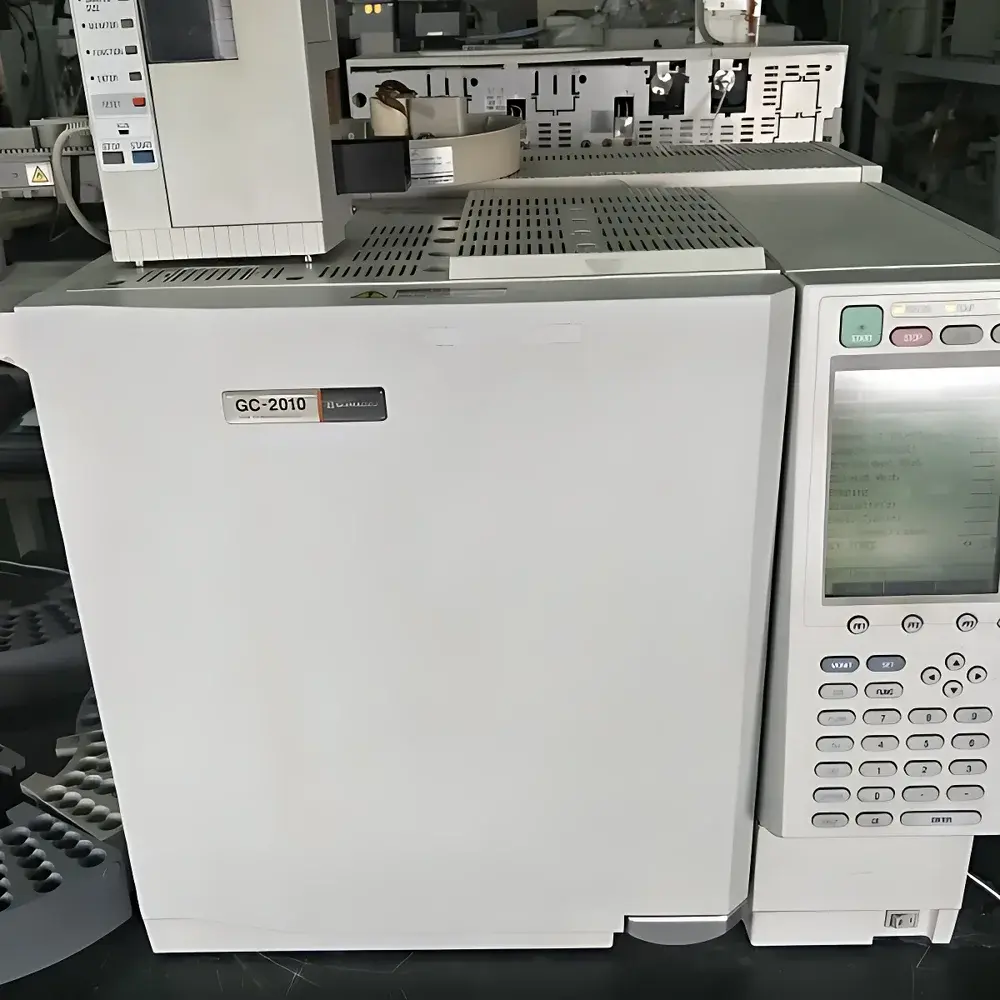

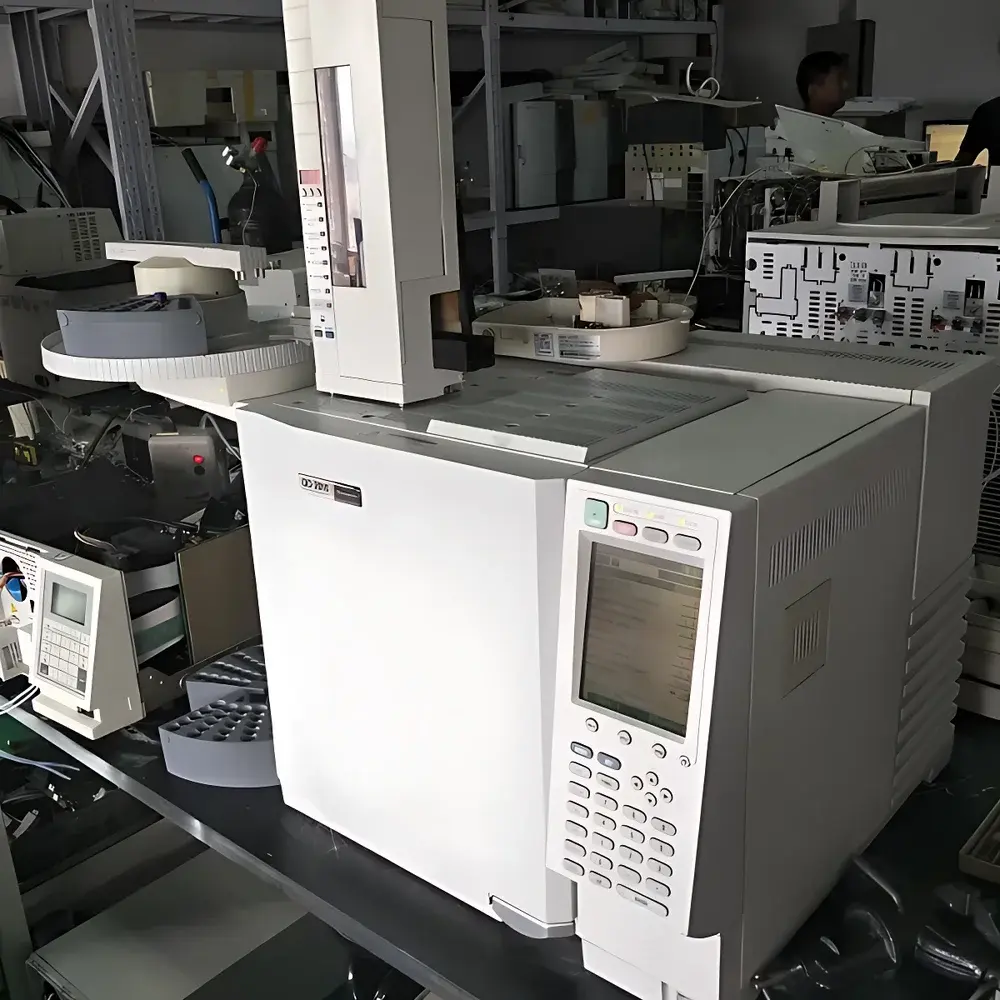

Shimadzu GC-2010 Used Gas Chromatograph

Overview

The Shimadzu GC-2010 is a high-performance, capillary gas chromatograph engineered for precision separation and quantitative analysis of volatile and semi-volatile organic compounds. Based on robust temperature-programmed oven control, split/splitless injection, and flame ionization detection (FID) or optional detectors (e.g., ECD, TCD, NPD), the GC-2010 implements classical gas chromatographic principles—differential partitioning of analytes between a mobile gas phase (carrier gas: He, H₂, or N₂) and a stationary liquid phase coated on fused-silica capillary columns. Its modular architecture supports method transfer from legacy GC systems and ensures compatibility with modern laboratory workflows in regulated environments. Designed and manufactured in Japan, the instrument meets stringent JIS and IEC safety and electromagnetic compatibility standards, and its operational history (2018 build year, 2–3 years of documented laboratory use) reflects stable thermal management, consistent baseline stability, and reliable pneumatic control.

Key Features

• Temperature-controlled oven with ramp rates up to 75 °C/min and operating range from ambient +4 °C to 450 °C, enabling rapid method development and high-boiling-point compound elution.
• Advanced AOC-20i autoinjector with 100-position vial capacity, programmable syringe wash, and precise volume delivery (0.1–100 µL) for reproducible sample introduction.
• Integrated electronic pressure control (EPC) for carrier gas, making flow/pressure parameters digitally settable and highly repeatable across runs.
• Detectors configurable at time of refurbishment: standard FID with linear dynamic range >10⁷ and detection limit <3 pg C/s; optional ECD (for halogenated compounds) or TCD (for permanent gases and light hydrocarbons).
• Front-panel LCD interface with real-time status monitoring, plus full remote operation via GCsolution software (v2.7 or later).
• Refurbished unit includes full functional validation: leak testing, detector sensitivity verification, column oven calibration, and injector liner replacement.

Sample Compatibility & Compliance

The GC-2010 accommodates a broad spectrum of sample matrices—including environmental water extracts, pharmaceutical residual solvents, food flavor volatiles, petrochemical fractions, and polymer degradation products—when paired with appropriate sample preparation (e.g., headspace, SPME, liquid–liquid extraction). All refurbished units undergo traceability documentation per ISO/IEC 17025-aligned procedures. The system supports compliance-critical workflows: data integrity is maintained through GCsolution’s audit-trail-enabled acquisition, user access controls, and electronic signature support aligned with FDA 21 CFR Part 11 requirements. Method validation reports (including retention time reproducibility, peak area RSD 0.999) are provided upon request for GLP or GMP-regulated applications.

Software & Data Management

GCsolution software (licensed, version-matched to hardware firmware) provides comprehensive chromatogram acquisition, integration, reporting, and database archiving. It supports multi-channel data handling (up to four detectors simultaneously), customizable report templates compliant with ISO 17025 reporting clauses, and export to CSV, PDF, or LIMS-compatible XML formats. Raw data files (.gcd) are stored with embedded metadata (instrument ID, operator, date/time, method name), ensuring full traceability. For laboratories implementing electronic lab notebooks (ELN) or enterprise LIMS, GCsolution offers ODBC connectivity and RESTful API extensions (via optional GCsolution Connect module) for automated data ingestion and QC flagging.

Applications

• Environmental analysis: EPA Methods 8021B (halogenated hydrocarbons), 8260D (VOCs in soil/water), and ASTM D3612 (dissolved gases in transformer oil).
• Pharmaceutical quality control: Residual solvent testing per USP , impurity profiling of APIs, and stability-indicating assays.
• Food & flavor chemistry: Quantification of ethanol, esters, aldehydes, and terpenes in beverages, dairy, and essential oils.
• Petrochemical QA/QC: Hydrocarbon group-type analysis (PIONA), gasoline oxygenate determination (MTBE, ETBE), and refinery stream characterization.
• Academic & contract research: Method development for novel stationary phases, kinetic studies of thermal degradation, and coupling with preparative fraction collection.

FAQ

Is the GC-2010 compatible with current Shimadzu consumables and columns?
Yes—the instrument uses standard Shimadzu GC consumables (e.g., glass liners, septa, ferrules, and certified capillary columns such as SH-Rxi-5ms or SH-INNOWAX), all available through global distribution channels.
What documentation accompanies the refurbished unit?
Each system ships with a Certificate of Refurbishment, functional test report, detector sensitivity verification sheet, and updated service logbook covering all replaced components and calibration events.
Can this unit be integrated into a networked laboratory environment?
Yes—equipped with Ethernet (10/100BASE-TX) and USB 2.0 ports, the GC-2010 supports centralized instrument monitoring, remote diagnostics, and scheduled maintenance alerts via LabSolutions Network Manager.
Does the 6-month warranty cover detector performance and column oven calibration?
Yes—the warranty includes labor and parts for all core subsystems: oven heater, EPC modules, detector electronics, injector valve mechanisms, and firmware-related faults.
Are method transfer packages available for legacy Shimadzu GCs (e.g., GC-17A or GC-2014)?
Yes—GCsolution includes built-in method migration tools that auto-convert older .gcm/.gcp files and validate retention time alignment across platforms.
