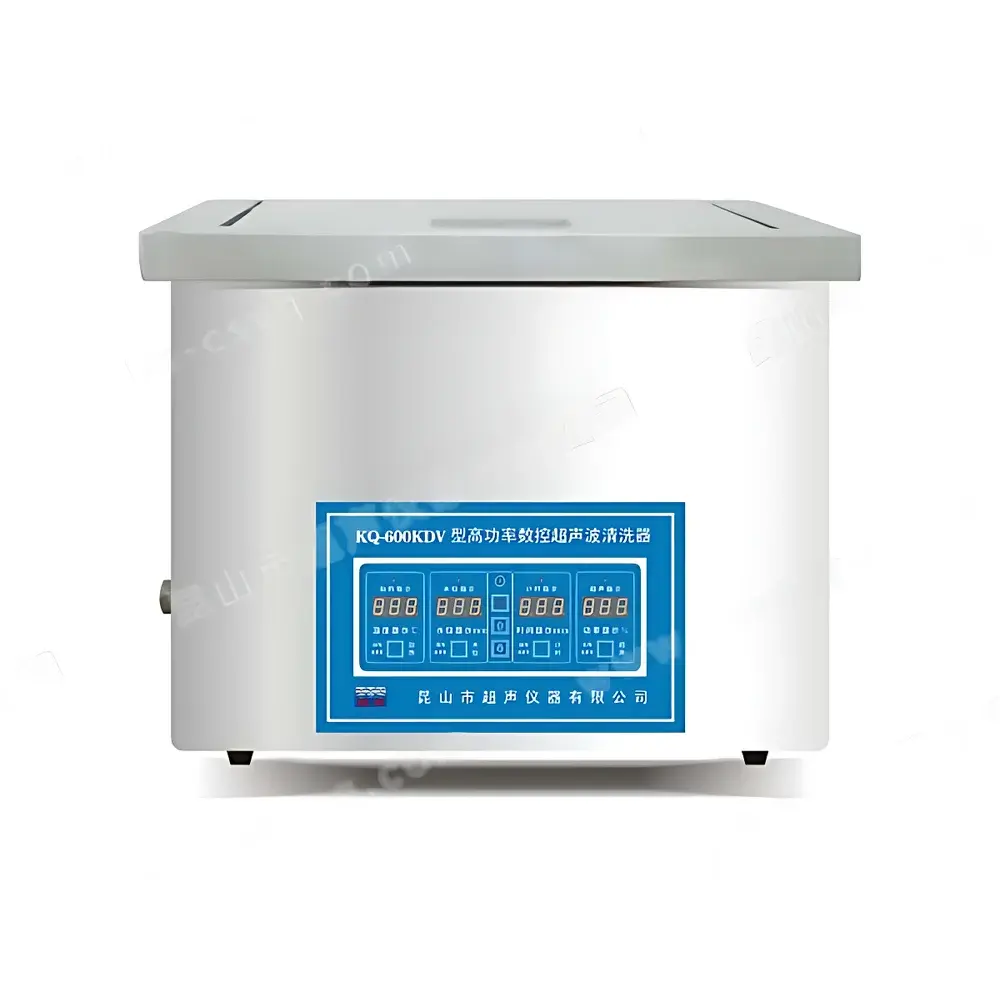

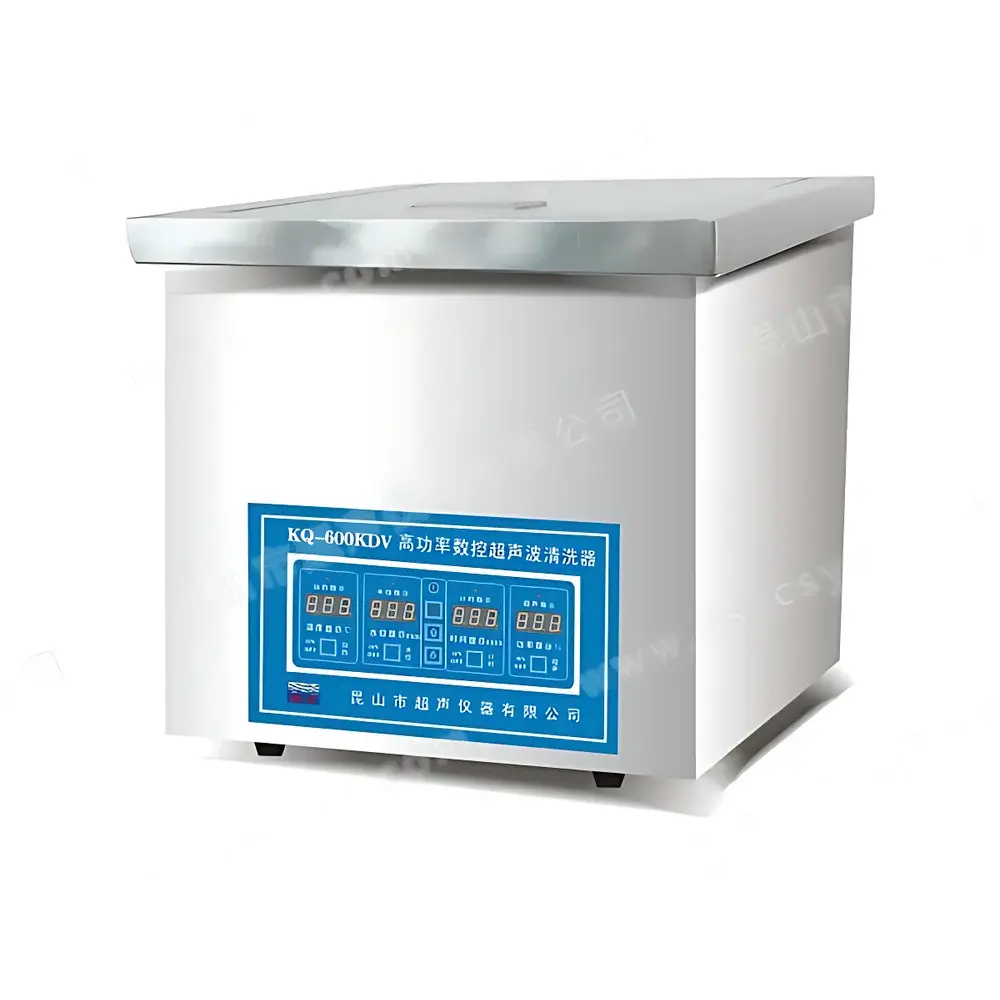

SHUMEI KQ-600KDV Benchtop High-Power Digital Ultrasonic Cleaner

Overview

The SHUMEI KQ-600KDV is a benchtop digital ultrasonic cleaner engineered for precision cleaning of delicate laboratory components, analytical instrumentation parts, optical elements, semiconductor wafers, medical devices, and precision mechanical assemblies. It operates on the principle of cavitation-induced acoustic energy transfer: high-frequency sound waves (40 kHz) generate microscopic vacuum bubbles in the cleaning solvent, which collapse violently upon implosion—releasing localized energy sufficient to dislodge particulate contaminants, organic residues, and thin oxide layers without mechanical abrasion. Unlike analog or fixed-frequency units, the KQ-600KDV integrates automatic frequency sweeping to maintain optimal energy coupling across varying load conditions and solvent compositions, ensuring consistent cleaning efficacy and minimizing standing-wave dead zones. Its robust 304 stainless steel tank construction, sealed acoustic enclosure, and integrated thermal insulation support stable operation during extended cycles under regulated temperature control.

Key Features

• 600 W adjustable ultrasonic output (40–100% stepless control) delivered via high-reliability 100 W/40 kHz piezoelectric transducers mounted directly to the tank bottom
• Digital microprocessor-based control system with real-time display of elapsed time, set temperature, actual temperature, ultrasonic power level, and water level (1–140 mm range)
• Programmable heating from 10 °C to 80 °C using PTC surface-mount heaters, enabling temperature-sensitive cleaning protocols such as enzymatic residue removal or low-volatility solvent stabilization
• Timer programmable from 1 to 480 minutes with auto-shutdown and audible end-of-cycle alert
• Electrically actuated fill-and-drain valves for repeatable, hands-free liquid handling—critical for GMP-aligned cleaning SOPs and multi-batch processing
• Integrated safety architecture: dual thermal cutoffs, current-limiting circuitry, voltage regulation, and real-time low-water detection with visual and audible alarm
• Acoustically optimized stainless steel lid with silicone gasket seal reduces ambient noise by >15 dB(A) and minimizes solvent evaporation during heated operation

Sample Compatibility & Compliance

The KQ-600KDV accommodates a broad spectrum of sample geometries and materials, including glassware (vials, cuvettes, pipette tips), metal components (stainless steel surgical tools, calibration weights), ceramic substrates, and polymer-based microfluidic chips. Its 330 × 300 × 180 mm internal tank volume supports immersion of large-format filters, chromatography columns, and multi-well plates when used with optional rack fixtures. While not certified to ISO 13485 or FDA 21 CFR Part 11 out-of-the-box, its programmable parameters, audit-ready digital logs (via optional RS232/USB interface), and deterministic cleaning cycles align with GLP/GMP documentation requirements for cleaning validation studies. The unit complies with IEC 61000-6-3 (EMC emission standards) and IEC 61010-1 (safety requirements for electrical equipment for measurement, control, and laboratory use).

Software & Data Management

The embedded firmware supports parameter recall and storage of up to 10 user-defined cleaning programs—including combinations of power (%), temperature (°C), duration (min), and ramp profiles. Optional communication modules (RS232 or USB-to-serial adapter) enable integration with LIMS or custom LabVIEW/Python scripts for automated batch logging, timestamped cycle reporting, and CSV export of operational metadata (start time, end time, max temperature reached, fault events). All settings are retained after power cycling; firmware includes write-protected memory for critical calibration offsets and transducer impedance compensation values.

Applications

• Cleaning of HPLC injection needles, GC liners, and mass spectrometry ion sources prior to maintenance
• Preparation of TEM grids and SEM stubs to eliminate hydrocarbon contamination
• Removal of flux residues from PCB assemblies in electronics R&D labs
• Decontamination of reusable surgical instruments in university core facilities
• Surface preparation of titanium implants prior to plasma spraying or biofunctionalization
• Supporting ASTM D2621 (standard test method for ultrasonic cleaning of coated surfaces) and ISO 14001-compliant waste reduction workflows through solvent reuse cycles

FAQ

What is the maximum recommended solvent volume for optimal cavitation performance?
For consistent energy distribution and minimal node formation, the recommended working volume is 10–15 L—within the 13 L nominal capacity and below the 18 L physical limit.
Can the unit operate continuously for 8 hours at full power and 60 °C?
Yes—thermal management, duty-cycle monitoring, and redundant overtemperature protection allow uninterrupted operation within specified limits; however, periodic rest intervals (≥10 min every 4 h) are advised for long-term transducer longevity.
Is the electric fill/drain function compatible with deionized water delivery systems?
Yes—the solenoid valves accept standard 1/4″ BSP threaded connections and are rated for DI water, ethanol, and aqueous alkaline solutions (pH 7–11); avoid use with strong acids or chlorinated solvents unless validated for material compatibility.
Does the unit support external temperature probe input for bath-level temperature verification?
No—temperature sensing is internal only (PT100-grade sensor embedded in tank wall); external probe integration requires third-party PID controller interfacing via analog voltage output (0–5 V) available on optional expansion port.
How frequently should transducer performance be verified?
We recommend quarterly verification using a calibrated hydrophone or calorimetric power meter per ASTM E1000 guidelines; baseline acoustic output mapping should be documented during initial commissioning and after any major maintenance event.
