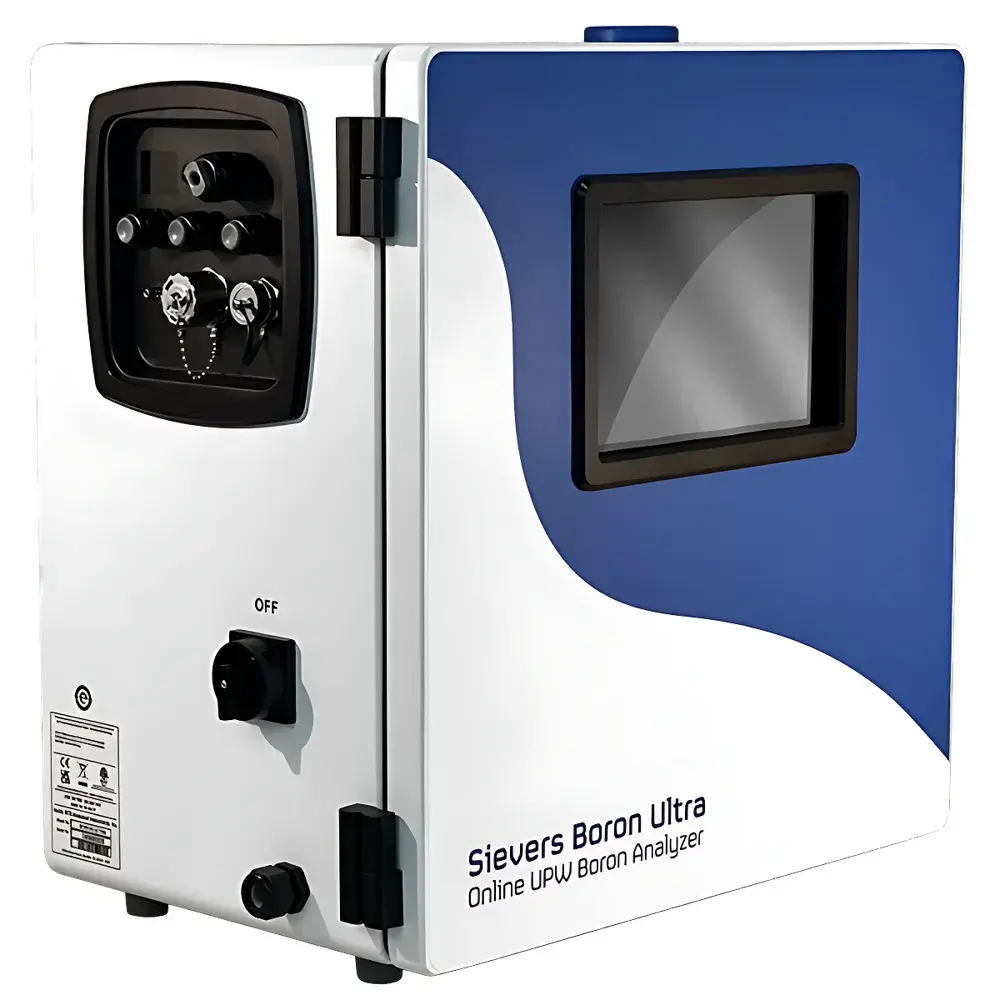

Sievers Boron Ultra Online Ultrapure Water Boron Analyzer

Overview

The Sievers Boron Ultra Online Ultrapure Water Boron Analyzer is a purpose-built, laboratory-grade instrumentation platform engineered for continuous, real-time quantification of boron in ultrapure water (UPW) at sub-ppt (parts-per-quadrillion) detection capability. It employs a proprietary, fully automated colorimetric methodology based on the curcumin complexation reaction—optimized for UPW matrices with rigorous interference suppression, matrix-matched calibration, and integrated reagent delivery. Unlike offline ICP-MS or ion chromatography, the Boron Ultra eliminates sample transport delays, manual preparation errors, and batch-to-batch variability—delivering trace-level boron data with high reproducibility directly within primary and polishing loop environments. Designed in close collaboration with leading semiconductor fabs and UPW system integrators, it meets the stringent analytical demands defined by the International Roadmap for Devices and Systems (IRDS), specifically targeting the 50 ppt boron specification for advanced node fabrication (≤3 nm logic and <10 nm DRAM). Its deployment supports proactive process control strategies aligned with ISO 14644 cleanroom water quality management and ASTM D5127–22 for UPW chemical purity assessment.

Key Features

• Continuous online boron monitoring with detection limit ≤10 ppt and quantitation range of 0–200 ppt (configurable)
• High-frequency sampling: 20 discrete measurements per hour, enabling rapid trend identification and early anomaly detection
• Automated, self-calibrating operation with integrated reagent cartridge system—no daily operator intervention required

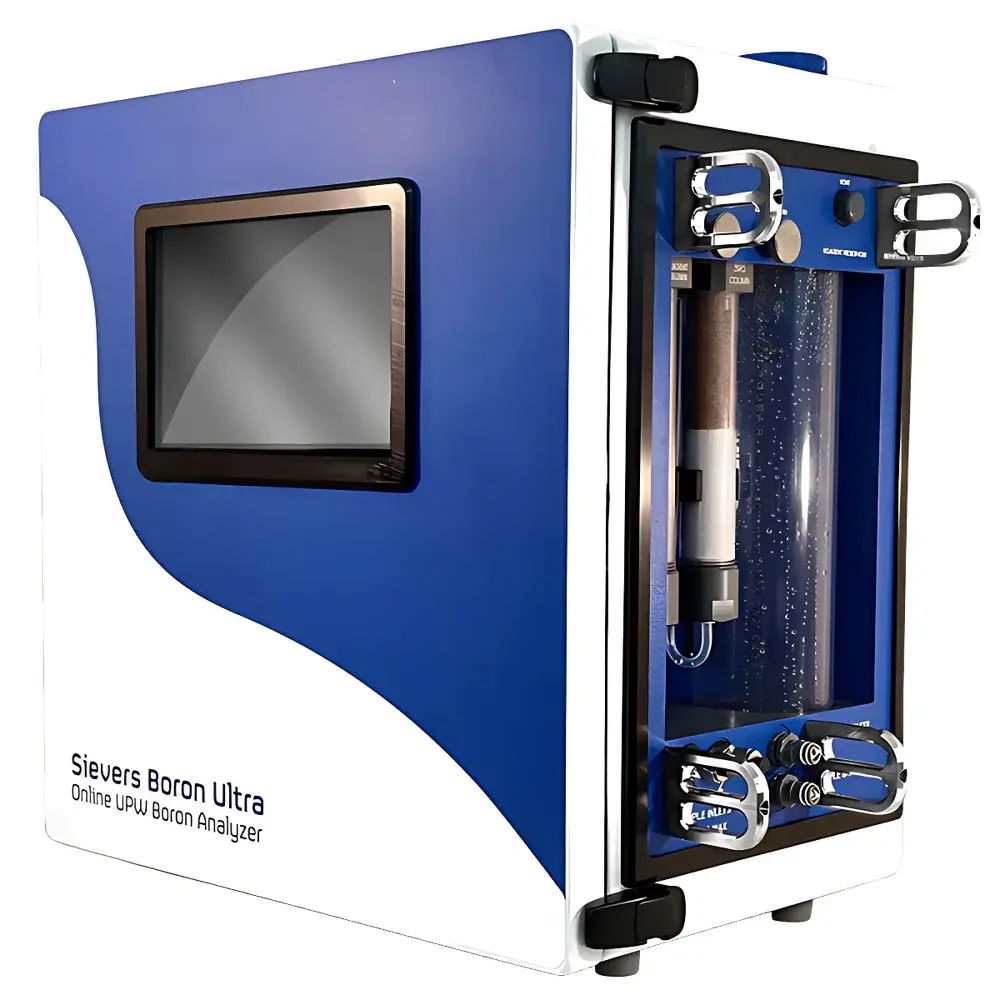

• 10.1-inch industrial-grade capacitive touchscreen display with multi-color LED backlight and intuitive graphical user interface (GUI)
• Dual-stream capability available for simultaneous monitoring of primary and polishing loop streams
• Compliance-ready architecture: CE-marked and UKCA-certified; designed to support GLP/GMP audit trails and FDA 21 CFR Part 11 electronic record requirements
• Minimal consumables: Reagent cartridges rated for ≥30 days of continuous operation; no pumps requiring frequent replacement

Sample Compatibility & Compliance

The Boron Ultra is validated exclusively for use with ultrapure water meeting ASTM D5127 Class E or SEMI F63 specifications (resistivity ≥18.2 MΩ·cm, TOC ≤0.5 ppb, particle count ≤1 particle/mL ≥0.1 µm). It tolerates typical UPW system conditions—including variable flow rates (0.5–2.0 L/min), temperatures (15–35 °C), and pressure fluctuations (up to 6 bar)—without signal drift or carryover. The analyzer conforms to IEC 61000-6-2/6-4 for electromagnetic compatibility and UL 61010-1 for electrical safety. All firmware and data handling protocols are structured to align with semiconductor industry environmental health and safety (EHS) policies and support third-party validation per ISO/IEC 17025 for in-situ measurement systems.

Software & Data Management

Embedded firmware provides local data logging with ≥90 days of high-resolution time-series storage (timestamped to ±100 ms). Communication interfaces include dual isolated 4–20 mA analog outputs (user-configurable for boron concentration or alarm status), two programmable binary outputs (e.g., maintenance alert or out-of-spec flag), two USB 2.0 ports for external diagnostics or backup, and a Gigabit Ethernet port supporting Modbus TCP, OPC UA, and HTTP RESTful API integration into SCADA, MES, or CMMS platforms. Optional cloud-enabled telemetry allows secure remote access via Veolia’s certified cybersecurity framework—fully compliant with NIST SP 800-82 and ISA/IEC 62443-3-3.

Applications

• Real-time prediction of mixed-bed ion exchange (IX) resin exhaustion—enabling scheduled regeneration before breakthrough occurs
• Early warning of silica colloid formation through boron rise preceding SiO₂ leakage (empirically validated across >12 fab deployments)
• Optimization of electro-deionization (EDI) module performance and current density control
• Verification of polishing loop integrity during tool qualification and routine PQ/QA audits
• Supporting IRDS-aligned UPW qualification packages for 3 nm and sub-3 nm node ramp-up programs
• Integration into closed-loop UPW system control architectures for autonomous setpoint adjustment

FAQ

What is the minimum detectable boron concentration in UPW?
The Boron Ultra achieves a method detection limit (MDL) of ≤10 ppt under standard operating conditions, with routine quantitation down to 20 ppt.
Does the analyzer require daily calibration or manual reagent refills?
No—calibration is fully automated using onboard standards; reagent cartridges are replaced every 30–45 days depending on measurement frequency.
Can the Boron Ultra be integrated into existing DCS or MES platforms?
Yes—via native Modbus TCP, OPC UA, or custom REST API endpoints; full integration documentation and driver libraries are provided.
Is the system compliant with pharmaceutical-grade water monitoring requirements?
While optimized for semiconductor UPW, its design principles align with USP , EP 2.2.42, and JP 2.05 for high-purity water; however, formal pharma validation kits are available upon request.
How does boron monitoring compare to silica monitoring for IX bed control?
Boron exhibits earlier and more linear breakthrough kinetics than silica in strong-base anion resins; empirical data shows boron rise precedes measurable silica leakage by up to 72 hours—making it the most predictive indicator of IX exhaustion.
