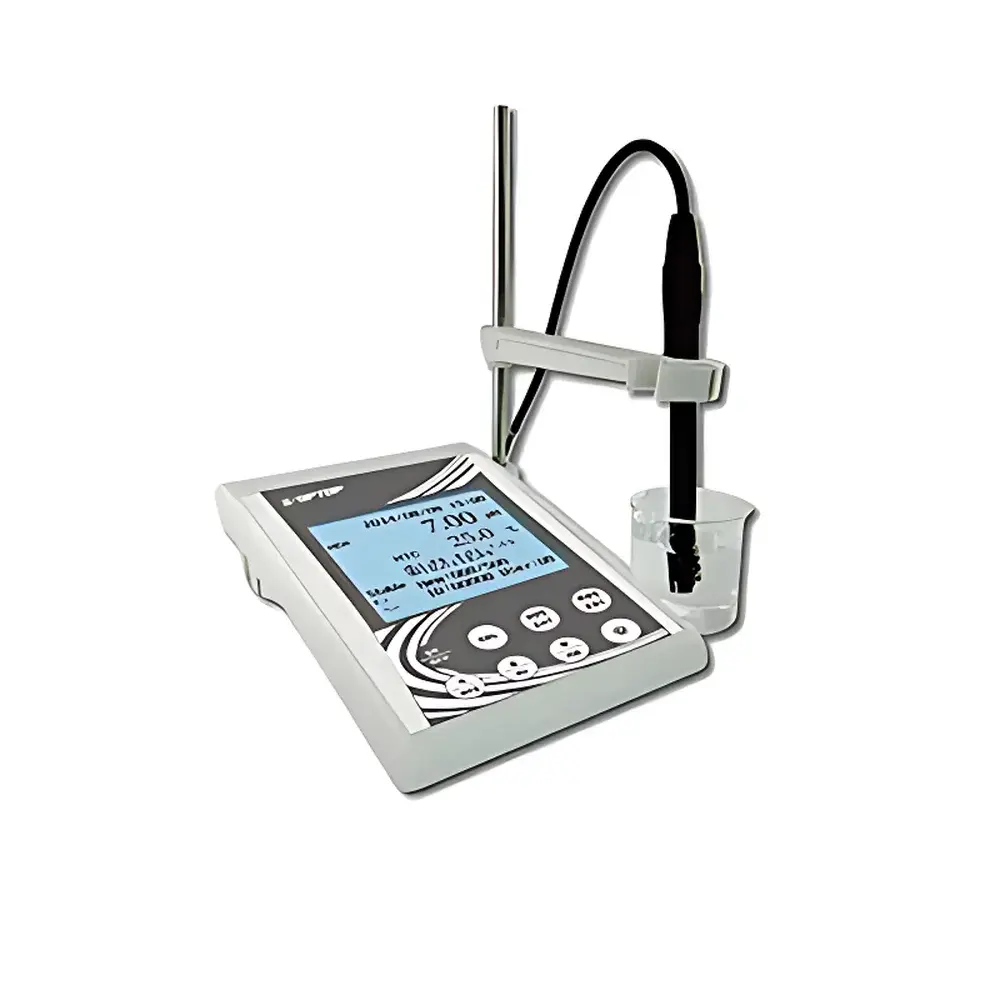

SOP TOP ION6500 Benchtop Ion Meter

Overview

The SOP TOP ION6500 Benchtop Ion Meter is a high-precision, multi-parameter potentiometric analyzer engineered for quantitative ion concentration determination and comprehensive electrochemical characterization in regulated laboratory environments. It operates on the Nernstian principle—measuring the potential difference between an ion-selective electrode (ISE) and a reference electrode under controlled temperature conditions—to deliver trace-level quantification of monovalent and multivalent ions (e.g., F⁻, Cl⁻, NO₃⁻, Ca²⁺, NH₄⁺) across a dynamic range of 0.000–9999 mg/L. Complementing ISE functionality, the instrument integrates high-fidelity pH and redox (mV) measurement capabilities with extended ranges (−2.000–20.000 pH; −2000.0–+2000.0 mV), enabling concurrent acid-base, oxidation-reduction, and ionic strength analysis. Its robust architecture supports routine QC testing, environmental water analysis, pharmaceutical excipient verification, and food & beverage quality control—applications requiring compliance with ISO/IEC 17025, ASTM D1293 (pH of water), ASTM D4192 (fluoride in drinking water), and USP (pH measurement).

Key Features

• Precision potentiometric detection with ±0.001 pH and ±0.005 mg/L ISE accuracy—validated against NIST-traceable standard solutions
• 7-point ISE calibration protocol supporting non-linear response modeling and slope/offset diagnostics for electrode health monitoring
• 5-inch high-contrast LED display with 120° wide-angle viewing and user-configurable backlight intensity for ergonomic operation in variable ambient lighting
• Configurable auto-hold logic with three stability thresholds (Fast/Medium/Strict) to accommodate slow-response electrodes or viscous samples
• Integrated temperature compensation (auto/manual) with ±0.3 °C accuracy and adjustable offset calibration (±5.0 °C) to correct for sensor thermal lag or probe mismatch
• Full parameter timestamping: each stored record includes date/time (configurable format), user ID (2-digit), instrument serial (4-digit), and memory index
• USB-B interface compliant with USB 2.0 specifications—enables direct connection to Windows-based PCs without external power adapters
• Rechargeable 3.7 V Li-ion battery bay (battery not supplied) supporting uninterrupted operation during power fluctuations or mobile deployment

Sample Compatibility & Compliance

The ION6500 accommodates standard BNC-compatible ISEs, combination pH electrodes, and ORP sensors from major manufacturers (e.g., Thermo Orion, Metrohm, Hanna). It supports aqueous, low-conductivity, and mildly turbid samples typical of wastewater effluent, groundwater, pharmaceutical buffers, and dairy processing liquors. All electrical design conforms to IEC 61010-1:2010 for safety in laboratory instrumentation. While the device itself does not carry CE or UKCA marking, its hardware and firmware architecture enable alignment with GLP/GMP workflows when deployed with documented SOPs—including full audit trail generation via included software, password-protected configuration access (4-digit user-defined code), and calibration history retention.

Software & Data Management

The bundled Windows-compatible data acquisition software provides real-time graphing, statistical summary (mean, SD, CV%), export to CSV/Excel, and automated report generation. Each measurement event is time-stamped and associated with operator ID, instrument serial number, and calibration status. The software implements basic 21 CFR Part 11 readiness features: electronic signature prompts, immutable audit logs (with creation/modification timestamps), and user-level permission controls (administrator vs. operator profiles). Raw data files are saved in encrypted binary format with checksum validation to prevent corruption during transfer or long-term archival.

Applications

• Environmental monitoring: Quantification of nitrate, fluoride, and chloride in surface water per EPA Method 300.0 and ISO 10304-1
• Pharmaceutical manufacturing: Verification of residual sodium or potassium in active pharmaceutical ingredients (APIs) per ICH Q5C guidelines
• Food safety labs: Monitoring sodium content in processed meats and dairy products against Codex Alimentarius standards
• Academic research: Teaching potentiometric principles, electrode kinetics, and calibration curve linearity assessment
• Industrial process control: On-site verification of rinse water conductivity and ion leaching in semiconductor cleaning baths

FAQ

Does the ION6500 support differential ISE measurements (e.g., using two identical electrodes)?
No—the instrument is configured for single-reference potentiometry only and does not provide dual-channel voltage differential inputs.
Can calibration data be exported independently of measurement records?
Yes—calibration reports (including slope, offset, R², and standard solution concentrations) are exportable as PDF or CSV via the desktop software.
Is the USB interface compatible with macOS or Linux systems?
The native software is Windows-only (Windows 10/11, 64-bit); however, raw data can be extracted via virtual COM port emulation on macOS/Linux using third-party terminal utilities.
What is the expected lifetime of the internal battery compartment when used with a certified 3.7 V Li-ion cell?
With proper charge cycling (0–100% depth of discharge), the mechanical battery bay maintains reliable contact for ≥500 insertion/removal cycles—consistent with ISO 9001-compliant service life expectations.
Are electrode compatibility adapters (e.g., for DIN-to-BNC conversion) included or available as accessories?
Adapters are not bundled but are available as optional accessories (Part No. ION-ADP-DIN) through authorized SOP TOP distribution partners.
