Spectrum Soilstik Portable Soil pH and Temperature Meter

Overview

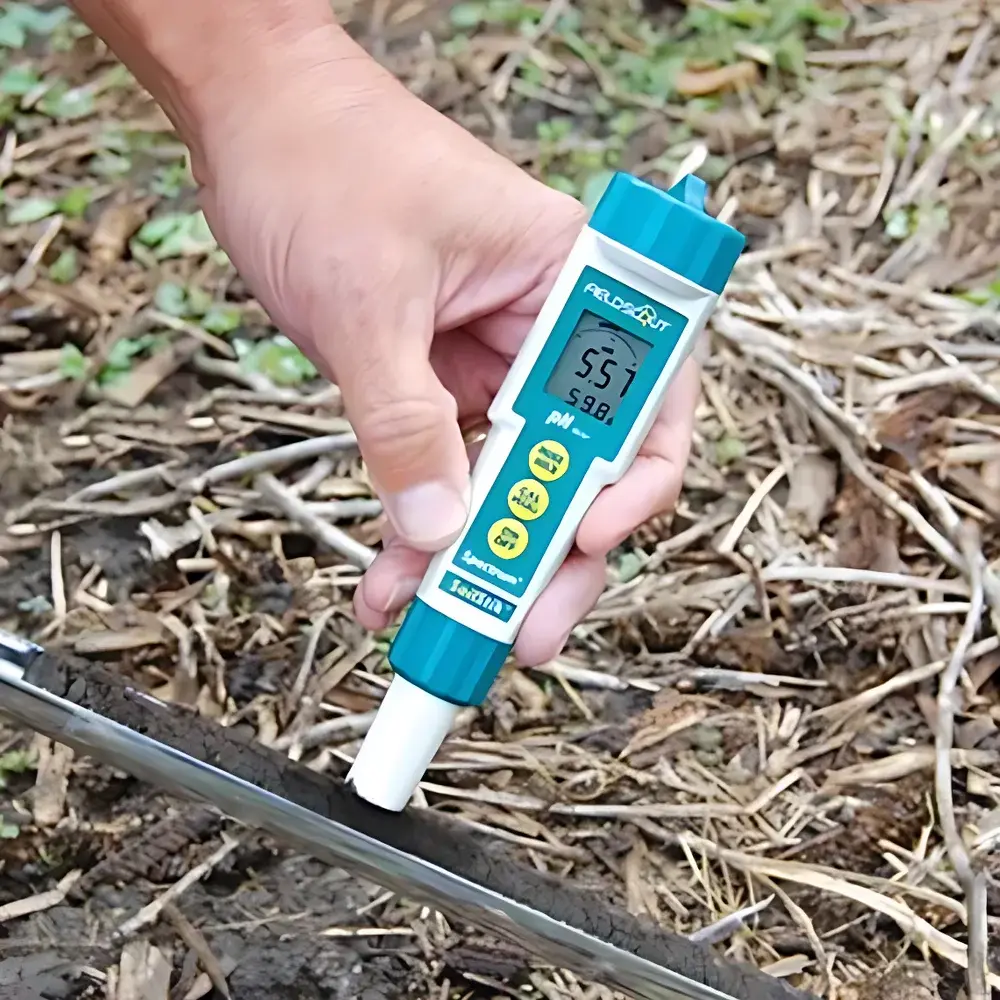

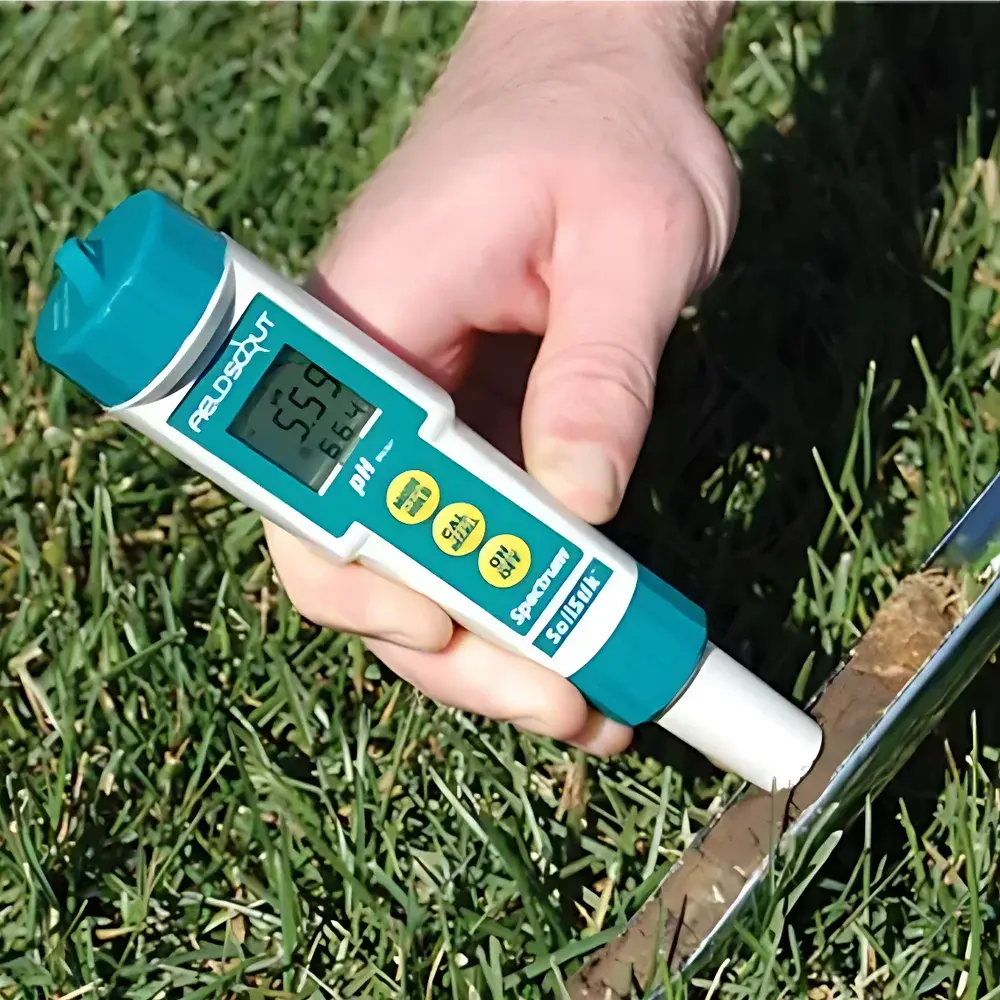

The Spectrum Soilstik Portable Soil pH and Temperature Meter is a field-deployable, handheld electrochemical instrument engineered for rapid, on-site measurement of hydrogen ion activity (pH) and temperature in heterogeneous environmental matrices—including moist soils, sediments, compost, sludge, pastes, and aqueous solutions. It operates on the potentiometric principle: a glass pH electrode generates a millivolt signal proportional to the logarithmic activity of H⁺ ions relative to a stable reference electrode (Ag/AgCl), while an integrated NTC thermistor provides concurrent temperature sensing. Automatic temperature compensation (ATC) ensures pH accuracy across variable field conditions without manual correction. Designed specifically for soil science applications, the Soilstik eliminates the need for sample extraction or dilution in many routine assessments—enabling direct probe insertion into undisturbed or minimally disturbed soil profiles. Its ruggedized construction and sealed electronics meet IP67 ingress protection standards, permitting reliable operation in high-humidity, dusty, or rain-exposed environments typical of agricultural, ecological restoration, and environmental compliance monitoring workflows.

Key Features

• True field-portable form factor: compact dimensions (35.6 × 172.7 × 40.6 mm) and lightweight design (110 g) enable one-handed operation during extended survey work.

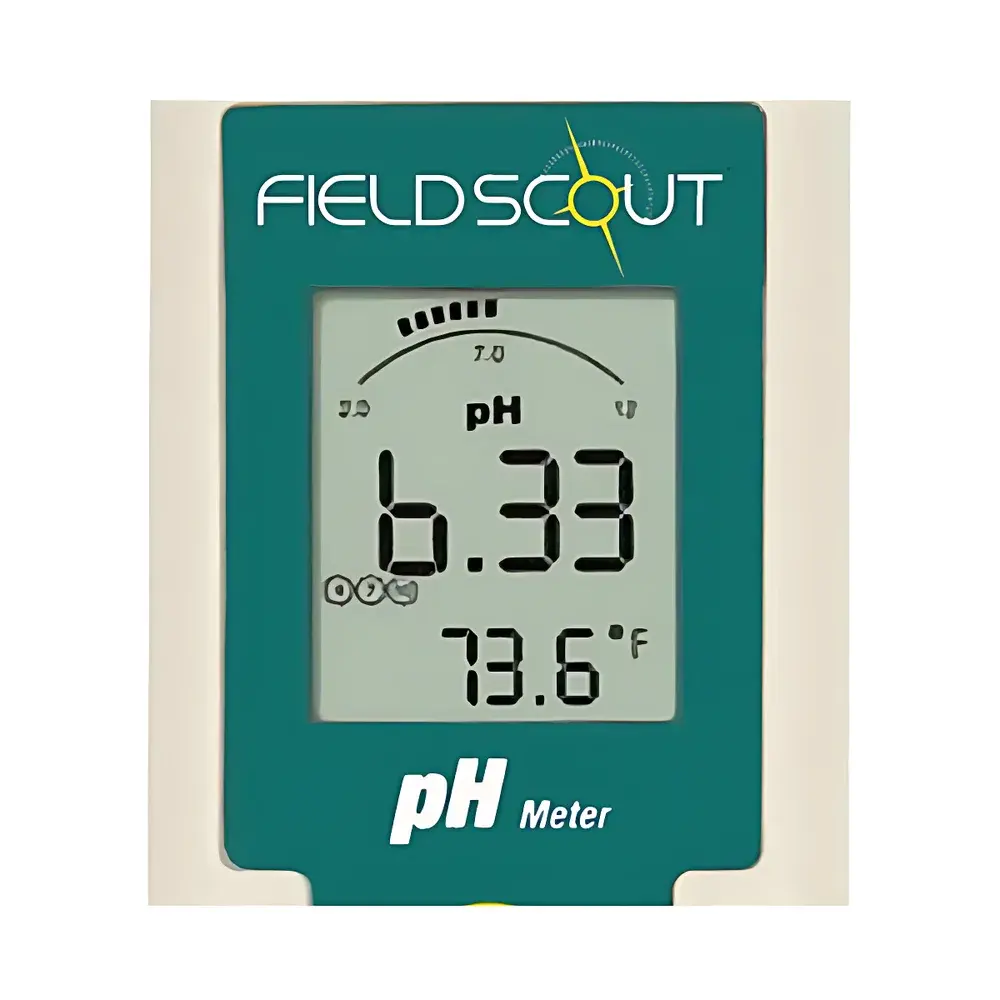

• Simultaneous dual-parameter readout: real-time, side-by-side display of pH (0.00–14.00, resolution 0.01, accuracy ±0.01) and temperature (−5 °C to +90 °C, resolution 0.1 °C in ambient range).
• Intelligent diagnostics: dynamic visual alerts include “BAT” for low battery voltage and flashing “RENEW” when electrode response drift exceeds acceptable thresholds per ASTM D2730 and ISO 10390 calibration stability criteria.
• Two-point calibration protocol compliant with ISO 7888 and USP : supports standard buffers at pH 4.01 and pH 7.00; calibration data retained in non-volatile memory.
• Auto-power management: automatic shutdown after 10 minutes of no button press or measurement activity, extending battery life up to 2,000 hours under typical intermittent use.
• Fully waterproof housing (IP67 rated): withstands immersion in 1 m of water for 30 minutes; resistant to soil particulates, organic residues, and mild chemical exposure common in field sampling.

Sample Compatibility & Compliance

The Soilstik is validated for direct measurement in non-flowing, moisture-retentive media where electrode contact resistance remains within operational limits—primarily mineral and organic soils with ≥15% volumetric water content, compost piles, nursery substrates, and leachate slurries. It is not intended for highly viscous, dry, or electrically insulating materials (e.g., pure sand, ash, or calcined clays) without prior moisture conditioning. The device conforms to IEC 61000-4 electromagnetic compatibility requirements and meets RoHS Directive 2011/65/EU material restrictions. While not certified for GLP or GMP-regulated laboratories, its calibration traceability, ATC functionality, and documented repeatability (≤±0.02 pH over 24 h under controlled conditions) support data integrity in EPA Region 10 field screening protocols and ISO 14001-based environmental management systems.

Software & Data Management

The Soilstik operates as a standalone instrument with no embedded Bluetooth, USB, or cloud connectivity. All measurements are stored locally in volatile RAM (15 reading capacity), viewable via scroll navigation on the LCD. No proprietary software, drivers, or firmware updates are required or supported. Users may manually transcribe readings into LIMS-compatible spreadsheets or GIS-enabled field notebooks. For audit readiness, operators are advised to record calibration dates, buffer lot numbers, and environmental conditions alongside each measurement set—consistent with ISO/IEC 17025 documentation practices for field instruments used in accredited testing.

Applications

• Routine soil health assessment in precision agriculture and viticulture: monitoring pH gradients across vineyard blocks or orchard rows to inform lime application rates.
• Wetland and riparian zone characterization: rapid profiling of sediment pH along transects to identify acid sulfate soil risk zones.
• Composting process control: tracking pH evolution during thermophilic and maturation phases to optimize microbial activity and odor mitigation.
• Environmental site assessment (ESA): preliminary screening of brownfield soils for acidic metal leaching potential prior to TCLP extraction.
• Educational field labs: undergraduate soil science courses requiring robust, intuitive instrumentation for student-led pedological investigations.

FAQ

Does the Soilstik require electrode soaking before first use?
Yes—new pH electrodes must be rehydrated for a minimum of 2 hours in pH 4.01 buffer or dedicated storage solution prior to calibration and measurement.
Can the Soilstik measure pH in dry or sandy soils?
No—direct insertion requires sufficient moisture to establish electrical continuity; for low-moisture soils, prepare a saturated paste per ASTM D4972 or ISO 10390 using deionized water (1:1 or 1:2 soil:water ratio).
Is the electrode replaceable, and what type is used?
Yes—the integrated combination electrode (glass membrane + Ag/AgCl reference) is a field-replaceable module (Spectrum P/N SOILSTIK-ELEC); no tools required for swap.
How often should calibration be performed?
Calibrate before each sampling session and whenever ambient temperature changes by >5 °C or after measuring samples differing by >3 pH units.
Does the device comply with FDA 21 CFR Part 11?
No—it lacks electronic signature capability, audit trail logging, or user access controls required for regulated pharmaceutical or food safety applications.
