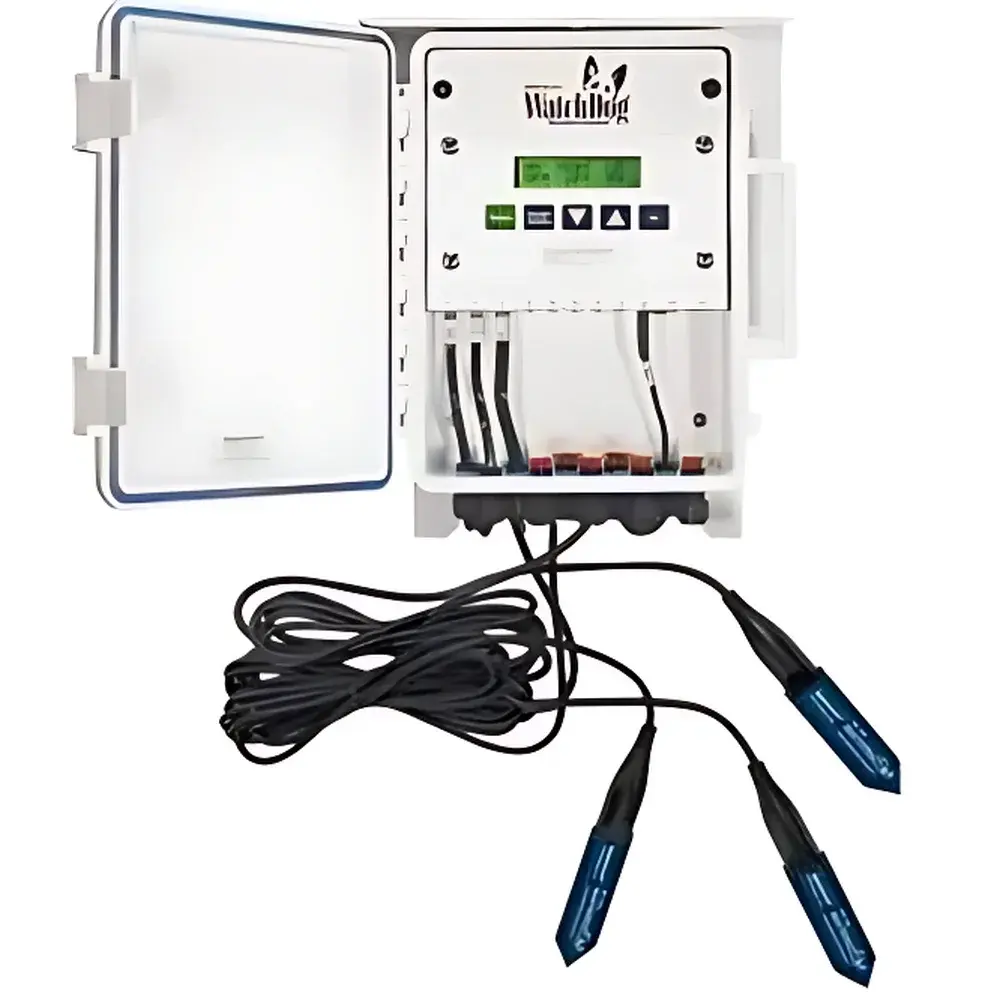

Spectrum Technologies WatchDog 2800 Automated Soil Moisture Monitoring Station

Overview

The Spectrum Technologies WatchDog 2800 Automated Soil Moisture Monitoring Station is a field-deployable, low-power environmental data acquisition system engineered for long-term, unattended monitoring of soil volumetric water content (VWC) and complementary agro-meteorological parameters. At its core, the system integrates a ruggedized data logger with up to nine analog/digital input channels—eight of which are optimized for calibrated soil moisture sensors based on frequency-domain reflectometry (FDR) principles. The WatchDog 2800 operates independently using four standard AA alkaline batteries, delivering up to one year of continuous operation under typical sampling regimes (e.g., 30-minute intervals). Its embedded LCD interface enables on-site verification of real-time sensor readings, statistical extremes (min/max), and system status without requiring external hardware. Designed for agricultural research, irrigation scheduling, drought assessment, and ecological studies, the station adheres to fundamental measurement traceability requirements common in field-based environmental instrumentation.

Key Features

• Integrated data logger with 8,800-point non-volatile memory—retains all records during power loss
• Nine configurable sensor inputs supporting analog voltage (0–5 V), pulse counting, and digital status signals
• Pre-validated compatibility with Spectrum’s WaterScout SM100 FDR soil moisture sensors (models 6460 and 6460-20)
• On-board LCD display showing live values, rolling min/max statistics, and battery voltage
• RS-232 serial interface for local data download; USB-RS232 adapter supported for modern PC connectivity
• Expandable remote telemetry via licensed radio modules, GSM/GPRS modems, Iridium satellite transceivers, or landline dial-up modems
• Wide operational temperature range (−30 °C to +60 °C) suitable for year-round deployment across temperate, arid, and semi-tropical zones
• IP67-rated enclosure for dust and water resistance in exposed outdoor installations

Sample Compatibility & Compliance

The WatchDog 2800 is validated for use with a broad suite of environmental sensors beyond soil moisture—including tipping-bucket rain gauges, thermistors (soil/air temperature), thermopile pyranometers (solar radiation), quantum sensors (PAR), UV radiometers, leaf wetness sensors, soil water potential tensiometers, and EC/T/VWC combination probes. All connected sensors must comply with standard 0–5 V analog output protocols or TTL-level digital signaling. While the system itself does not carry formal ISO/IEC 17025 calibration certification, its architecture supports GLP-aligned data integrity practices: timestamped records, immutable storage, and audit-ready export formats (CSV, TXT). When deployed in regulated agricultural trials or USDA NRCS-funded monitoring networks, users may configure metadata logging (site ID, operator, sensor ID) to satisfy reporting requirements under USDA ARS protocols or FAO-recommended soil moisture network guidelines.

Software & Data Management

Data retrieval is performed via Spectrum’s proprietary WatchDog Software (Windows-compatible), which facilitates configuration, real-time polling, historical download, and basic visualization. Exported datasets include UTC timestamps, channel identifiers, raw sensor voltages, and user-applied calibration coefficients (e.g., polynomial fits for SM100 VWC conversion). The software supports batch processing of multiple stations and generates time-series plots with customizable axes and statistical overlays (e.g., moving averages, daily min/max envelopes). For integration into enterprise platforms, ASCII-formatted logs can be ingested into SQL databases, Python/Pandas workflows, or cloud-based IoT dashboards (e.g., ThingSpeak, AWS IoT Core) using custom scripts. No proprietary cloud subscription is required; all data remains under full user control.

Applications

• Precision irrigation management in row crops, orchards, and vineyards
• Soil hydrological modeling validation (e.g., HYDRUS-1D, SWAT input parameterization)
• Long-term climate change impact studies on soil water retention dynamics
• Calibration and ground-truthing of satellite-derived soil moisture products (e.g., SMAP, Sentinel-1)
• Regulatory compliance monitoring for nutrient management plans (NMPs) and CAFO reporting
• University field experiments requiring synchronized multi-sensor environmental logging

FAQ

What is the maximum number of soil moisture sensors supported?
The WatchDog 2800 supports up to eight SM100 sensors simultaneously when using all available analog inputs.
Can the system log soil temperature and electrical conductivity alongside moisture?
Yes—when paired with multi-parameter probes such as the EC-T-VWC series, each sensor occupies one channel but delivers co-located measurements.
Is firmware upgrade capability available?
Firmware updates are distributed by Spectrum Technologies via Windows-based WatchDog Software and require physical RS-232 connection.
Does the logger meet NEMA or IP ingress protection standards?
The enclosure meets IP67 per IEC 60529, ensuring protection against temporary immersion and dust ingress during field deployment.
How is sensor calibration handled?
SM100 sensors ship with factory-determined calibration coefficients; users may apply site-specific soil texture corrections using published pedotransfer functions within WatchDog Software.
