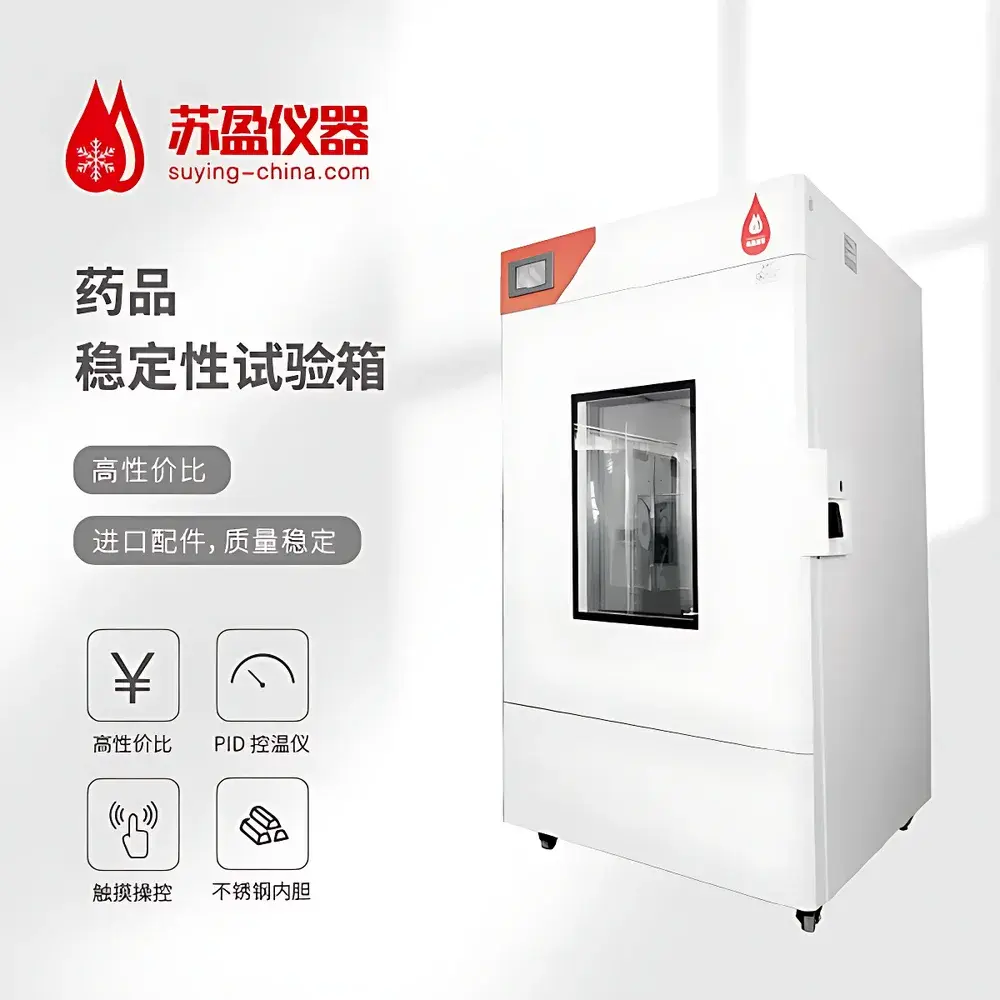

Suying STP Series Pharmaceutical Stability Chambers

Overview

The Suying STP Series Pharmaceutical Stability Chambers are precision-engineered environmental simulation systems designed to meet the stringent requirements of ICH Q1–Q5 guidelines and WHO Technical Report Series No. 953 (Annex 2) for drug stability testing. These chambers provide tightly controlled, long-term exposure environments—specifically temperature, relative humidity (RH), and photometric irradiance—to assess chemical and physical degradation pathways of active pharmaceutical ingredients (APIs), finished dosage forms, and packaging components over time. The system operates on a dual- or triple-zone climate control architecture, integrating independent refrigeration, steam-based humidification, and calibrated UV/visible light arrays (including cool white fluorescent and near-UV sources per ICH Q1B). Unlike general-purpose incubators, STP chambers incorporate continuous monitoring with NIST-traceable sensors, real-time deviation alerts, and integrated data logging compliant with ALCOA+ principles.

Key Features

• ICH-compliant temperature control range: 0 °C to 60 °C ±0.5 °C uniformity (at setpoint), with ramp rates programmable from 0.1 to 5.0 °C/min
• Humidity control range: 10% RH to 85% RH ±2% RH accuracy (25 °C reference), achieved via saturated steam injection and desiccant-assisted dehumidification
• Photostability capability: Dual-light source configuration meeting ICH Q1B Option 1 (cool white fluorescent) and Option 2 (near-UV), with irradiance monitoring at 320–400 nm and 290–800 nm bands
• Chamber uniformity validated per ISO 16770:2017—temperature deviation ≤±0.8 °C and humidity deviation ≤±3% RH across working volume
• Redundant safety architecture: Independent high-limit temperature/humidity cutoffs, door-open alarm with auto-shutdown, and backup power fail-safe for data retention
• Touchscreen HMI with multi-level user access (Operator, Supervisor, Administrator), configurable audit trails, and electronic signature support per FDA 21 CFR Part 11

Sample Compatibility & Compliance

The STP series accommodates standard stability storage configurations—including open trays, sealed aluminum foil-wrapped vials, blister packs, and secondary cartons—within chamber volumes ranging from 250 L to 1200 L. All internal surfaces are electropolished stainless steel (AISI 316L) with seamless welds to prevent microbial harborage and ensure cleanroom-compatible operation. Systems are pre-validated per ASTM E2500-13 (Guide for Specification, Design, and Verification of Pharmaceutical and Biopharmaceutical Manufacturing Systems) and support IQ/OQ/PQ documentation packages. Full compliance is maintained with ICH Q5C (Stability Testing of Biotechnological/Biological Products), USP , and EU Annex 15 requirements for qualification of critical process equipment.

Software & Data Management

Built-in StabilityLink™ software provides centralized control, real-time trending, and automated report generation (PDF/CSV). Data integrity safeguards include immutable timestamped logs, role-based permissions, and cryptographic hash verification for all recorded parameters. Historical data export supports CSV, XML, and SDTM formats for integration into LIMS (e.g., LabVantage, Thermo Fisher SampleManager) and electronic trial master files (eTMF). Audit trail records capture every parameter change, user login/logout event, calibration action, and alarm condition—with retention configurable up to 10 years. Optional cloud-enabled remote monitoring allows secure access via TLS 1.2–encrypted web interface for global QA/QC teams.

Applications

• ICH Q1A(R2)-mandated long-term studies at 25 °C/60% RH and intermediate conditions (30 °C/65% RH)
• Accelerated stability protocols: 40 °C/75% RH for 6 months, including bracketing and matrixing study designs
• Photostability testing per ICH Q1B under both Option 1 (cool white fluorescent) and Option 2 (near-UV) irradiance profiles
• Forced degradation studies evaluating oxidative, hydrolytic, thermal, and photolytic stress responses
• Package compatibility testing under cyclic humidity/temperature profiles simulating distribution logistics
• Stability-indicating method development support through parallel sample aging under controlled environmental stressors

FAQ

What ICH guidelines does this chamber fully support?
The STP series is engineered to comply with ICH Q1A(R2), Q1B, Q1C, Q5C, and Q5D, including validation requirements for temperature/humidity uniformity, sensor traceability, and data integrity.
Is 21 CFR Part 11 compliance built-in or optional?
Electronic signatures, audit trails, and system security controls are standard features—not add-ons—and are preconfigured to meet FDA 21 CFR Part 11 Subpart C requirements.
Can the chamber perform simultaneous temperature/humidity/light stress testing?
Yes. All three environmental stressors operate concurrently with independent PID control loops and real-time cross-parameter compensation to maintain target setpoints without drift.
How is sensor calibration managed and documented?
Each chamber ships with factory calibration certificates traceable to NIST standards; field recalibration is supported via integrated calibration ports and automated calibration routines logged in the audit trail.
What validation documentation is provided with the system?
A complete qualification package—including URS, FDS, DQ/IQ/OQ protocols and reports, and PQ templates aligned with Annex 15—is delivered prior to commissioning.
