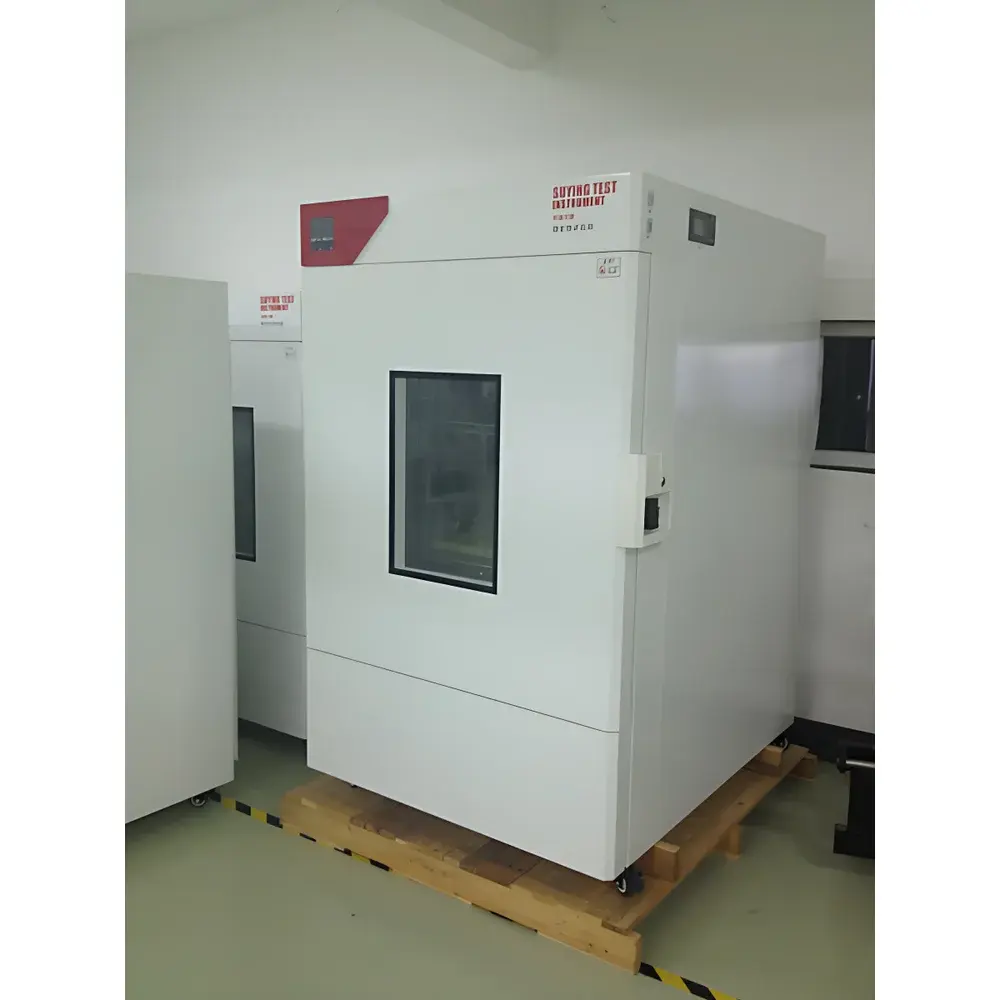

Suying YP-SD/SDP/GSD/GSP Series Drug Stability Testing Chambers

Overview

The Suying YP-SD/SDP/GSD/GSP Series Drug Stability Testing Chambers are engineered for compliance-driven pharmaceutical stability studies in accordance with ICH Q1A(R3), Q5C, and WHO TRS 1010 Annex 5 guidelines. These chambers provide precisely controlled, long-term environmental conditions—temperature, relative humidity (RH), and optional illumination—to evaluate the physical, chemical, and microbiological integrity of drug substances and products over time. Each model employs a dual-stage refrigeration system with independent heating and cooling circuits, enabling stable operation across the full ICH climatic zones (Zone IVa: 30 °C/65 %RH; Zone IVb: 30 °C/75 %RH; Zone III: 30 °C/65 %RH; accelerated: 40 °C/75 %RH). The chamber architecture integrates forced-air convection with multi-point air distribution to ensure uniform thermal and hygroscopic profiles throughout the working volume—critical for reproducible shelf-life estimation and registration dossier submissions.

Key Features

• Multi-volume configurations (150 L to 2000 L) with standardized internal dimensions optimized for ICH-compliant sample rack layouts and airflow symmetry
• High-stability temperature control (±0.5 °C at setpoint; ±1.0 °C uniformity across chamber per ISO 16770:2021 Annex C)
• Capacitive humidity sensing with ±2 %RH accuracy (20–90 %RH range) and active RH recovery kinetics <15 min after door opening (per ASTM E2809-21)
• Dual-mode illumination system: adjustable white-light LED array (0–800 lux) with spectral output compliant with ICH Q5C photostability requirements (UV cut-off ≥320 nm, visible spectrum 400–800 nm)
• Two control platform options: analog microprocessor-based controller (YP-SD/GSD) for basic qualification protocols; full-color touchscreen HMI with 16-segment programmable profile editor (YP-SDP/GSP) supporting up to 99 step cycles and real-time deviation alarms
• Robust mechanical safety architecture including compressor thermal overload cutoff, redundant high-limit temperature sensors, desiccant saturation detection, and fail-safe power-down logic
• Modular insulation design (≥120 mm polyurethane foam, λ ≤ 0.022 W/m·K) minimizing external heat load and improving energy efficiency under continuous 24/7 operation

Sample Compatibility & Compliance

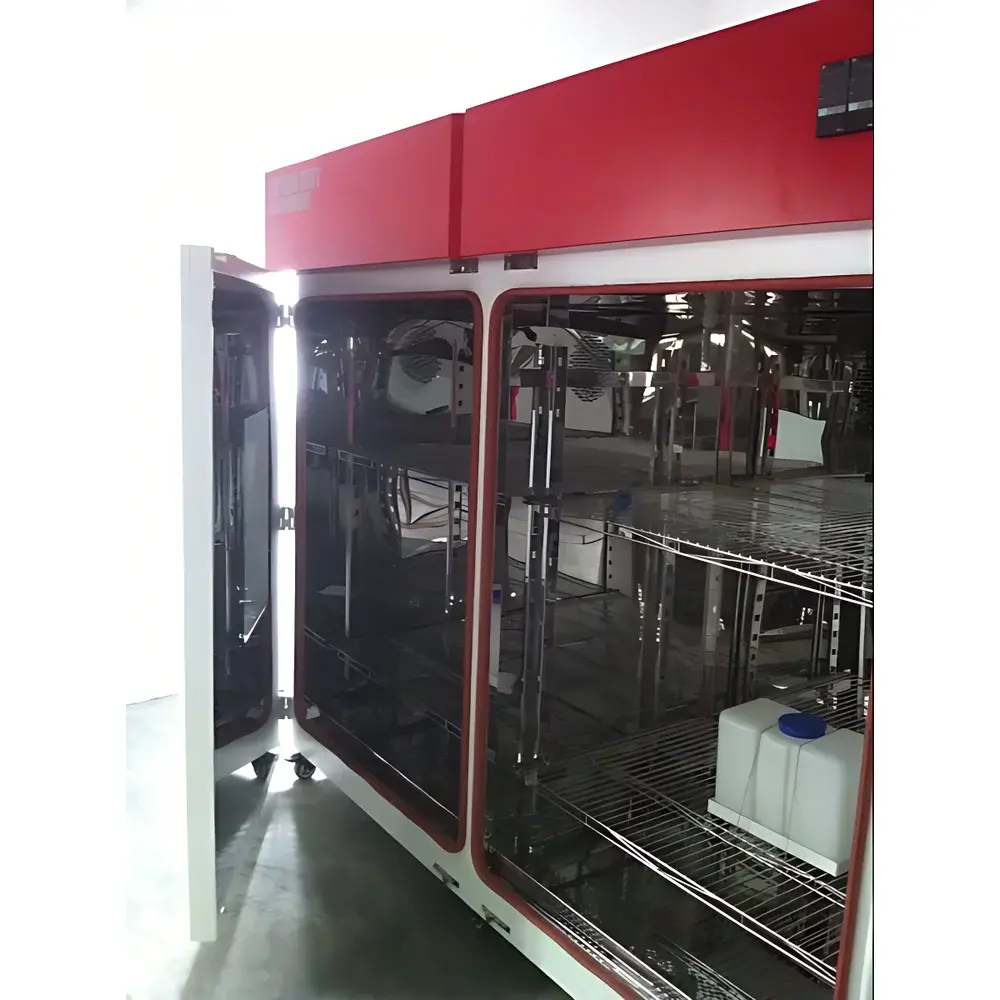

The YP-Series accommodates standard pharmaceutical packaging formats—including blister packs, HDPE bottles, glass vials, and aluminum tubes—on removable stainless-steel shelves with 60 mm vertical spacing. All chambers meet ISO 14644-1 Class 8 (100,000) cleanroom-compatible construction standards, with seamless interior welds and non-porous epoxy-coated steel walls to prevent microbial harborage. Data integrity is maintained through hardware-level audit trail logging (GSP/SDP models), compliant with FDA 21 CFR Part 11 requirements for electronic records and signatures. Validation documentation packages—including IQ/OQ/PQ templates, traceable calibration certificates (NIST-traceable PT100 and capacitive RH sensors), and uncertainty budgets—are provided for GMP-aligned installation and operational qualification.

Software & Data Management

YP-SDP and YP-GSP models integrate with Suying’s StabilityLink™ software suite (Windows-based, TLS 1.2 encrypted), enabling remote monitoring, multi-chamber fleet management, automated report generation (PDF/CSV), and ALCOA+ data governance. The system supports configurable alarm escalation (email/SMS), trend analysis of historical chamber performance (e.g., compressor runtime, RH recovery latency), and export of raw sensor logs aligned with Annex 11 principles. All data files are digitally signed and timestamped, with immutable storage on internal SSD and optional network-attached backup. For regulated environments, optional 21 CFR Part 11 user role management (Admin/Operator/Reviewer) and electronic signature workflows are available.

Applications

• ICH Q1A(R3) long-term (25 °C/60 %RH), intermediate (30 °C/65 %RH), and accelerated (40 °C/75 %RH) stability studies
• Photostability testing per ICH Q5C (Option A: UV/visible exposure; Option B: combined thermal-humidity-illumination stress)
• Bracketing and matrixing study designs for multi-strength/multi-package configurations
• Real-time stability monitoring for commercial batch release and retest date determination
• Forced degradation studies supporting analytical method development and validation
• Environmental stress screening of excipients and primary packaging materials

FAQ

What ICH guidelines does this chamber support?
It fully supports ICH Q1A(R3), Q1B (photostability), Q5C (biotechnology product stability), and WHO TRS 1010 Annex 5 for climate-controlled storage and testing.
Is the humidity control validated across the entire working volume?
Yes—uniformity mapping per ISO 16770:2021 confirms ±2–3 %RH deviation across all defined test points during steady-state operation.
Can the chamber be qualified under GMP/GLP conditions?
Yes—complete IQ/OQ/PQ documentation, NIST-traceable calibration certificates, and 21 CFR Part 11-compliant audit trails are included or optionally extended.
What is the typical recovery time after door opening?
Temperature recovers to ±0.5 °C of setpoint within ≤3 minutes; humidity recovers to ±2 %RH within ≤12 minutes (tested per ASTM E2809-21, 60-second door open duration).
Are custom validation services available?
Suying partners with accredited third-party providers to deliver on-site IQ/OQ/PQ execution, risk assessments (FMEA), and regulatory submission-ready reports.
