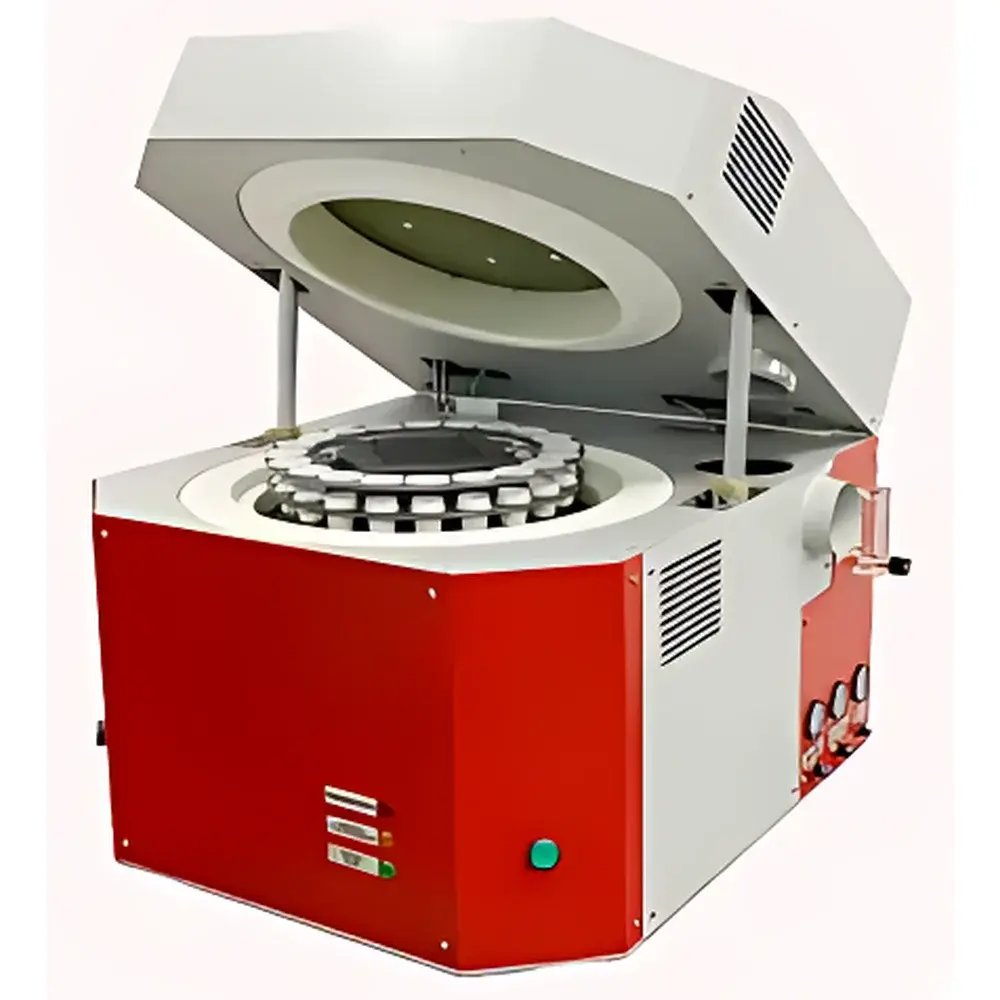

Sylab TGA3000 High-Throughput Thermogravimetric Analyzer

Overview

The Sylab TGA3000 is a high-throughput, research-grade thermogravimetric analyzer engineered specifically for routine and regulatory coal quality assessment in industrial laboratories. It operates on the fundamental principle of thermogravimetry—measuring mass change as a function of temperature or time under controlled atmospheric conditions. By subjecting solid coal samples to precisely programmed thermal profiles in inert (N₂) or oxidative (air/O₂) atmospheres, the instrument quantifies key proximate analysis parameters: moisture content (loss at ≤110 °C), volatile matter (mass loss between 110 °C and 950 °C under N₂), fixed carbon (by difference), and ash residue (mass remaining after combustion at ≥750 °C in air). Its robust horizontal furnace architecture, coupled with a high-stability microbalance system, ensures long-term baseline stability and minimal thermal drift—critical for achieving repeatability <0.2% RSD across replicate coal analyses.

Key Features

• 19-position automated sample carousel enabling unattended batch analysis—significantly increasing laboratory throughput without operator intervention.
• Integrated analytical balance with 0.1 mg readability and active drift compensation, calibrated traceably to NIST standards.
• Programmable thermal protocols supporting multi-step heating ramps, isothermal holds, gas switching sequences, and dynamic atmosphere control (flow rates adjustable from 20–200 mL/min).
• Motorized crucible lid handling mechanism: automatic placement prior to heating and removal during ash determination—minimizing oxidation artifacts and ensuring compliance with ASTM D3174 ash methodology.
• Furnace temperature uniformity ±2 °C across full 19-sample zone; maximum operating temperature 1100 °C with <0.1 °C/min ramp precision.
• Modular gas delivery system compatible with N₂, synthetic air, O₂, and CO₂—with integrated mass flow controllers and leak-tight fittings certified to ISO 8573-1 Class 3.

Sample Compatibility & Compliance

The TGA3000 accommodates standard alumina or platinum crucibles (10–30 mL volume) and accepts sample masses up to 5 g—optimized for heterogeneous coal matrices requiring representative subsampling. Optional high-capacity crucibles (up to 15 g loading) are available for low-rank coals with high moisture or ash variability. The system is pre-configured with validated methods aligned with international coal testing standards: ASTM D3172 (moisture), ASTM D3175 (volatile matter), ASTM D3174 (ash), and ISO 562/ISO 1171 for ash fusion precursor characterization. All method parameters—including dwell times, purge gas timing, and mass-loss acceptance thresholds—are fully editable and stored with digital signatures to support GLP/GMP audit readiness.

Software & Data Management

Control and data acquisition are managed via Sylab’s Windows-based TGA Control Suite v4.x, a 64-bit application compliant with FDA 21 CFR Part 11 requirements. The software provides role-based user access, electronic signatures, full audit trail logging (including parameter changes, calibration events, and run interruptions), and automatic generation of ASTM-compliant reports in PDF and CSV formats. Raw thermogram data (time–temperature–mass–derivative) is stored in vendor-neutral ASCII format. Integration with LIMS platforms is supported through ASTM E1384-compliant HL7 and ASTM E2500-07 export modules. Calibration logs, maintenance records, and instrument qualification documents (IQ/OQ) are embedded within the software archive structure.

Applications

• Routine proximate analysis of bituminous, sub-bituminous, lignite, and anthracite coals per ASTM and ISO specifications.
• Coal blending optimization studies via comparative thermal decomposition kinetics.
• Char reactivity evaluation for fluidized-bed and entrained-flow gasifier feedstock qualification.
• Monitoring pyrolysis behavior of coal-derived cokes and activated carbons.
• Quality assurance of coal used in cement kiln co-firing and power plant boiler feedstocks.
• Supporting ISO 1928-compliant gross calorific value estimation via correlation with volatile matter and ash content.

FAQ

What standards does the TGA3000 natively support for coal proximate analysis?
ASTM D3172, D3174, D3175, ISO 562, ISO 1171, and ISO 589—preloaded as executable methods with configurable tolerances.
Can the system be validated for regulated environments?
Yes. Full IQ/OQ documentation packages, 21 CFR Part 11 compliance mode, and electronic audit trails are included as standard features.
Is external gas supply required, or is it self-contained?
The TGA3000 requires externally supplied, regulated gases (N₂, air, O₂); internal MFCs and pressure sensors manage delivery—but no onboard gas generation is provided.
How is crucible lid actuation synchronized with thermal protocol steps?
Lid positioning is triggered by discrete temperature thresholds or time markers within the method editor, ensuring precise alignment with ASTM-defined ash ignition phases.
What level of technical support and service coverage is available outside France?
Sylab maintains authorized service partners in North America, EMEA, and APAC regions, offering remote diagnostics, on-site PM contracts, and spare parts logistics with <72-hour SLA for critical components.
