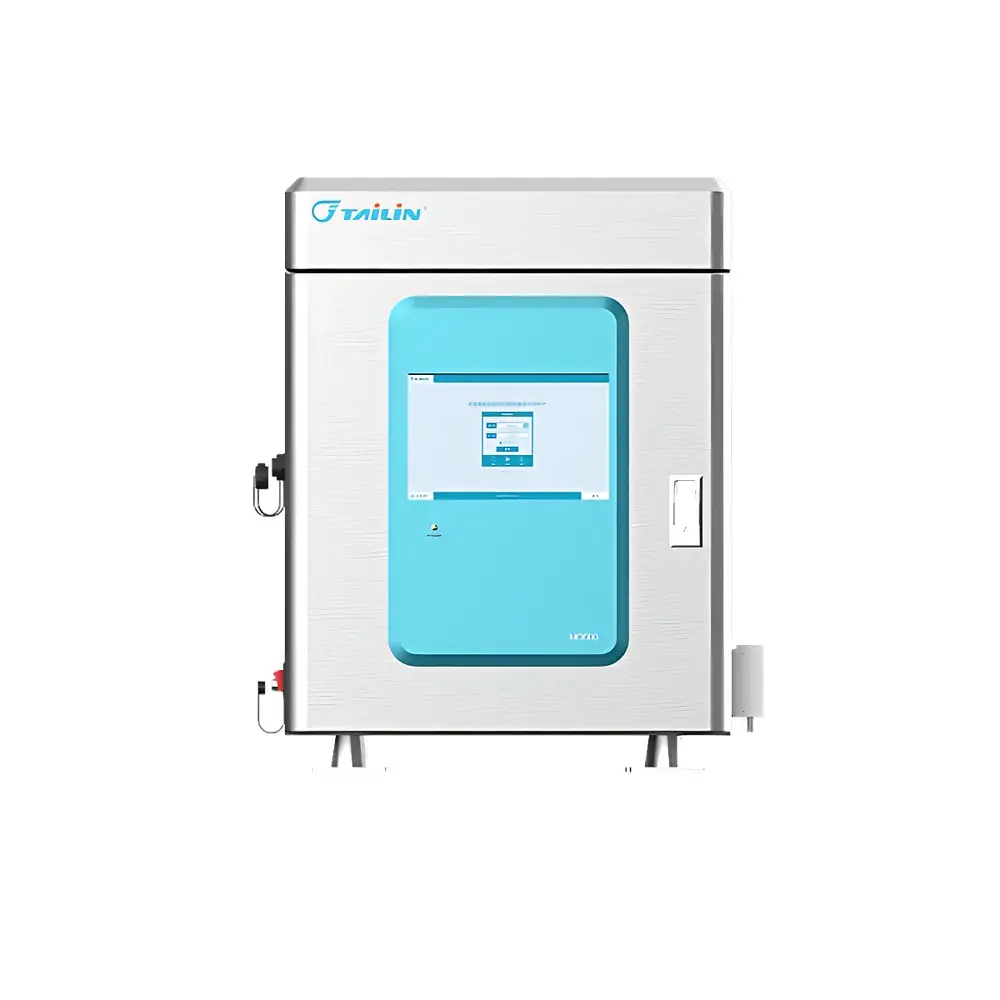

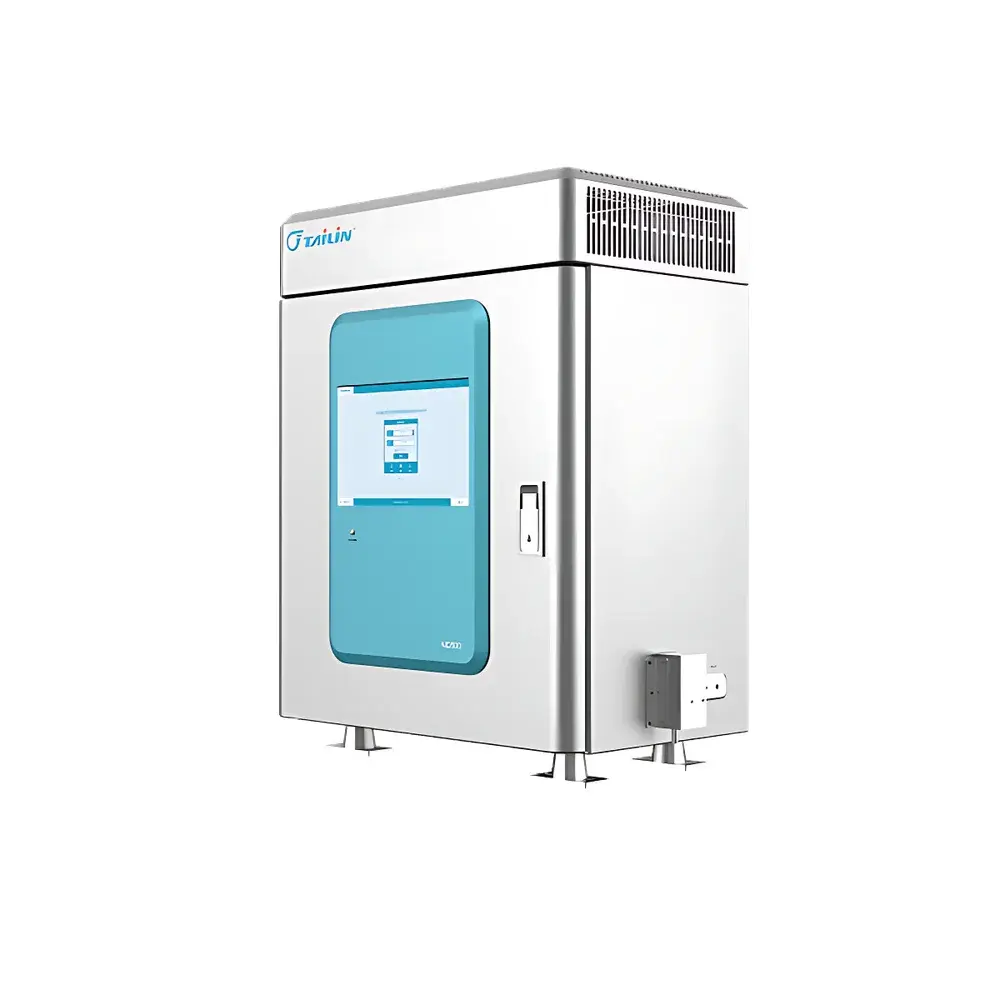

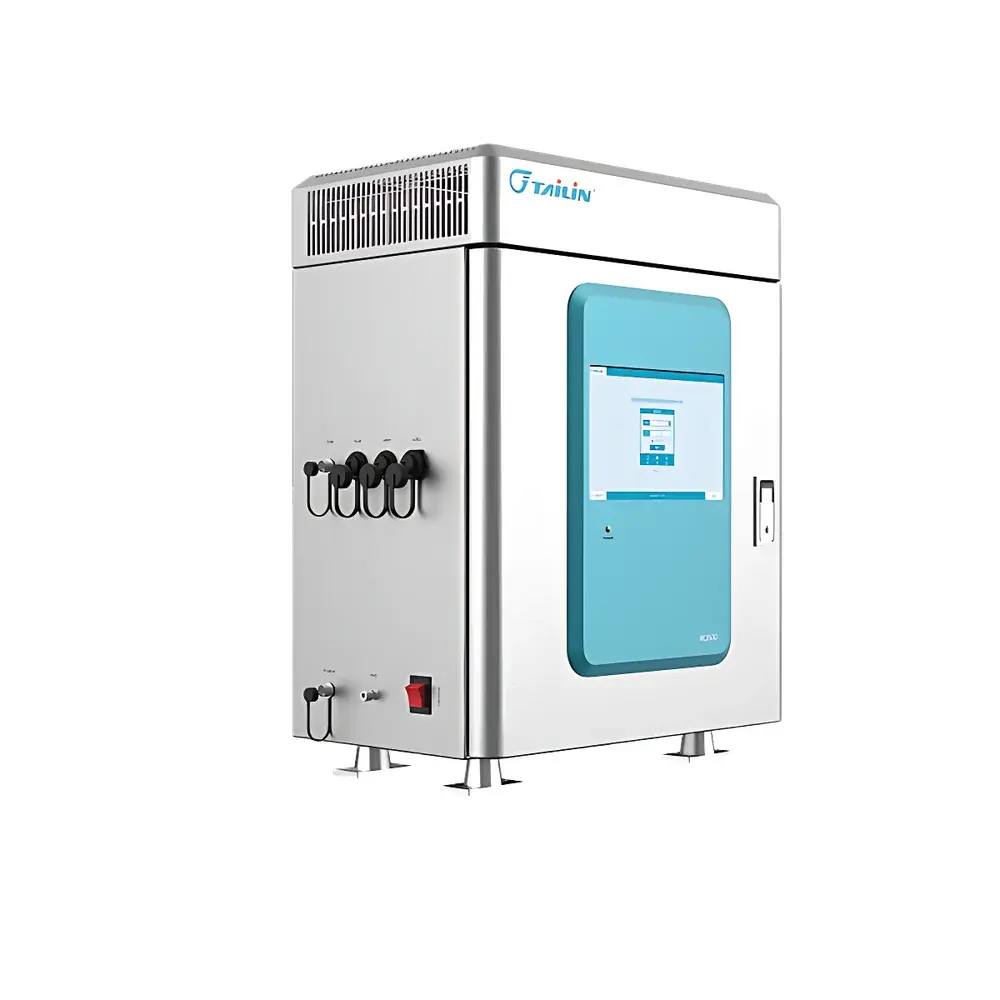

Tailin Biotech MD500/MD500e Online Microbial Rapid Detection Analyzer

Overview

The Tailin Biotech MD500/MD500e Online Microbial Rapid Detection Analyzer is an engineered solution for real-time, culture-independent monitoring of viable microorganisms in purified water systems. Utilizing autonomous autofluorescence detection—based on endogenous metabolic fluorophores such as NAD(P)H and riboflavins—the system quantifies microbial load in aqueous streams without incubation, labeling, or reagents. Unlike plate-count-based methods governed by ISO 8573-7 or pharmacopeial compendia (e.g., USP ), this analyzer operates on the principle of flow cytometry–enhanced single-particle fluorescence spectroscopy. It delivers continuous, second-by-second updates at a fixed 2-second response interval, enabling dynamic trend analysis and early anomaly detection in critical water loops used in pharmaceutical manufacturing, biotechnology clean utilities, and semiconductor ultrapure water (UPW) distribution networks.

Key Features

• Real-time continuous monitoring with 2-second data refresh intervals—enabling immediate process deviation identification.
• Culture-free detection architecture eliminating reliance on colony-forming unit (CFU) enumeration and associated incubation delays (24–120 h).
• VBNC (Viable But Non-Culturable) bacterial detection capability—validated against reference strains including Vibrio cholerae, Escherichia coli, and Pseudomonas aeruginosa under low-nutrient stress conditions.
• Zero-consumables design: no reagents, cartridges, filters, or fluorescent dyes required—reducing total cost of ownership and minimizing operational downtime.
• Multi-modal output interface: native 4–20 mA analog signal (user-configurable range), Ethernet (RJ45) with Modbus TCP protocol support for seamless integration into existing SCADA, DCS, or MES platforms, plus optional Wi-Fi and USB for local diagnostics and firmware updates.
• Robust fluidic architecture compatible with operating temperatures from 5 to 99 °C—suitable for monitoring both chilled water and hot water sanitization cycles.

Sample Compatibility & Compliance

The MD500/MD500e is validated for use with relatively pure aqueous matrices meeting conductivity specifications ≤1.3 µS/cm (per ASTM D5127) and turbidity <0.1 NTU. Compatible sample streams include purified water (PW), water for injection (WFI), clean steam condensate, and ultrapure water (UPW) in semiconductor fab applications. The system complies with core regulatory expectations for continuous microbial monitoring under FDA Guidance for Industry: Process Validation (2011), EU GMP Annex 1 (2022), and WHO Technical Report Series No. 1025 (2021). While not a replacement for periodic membrane filtration per USP , it serves as a complementary real-time surveillance tool supporting ALARP (As Low As Reasonably Practicable) risk management strategies. Data integrity conforms to 21 CFR Part 11 requirements via audit-trail-enabled firmware and secure user-role authentication.

Software & Data Management

Embedded firmware supports time-stamped event logging with UTC synchronization, configurable alarm thresholds (AFU/mL), and automatic data archiving to internal flash memory (≥30 days at 2-s resolution). Optional Tailin Connect™ software provides remote visualization, historical trend overlays, CSV export, and PDF report generation—including metadata on instrument status, flow rate, temperature, and calibration history. All communication channels enforce TLS 1.2 encryption where applicable. Audit trails record operator login/logout events, parameter changes, and calibration actions—fully traceable for GLP/GMP audits.

Applications

• Pharmaceutical water system validation and routine monitoring per EU GMP Annex 1 §8.75–8.82.
• Early-warning detection during WFI loop sanitization cycles (e.g., steam or ozone).
• Microbial load trending across PW distribution points in multi-point network configurations.
• Supporting quality-by-design (QbD) initiatives through correlation of real-time AFU spikes with upstream process variables (e.g., filter differential pressure, UV transmittance).
• Complementing traditional environmental monitoring programs in Grade A/B cleanrooms with continuous feedwater assessment.

FAQ

Does the MD500/MD500e require daily calibration or routine maintenance?
No—zero-consumables design eliminates scheduled calibration. System self-verifies optical path integrity and fluidic stability at startup and every 24 hours via internal reference checks.
Can the analyzer distinguish between live bacteria and inert particles?
Yes—via dual-channel fluorescence intensity ratio analysis (autofluorescence vs. scatter), enabling discrimination of metabolically active cells from abiotic particulates ≥0.5 µm.
Is the device suitable for installation in classified environments (e.g., ISO 5)?
The MD500/MD500e meets IP54 ingress protection rating and has been deployed in ISO 7 utility corridors; external housing materials comply with USP for polymer safety.
How is data integrity ensured for regulatory submissions?
All measurements are cryptographically timestamped, stored with immutable audit trails, and exportable in FDA-compliant formats—including electronic signatures and version-controlled configuration files.
What validation documentation is provided?
Tailin supplies Installation Qualification (IQ), Operational Qualification (OQ), and Performance Qualification (PQ) templates aligned with ASTM E2500-13 and ISPE Baseline Guide Vol. 5, plus full metrological traceability to NIST-traceable standards.
