TAITEC DWMax MBR-034P Advanced Temperature-Controlled Orbital Shaker

Overview

The TAITEC DWMax MBR-034P is a high-precision, air-jacketed temperature-controlled orbital shaker engineered for reproducible microbial, enzymatic, and biochemical incubation under tightly regulated thermal and mechanical conditions. Unlike conventional shakers relying on traditional eccentric drive mechanisms—which introduce parasitic vibrations due to inertia-induced platform wobble—the DWMax series incorporates TAITEC’s proprietary NewMax Drive® architecture. This patented motion transmission system decouples rotational input from structural resonance, eliminating frame-level vibration and ensuring true orbital motion with minimal lateral displacement. As a result, the MBR-034P delivers exceptional well-to-well and plate-to-plate uniformity in OD₆₀₀ measurements during high-throughput culture of E. coli, yeast, and other suspension-based biological systems—particularly critical for applications such as metabolic profiling, enzyme kinetics assays, and low-volume induction protocols requiring stringent thermal and mixing consistency.

Key Features

• NewMax Drive® orbital drive mechanism: Eliminates chassis vibration, enabling stable operation at frequencies up to 1600 rpm without compromising platform flatness or sample integrity
• Dual-temperature control architecture: Independent Peltier-based cooling and resistive heating ensure precise setpoint maintenance from ambient −7 °C to +60 °C, with typical stability of ±0.3 °C at 37 °C

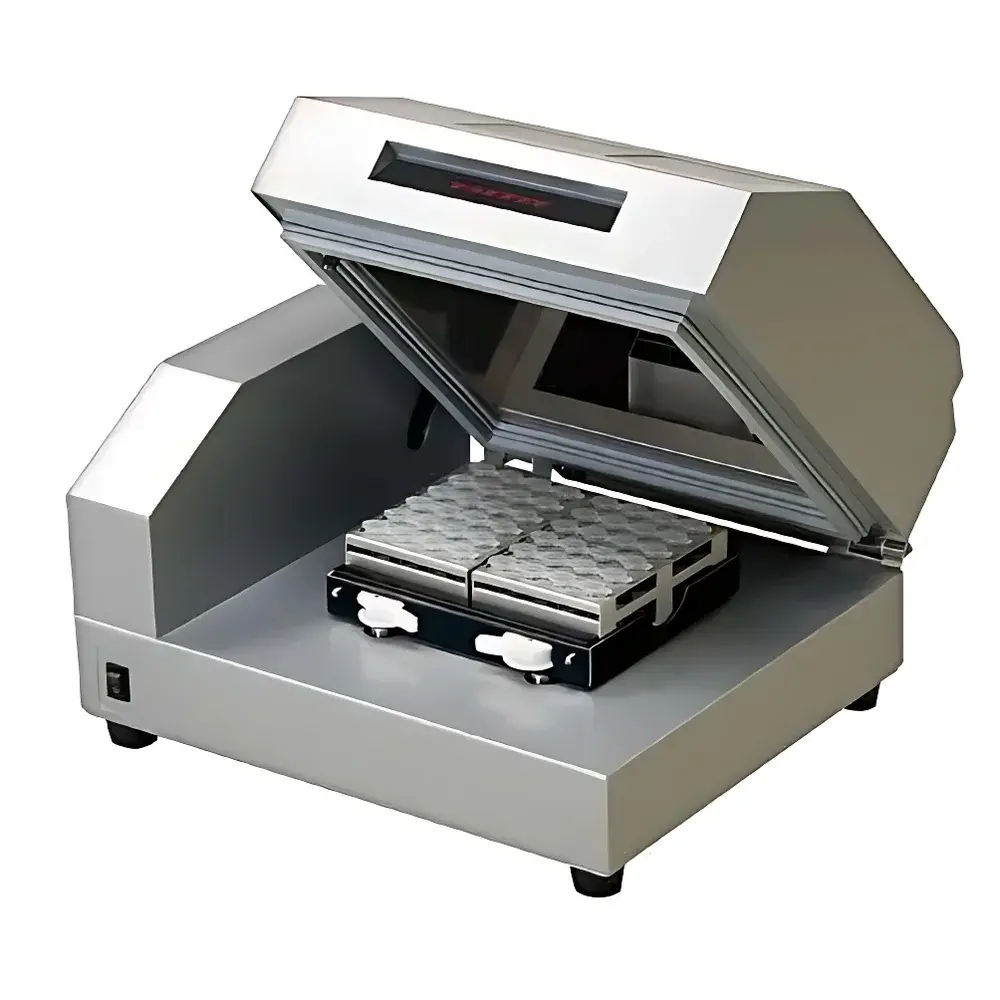

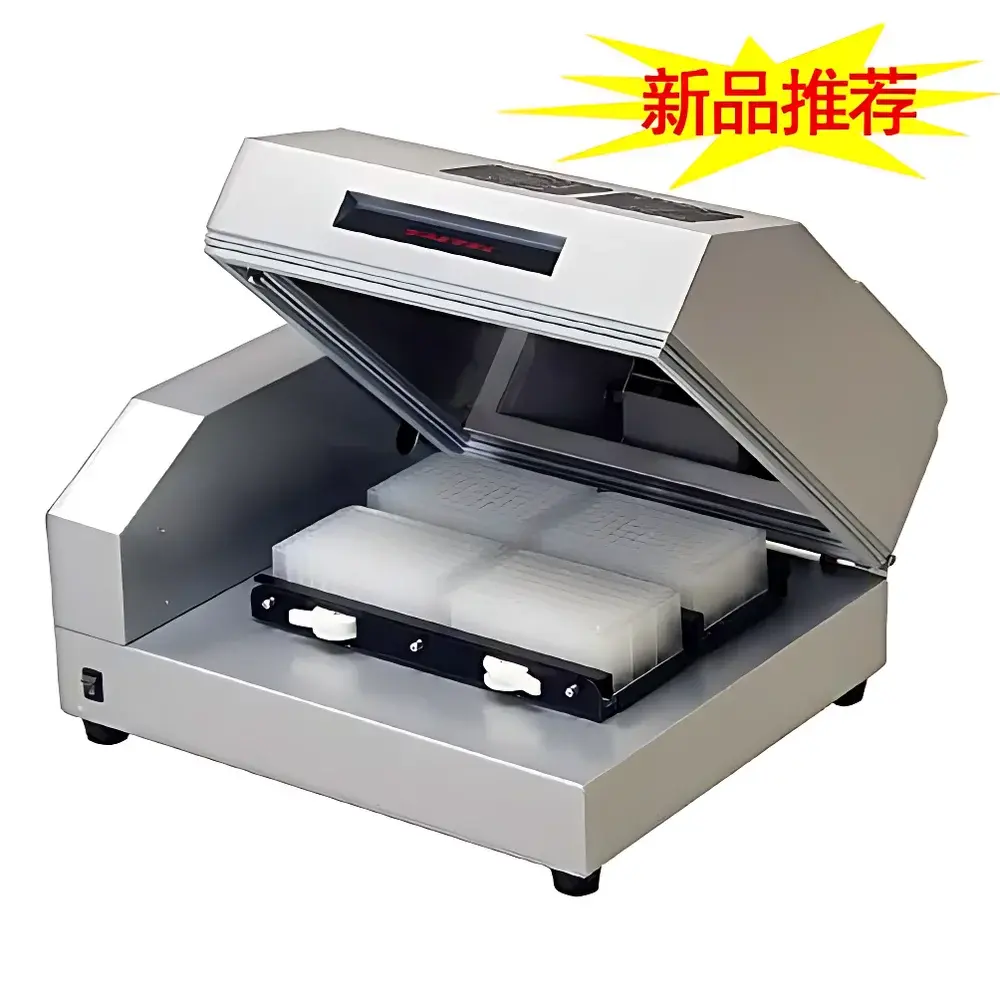

• Modular platform configuration: Accepts up to four standard 96-well microplates (M-type), or combinations of deep-well plates (e.g., 96-well, 2 mL capacity) and tube carriers via standardized mounting interfaces
• Ultra-low acoustic signature: Optimized motor housing, balanced flywheel, and vibration-damping feet achieve <45 dB(A) noise emission—suitable for shared laboratory environments and cleanroom-adjacent installations
• Energy-efficient design: Consumes ≤120 W at full load (1600 rpm, 37 °C), meeting IEC 62301 standby power requirements and reducing operational cost over extended incubation cycles
• 3Q-ready mechanical and thermal architecture: Structural rigidity, traceable temperature sensors (PT100 class A), and non-volatile parameter logging support Installation Qualification (IQ), Operational Qualification (OQ), and Performance Qualification (PQ) per FDA 21 CFR Part 11 and EU Annex 11 guidelines

Sample Compatibility & Compliance

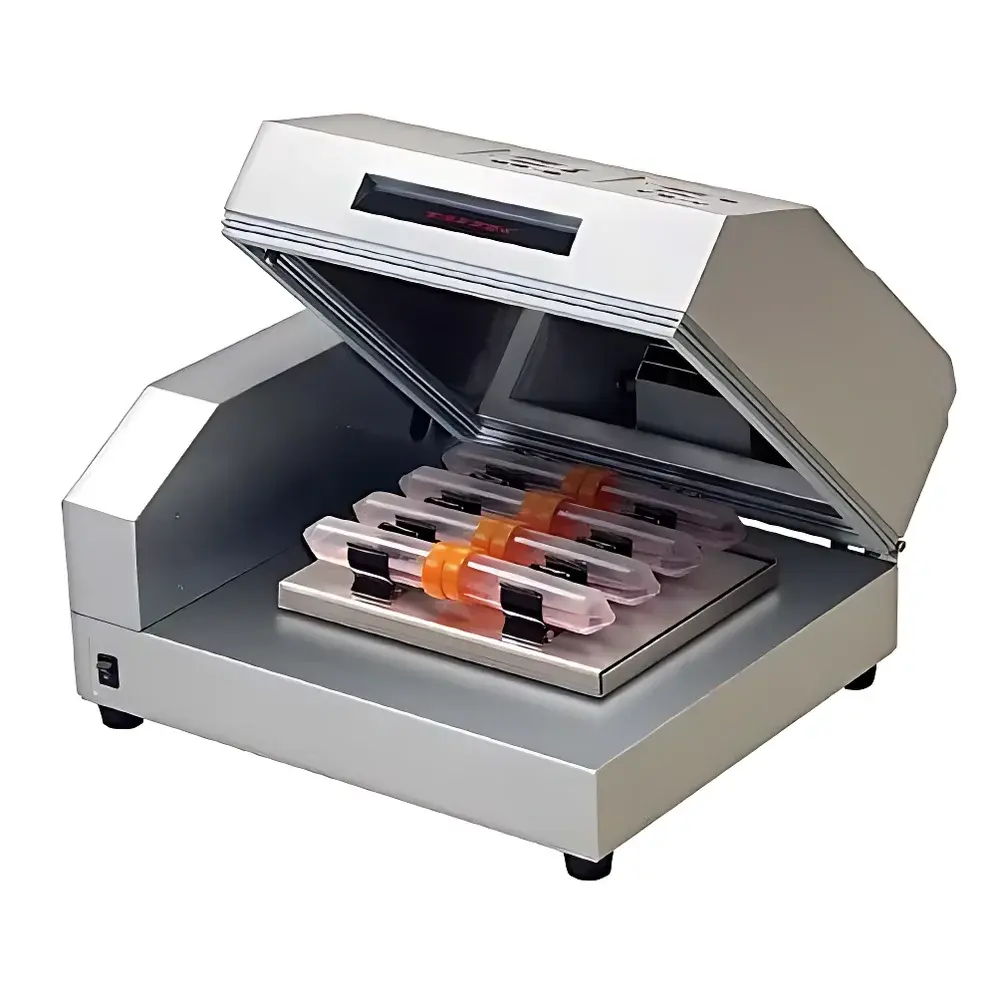

The MBR-034P accommodates a broad range of vessel formats through TAITEC’s interoperable accessory ecosystem. Standard configurations support simultaneous incubation of four 96-well plates (flat-bottom or V-bottom). Optional accessories include aluminum-EPDM hybrid clamps (EM-1524, EM-1515) for 0.5 mL, 1.5/2.0 mL, and 5.0 mL microtubes; horizontal oscillation platforms (V·BR-1140, V·BR-1816, V·BR-3508) for 1.5–50 mL centrifuge tubes; and universal mounting brackets compatible across the MBR-series platform family. All accessories are precision-machined to maintain consistent center-of-mass alignment and minimize torque-induced drift. The system conforms to ISO 13485:2016 (for medical device manufacturing support), ASTM E2500-13 (verification of laboratory equipment), and supports GLP/GMP audit trails when paired with optional data-logging software.

Software & Data Management

While the MBR-034P operates via intuitive front-panel controls (rotary encoder + OLED display), it integrates seamlessly with TAITEC’s optional LogMaster™ PC software for automated parameter logging, remote monitoring, and electronic record generation. LogMaster records temperature setpoint, actual chamber temperature, oscillation speed, runtime, and error flags at user-defined intervals (1 s to 60 min resolution). Exported CSV files include ISO 8601 timestamps and are compatible with LIMS environments. Audit trail functionality complies with 21 CFR Part 11 requirements—including operator ID assignment, electronic signatures, and immutable log archiving—enabling full traceability for regulated bioprocess development and QC release testing.

Applications

• High-throughput microbial culture: Uniform growth of E. coli and yeast in 96-well or deep-well plates for protein expression screening and cold-shock induction (MBR-032P variant optimized for sub-ambient temperatures)
• Enzyme activity assays: Controlled agitation during proteolytic digestion, ligase reactions, or kinase profiling where shear-sensitive substrates demand laminar mixing
• Metabolomics and biodegradation studies: Sustained aerobic incubation of environmental isolates or engineered strains under defined O₂ transfer rates (enhanced by consistent orbital motion and thermal homogeneity)
• ELISA and immunoassay development: Gentle yet effective mixing during antigen-antibody binding steps, minimizing edge effects and improving signal-to-noise ratios
• GMP-compliant seed train expansion: Platform qualification data supports use in early-stage biomanufacturing workflows requiring documented thermal and mechanical reproducibility

FAQ

What distinguishes NewMax Drive® from conventional orbital shaker mechanisms?
NewMax Drive® replaces the traditional eccentric cam with a dual-gear harmonic coupling system that transmits torque without inertial backlash—eliminating chassis resonance and enabling stable high-speed operation across all load configurations.
Can the MBR-034P maintain sub-ambient temperatures reliably?
Yes. Its thermoelectric cooling module achieves and holds temperatures down to ambient −7 °C with ±0.3 °C stability, verified across 0–100% relative humidity and ambient room temperatures of 18–28 °C.
Is the system compatible with existing TAITEC accessories?
All MBR-series platforms—including MBR-022UP, MBR-032, and MBR-104—share identical mounting interfaces and accessory footprints, enabling full interchangeability of clamps, plates, and oscillation decks.
Does the shaker support automated validation protocols?
Yes. Built-in PT100 sensors, non-volatile memory, and RS-232/USB connectivity enable integration with third-party validation tools (e.g., ValSuite™, QualiTrak™) for IQ/OQ execution and PQ performance mapping.
What safety certifications does the MBR-034P carry?
It meets IEC 61010-1:2010 (Safety Requirements for Electrical Equipment), UL 61010-1, and CE marking under the EMC and Low Voltage Directives; factory calibration certificates are provided with each unit.
