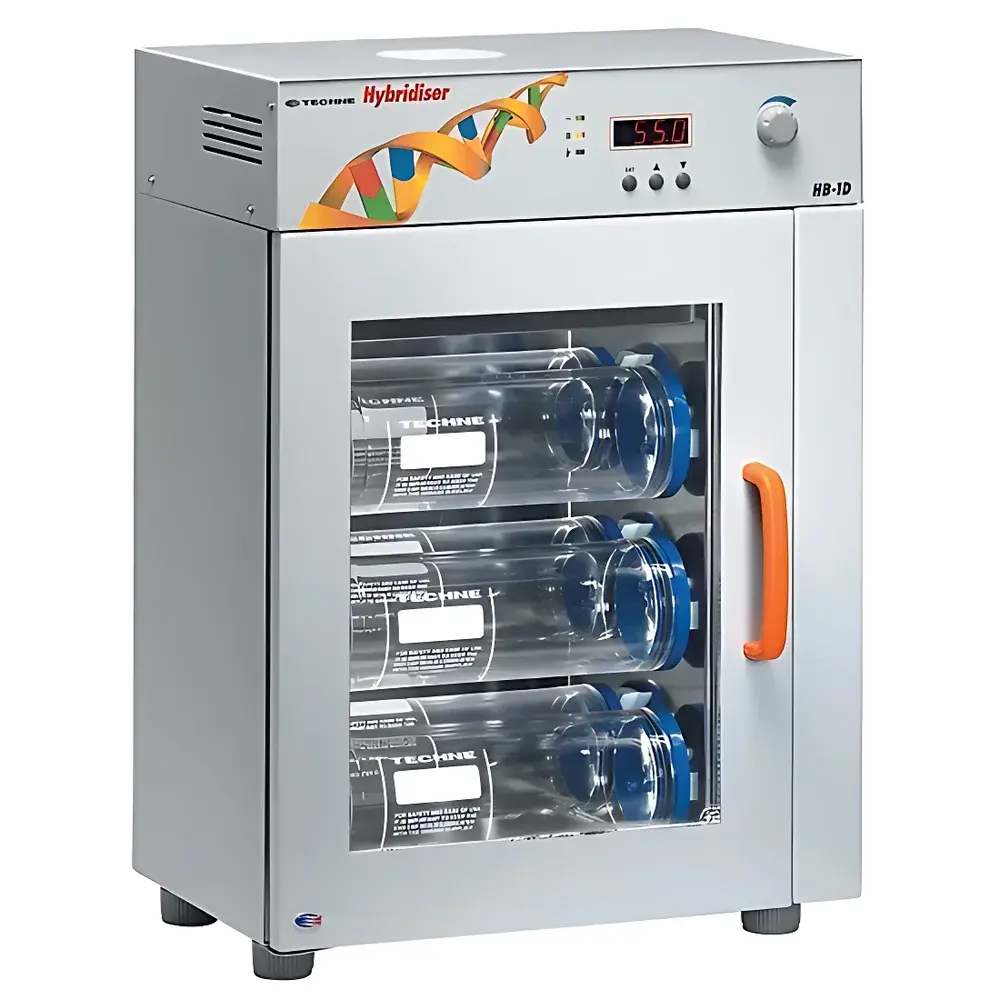

Techne HB-1D Hybridisation Incubator

Overview

The Techne HB-1D Hybridisation Incubator is a precision-engineered thermal platform designed specifically for nucleic acid hybridisation protocols—including Southern, Northern, and dot blotting—where stringent temperature control, reproducible agitation, and minimal thermal gradients are critical. Operating on a Peltier-assisted resistive heating architecture with dual-sensor feedback control, the HB-1D maintains stable setpoint temperatures from ambient +10°C up to 100°C. Its chamber employs forced-air convection with optimized airflow baffling to ensure uniform thermal distribution across all tube positions. Unlike generic incubators, the HB-1D integrates programmable rotation and oscillation modes—enabling precise kinetic control of hybridisation kinetics without compromising thermal fidelity. The unit meets core design requirements for GLP-compliant molecular biology workflows and is routinely deployed in diagnostic laboratories, academic core facilities, and biopharmaceutical QC labs where protocol traceability and inter-run consistency are mandatory.

Key Features

• High-fidelity temperature regulation: ±0.1°C stability within sample tubes and <±0.3°C absolute accuracy at setpoint, validated per ISO/IEC 17025 calibration practices
• Dual-mode agitation system: Selectable rotation (0 or 5–20 rpm) and oscillation (5–20 opm or 15–60 opm) for optimal probe-target binding efficiency under varied buffer viscosities
• Stackable modular design: Three HB-1D units can be vertically integrated using factory-certified alignment brackets—reducing footprint by up to 65% versus side-by-side placement
• Optimized chamber geometry: Dual-pane tempered glass door with low-emissivity coating minimizes heat loss while enabling real-time visual monitoring without thermal disruption
• Adjustable leveling feet with lockable mechanism ensure mechanical stability during prolonged agitation cycles, preventing tube slippage or condensation pooling
• Microprocessor-based controller with non-volatile memory retains user-defined protocols and last-used parameters after power interruption

Sample Compatibility & Compliance

The HB-1D accommodates standard molecular biology consumables: up to 24 x 1.5–2.0 mL microcentrifuge tubes or 6 x 50 mL conical tubes (e.g., Corning, Eppendorf, Sarstedt). Its minimum hybridisation volume of 5 mL ensures compatibility with low-volume probe labelling reactions and minimises reagent consumption. All internal surfaces are constructed from medical-grade stainless steel (AISI 304) and anodized aluminium, facilitating decontamination with 70% ethanol or 0.5% sodium hypochlorite—fully compliant with CLSI M29-A3 biosafety guidelines. The device carries CE marking under Directive 2014/30/EU (EMC) and 2014/35/EU (LVD), and its firmware architecture supports audit trails required for FDA 21 CFR Part 11 compliance when paired with validated LIMS integration.

Software & Data Management

While the HB-1D operates via an intuitive front-panel interface with rotary encoder and LCD display, optional RS-232 or USB-to-serial connectivity enables remote parameter logging and protocol scheduling via Techne’s proprietary HybridControl™ software (v3.2+). This Windows-based application supports CSV export of time-stamped temperature and agitation logs, configurable alarm thresholds, and electronic signature capture for SOP adherence. Data files include embedded metadata (operator ID, date/time stamp, firmware version) to satisfy ISO 15189 clause 5.9.2 requirements for result traceability. No cloud dependency or subscription model is required—data remains fully under institutional control.

Applications

• Membrane-based hybridisation (nitrocellulose, nylon) for gene expression profiling and pathogen detection
• In situ hybridisation (ISH) probe incubation with controlled ramp rates to prevent membrane brittleness
• Antibody stripping and re-probing workflows requiring precise thermal cycling between 65°C and 100°C
• Pre-hybridisation blocking steps involving BSA or salmon sperm DNA in high-stringency buffers
• Long-duration hybridisations (>16 h) where drift-free temperature maintenance directly impacts signal-to-noise ratio
• Validation studies supporting IVD assay development under ISO 13485 quality management systems

FAQ

Is the HB-1D compatible with automated liquid handling systems?
Yes—the unit features a standardized 19 mm clearance beneath the tube rack base, allowing integration with robotic arms equipped with vacuum or gripper end-effectors. Rack positioning tolerances comply with ANSI/SLAS standards.
Can temperature calibration be performed in-house?
Yes—calibration is supported using NIST-traceable PT100 probes (e.g., Fluke 724) via the service mode; full procedure documented in the Technical Manual Rev. 4.2.
Does the HB-1D support ramp-and-hold temperature profiles?
No—this model implements static setpoint control only. For multi-step thermal protocols, users should pair it with external programmable chillers or thermal cyclers.
What is the expected lifetime of the heating element under continuous operation?
Rated for >20,000 hours at 85°C nominal load, based on accelerated life testing per IEC 60068-2-60.
Are spare parts and service manuals available globally?
Yes—Techne UK maintains a 10-year spare parts inventory commitment and provides downloadable service documentation (including schematics and firmware updates) via secure portal access for registered institutions.
