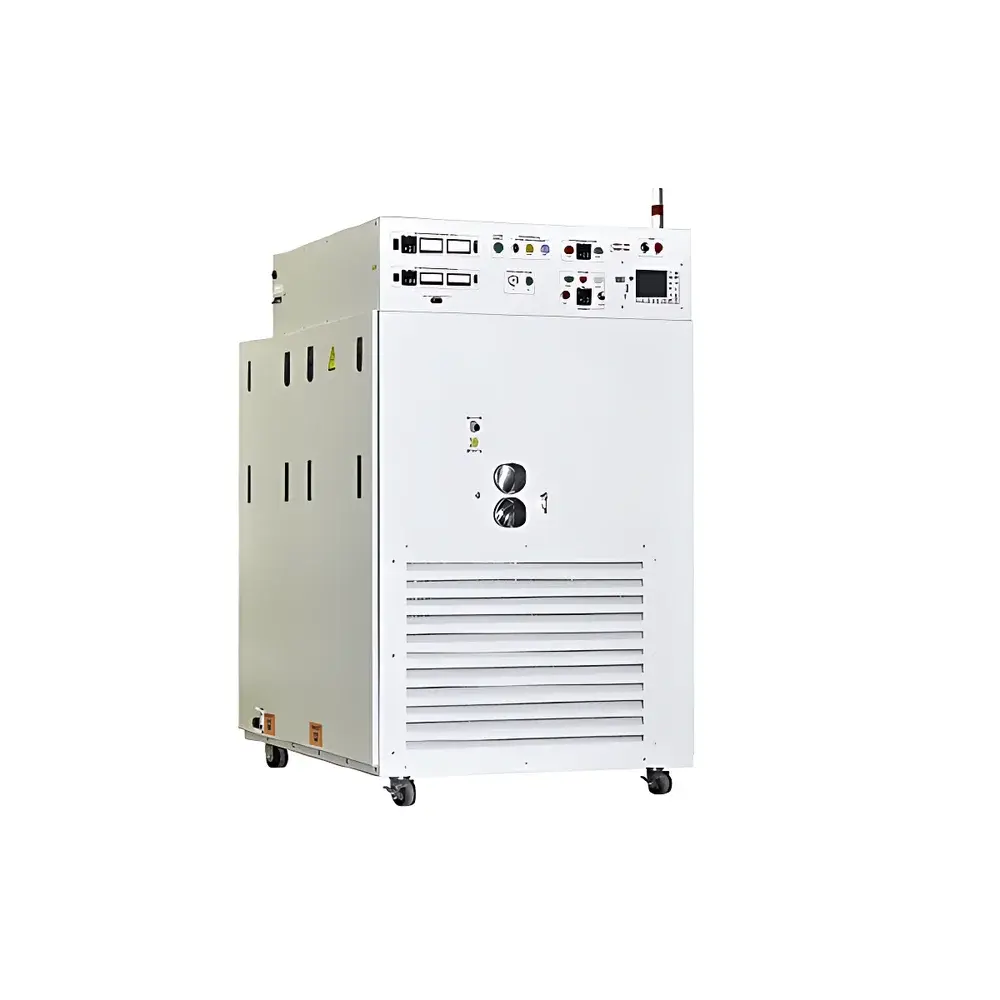

TENNEY Conditioned Air Supply System

Overview

The TENNEY Conditioned Air Supply System is an engineered environmental conditioning solution designed to deliver precise, stable, and programmable temperature-controlled air to external enclosures, test chambers, or custom-built test spaces—without requiring integration into a sealed chamber structure. Unlike conventional walk-in or benchtop environmental test chambers, this system operates as a standalone conditioned-air generator, supplying regulated airflow via ducting to existing rooms, gloveboxes, material staging areas, or specialized test fixtures. Its core thermal architecture employs a cascade refrigeration system combined with electric heating elements and optional liquid nitrogen (LN₂) boost cooling, enabling operation across an extended range of –68°C to +180°C. The system is calibrated to maintain temperature uniformity and stability within ±1.0°C under steady-state conditions—a specification aligned with ASTM E145, ISO 17025-accredited laboratory practice, and GLP-compliant aging validation protocols for polymer, elastomer, and electronic component testing.

Key Features

• Cascade refrigeration system with dual-stage compressors for deep-cooling capability down to –68°C
• Optional LN₂-boosted cooling module for accelerated ramp-down in high-thermal-mass applications
• VFD-controlled centrifugal blower with variable-speed motor for consistent airflow delivery and low acoustic emission
• Dry-air purge system to suppress condensation and moisture ingress during low-temperature operation
• Synergy Quattro touchscreen controller featuring a 320 × 240 color LCD display with intuitive English-language interface
• PID-based temperature control with auto-tuning and manual override capability for load-specific compensation (dual-channel logic)
• TENNEY Advanced Logic Circuitry dynamically selects optimal refrigeration/heating capacity and operational mode based on real-time thermal demand
• Integrated I/O controller (Olympus platform) supporting discrete alarm inputs, relay outputs, and analog signal monitoring

Sample Compatibility & Compliance

The Conditioned Air Supply System supports non-contact thermal conditioning of samples housed in externally configured environments—including ISO Class 5–8 cleanrooms, inert-atmosphere gloveboxes, vacuum-compatible enclosures, and custom-engineered aging racks. It complies with key regulatory and industry standards governing thermal aging validation, including ASTM D573 (rubber), ASTM D865 (elastomers), IEC 60068-2-1/2 (cold/heat testing), and MIL-STD-810G Method 502.5/501.7. All firmware and controller logs support audit-ready data integrity per FDA 21 CFR Part 11 requirements when paired with user-configured electronic signatures and access controls. Temperature calibration traceability is maintained to NIST-traceable reference standards, and system validation documentation (IQ/OQ/PQ templates) is available upon request.

Software & Data Management

The Synergy Quattro controller runs on Microsoft Windows CE embedded OS and provides comprehensive data handling capabilities. Users can define virtually unlimited test profiles—each supporting multiple segments, ramp rates, dwell times, and conditional logic triggers. Real-time temperature data (setpoint and actual) is logged at user-selectable intervals (1s to 60 min) and stored internally on onboard flash memory or exported via USB 2.0 port to external drives. Program and log files may also be transferred using removable PCMCIA memory cards or over Ethernet (10/100 Mbps TCP/IP) for integration into centralized LIMS or MES platforms. RS-232 serial communication (DB9 connector) enables legacy SCADA connectivity, while the Olympus I/O module supports Modbus RTU protocol for PLC-level interoperability.

Applications

This system is widely deployed in R&D laboratories and quality assurance facilities for accelerated thermal aging of polymeric materials, aerospace composites, automotive seals, medical device packaging, and printed circuit board assemblies. It serves as a flexible alternative to fixed-chamber aging ovens where spatial constraints, vibration sensitivity, or multi-location testing demands make traditional chamber deployment impractical. Common use cases include: long-term storage stability studies per ICH Q1A(R2); thermal cycling of battery modules under controlled ambient air; pre-conditioning of optical components prior to laser testing; and HVAC performance validation in simulated building envelope mock-ups. Its remote placement capability also supports noise- and vibration-critical metrology environments such as coordinate measuring machine (CMM) rooms and interferometry labs.

FAQ

Can this system be used for humidity-controlled testing?
No—the Conditioned Air Supply System is designed exclusively for temperature-controlled dry-air delivery. Humidity control requires integration with a separate vapor generator or a full-featured environmental chamber.
Is LN₂ consumption monitored or metered by the system?
The LN₂ boost option includes a pressure-regulated solenoid valve and flow restrictor, but continuous mass-flow measurement is not integrated. Optional third-party mass flow meters may be installed upstream.
What is the typical service interval for the cascade refrigeration system?
Compressor oil and filter replacement is recommended every 12 months or 4,000 operating hours, whichever occurs first, under normal laboratory duty cycles.
Does the controller support remote diagnostics via network connection?
Yes—the Ethernet interface supports secure Telnet and HTTP-based diagnostic access, firmware updates, and live parameter monitoring through authorized IP endpoints.
Can the system be validated for GMP compliance?
Yes—TENNEY provides IQ/OQ documentation packages, calibration certificates, and 21 CFR Part 11 configuration guidance for systems deployed in regulated pharmaceutical and medical device manufacturing environments.
