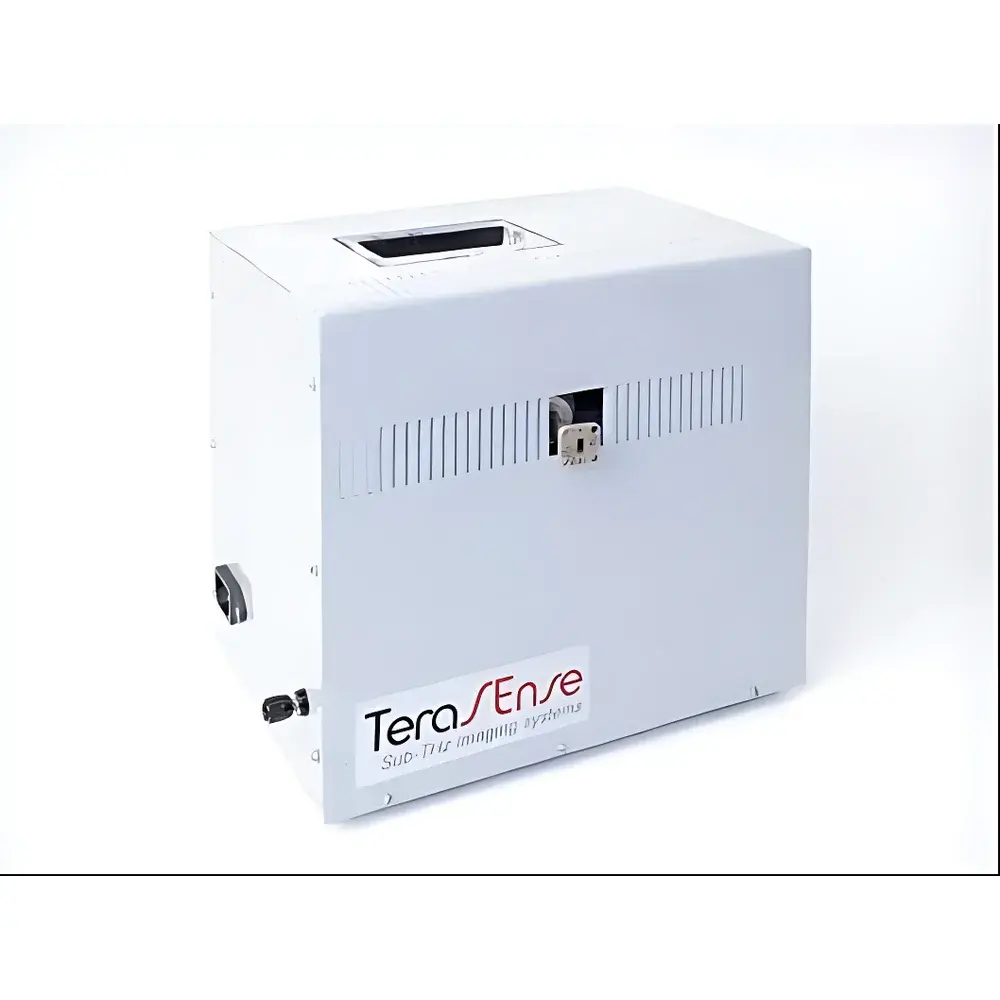

TeraSense Terasource-3 High-Power Vacuum Electronic Terahertz Source
| Brand | TeraSense |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Product Category | Imported Instrument |
| Model | Terasource-3 |
| Core Technology | Electro-vacuum backward-wave oscillator (BWO) |
| Frequency Range | 80–120 GHz (electronically tunable) |
| Tuning Range | 10 GHz |
| Linewidth | < 1 MHz |
| Output Power | 0.5–1 W (CW, frequency-dependent) |
| Dimensions | 18 × 18 × 18 cm |
| Weight | 5 kg |
| Power Supply Requirement | High-voltage DC (±15 kV), precision-stabilized |
| Cooling | Forced-air with thermal monitoring |
| Compliance | CE, RoHS, IEC 61000-6-3/6-4 |
Overview
The TeraSense Terasource-3 is a high-power, continuous-wave (CW) vacuum electronic terahertz source engineered for demanding research and industrial applications in the sub-millimeter wave band. It operates on the physical principle of the backward-wave oscillator (BWO), a mature electro-vacuum device architecture leveraging electron beam interaction with a slow-wave structure under a precisely controlled axial magnetic field. Unlike photoconductive or optical rectification sources, the Terasource-3 delivers watt-level output power in the 80–120 GHz range—enabling high signal-to-noise ratio spectroscopy, active imaging, plasma diagnostics, and non-destructive testing where conventional solid-state sources lack sufficient radiated power. Its core mechanism relies on relativistic electron beam modulation within a periodic helical or folded-waveguide structure; the resulting backward-propagating electromagnetic wave is extracted via waveguide coupling near the electron gun region. Frequency tuning is achieved by adjusting the electron acceleration voltage (±15 kV range) with sub-kHz stability, offering reproducible, drift-compensated operation over extended duty cycles.
Key Features
- Electronically tunable CW output across 80–120 GHz with 10 GHz continuous sweep capability
- Typical output power of 0.5–1 W (dependent on operating frequency; peak at ~100 GHz)
- Narrow intrinsic linewidth (< 1 MHz) suitable for high-resolution heterodyne detection and coherent mixing
- Compact monolithic design (18 × 18 × 18 cm, 5 kg) with integrated high-voltage power supply and forced-air thermal management
- Permanent NdFeB magnet assembly ensures stable magnetic confinement without external current-driven coils
- Robust vacuum envelope rated for >10,000 hours mean time between failures (MTBF) under nominal operating conditions
- Standard WR-10 (0.1″ × 0.05″) rectangular waveguide output flange (UG-387/U) compatible with VDI multipliers, harmonic mixers, and commercial THz spectrometers
Sample Compatibility & Compliance
The Terasource-3 is designed for integration into laboratory-scale and OEM systems requiring stable, high-power mmWave excitation. It interfaces directly with standard microwave/THz test benches, including vector network analyzers (VNAs), spectrum analyzers with harmonic mixers, and custom-built interferometric receivers. No sample chamber or consumables are required—the source emits free-space or waveguide-coupled radiation depending on system configuration. The instrument complies with CE marking requirements for electromagnetic compatibility (IEC 61000-6-3/6-4) and environmental safety (RoHS Directive 2011/65/EU). While not classified as a medical device, its performance parameters meet ASTM E2847-22 guidelines for mmWave source characterization in materials testing. All operational firmware and HV control logic adhere to IEC 62443-3-3 cybersecurity baseline standards for industrial instrumentation.
Software & Data Management
The Terasource-3 includes a USB 2.0–based control interface with vendor-provided Windows/Linux-compatible SDK (C/C++, Python bindings). Users can perform remote voltage ramping, real-time frequency calibration mapping, and thermal status polling. Logging functionality records timestamped acceleration voltage, cathode current, collector temperature, and output power estimates (derived from calibrated diode detector response curves). Audit trails support GLP-compliant workflows when deployed in regulated environments. Although the device does not implement FDA 21 CFR Part 11 electronic signature controls natively, its deterministic analog control architecture allows full traceability when integrated with validated third-party SCADA or LIMS platforms.
Applications
- High-sensitivity rotational spectroscopy of polar gases (e.g., H₂O, NH₃, CH₃OH) in atmospheric science and combustion diagnostics
- Active THz imaging for concealed object detection in security screening systems
- Non-contact conductivity mapping of 2D materials (graphene, TMDCs) via THz-TDS pump-probe configurations
- Plasma parameter profiling (electron density, collision frequency) in fusion-relevant magnetized plasmas
- Calibration reference source for antenna pattern measurement and radar cross-section validation
- Driving harmonic generation stages (e.g., x2, x3) to extend coverage into the 240–360 GHz band using nonlinear crystals or Schottky diodes
FAQ
What is the minimum warm-up time before stable output is achieved?
Typical stabilization time is ≤90 seconds after HV ramp initiation, verified by <0.5% RMS power fluctuation over 60 s.
Can the Terasource-3 be operated in pulsed mode?
No—it is optimized exclusively for continuous-wave emission; pulsing would compromise cathode lifetime and magnetic field homogeneity.
Is magnetic shielding required during installation?
Yes—a minimum 30 cm clearance from ferromagnetic objects is recommended; optional mu-metal enclosures are available for sensitive adjacent equipment.
Does the unit include a built-in power meter?
No—output power calibration is performed externally using NIST-traceable THz power sensors (e.g., Gentec-EO UP19K-15S-H5); factory calibration certificates are provided.
What maintenance intervals are specified?
Annual vacuum integrity verification and cathode emission testing are advised; no routine consumables replacement is required within first 5 years of typical lab use.
