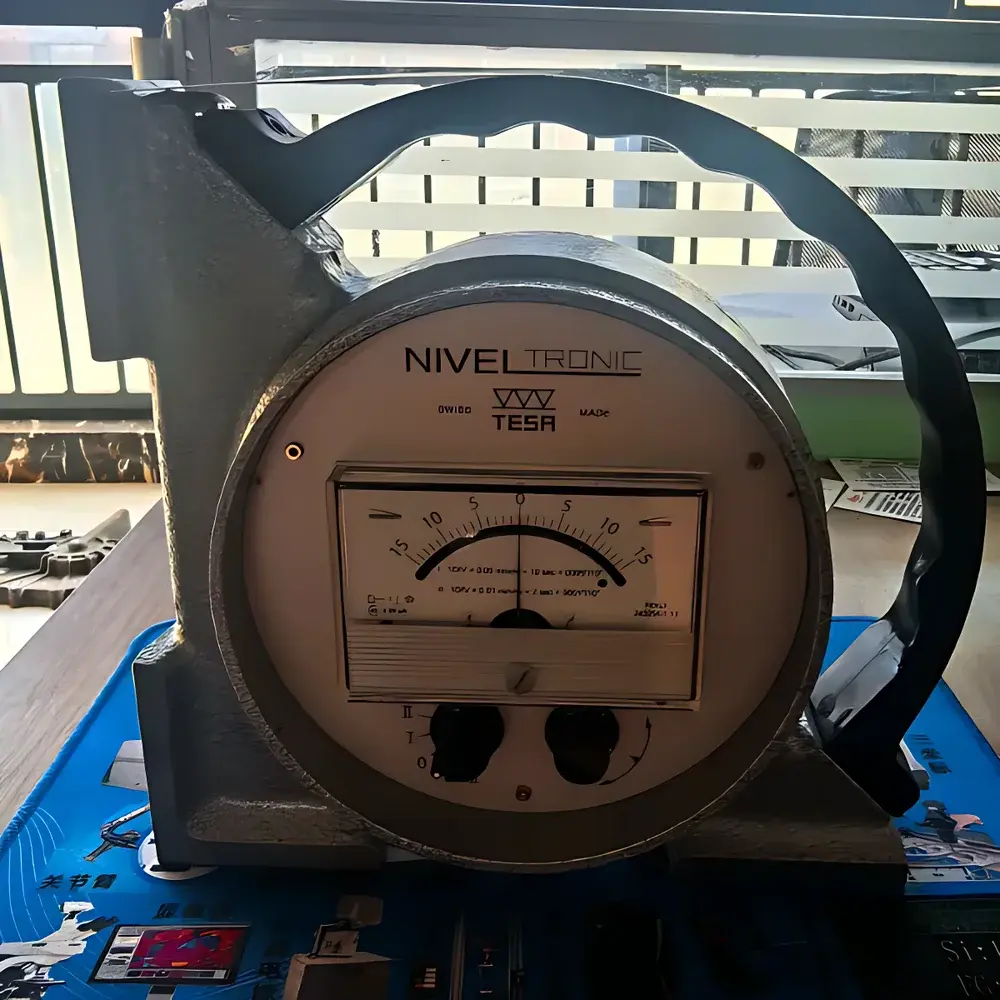

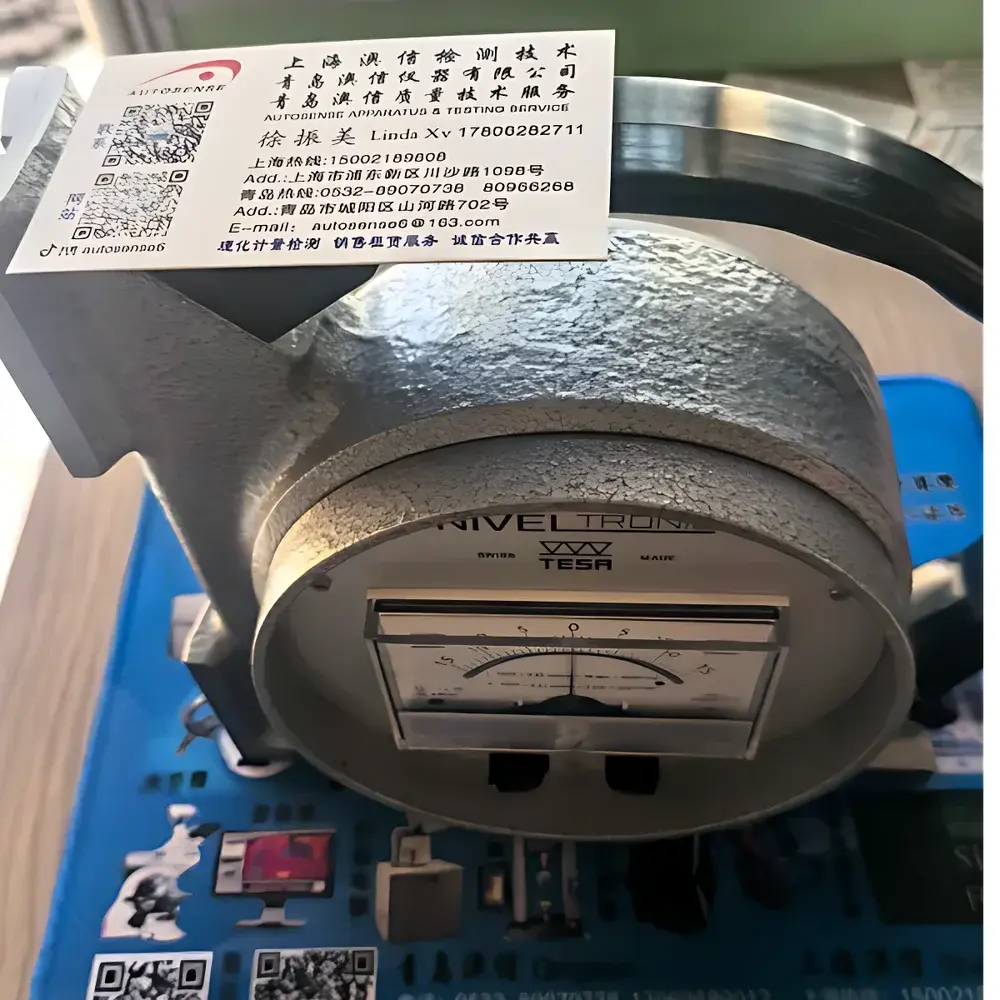

TESA NIVELTRONIC Electronic Level with Analog Display and Built-in Current Meter
| Brand | TESA |
|---|---|
| Country of Origin | Switzerland |
| Model | NIVELTRONIC |
| Display Type | Analog (electro-mechanical pointer scale) |
| Integrated Function | 4–20 mA loop current measurement |
| Accuracy Class | ISO 25378-compliant angular measurement |

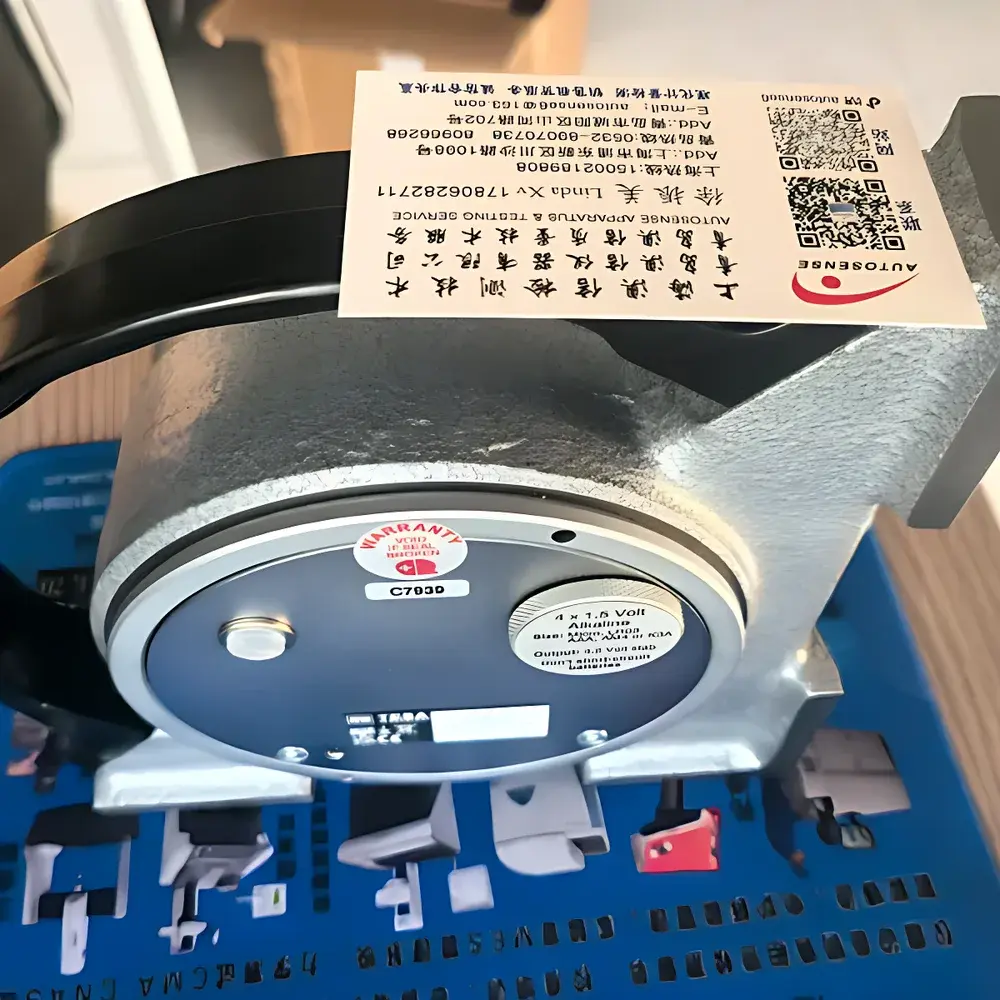

| Power Supply | Battery-operated (standard AA cells) |
| Environmental Rating | IP54 |
| Operating Temperature Range | 0 °C to 50 °C |
| Calibration Certificate | Traceable to METAS (Swiss Federal Institute of Metrology) |
Overview
The TESA NIVELTRONIC Electronic Level is a precision angular metrology instrument engineered for high-reproducibility tilt and leveling verification in industrial metrology, machine tool alignment, and calibration laboratory environments. Unlike purely digital inclinometers, the NIVELTRONIC integrates a high-stability analog display—featuring a finely graduated electro-mechanical pointer scale—enabling intuitive, parallax-minimized visual interpretation of angular deviation. Its dual-function architecture combines high-resolution electronic inclination sensing (based on MEMS capacitive tilt transduction) with a built-in 4–20 mA loop current meter, allowing simultaneous assessment of mechanical alignment status and live process signal integrity. Designed and assembled in Switzerland, the device adheres to ISO 25378:2016 (Geometrical product specifications — Straightness and flatness measuring instruments), ensuring traceability and metrological consistency across global quality assurance workflows.
Key Features
- True analog pointer display with 0.01° resolution scale and zero-adjustable reference baseline, optimized for rapid operator interpretation under variable lighting or vibration-prone conditions
- Integrated 4–20 mA current measurement capability (±0.1% reading accuracy, 0.01 mA resolution) with loop power sourcing and sink detection, supporting HART-compatible field device diagnostics
- MEMS-based dual-axis tilt sensor with temperature-compensated output and long-term zero stability (< ±0.005°/year drift)
- Robust aluminum housing rated IP54 for dust and splash resistance, suitable for workshop and on-machine use
- Battery-powered operation using two standard AA alkaline cells (typical service life >12 months at 8 h/day usage)
- Factory-calibrated against METAS-traceable standards; optional UKAS-accredited calibration certificate available upon request
Sample Compatibility & Compliance
The NIVELTRONIC is compatible with ferromagnetic and non-ferrous mounting surfaces via its integrated magnetic base (optional vacuum base available). It supports direct attachment to machine beds, granite surface plates, optical tables, and structural steel members without requiring auxiliary fixtures. The instrument complies with ISO 25378 for straightness and flatness measurement instrumentation, and its electrical safety design conforms to IEC 61010-1:2010 (Measurement, control and laboratory equipment – Safety requirements). For regulated industries, its measurement uncertainty budget and calibration documentation support GLP/GMP audit readiness and are compatible with FDA 21 CFR Part 11 data integrity frameworks when used in conjunction with validated data logging software.
Software & Data Management
While the NIVELTRONIC operates as a standalone analog-electronic instrument, optional USB interface modules enable analog-to-digital conversion of pointer position and current readings for integration into PC-based metrology platforms. Raw output signals (mV per degree and mA loop) can be logged via third-party DAQ systems compliant with IEEE 1451.2 transducer electronic data sheet (TEDS) conventions. All firmware updates and configuration parameters are managed through TESA’s proprietary MetroLink utility, which maintains full audit trails—including user access logs, calibration date stamps, and parameter change history—in accordance with ISO/IEC 17025:2017 clause 7.7 (Ensuring validity of results).
Applications
- Precision alignment of CNC machining centers, coordinate measuring machines (CMMs), and laser interferometer rails
- In-process verification of hydrostatic guideway leveling in semiconductor lithography tools
- Verification of foundation flatness prior to installation of large-scale metrology equipment (e.g., laser trackers, photogrammetry stations)
- Dual-purpose commissioning checks: confirming both mechanical levelness and 4–20 mA transmitter functionality in process automation skids
- Education and training labs requiring tactile, visually unambiguous angular feedback without reliance on screen-based interfaces
FAQ
Is the analog display affected by electromagnetic interference (EMI) from nearby motors or VFDs?
No—the pointer mechanism is fully passive and electromagnetically shielded; only the internal sensor electronics are EMI-hardened per EN 61326-1.
Can the built-in current meter measure loop voltage simultaneously?
No—it measures current only; loop voltage must be verified separately using a multimeter or dedicated loop calibrator.
Does the device support external temperature compensation inputs?
No—temperature compensation is embedded within the MEMS sensor module and not user-configurable.
What is the maximum allowable surface roughness for reliable magnetic base adhesion?
Magnetic retention is rated for surfaces with Ra ≤ 6.3 µm; for rougher surfaces, the optional vacuum base accessory is recommended.
Is firmware upgrade capability available in the field?
Yes—via USB-connected MetroLink software; upgrades require authenticated TESA service credentials and preserve all user calibration offsets.
