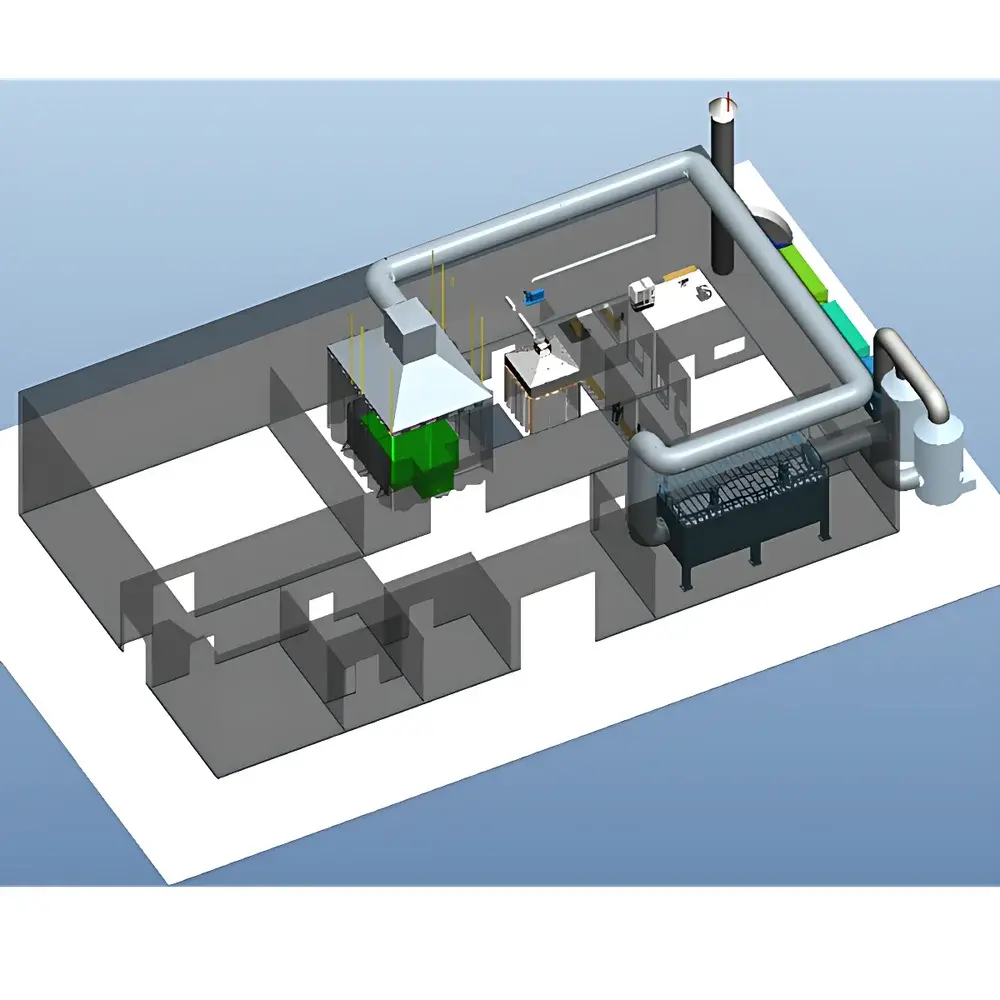

TESTech Ttech-UL9540A-10 UL 9540A Compliant Battery Thermal Runaway Simulation & Fire Test System
| Brand | TESTech |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | Ttech-UL9540A-10 |
| Price Range | USD 1,200 – 2,500 (FOB Jiangsu) |
Overview
The TESTech Ttech-UL9540A-10 is an engineered laboratory-scale test system designed to simulate and evaluate thermal runaway propagation in lithium-ion battery energy storage systems (ESS), in strict conformance with UL 9540A: “Evaluation of Thermal Runaway Fire Propagation in Battery Energy Storage Systems.” This system implements a controlled, instrumented calorimetric and fire propagation methodology—based on the UL 9540A Annex B (cell-level), Annex C (module-level), and Annex D (rack/enclosure-level) protocols—to quantify heat release rate (HRR), flame spread behavior, toxic gas evolution (via optional FTIR or GC-MS integration), and structural integrity under thermal abuse conditions. It supports standardized ignition triggers including external heating, nail penetration, overcharge, and internal short-circuit simulation (when paired with compatible electrical stimulators). The system is not a generic environmental chamber; rather, it integrates calibrated radiant/conductive heating zones, multi-point thermocouple arrays (Type K, ±0.5 °C accuracy), oxygen depletion monitoring, and real-time video documentation synchronized with thermal data acquisition—all aligned with NFPA 855, IEC 62933-5-2, and draft IEEE P2030.2 guidelines.
Key Features
- Modular architecture supporting cell-, module-, and rack-scale thermal runaway testing per UL 9540A Annexes B–D
- Integrated 3-zone independent heating control (bottom, side, top) with PID-regulated ceramic heaters (max 800 °C surface temp)
- Real-time data acquisition at ≥10 Hz sampling rate for up to 64 thermocouple channels + pressure, O₂, CO, CO₂, and CH₄ sensors
- Explosion-resistant stainless steel test chamber (304 SS, 2 mm wall thickness) with blast relief panel and filtered exhaust ducting
- Compliance-ready design: pre-configured mounting interfaces for UL-specified calorimeter trays, gas sampling ports, and optical access windows
- Interlocked safety system with emergency power cutoff, thermal runaway detection algorithm (ΔT/Δt > 10 °C/s), and automatic nitrogen purge activation
Sample Compatibility & Compliance
The Ttech-UL9540A-10 accommodates cylindrical (18650, 21700, 4680), prismatic, and pouch-format Li-ion cells (up to 100 Ah), modules (≤ 200 kg, ≤ 1.2 m height), and sub-rack assemblies (≤ 300 kg, ≤ 2.0 m height). All mechanical fixtures—including thermal interface material (TIM) holders, restraint frames, and calorimeter base plates—adhere to dimensional tolerances specified in UL 9540A Section 5. The system meets CE Machinery Directive 2006/42/EC requirements and is designed for seamless integration into ISO/IEC 17025-accredited laboratories. Documentation includes traceable calibration certificates for all temperature and gas sensors, as well as a Design Verification Report (DVR) referencing UL 9540A Edition 4 (2023) and NFPA 855 Chapter 12 verification criteria.
Software & Data Management
TESTech’s proprietary TTS-UL Control Suite (v3.2+) provides deterministic real-time control, synchronized multi-sensor logging, and automated report generation compliant with GLP and FDA 21 CFR Part 11 requirements—including electronic signatures, audit trails, and data immutability features. Raw data exports are provided in .csv and .tdms formats; time-aligned video streams (H.264, 30 fps) are embedded in reports with timestamp overlays. The software supports user-defined test sequences, pass/fail logic based on UL 9540A acceptance thresholds (e.g., peak HRR < 150 kW, flame spread distance < 1.5 m), and comparative analysis across historical test runs. Optional cloud-based data archiving (AWS S3 encrypted buckets) enables remote review by third-party auditors or certification bodies.
Applications
- Qualification testing of battery enclosures and fire suppression systems per UL 9540A and IEC 62619
- Development and validation of thermal barrier materials, flame-retardant electrolytes, and cell-to-pack (CTP) thermal management architectures
- Supporting OEMs and Tier-1 suppliers in fulfilling UN GTR 20, GB/T 38031–2020, and ECE R100 Rev.3 safety documentation requirements
- Academic research on thermal runaway kinetics, gas-phase combustion chemistry, and vent gas toxicity profiling
- Pre-certification testing for UL 1973, UL 9540, and EN 50620 submissions
FAQ
Does the Ttech-UL9540A-10 include UL certification of the system itself?
No—the system is designed and validated to perform tests *in accordance with* UL 9540A, but UL does not certify test equipment. Final test reports require execution by an accredited laboratory (e.g., UL Solutions, TÜV SÜD, Intertek) using this or equivalent hardware.
Can the system be upgraded to support NFPA 855 full-scale rack testing?
Yes—modular expansion kits (Ttech-UL9540A-RACK) add reinforced structural framing, extended exhaust ducting, and high-flow gas sampling manifolds compatible with NFPA 855 Annex F protocols.
Is remote operation supported for hazardous test phases?
Yes—fully isolated Ethernet-controlled actuators, wireless thermocouple nodes (optional), and zero-latency video streaming enable operator evacuation prior to thermal initiation while maintaining full control and data fidelity.
What calibration standards are applied to temperature sensors?
All thermocouples are NIST-traceable and calibrated annually against a Fluke 724 temperature calibrator per ISO/IEC 17025 Clause 6.5. Calibration certificates include uncertainty budgets and drift analysis.
How is data integrity ensured during long-duration tests (>72 h)?
The system employs dual redundant SD card logging + RAID-1 SSD storage with cyclic buffer overwrite protection, ensuring no data loss even during unexpected power interruption or software restart.
