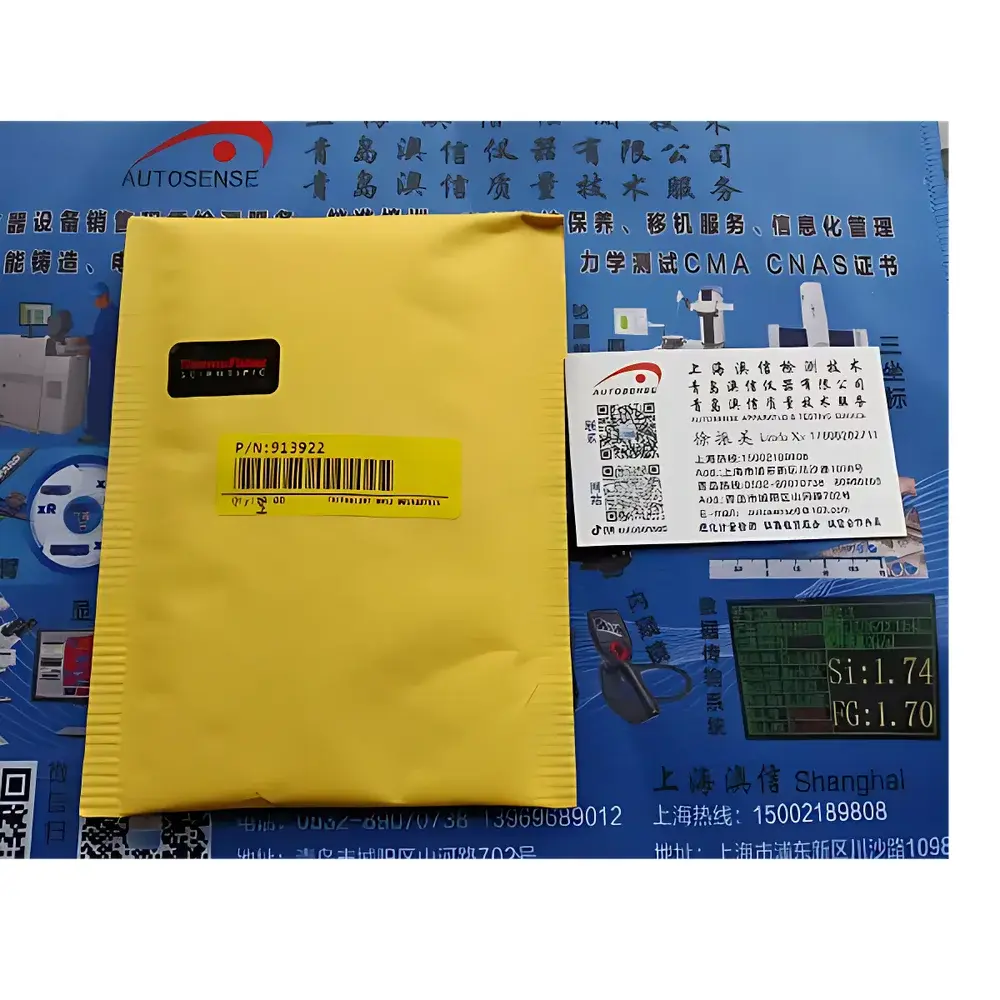

Thermo Fisher ARL Spectrometer Electrode Brush 913922

Overview

The Thermo Fisher ARL Spectrometer Electrode Brush 913922 is a precision-engineered consumable component designed exclusively for routine maintenance of spark optical emission spectrometers (spark-OES) within the Thermo Fisher ARL product family—including the ARL 8860, ARL QUANT’X, and legacy ARL 4460 platforms. Unlike generic cleaning tools, this brush is calibrated to match the geometry and thermal expansion characteristics of ARL counter-electrodes and sample holders. Its primary function is to remove oxide layers, carbon deposits, and micro-particulate residue from tungsten or copper counter-electrodes without inducing surface scratching or dimensional deviation. Consistent electrode surface integrity is critical for maintaining discharge stability, spectral line intensity reproducibility, and long-term calibration drift control—factors directly governed by ASTM E1184 and ISO 11573 standards for metallic alloy analysis. The brush operates within the instrument’s ambient excitation chamber environment and requires no disassembly of the spark stand.

Key Features

• Graphite composite bristles engineered for non-abrasive yet effective removal of refractory oxides (e.g., Al₂O₃, SiO₂) commonly formed during high-energy spark ablation of aluminum, titanium, and stainless-steel samples
• Stainless steel handle with ergonomic grip and integrated retention groove for secure mounting in ARL-standard electrode cleaning fixtures
• Dimensionally validated against ARL 8860 spark stand tolerances (±0.05 mm diameter tolerance on brush core)
• RoHS-compliant formulation ensures zero halogen contamination risk during cleaning—critical for low-detection-limit trace element analysis (e.g., Pb, Cd, As in RoHS-compliant alloys)
• Thermal stability verified across operational temperature ranges encountered in industrial foundry labs and QC environments

Sample Compatibility & Compliance

This electrode brush is validated for use with solid metallic samples analyzed under argon purge conditions, including ferrous alloys (steels, cast irons), non-ferrous metals (Al, Cu, Mg, Zn, Ti), and superalloys (Inconel, Hastelloy). It supports compliance workflows aligned with ISO/IEC 17025:2017 (clause 6.4.10 on equipment maintenance records) and ASTM E3061–17 (standard practice for OES instrument qualification). Each batch undergoes metrological verification per ISO 17034 for reference material producers, with traceable documentation available upon request. No validation is required for GLP or GMP-regulated laboratories when used as part of documented preventive maintenance procedures.

Software & Data Management

While the 913922 brush itself contains no embedded electronics or firmware, its usage is fully integrated into Thermo Fisher’s ARL SpectraGraph software maintenance logging module. Operators can record brush replacement events with timestamps, operator ID, and associated instrument run IDs—enabling audit-ready correlation between cleaning frequency and spectral signal stability metrics (e.g., %RSD of Mn II 257.610 nm line over 50 sparks). These entries are preserved in encrypted SQLite databases compliant with FDA 21 CFR Part 11 requirements when deployed with ARL SpectraGraph v4.2 or later and enabled electronic signature modules.

Applications

• Routine electrode conditioning between sample analyses in high-throughput metallographic QC labs
• Restoration of excitation consistency after analyzing high-carbon steels or silicon-rich aluminum alloys
• Maintenance protocol integration for ISO 14001-certified environmental compliance testing (e.g., scrap metal sorting via OES)
• Preventive maintenance scheduling in automotive casting facilities where ARL 8860 systems operate continuously for >16 hrs/day
• Supporting ASTM E1086 method validation for stainless steel grade identification in aerospace component manufacturing

FAQ

Is the 913922 brush compatible with non-Thermo Fisher OES systems such as SPECTRO or Bruker Q8?
No. This brush is dimensionally and mechanically optimized for ARL-series spark stands only. Use on third-party instruments may compromise electrode alignment or induce mechanical interference.
How often should the brush be replaced?
Thermo Fisher recommends replacement after 200–300 cleaning cycles or every 3 months under continuous operation—whichever occurs first—as defined in ARL Maintenance Manual Rev. 5.2, Section 7.3.1.
Can the brush be autoclaved or chemically sterilized?
No. Exposure to steam, ethanol, or acetone degrades the graphite composite matrix and compromises cleaning efficacy. Dry-air wiping is the only approved post-use procedure.
Does this part require calibration or certification documentation?
It is supplied with a Certificate of Conformance (CoC) referencing ISO 9001:2015 production controls. Metrological calibration is not applicable, as it is a passive mechanical tool—not a measuring instrument.
Is there a shelf life for unused brushes?
Yes. Store in original sealed packaging at 15–25 °C and <60% RH. Maximum shelf life is 36 months from date of manufacture, as verified by accelerated aging per IEC 60068-2-30.
