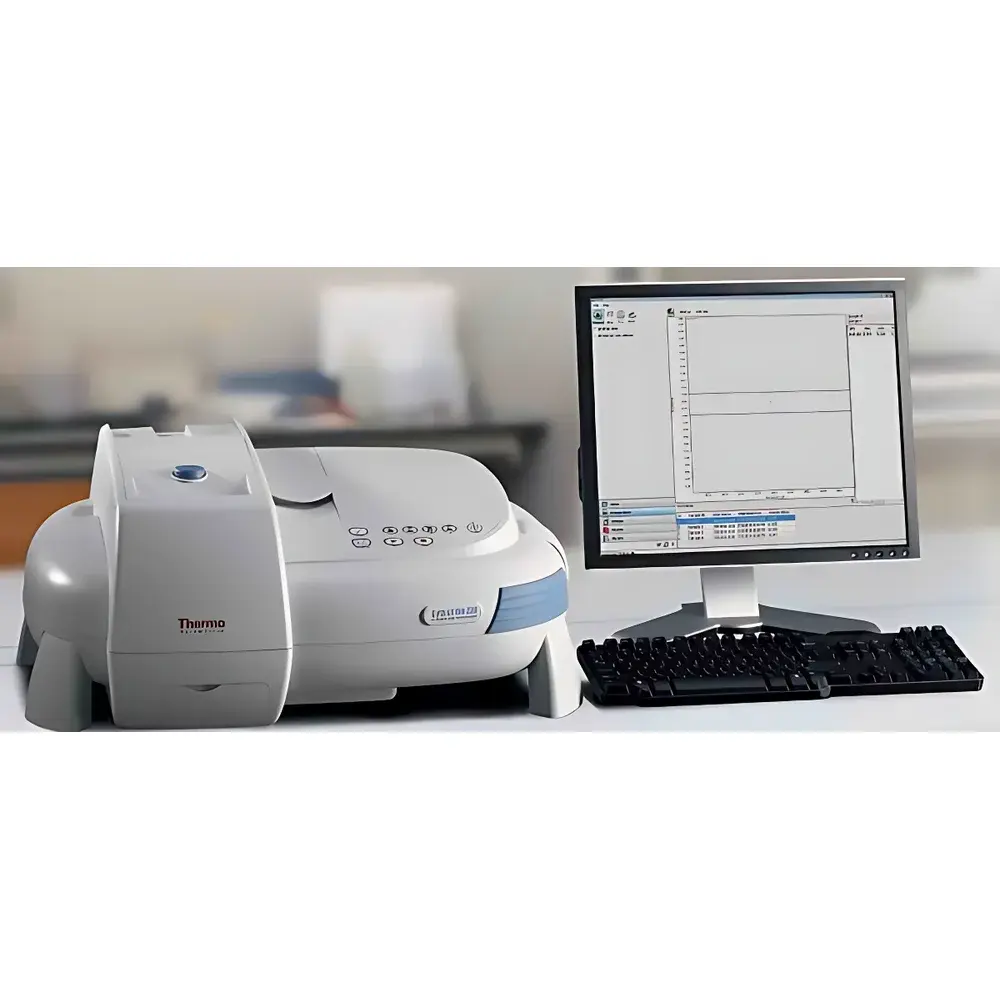

Thermo Fisher Evolution200 UV-Vis Spectrophotometer

Overview

The Thermo Fisher Evolution200 UV-Vis Spectrophotometer is a high-performance, double-beam spectrophotometer engineered for precision absorbance, transmittance, and reflectance measurements across the ultraviolet, visible, and near-infrared spectral regions (190–1100 nm). Its optical architecture employs a stable xenon flash lamp source—eliminating warm-up delays—and a high-resolution monochromator with optimized mechanical drive design to ensure rapid wavelength scanning and long-term wavelength accuracy (±0.8 nm). The instrument utilizes photodiode array (PDA) detection, enabling simultaneous acquisition of full spectra without moving parts in the detector path—enhancing measurement reproducibility and reducing photometric drift. Built on Thermo Fisher’s proven double-beam optical geometry, the Evolution200 compensates for source intensity fluctuations and environmental variations in real time, delivering robust baseline stability essential for kinetic studies, quantitative analysis, and regulatory-compliant workflows.

Key Features

• Double-beam optical design with real-time reference beam correction for enhanced photometric stability and reduced baseline drift
• Xenon flash lamp illumination: zero warm-up time, extended lamp lifetime (>10⁹ flashes), and consistent spectral output across 190–1100 nm
• 1.0 nm spectral bandwidth—optimized for resolution-sensitive applications including pharmaceutical assay validation and nucleic acid quantification
• Advanced Optical Convergence (AFBG) technology improves signal-to-noise ratio for low-volume cuvettes (down to 10 µL), solid samples, and fiber-optic probe configurations
• Integrated 10.1-inch color touchscreen display with embedded industrial-grade computer; supports standalone operation without external PC
• Electronic triggering capability synchronized with external mixers or reaction initiators—critical for sub-second kinetic measurements (e.g., enzyme kinetics, rapid redox reactions)
• Modular hardware architecture compatible with Peltier-controlled single-cell holders and intelligent 8-position Peltier temperature-controlled sample changers (0–100 °C)

Sample Compatibility & Compliance

The Evolution200 accommodates diverse sample formats—including standard 10-mm pathlength cuvettes, microvolume cells, integrating spheres for diffuse reflectance, fiber-optic probes for in-situ monitoring, and solid-sample holders for thin-film or powder analysis. All accessories are mechanically and optically calibrated to maintain system-level photometric accuracy. For regulated environments, the platform supports full compliance with international quality standards: ASTM E275 and E387 for spectrophotometer performance verification; ISO/IEC 17025 method validation requirements; USP and for pharmaceutical UV-Vis applications; and FDA 21 CFR Part 11 via optional INSIGHT Security software. Integrated audit trail, electronic signatures, user role management, and data integrity safeguards meet GLP/GMP documentation expectations. Thermo Fisher’s UV Validation Kit—including NIST-traceable holmium oxide, didymium, and potassium dichromate filters—enables routine wavelength and photometric accuracy verification per IQ/OQ/PQ protocols.

Software & Data Management

INSIGHT software serves as the unified control and analysis interface—available in both embedded (on-instrument) and PC-hosted configurations. Its modular workspace allows users to define custom dashboards, configure method templates, and deploy CUE scripting for automated, multi-step workflows (e.g., sequential dilution + measurement + calculation + report export). The built-in Method Wizard guides first-time users through parameter selection while preserving full access to advanced settings for expert operators. All raw spectral data are stored in vendor-neutral .spc format compliant with ASTM E131 and JCAMP-DX standards. Data export options include CSV, PDF, XML, and direct integration with LIMS via ODBC or RESTful API. Full traceability is maintained through automatic metadata capture—including instrument ID, operator login, timestamp, environmental conditions (if sensor-equipped), and calibration history.

Applications

• Pharmaceutical QC/QA: Active pharmaceutical ingredient (API) assay, dissolution testing, excipient compatibility screening per ICH Q5C guidelines
• Life sciences: DNA/RNA quantification (A260/A280 ratios), protein concentration (Bradford/Lowry/BCA), enzyme kinetics (NADH/NADPH monitoring at 340 nm)
• Materials science: Thin-film thickness determination via interference fringe analysis, bandgap estimation of semiconductors
• Environmental analysis: Nitrate/nitrite quantification in water (EPA Method 353.2), COD determination, heavy metal complexation studies
• Academic research: Ligand-binding thermodynamics, photochemical reaction monitoring, nanoparticle surface plasmon resonance characterization

FAQ

Does the Evolution200 support 21 CFR Part 11 compliance?

Yes—when configured with INSIGHT Security software, it provides electronic signature enforcement, audit trail logging, user access controls, and data integrity safeguards required for regulated laboratories.
Can I perform kinetic measurements with millisecond resolution?

The instrument supports electronic triggering with sub-10 ms synchronization latency, enabling reliable collection of rapid-mixing kinetic data when paired with compatible stopped-flow or manual mixing accessories.
Is the photodiode array detector thermally stabilized?

The PDA detector is housed in a temperature-compensated module to minimize dark current drift and ensure stable photometric response over extended acquisitions.
What validation tools are included out-of-the-box?

The system ships with factory-installed wavelength and photometric calibration files; optional UV Validation Kits (NIST-traceable standards) are available for routine IQ/OQ/PQ execution.
How is firmware updated and version controlled?

Firmware updates are delivered via secure Thermo Fisher Connect portal; each update includes SHA-256 checksums and revision logs traceable to release notes and regulatory change control records.
