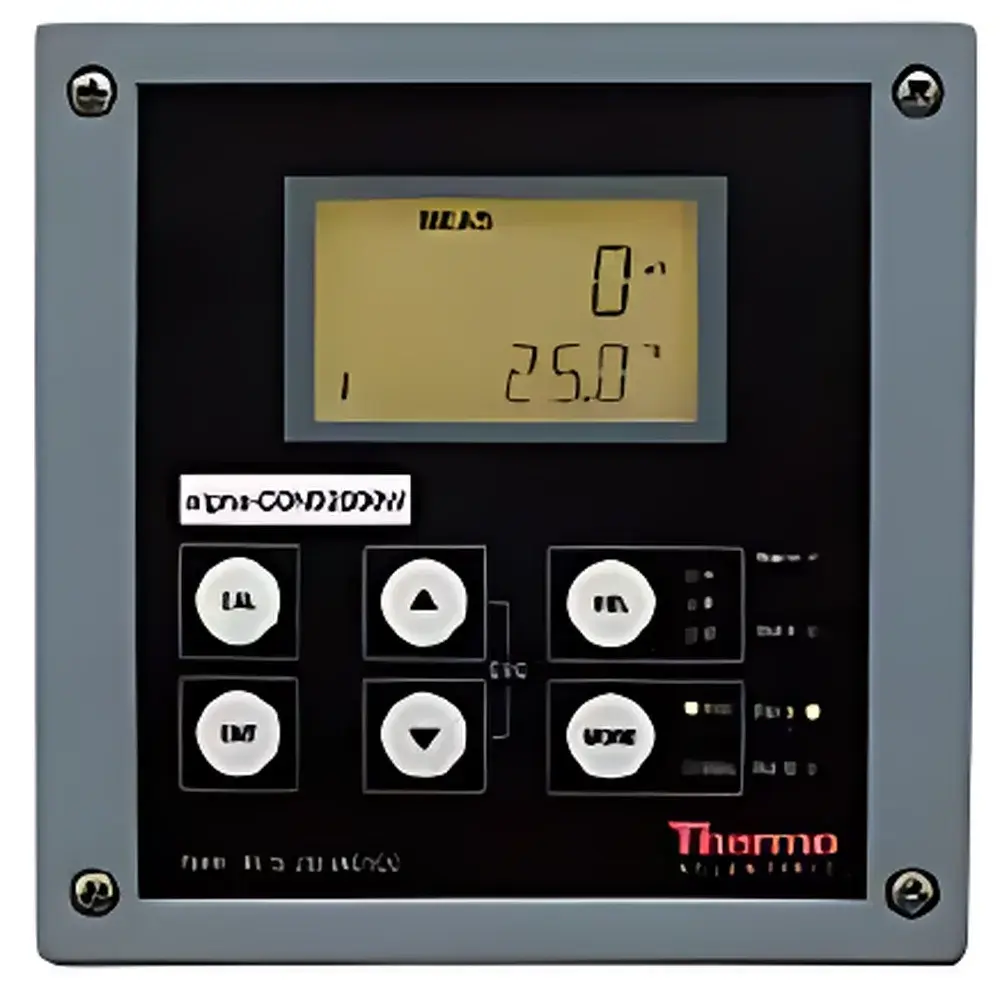

Thermo Fisher Scientific alpha-CON2000 Wall-Mountable / Panel-Mount Conductivity Controller

Overview

The Thermo Fisher Scientific alpha-CON2000 is a high-integrity, industrial-grade conductivity controller engineered for continuous, real-time monitoring and precise process control in demanding water treatment, chemical processing, pharmaceutical manufacturing, and power generation applications. Based on two-electrode or four-electrode (optional) conductometric measurement principles, the device determines solution conductivity by applying an alternating current across the electrode cell and measuring the resulting voltage drop—thereby eliminating polarization errors inherent in DC-based systems. Its dual-range architecture supports seamless auto-ranging across seven programmable conductivity spans—from 0.01 µS/cm to 1000 mS/cm—enabling accurate measurement of ultrapure water, boiler feedwater, brine solutions, and aggressive electrolytes without manual range switching. Designed for 24/7 operation in harsh environments, the alpha-CON2000 integrates robust analog signal conditioning, temperature compensation algorithms (linear or non-linear, configurable), and fail-safe relay logic to ensure regulatory-compliant process stability.

Key Features

• Seven selectable conductivity ranges (0.01 µS/cm to 1000 mS/cm) with automatic range detection and seamless transitions
• Configurable electrode interface supporting both 2-electrode and optional 4-electrode cells to suppress polarization and enhance long-term calibration stability
• Programmable control modes: on/off (hysteresis-adjustable), proportional (P), and proportional-integral (PI) control for dynamic setpoint regulation
• Dual independent 0/4–20 mA analog outputs—fully assignable and scalable—for conductivity, temperature, or control error signals; each output supports split-range configuration
• Backlit dual-line LCD display with icon-driven interface showing simultaneous conductivity and temperature values, status indicators (e.g., sensor fault, calibration due, cleaning active), setpoints, and relay states
• Integrated cleaning relay with user-defined cycle frequency and duration—compatible with pneumatic, solenoid, or ultrasonic cleaning systems
• NEMA 4X (IP66) rated enclosure for corrosion-resistant outdoor or washdown-area installation; compatible with wall-mount, pole-mount, and panel-cutout mounting configurations
• Universal power supply (85–250 VAC/DC, 50/60 Hz) with built-in surge suppression and wide-voltage tolerance for unstable utility grids
• Non-volatile memory (EEPROM) retains all calibration coefficients, configuration parameters, and event logs during power loss or unexpected shutdown
• Temperature input support for Pt100 or Pt1000 RTDs (2-wire or 3-wire connection), enabling automatic temperature compensation per ASTM D1125 or ISO 7888 standards

Sample Compatibility & Compliance

The alpha-CON2000 is validated for use with aqueous solutions across pH 0–14 and temperatures up to 85 °C (dependent on sensor selection). It complies with IEC 61000-6-2 (immunity) and IEC 61000-6-4 (emissions) for industrial electromagnetic compatibility. The device meets NEMA 4X mechanical ingress protection requirements and conforms to UL 61010-1 and CSA C22.2 No. 61010-1 for electrical safety. When deployed in regulated environments—including pharmaceutical water systems (PW, WFI, PWRS) and food-grade processes—the controller supports audit-ready operation through timestamped calibration logs, parameter change tracking, and password-protected configuration tiers—aligning with FDA 21 CFR Part 11 data integrity expectations when paired with compliant data acquisition systems.

Software & Data Management

While the alpha-CON2000 operates as a standalone hardware controller without embedded Ethernet or wireless connectivity, its analog and relay outputs are fully compatible with distributed control systems (DCS), programmable logic controllers (PLCs), and SCADA platforms. Configuration is performed locally via the front-panel keypad and menu system, with all settings stored in tamper-resistant EEPROM. Event logging includes calibration timestamps, relay activation history, sensor fault codes, and cleaning cycle records—all viewable on-screen or retrievable via external analog trend recording. Optional integration with Thermo Fisher’s Process Analytics Suite (via third-party Modbus RTU gateways) enables remote configuration backup, batch report generation, and alarm forwarding to enterprise MES systems.

Applications

• Continuous conductivity monitoring and automatic blowdown control in steam boiler and cooling tower systems
• Concentration control of acid/base solutions in chemical dosing skids and electroplating baths
• Ultrapure water (UPW) quality assurance in semiconductor fab utilities and pharmaceutical purified water loops
• Leak detection in double-containment piping and heat exchanger integrity verification
• Regulatory compliance monitoring for conductivity specifications in USP , EP 2.2.38, and JP 2.05
• Process endpoint detection in CIP (clean-in-place) rinse cycles based on conductivity decay profiles

FAQ

Does the alpha-CON2000 support digital communication protocols such as Modbus or HART?
No—the alpha-CON2000 is an analog-native controller with 4–20 mA outputs and relay contacts only. Digital integration requires an external protocol gateway.
Can the device perform automatic temperature compensation using non-linear (e.g., NaCl curve) algorithms?
Yes—users may select linear compensation or apply preloaded standard curves (e.g., KCl, NaCl) per ISO 7888 Annex B, or define custom polynomial coefficients.
Is calibration traceable to NIST standards?
Calibration is performed using certified reference solutions (e.g., 84 µS/cm, 1413 µS/cm, 12.88 mS/cm); traceability depends on end-user’s internal metrology program and reference standard documentation.
What is the maximum allowable distance between the controller and the conductivity sensor?
With shielded twisted-pair cable and proper grounding, distances up to 30 meters are supported for 2-electrode sensors; for 4-electrode configurations, consult Thermo Fisher’s installation guide for noise mitigation best practices.
How is sensor drift compensated during extended operation?
The controller does not auto-correct for drift; however, its stable analog circuitry, low-drift amplifiers, and EEPROM-stored calibration coefficients minimize baseline drift—routine verification against reference standards remains essential per ISO/IEC 17025 QA requirements.
