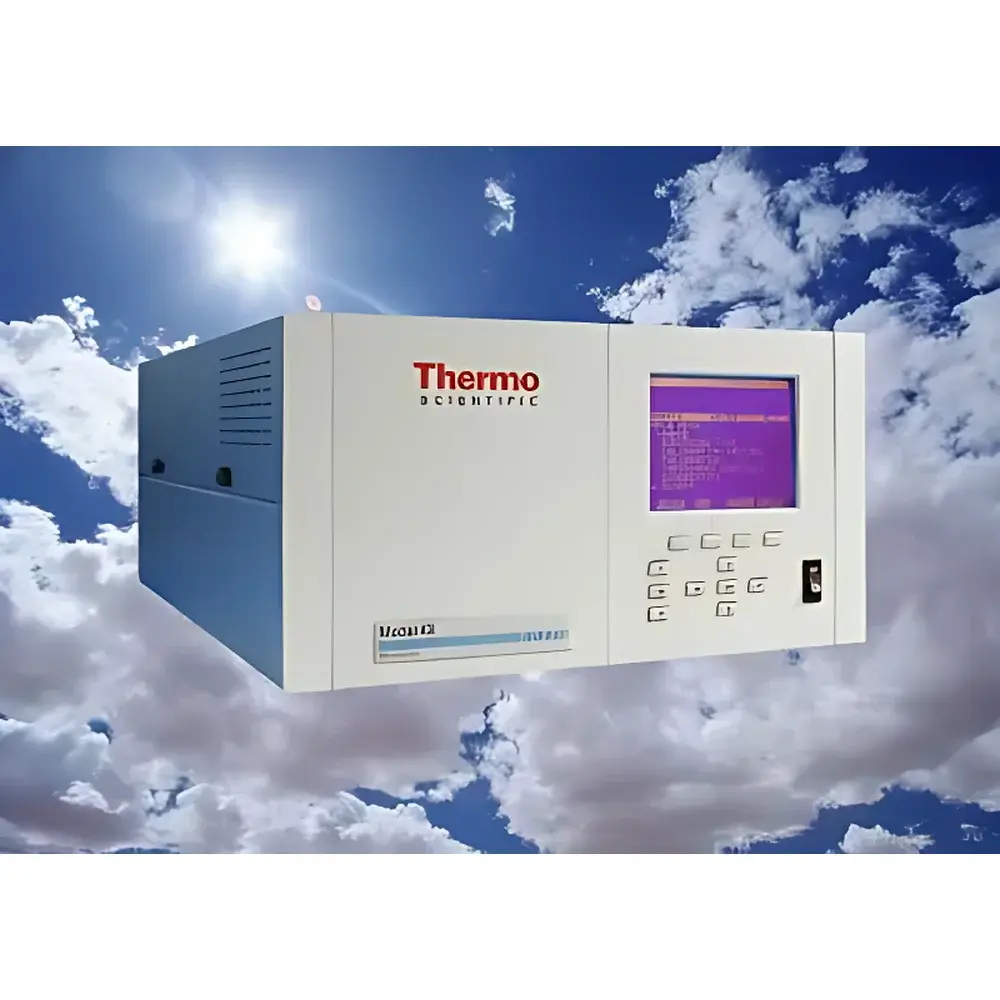

Thermo Fisher Scientific Model 43i Pulsed Fluorescence Sulfur Dioxide (SO₂) Analyzer

Overview

The Thermo Fisher Scientific Model 43i is a high-performance, laboratory-grade sulfur dioxide (SO₂) analyzer engineered for continuous, real-time measurement of ambient and stack gas concentrations using pulsed ultraviolet (UV) fluorescence detection. This technique relies on the photochemical excitation of SO₂ molecules at 214 nm, followed by emission of characteristic fluorescence in the 300–400 nm range; the intensity of this emitted light is linearly proportional to SO₂ concentration over a wide dynamic range (0–100 ppm). Unlike conventional steady-state UV sources, the 43i employs a high-intensity pulsed xenon lamp, delivering superior photon flux and improved signal-to-noise ratio—resulting in a sub-part-per-trillion (ppt) equivalent detection limit (typically <50 ppt, 1σ, 60-second averaging) and exceptional long-term baseline stability. The instrument’s optical path incorporates a reflective bandpass interference filter—replacing traditional transmissive filters—to minimize photodegradation of optical components and enhance spectral selectivity, thereby reducing interferences from ozone, aromatic hydrocarbons, and other fluorescent species. Designed for unattended operation in regulatory monitoring networks, research laboratories, and industrial compliance applications, the 43i meets the performance criteria specified in U.S. EPA Reference Method 16 and EN 14212:2012 for ambient air quality monitoring.

Key Features

• Pulsed UV fluorescence detection with xenon flash lamp for enhanced sensitivity and reduced photobleaching
• Reflective bandpass optical filter architecture for improved spectral discrimination and extended filter lifetime
• Integrated Ethernet port (10/100BASE-T) supporting TCP/IP, Modbus TCP, and HTTP protocols for seamless integration into SCADA and central data acquisition systems
• User-configurable soft keys enabling one-touch access to frequently used functions—including calibration mode, zero/span verification, and diagnostic logs
• High-resolution backlit LCD display (320 × 240 pixels) showing real-time concentration, status flags, alarm conditions, flow rate, pressure, temperature, and system diagnostics simultaneously
• Onboard 256 MB flash memory supporting ≥30 days of second-by-second data logging (configurable sampling intervals: 1–300 seconds)
• Modular electronics design with standardized I/O interfaces (RS-232, RS-485, 4–20 mA analog outputs, relay alarms) for field serviceability and future upgrade paths

Sample Compatibility & Compliance

The Model 43i is validated for use with ambient air, flue gas (with optional heated sample line and particulate filtration), and indoor air matrices. It complies with U.S. EPA Performance Specification 1 (PS-1) for SO₂ analyzers, ISO 7935:1995 (Stationary source emissions — Determination of sulfur dioxide — Ultraviolet fluorescence method), and EU Directive 2008/50/EC Annex III requirements for ambient air quality assessment. All firmware and data handling routines are designed to support GLP and GMP audit trails, including time-stamped event logging, user-access authentication (via password-protected levels), and immutable data storage with CRC-32 integrity checks. Optional configurations include NIST-traceable calibration gas manifold integration and dual-channel redundancy for critical compliance monitoring sites.

Software & Data Management

The 43i operates with Thermo Fisher’s proprietary Insight™ software suite (v5.2+), providing local configuration, remote diagnostics, and automated report generation in PDF/CSV formats. Data export supports FTP, email alerting (SMTP), and direct push to cloud-based platforms via MQTT or RESTful API endpoints. All stored measurements include embedded metadata: instrument ID, calibration history, maintenance timestamps, and environmental sensor readings (sample temperature, pressure, flow). Firmware updates are performed securely over HTTPS with digital signature verification. Audit logs record every user-initiated action—including parameter changes, calibration events, and data exports—with full traceability per FDA 21 CFR Part 11 requirements when configured with electronic signature modules.

Applications

• Ambient air quality monitoring networks (e.g., U.S. EPA AirNow, EEA Air Quality e-Reporting)
• Continuous emissions monitoring systems (CEMS) for coal-, oil-, and biomass-fired power plants
• Industrial hygiene assessments in pulp & paper mills, smelters, and chemical manufacturing facilities
• Research studies on atmospheric chemistry, SO₂ oxidation kinetics, and sulfate aerosol formation
• Calibration transfer standards for secondary reference instruments and field portable analyzers
• Validation of satellite-based SO₂ column retrievals (e.g., TROPOMI, OMI) through ground-truth measurement campaigns

FAQ

What is the lower detection limit of the Model 43i under standard operating conditions?

The typical 1σ detection limit is 50 ppt (parts per trillion) averaged over 60 seconds, with a 3σ minimum detectable level of 150 ppt.
Can the 43i be operated in harsh outdoor environments without climate-controlled shelters?

Yes—the analyzer is rated IP54 and qualified for operation between –20 °C and +50 °C; optional heated inlet and condensate management kits extend functionality to high-humidity or freezing conditions.
Is the 43i compatible with third-party data acquisition systems?

Yes—it supports industry-standard communication protocols including Modbus TCP, ASCII over TCP/IP, and 4–20 mA analog output with HART compatibility.
How often does the instrument require zero and span calibration?

Per U.S. EPA guidance, daily automatic zero checks and bi-weekly span verifications are recommended; full multi-point calibration is advised quarterly or after maintenance.
Are there certified training materials and service documentation available?

Thermo Fisher provides comprehensive technical manuals, SOP templates compliant with ISO/IEC 17025, and instructor-led certification courses for operators and service engineers.
