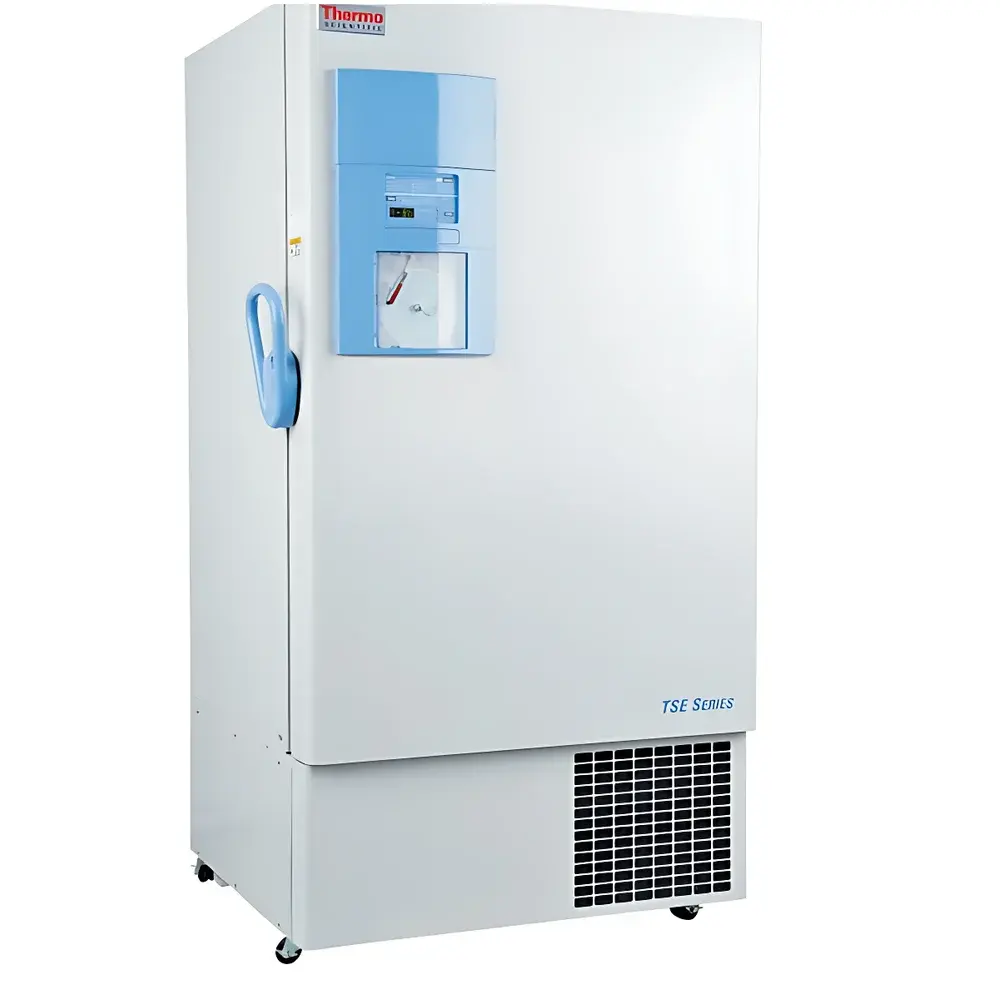

Thermo Fisher TSE Series -86°C Vertical Ultra-Low Temperature Freezer

Overview

The Thermo Fisher TSE Series -86°C Vertical Ultra-Low Temperature Freezer is engineered for long-term, high-integrity storage of biologics, primary cell lines, cryopreserved tissues, and other temperature-sensitive biospecimens in clinical, academic, and pharmaceutical research environments. Utilizing a cascade refrigeration system with dual-stage compressors and environmentally optimized refrigerants (R-404A/R-23), the TSE platform achieves stable operation at –86°C with minimal thermal fluctuation (< ±2°C uniformity across all zones under standard load conditions). Its vertical architecture maximizes floor-space efficiency while maintaining ergonomic access—critical for high-throughput biorepositories and GMP-aligned sample management workflows. Designed to meet stringent regulatory expectations for cold chain integrity, the TSE series supports compliance with ISO 13485, CLIA, CAP, and FDA 21 CFR Part 11 when integrated with validated software and audit-trail-enabled data loggers.

Key Features

• Microprocessor-based control system with centralized, eye-level user interface for real-time monitoring of chamber temperature, compressor status, alarm history, and door-open duration.
• Triple-point magnetic door gasket system combined with 127 mm thick polyurethane insulation ensures rapid temperature recovery (<15 minutes to return to –86°C after 30-second door opening) and reduces annual energy consumption by up to 22% versus legacy ULT freezers.
• Four independent stainless-steel inner doors minimize cold air loss during partial access—reducing thermal load on the refrigeration system and extending compressor life.
• Heavy-duty cold-rolled steel outer cabinet with electrostatic powder coating resists corrosion and mechanical abrasion in demanding laboratory environments; interior constructed entirely from electropolished 304 stainless steel for chemical resistance and ease of decontamination.
• Ergonomic, single-hand door handle with integrated key lock and padlock-compatible design meets institutional security requirements for controlled-access specimen storage.
• Standard 25 mm service port enables external probe integration for independent temperature validation per ISO/IEC 17025 or internal calibration audits.

Sample Compatibility & Compliance

The TSE series accommodates standard cryogenic storage configurations including 2-inch and 5-inch cryoboxes, rack-based vial systems (e.g., Nunc™, Corning®), and custom specimen containers up to 130 mm in height. All models comply with IEC 61010-1 (Safety Requirements for Electrical Equipment for Measurement, Control, and Laboratory Use) and are CE-marked for use in EU member states. When equipped with optional CO₂ or LN₂ backup systems, the freezer satisfies CAP-accredited biorepository requirements for continuous temperature maintenance during power failure (tested per ASTM F2659-21). The stainless-steel interior supports routine cleaning with ethanol, hydrogen peroxide vapor (HPV), or quaternary ammonium disinfectants without surface degradation.

Software & Data Management

The embedded microcontroller logs temperature data at 1-minute intervals with automatic timestamping and stores ≥12 months of historical records onboard. Optional chart recorders provide analog traceability compliant with GLP/GMP Annex 11 and USP . For networked deployment, Thermo Fisher’s SampleManager™ LIMS integration module enables automated metadata tagging (e.g., location, freeze-thaw cycle count, operator ID) and triggers email/SMS alerts upon deviation events (e.g., >–70°C for >2 min). Audit trails include user login/logout timestamps, parameter changes, and alarm acknowledgments—fully compliant with 21 CFR Part 11 electronic signature and record retention mandates.

Applications

• Long-term archiving of human plasma, serum, PBMCs, and stem cell isolates in biobanks accredited to ISO 20387.
• Cryostorage of viral vectors (AAV, lentivirus), mRNA-LNPs, and other advanced therapy medicinal products (ATMPs) requiring strict thermal history documentation.
• Supporting QC/QA stability studies per ICH Q5C guidelines where ultra-low temperature excursions must be quantified and reported.
• Backup storage for critical reagent inventories—including monoclonal antibodies, cytokines, and CRISPR-Cas components—in core facilities serving multiple research groups.
• Integration into automated sample handling ecosystems via RS-485 or Ethernet/IP protocols for synchronized freezer-door actuation and robotic arm coordination.

FAQ

What is the typical temperature recovery time after door opening?
Under standard loading conditions (70% capacity, ambient 22°C), the TSE series recovers to –86°C within 12–15 minutes following a 30-second door opening event.
Can the TSE freezer be validated for IQ/OQ/PQ protocols?
Yes—Thermo Fisher provides factory-issued validation documentation packages, including sensor calibration certificates traceable to NIST standards, and supports third-party qualification using thermocouple mapping per ISO 14644-3.
Is remote monitoring supported out-of-the-box?
Remote access requires optional connectivity hardware (e.g., Thermo Fisher SmartConnect Gateway) and subscription to Thermo Fisher Connect cloud services; local network monitoring via Ethernet is enabled by default.
How does the CO₂/LN₂ backup system integrate with the primary refrigeration cycle?
The backup system operates independently via pressure-actuated solenoid valves triggered by temperature rise or power loss detection; it does not interfere with compressor operation and maintains –80°C for ≥72 hours at full load.
Are replacement parts and service contracts available globally?
Yes—Thermo Fisher maintains authorized service centers in over 50 countries, with 24-month standard warranty coverage extendable to 60 months via Thermo Fisher CarePlus service plans.
