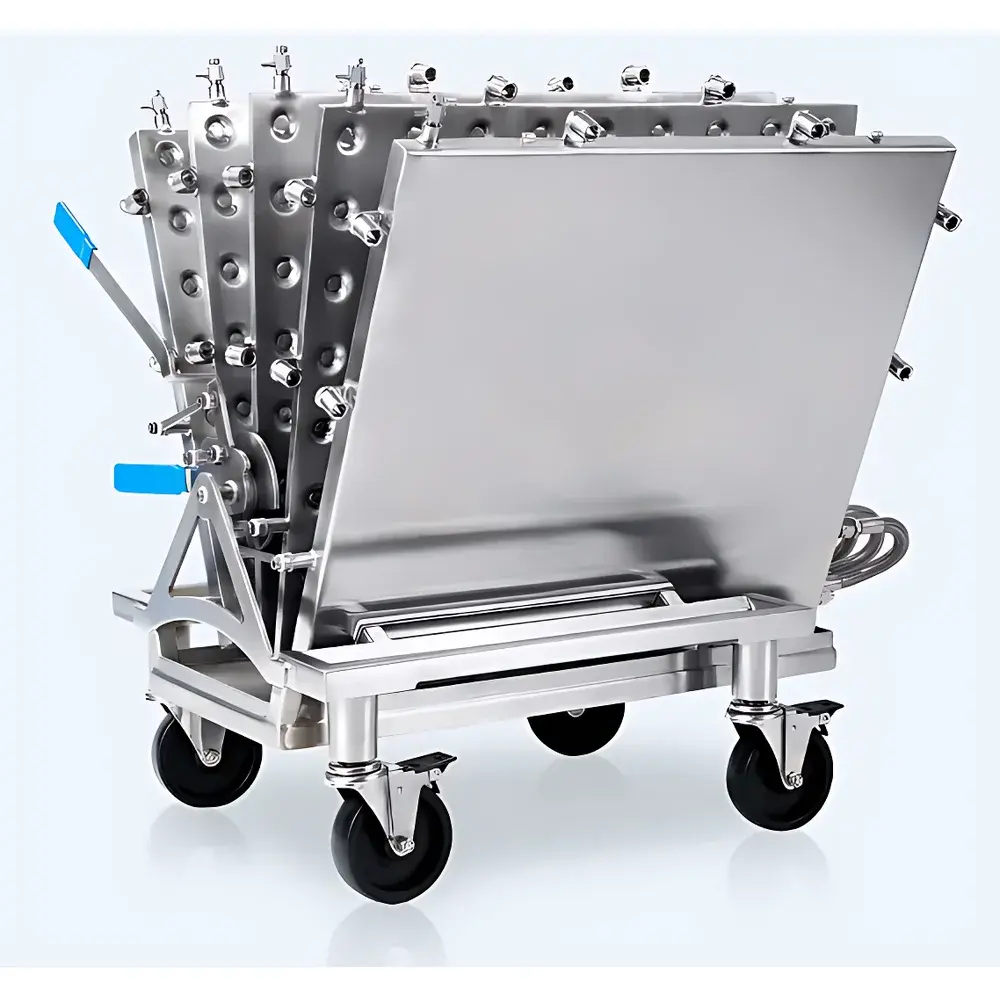

Thermo Scientific DHX Modular Heat Exchanger

Overview

The Thermo Scientific™ DHX™ Modular Heat Exchanger is an engineered, single-use bioprocessing solution designed for precise, scalable, and contamination-controlled thermal management in biopharmaceutical manufacturing. Operating on the principle of conductive heat transfer across a thermally optimized stainless-steel plate stack, the DHX system utilizes a disposable, pre-sterilized Bioprocess Container (BPC) that forms an integral part of the fluidic pathway. The BPC is clamped between five precisely machined 316L stainless-steel plates arranged in a counter-current configuration. This architecture ensures maximal surface-area-to-volume ratio and promotes controlled turbulent flow—critical for achieving high heat transfer coefficients (U-values) while maintaining low pressure drop and minimal hold-up volume. Unlike traditional shell-and-tube or plate-and-frame exchangers requiring cleaning-in-place (CIP) and sterilization-in-place (SIP), the DHX eliminates cross-batch contamination risk and reduces validation burden, making it particularly suitable for multi-product facilities operating under cGMP-compliant environments.

Key Features

• Modular, compact footprint—designed for flexible integration into existing skids, bioreactor trains, or continuous processing platforms without major infrastructure modifications.
• Single-use BPC interface with automated, operator-independent positioning—ensures repeatable mechanical alignment and consistent thermal performance across batches.
• Counter-current, serpentine flow path across five thermally conductive plates—enhances temperature gradient utilization and improves thermal efficiency by up to 40% compared to co-current designs at equivalent flow rates.
• Honeycomb-patterned jacket channels on each plate—induce controlled turbulence (Re > 2,300) even at low to moderate flow velocities, preventing laminar boundary layer formation and ensuring uniform heat distribution.
• No internal gaskets or elastomeric seals in the primary fluid path—reducing extractables/leachables risk and supporting compliance with ICH Q5A and USP for single-use systems.
• Compatible with standard 2D/3D barcode tracking of BPC lot numbers—enabling full traceability from raw material to final product disposition.

Sample Compatibility & Compliance

The DHX system supports a broad range of bioprocess fluids including cell culture harvests, clarified lysates, chromatography eluates, formulation buffers, and final drug substance solutions. It is validated for use with BPCs ranging from 5 L to 200 L nominal volumes and accommodates flow rates from 0.1 to 10 L/min depending on viscosity and temperature differential requirements. The system conforms to current Good Manufacturing Practice (cGMP) guidelines per 21 CFR Part 211 and Annex 1 (2022 revision) for sterile bioprocessing. All wetted surfaces are electropolished to Ra ≤ 0.4 µm and passivated per ASTM A967. Device qualification includes thermal mapping per ISO 13485:2016 and installation/operational qualification (IQ/OQ) protocols aligned with ISPE Baseline Guide Volume 4 (Biotechnology). Documentation packages support FDA, EMA, and PMDA regulatory submissions.

Software & Data Management

While the DHX operates as a standalone passive thermal unit, it integrates seamlessly with industry-standard process automation systems via 4–20 mA analog inputs/outputs and Modbus TCP communication. Temperature sensors (Pt100 Class A) mounted at inlet/outlet ports provide real-time feedback for closed-loop control of upstream chillers or heaters. All thermal data—including ΔT, flow rate, and calculated duty—are timestamped and exportable in CSV or OPC UA format. When deployed within a validated DCS or SCADA environment, the DHX supports audit trails compliant with 21 CFR Part 11, including electronic signatures, user access controls, and change history logging for critical parameters.

Applications

• Upstream Processing: In-line cooling of bioreactor harvest streams; temperature-controlled media storage and feed preparation; post-centrifugation cell pellet resuspension cooling; harvest collection at defined temperatures to preserve labile proteins or viral vectors.
• Downstream Processing: Pre-chilling of chromatography columns and buffers; temperature stabilization during tangential flow filtration (TFF); cold hold of purified monoclonal antibodies prior to ultrafiltration/diafiltration; final bulk drug substance conditioning prior to fill-finish.
• Clinical & Commercial Scale: Used in Phase II–III clinical manufacturing and commercial launch campaigns for mAbs, recombinant enzymes, plasmid DNA, and mRNA-LNPs—where rapid tech transfer, reduced cleaning validation, and batch-to-batch consistency are mission-critical.

FAQ

Is the DHX system compatible with gamma-irradiated single-use bags?
Yes—the DHX is qualified for use with gamma-sterilized BPCs meeting ASTM F2768 and USP polymer characterization standards.
Can the DHX be used for heating applications, or is it cooling-only?
It supports both heating and cooling, provided compatible thermal utilities (e.g., glycol chiller or steam jacketed utility loop) are connected to the plate manifold ports.
What is the maximum allowable operating pressure for the BPC side?
The system is rated for BPC-side pressures up to 1.5 bar(g), consistent with typical single-use bag burst specifications.
Does Thermo Scientific provide IQ/OQ documentation for the DHX?
Yes—comprehensive qualification templates, test protocols, and executed reports are available upon request and align with GAMP 5 principles.
How often does the stainless-steel plate stack require maintenance or recalibration?
The plate assembly is maintenance-free over its service life; no recalibration is required as thermal performance is geometry- and material-dependent, not sensor-dependent.
