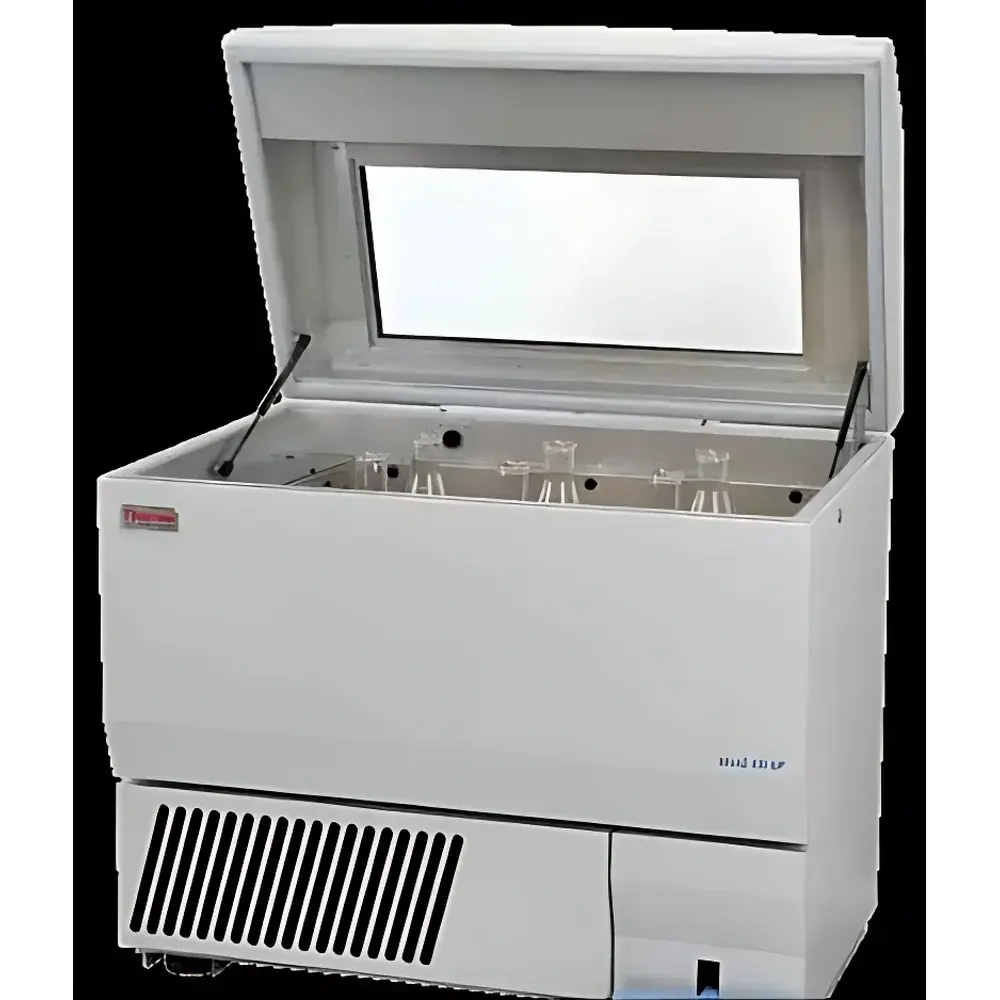

Thermo Scientific MaxQ 436HP and 481HP High-Performance Floor-Model Refrigerated Incubator Shakers

Overview

The Thermo Scientific MaxQ 436HP and 481HP are high-capacity, floor-standing incubator shakers engineered for demanding life science applications requiring precise temperature control, reproducible orbital motion, and contamination-sensitive environments. These instruments operate on the principle of controlled orbital shaking combined with active refrigeration and forced-air circulation—enabling stable thermal management across a broad operational range. The MaxQ 436HP supports ambient +5°C to 60°C operation, while the MaxQ 481HP extends low-end capability down to 4°C via an integrated, front-to-back filtered cold airflow system. Both models feature a robust stainless-steel chamber with seamless, concave-corner construction, HEPA filtration (99.97% efficiency at 0.3 µm), and a dedicated drain valve—making them suitable for extended microbial culture, protein expression, cell-based assays, and bioprocess development where sterility, thermal homogeneity, and mechanical stability are critical.

Key Features

• HEPA-filtered air recirculation system minimizes airborne particulate contamination during long-duration incubations.
• Front-to-back, directionally guided airflow ensures uniform temperature distribution—validated at ±0.2°C within flasks at 37°C.
• Stainless-steel interior with fully welded, radius-free corners and non-porous surfaces enables rapid decontamination and compliance with cleaning validation protocols.
• Large viewing window with tempered glass allows real-time visual monitoring without interrupting chamber conditions.
• Rear access ports accommodate external sensors, CO₂ manifolds, pH probes, or sampling lines—supporting integration into closed-loop bioreactor workflows.
• Foot-activated lid release mechanism permits hands-free operation during sterile procedures or when handling multiple vessels.
• Drain valve with integrated shut-off eliminates manual siphoning and reduces risk of cross-contamination during liquid removal.
• Refrigeration architecture maintains specified performance even under elevated ambient temperatures (up to 32°C), ensuring operational reliability in shared core facilities.

Sample Compatibility & Compliance

The MaxQ 436HP and 481HP accommodate standard shaker-compatible vessels—including Erlenmeyer flasks (up to 5 L), baffled flasks, deep-well plates, and custom bioreactor vessels—on a 1-inch (2.5 cm) orbital platform rated for 32 kg (71 lb) maximum load. Chamber geometry supports flexible tray configurations and optional stacking accessories. From a regulatory perspective, the instruments support GLP- and GMP-aligned workflows through traceable temperature logging (when paired with compatible data acquisition systems), programmable setpoint locking, and audit-ready event history. While not inherently 21 CFR Part 11 compliant out-of-the-box, the shakers interface with Thermo Fisher’s ChronoStar™ software suite, which provides electronic signature, user access control, and change-tracking capabilities required for FDA-regulated environments.

Software & Data Management

Both models include a built-in digital controller with intuitive membrane keypad interface, real-time display of speed, temperature, and elapsed time, and non-volatile memory for up to 10 user-defined protocols. Optional connectivity via RS-232 or Ethernet enables remote parameter adjustment and data export to LIMS or ELN platforms. When integrated with ChronoStar™ v5.x or higher, the shakers support automated calibration verification reports, deviation alerts, and CSV-formatted temperature/speed logs with timestamp and operator ID—facilitating compliance with ISO/IEC 17025, ASTM E2500, and USP analytical instrument qualification guidelines.

Applications

These shakers serve as core infrastructure in academic research labs, pharmaceutical process development groups, and contract manufacturing organizations performing aerobic microbial cultivation (e.g., E. coli, S. cerevisiae), mammalian suspension cell expansion, enzyme kinetics studies under controlled thermal conditions, and formulation stability testing. Their large chamber volume and refrigerated capability make them particularly suited for high-yield protein expression campaigns requiring overnight induction at 16–18°C, as well as for low-temperature fermentation optimization in synthetic biology workflows. The HEPA and drainage features further extend utility into BSL-2–compatible applications involving pathogenic strains or sensitive primary cells.

FAQ

What is the difference between the MaxQ 436HP and 481HP models?

The MaxQ 481HP includes an enhanced refrigeration system enabling operation down to 4°C, whereas the 436HP is optimized for ambient +5°C to 60°C use only.
Can these shakers be validated for GxP environments?

Yes—when used with ChronoStar™ software and appropriate IQ/OQ documentation packages, they meet foundational requirements for analytical instrument qualification per USP .
Is the HEPA filter replaceable, and what is its service life?

The HEPA filter is field-replaceable; typical service interval is 12–18 months under continuous operation in cleanroom-class lab environments.
Do the rear access ports maintain chamber integrity during probe insertion?

Yes—ports are gasket-sealed and include adjustable compression collars to preserve temperature uniformity and prevent unfiltered air ingress.
What safety certifications do these units carry?

Both models are CE-marked and comply with IEC 61010-1 (Safety Requirements for Electrical Equipment for Measurement, Control, and Laboratory Use) and IEC 61326-1 (EMC standards).
