Thermo Scientific TEOM 1405 Atmospheric Particulate Matter Monitor

Overview

The Thermo Scientific™ TEOM™ 1405 Atmospheric Particulate Matter Monitor is a regulatory-grade, continuous ambient air monitoring instrument engineered for traceable, real-time mass concentration measurement of fine particulate matter—specifically PM_2.5. It implements the patented Tapered Element Oscillating Microbalance (TEOM™) technology, a gravimetric method that directly measures particle mass deposited on a vibrating tapered quartz element. Unlike optical scattering, beta attenuation, or pressure-drop-based techniques, TEOM delivers true mass concentration without reliance on empirical calibration factors, density assumptions, or hygroscopic correction algorithms. This direct mass measurement principle ensures metrological traceability to the National Institute of Standards and Technology (NIST), fulfilling stringent requirements for reference-grade environmental monitoring under U.S. EPA, EU Directive 2008/50/EC, and ISO 12103-1 frameworks. The TEOM 1405 replaces the widely deployed TEOM 1400ab platform and maintains full compliance with U.S. EPA Equivalent Method designation EQPM-1090-079 for PM₁₀, while its configurable inlet system supports PM_2.5-specific sampling per EPA Method PS-11 and ISO 25242.

Key Features

• True gravimetric measurement via NIST-traceable TEOM™ sensor architecture, eliminating dependence on particle composition, refractive index, or humidity compensation models
• Integrated ActiveVol™ volumetric flow control system using thermal mass flow sensors, compensated for ambient temperature and barometric pressure to maintain precise 3 L/min sampling rate

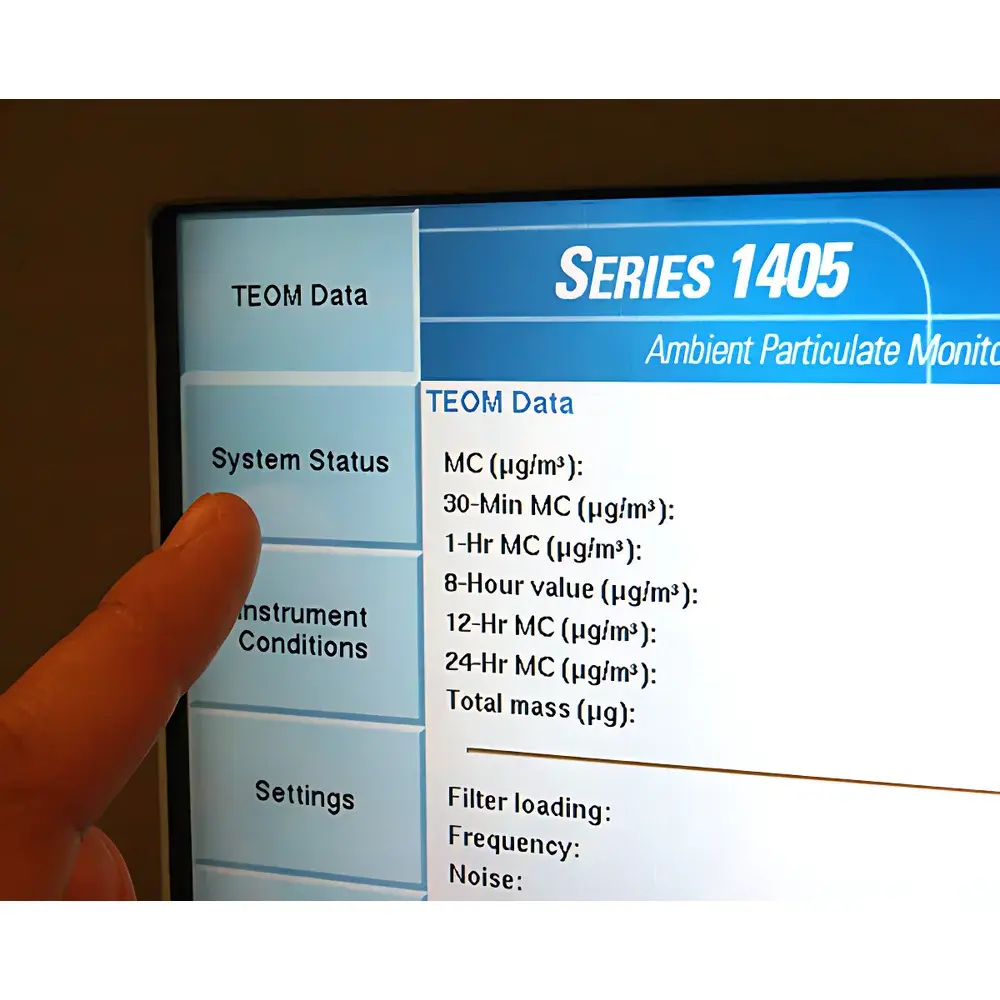

• Industrial-grade 1/4 VGA resistive touchscreen interface with intuitive menu navigation, enabling local configuration, diagnostics, and real-time trend visualization without external software
• Multi-protocol digital connectivity: native Ethernet (TCP/IP), USB host/device, RS-232/RS-485 serial interfaces, and embedded FTP server for automated data retrieval and remote firmware updates
• Comprehensive I/O capability: eight user-configurable analog outputs (0–1 V or 0–5 V DC), four analog inputs (0–5 V DC, scalable to engineering units), and two programmable relay alarm contacts
• Robust environmental design: operational enclosure temperature range of 2–40 °C; optional outdoor-rated cabinet available for unconditioned deployments; sample gas tolerance from −40 to +60 °C
• Built-in high-capacity data logger storing up to 500,000 records with user-defined variable selection—including raw oscillation frequency, temperature, pressure, flow, and calculated mass concentration

Sample Compatibility & Compliance

The TEOM 1405 is validated for continuous monitoring of ambient airborne particulate matter in regulatory networks, research stations, and industrial fence-line applications. Its sampling train accommodates standard PM_2.5 sharp-cut cyclones (e.g., U.S. EPA designated WINS impactor or BGI SCC 1.062) and uses Pallflex™ TX40 filter media (13 mm effective diameter) for stable, low-blank collection. The instrument meets U.S. EPA Performance Specification 11 (PS-11) for PM_2.5 monitors and is certified as an Equivalent Method for PM₁₀ under EQPM-1090-079. It supports GLP/GMP-aligned operation through audit-trail-enabled ePort™ and RPCOMM™ software, with timestamped configuration changes, calibration logs, and event flags compliant with 21 CFR Part 11 data integrity requirements. Electromagnetic compatibility and safety conform to EN 61326-1, EN 61010-1, UL 61010-1, CSA C22.2 No. 61010-1, and FCC Part 15 Class B standards.

Software & Data Management

Local operation and data review are enabled via the embedded touchscreen interface and Thermo Scientific ePort™ software—a Windows-based application supporting instrument setup, real-time parameter viewing, historical data export (CSV, XML), and diagnostic reporting. RPCOMM™ provides secure remote command-and-control over Ethernet or modem connections, including scheduled data pull, alarm notification via email/SMS, and firmware version management. All data records include ISO 8601 timestamps, instrument ID, sensor health metrics, and environmental metadata (temperature, pressure, flow). Internal storage retains 500,000 records with circular buffer overwrite logic; external archiving is supported via FTP push/pull or USB mass storage mode. Data output intervals are fully configurable from 10 seconds to 24 hours, with default 10-minute averaging aligned with U.S. EPA ambient air quality standards reporting conventions.

Applications

• Federal, state, and municipal ambient air quality monitoring networks requiring regulatory-grade PM_2.5 data for National Ambient Air Quality Standards (NAAQS) compliance reporting
• Long-term trend analysis in background, urban, and traffic-oriented sites under EEA Air Quality Directive and WHO Global Air Quality Guidelines
• Source apportionment studies where gravimetric mass serves as anchor data for receptor modeling (e.g., PMF, CMB)
• Indoor air quality assessment in cleanrooms, pharmaceutical manufacturing facilities, and HVAC validation protocols
• Calibration and co-location verification of optical or beta-attenuation monitors in reference comparison studies
• Research applications involving aerosol formation, hygroscopic growth, and filter-based chemical speciation where mass stability and temporal resolution are critical

FAQ

How does the TEOM 1405 differ from beta attenuation or optical scattering PM monitors?
It performs direct gravimetric measurement using a resonating tapered element, eliminating reliance on particle optical properties, density assumptions, or humidity-dependent corrections inherent in non-mass-based methods.
Is the TEOM 1405 suitable for unheated outdoor deployment?
The sensor and electronics require an ambient operating temperature of 2–40 °C; an optional thermostatically controlled outdoor enclosure is recommended for field installations outside this range.
Can the instrument measure PM₁₀ or TSP in addition to PM_2.5?
Yes—by installing the appropriate size-selective inlet (e.g., U.S. EPA PM₁₀ cyclone or TSP nozzle), the same TEOM 1405 platform supports regulatory-compliant measurement across multiple cut-points.
What data validation features support regulatory audit readiness?
ePort™ and RPCOMM™ provide electronic audit trails, user-access logging, calibration history with NIST-traceable weights, and tamper-evident timestamping—fully aligned with 21 CFR Part 11 and ISO/IEC 17025 documentation requirements.
Does the TEOM 1405 require routine filter replacement, and what is the typical service interval?
The Pallflex TX40 filter is rated for one year of continuous operation under typical urban ambient conditions; consumables kit (filters, O-rings, pump oil) is supplied with initial purchase and annual replenishment is recommended.
