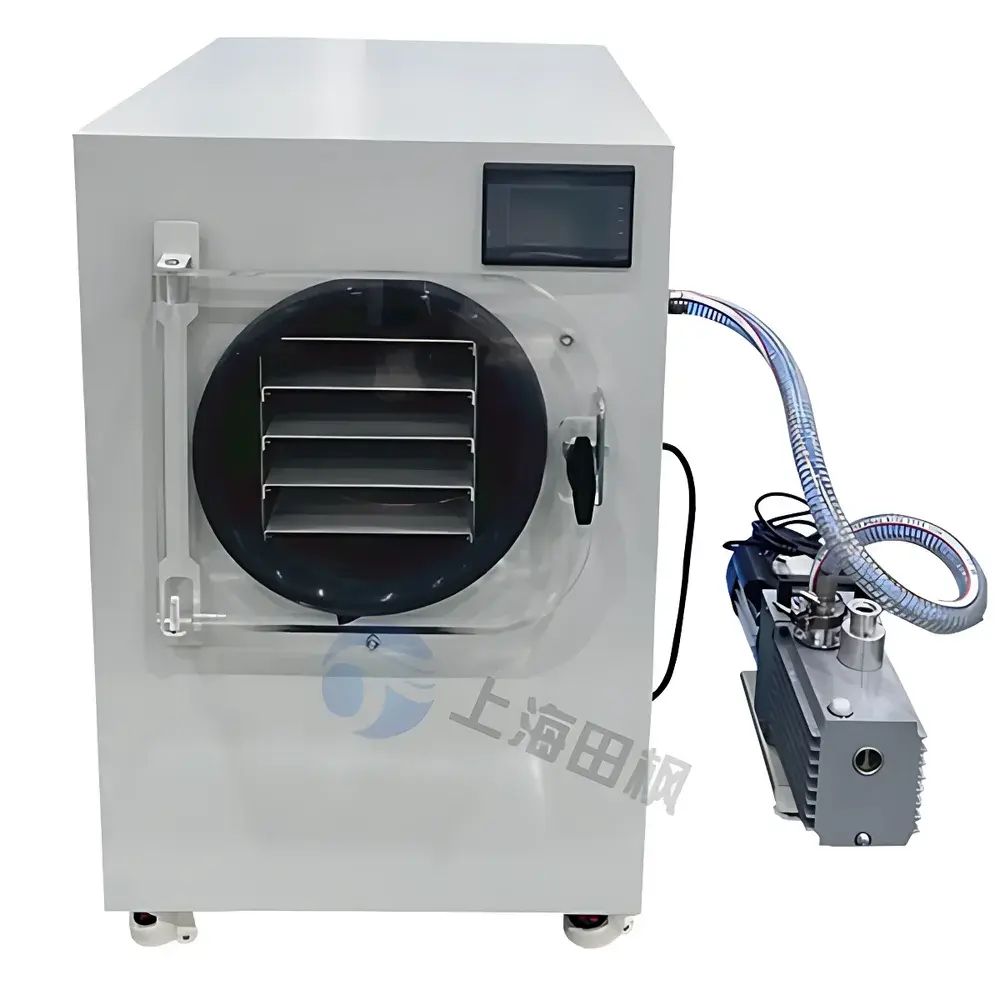

Tianfeng HFD-6 Intelligent Pilot-Scale Freeze Dryer

Overview

The Tianfeng HFD-6 Intelligent Pilot-Scale Freeze Dryer is a benchtop-to-pilot production freeze drying system engineered for reproducible, controlled lyophilization of heat-sensitive food matrices—including pet treats, fruits, vegetables, proteins, and functional botanicals. It operates on the fundamental principle of sublimation: frozen water in the product transitions directly from solid to vapor under deep vacuum conditions (≤10 Pa), bypassing the liquid phase. This preserves cellular structure, enzymatic activity, volatile aroma compounds, and thermolabile nutrients—critical for maintaining organoleptic fidelity and shelf-stable rehydration performance. Unlike conventional hot-air or spray drying, freeze drying minimizes Maillard reactions, oxidation, and protein denaturation. The HFD-6 integrates in-situ freezing and primary/secondary drying within a single chamber, eliminating manual transfer and contamination risk—a key requirement for GMP-aligned food processing development and small-batch commercialization.

Key Features

• In-situ Freezing & Drying: Eliminates sample handling between freezing and drying stages; ensures consistent ice nucleation and reduces cross-contamination risk.

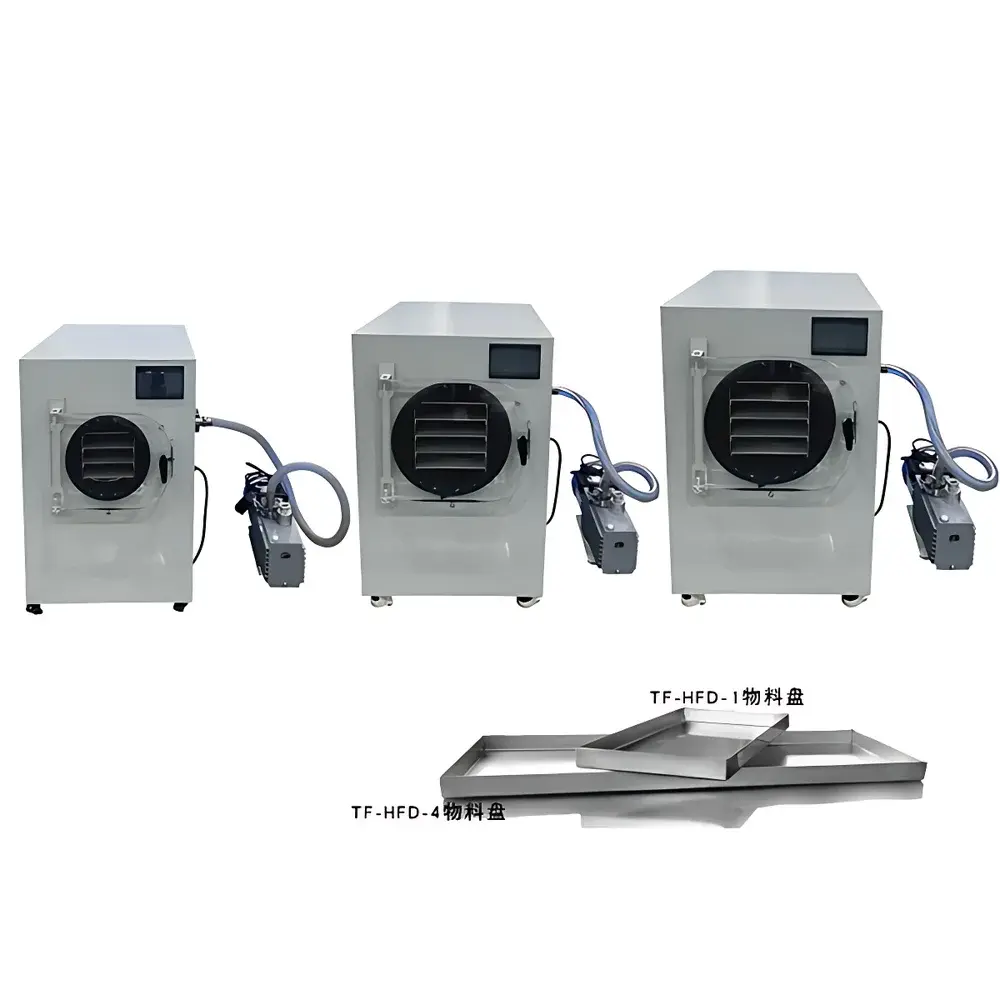

• Four-Shelf Configuration: Four adjustable stainless steel trays (345 mm × 425 mm each) provide 0.6 m² total drying area—optimized for batch scalability from R&D to pilot-line validation.
• Precision Temperature Control: Programmable shelf temperature range from −40 °C to +60 °C with ±0.5 °C stability; real-time monitoring and logging of shelf surface temperature during all drying phases.
• High-Capacity Cold Trap: Dual-stage refrigeration system achieves ≤−40 °C condenser temperature and handles up to 6 kg of ice per batch—suitable for high-moisture foods such as berries, fish fillets, or minced meats.
• Intuitive Touchscreen Interface: Graphical HMI displays dynamic process curves (shelf temp, chamber pressure, condenser temp), supports multi-step protocol programming, and enables live parameter adjustment without process interruption.
• Robust Mechanical Design: Entire chamber and tray assembly constructed from electropolished SUS304 stainless steel; front viewing door made of impact-resistant acrylic for continuous visual monitoring without vacuum break.
• Energy-Efficient Operation: Optimized compressor cycle management and low-power heating elements reduce operational load while maintaining thermal uniformity across shelves.
• One-Touch Defrost System: Automated defrost sequence prevents ice buildup on condenser coils, minimizing downtime between batches and ensuring long-term vacuum integrity.

Sample Compatibility & Compliance

The HFD-6 accommodates diverse food matrices requiring gentle dehydration: raw pet snacks (e.g., chicken liver, salmon strips), sliced fruits (strawberries, mango), leafy greens (spinach, kale), aquatic products (shrimp, scallops), herbs (mint, basil), and functional ingredients (goji berry, ginseng slices). Its design conforms to foundational hygienic engineering principles aligned with ISO 22000 and FDA Food Code §117.20 for food equipment construction. While not certified for full pharmaceutical cGMP environments, its stainless steel wetted surfaces, traceable temperature control, and audit-ready data logging support GLP-compliant process development and regulatory documentation for novel food submissions (e.g., EFSA Novel Food dossiers, FDA GRAS notifications). Optional integration with external vacuum pumps meeting ISO 8573-1 Class 2 air purity standards further enhances suitability for cleanroom-adjacent production workflows.

Software & Data Management

The embedded control system records time-stamped shelf temperature, chamber pressure, condenser temperature, and elapsed cycle time at user-defined intervals (default: 30 s). All data are exportable via USB to CSV format for offline analysis in Excel or statistical software (e.g., JMP, Minitab). The system supports password-protected user roles (Operator, Technician, Administrator) and maintains an immutable event log—including login/logout timestamps, parameter changes, alarm triggers, and defrost activations—to satisfy basic 21 CFR Part 11 data integrity expectations for internal quality assurance. No cloud connectivity is included by default; local storage ensures data sovereignty and simplifies compliance with regional data residency requirements.

Applications

• Pet Food Innovation: Development of shelf-stable, additive-free treats retaining enzymatic activity and palatability—ideal for premium and veterinary-grade formulations.
• Fruit & Vegetable Snacking: Production of crispy, nutrient-dense snacks with <95% rehydration capacity and minimal shrinkage or browning.
• Functional Ingredient Stabilization: Preservation of bioactive compounds in adaptogens (e.g., ashwagandha, rhodiola), probiotics, and phytonutrient-rich powders.
• Ready-to-Rehydrate Meals: Prototyping lightweight, long-shelf-life components for outdoor, military, or emergency rations.
• Food Process Validation: Mapping critical process parameters (CPPs) such as collapse temperature (T_c) and residual moisture content (<5% w/w) using gravimetric and Karl Fischer titration correlation.
• Academic & Industrial R&D: Teaching lyophilization fundamentals, optimizing primary drying rates, and evaluating formulation excipients (e.g., trehalose, maltodextrin) for food matrix stabilization.

FAQ

What is the maximum batch weight this unit can handle?
The HFD-6 is rated for up to 6 kg of frozen material per batch—assuming typical food moisture content (70–90%). Actual throughput depends on product geometry, thermal conductivity, and target residual moisture.
Does it include a vacuum pump?
No. A compatible two-stage rotary vane or dry scroll vacuum pump (≥4 L/s pumping speed, ultimate vacuum ≤5 Pa) must be selected and connected externally.
Can I run multiple independent drying protocols simultaneously?
No. The system executes one protocol at a time but allows full customization of ramp rates, hold times, pressure setpoints, and shelf temperature profiles per batch.
Is validation documentation available?
Factory-installed IQ/OQ documentation templates are provided. Users perform site-specific PQ (Performance Qualification) using calibrated thermocouples and vacuum gauges per ISO 13485 or ASTM F2476 guidelines.
What maintenance is required?
Routine tasks include cold trap cleaning after every 5–10 batches, vacuum oil replacement every 500 operating hours, and annual verification of temperature sensor accuracy against NIST-traceable references.
