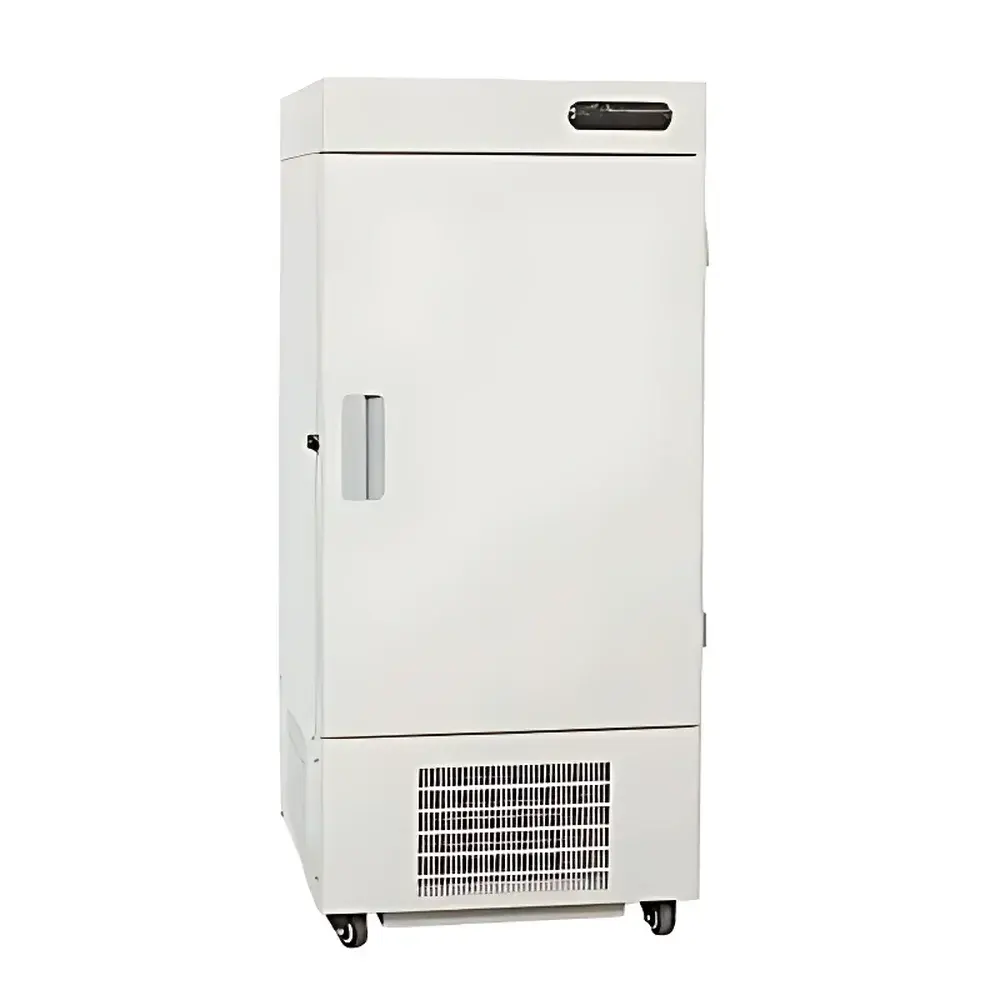

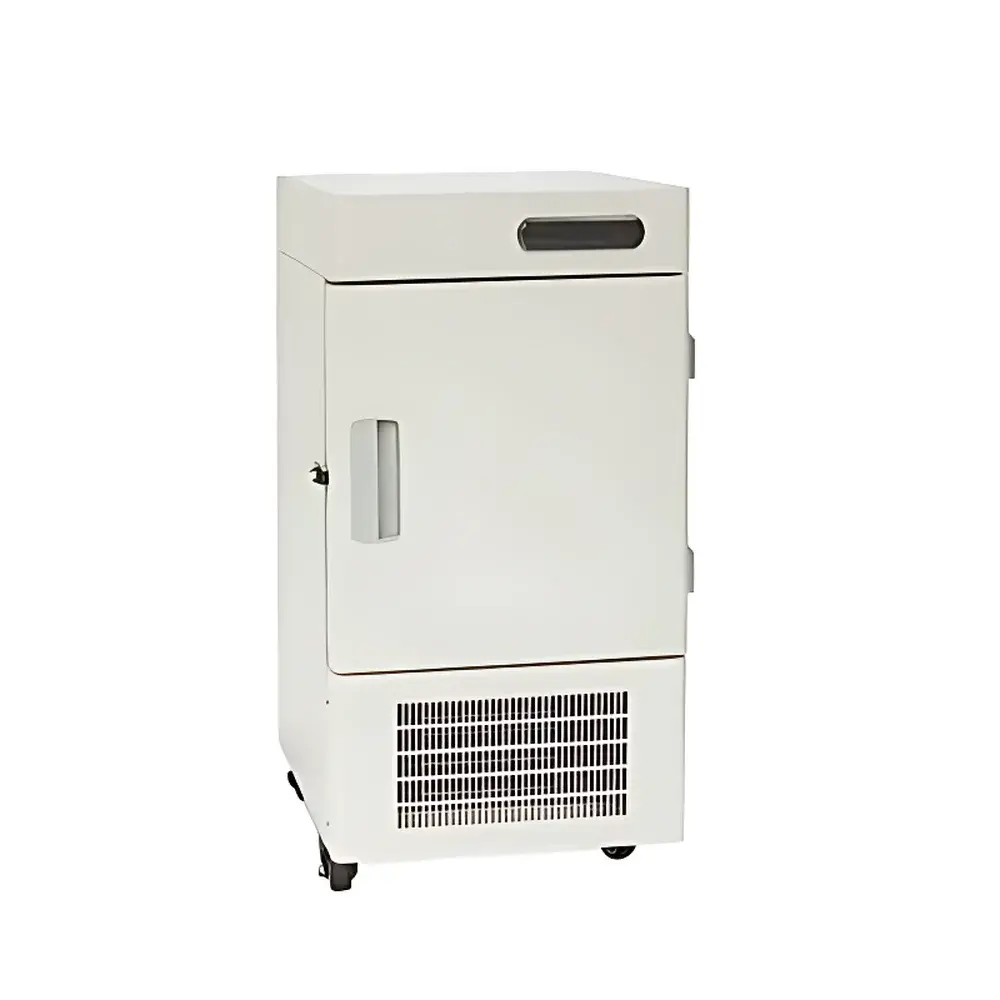

Tianfeng TF-60-30D-LA Ultra Low Temperature Freezer

Overview

The Tianfeng TF-60-30D-LA Ultra Low Temperature Freezer is an engineered solution for reliable long-term cryopreservation of sensitive biological materials at sustained temperatures ranging from –25 °C to –65 °C. Designed and manufactured in Shanghai under ISO 9001:2000–certified quality management systems, this unit employs a dual-stage cascade refrigeration architecture utilizing environmentally compliant refrigerants (R23/R508B or equivalent blends), eliminating ozone-depleting substances while maintaining thermodynamic efficiency. Its hybrid heat dissipation system—combining passive natural convection with active fan-assisted condensation—ensures stable operation in ambient conditions up to 35 °C and tolerates moderate dust accumulation without risk of compressor overload or thermal shutdown. The unit’s compact footprint (470 × 490 × 1120 mm) and optimized height (1.12 m cabinet + base; total ~1.89 m with optional stand) facilitate integration into constrained laboratory spaces, including standard-height biosafety cabinets and modular lab furniture configurations.

Key Features

• Stainless steel 304 interior chamber and inner doors—corrosion-resistant, non-porous, and compatible with routine decontamination protocols including ethanol wipe-downs and low-concentration neutral detergents.
• Four independently sealed inner doors minimize cold air loss during frequent access, preserving temperature uniformity (±2.5 °C across chamber volume per IEC 61000-4-2 validation methodology).
• Three-tier adjustable stainless steel shelving enables flexible sample organization and accommodates cryoboxes, vials, and cryotubes of varying dimensions.
• Radius-rounded internal corners eliminate crevices, reducing microbial retention and simplifying cleaning verification per GLP-compliant hygiene audits.
• Dual mechanical locking system—separate keyed locks for main door and power input—supports chain-of-custody requirements in regulated environments (e.g., blood banks, biobanks, clinical trial labs).
• Integrated alarm system with visual and audible indicators for high-temperature excursions, door ajar events, power interruption, and compressor anomalies—logs timestamped events internally for traceability.
• RS-232 serial interface (optional) enables connection to laboratory information management systems (LIMS) or centralized environmental monitoring platforms for automated data logging and remote status polling.

Sample Compatibility & Compliance

The TF-60-30D-LA is validated for storage of primary human tissues (e.g., PBMCs, skin grafts, corneal tissue), cryopreserved cell lines (including stem cells and hybridomas), viral vectors, monoclonal antibodies, plasma derivatives, and nucleic acid libraries. It meets functional performance criteria aligned with ASTM F745-22 (Standard Specification for Low-Temperature Freezers Used in the Storage of Biological Materials) and supports adherence to ISO 20387:2018 (Biobanking—General Requirements for Biobanking). While not FDA 21 CFR Part 11–validated out-of-the-box, its event logging architecture and user-accessible alarm history provide foundational data integrity elements suitable for GxP-aligned workflows when paired with procedural controls and periodic calibration documentation.

Software & Data Management

This freezer operates as a standalone hardware platform with no embedded operating system or cloud connectivity. Temperature setpoints, alarm thresholds, and display brightness are configured via tactile membrane keypad. All operational events—including door openings, temperature deviations exceeding ±5 °C for >60 seconds, and power cycle occurrences—are stored in non-volatile memory with timestamps (year/month/day/hour/minute). Data export requires physical connection via RS-232 to a host PC running terminal emulation software (e.g., PuTTY, Tera Term); exported logs are plain-text CSV-compatible files suitable for import into Excel or LIMS databases. No proprietary drivers or vendor-specific software installation is required.

Applications

The TF-60-30D-LA serves mission-critical roles across academic, clinical, and industrial life science settings: cryostorage of peripheral blood mononuclear cells (PBMCs) and hematopoietic stem cells in hospital transfusion services; stabilization of thermolabile reagents (e.g., restriction enzymes, RT-PCR master mixes) in molecular diagnostics labs; preservation of reference standards for QC/QA programs in pharmaceutical manufacturing; archiving of field-collected marine and soil microbiome samples in ecological research; and cold-chain holding for vaccine candidates during preclinical development. Its robust thermal recovery (<120 min to reattain –60 °C after 60-second door opening at 25 °C ambient) makes it appropriate for high-throughput sample retrieval workflows in biorepositories.

FAQ

What maintenance intervals are recommended for optimal performance?
Perform visual inspection of condenser coils and dust filter every 30 days; clean using compressed air or soft brush. Verify door gasket integrity quarterly. Calibrate temperature sensor annually using NIST-traceable dry-block calibrator.
Can this unit be integrated into a building management system (BMS)?
Yes—via optional RS-232 interface and Modbus RTU protocol conversion (external gateway required). Native BACnet or LonWorks support is not available.
Is the unit suitable for storing liquid nitrogen–vapor phase specimens?
No. This is a mechanical ultra-low temperature freezer, not a cryogenic storage system. It does not achieve temperatures below –80 °C and lacks vapor-phase monitoring capability.
Does the warranty cover refrigerant recharge due to leakage?
Refrigerant top-up or replacement resulting from manufacturing defects is covered within the 12-month limited warranty. Slow leaks attributable to mechanical damage or improper handling are excluded.
How is temperature uniformity verified during qualification?
IQ/OQ protocols should deploy ≥9 calibrated thermistors per ICH Q5C guidance, placed at geometric center and eight corner positions. Acceptance criterion: ≤±3 °C deviation at setpoint –60 °C after 24-hour stabilization.
