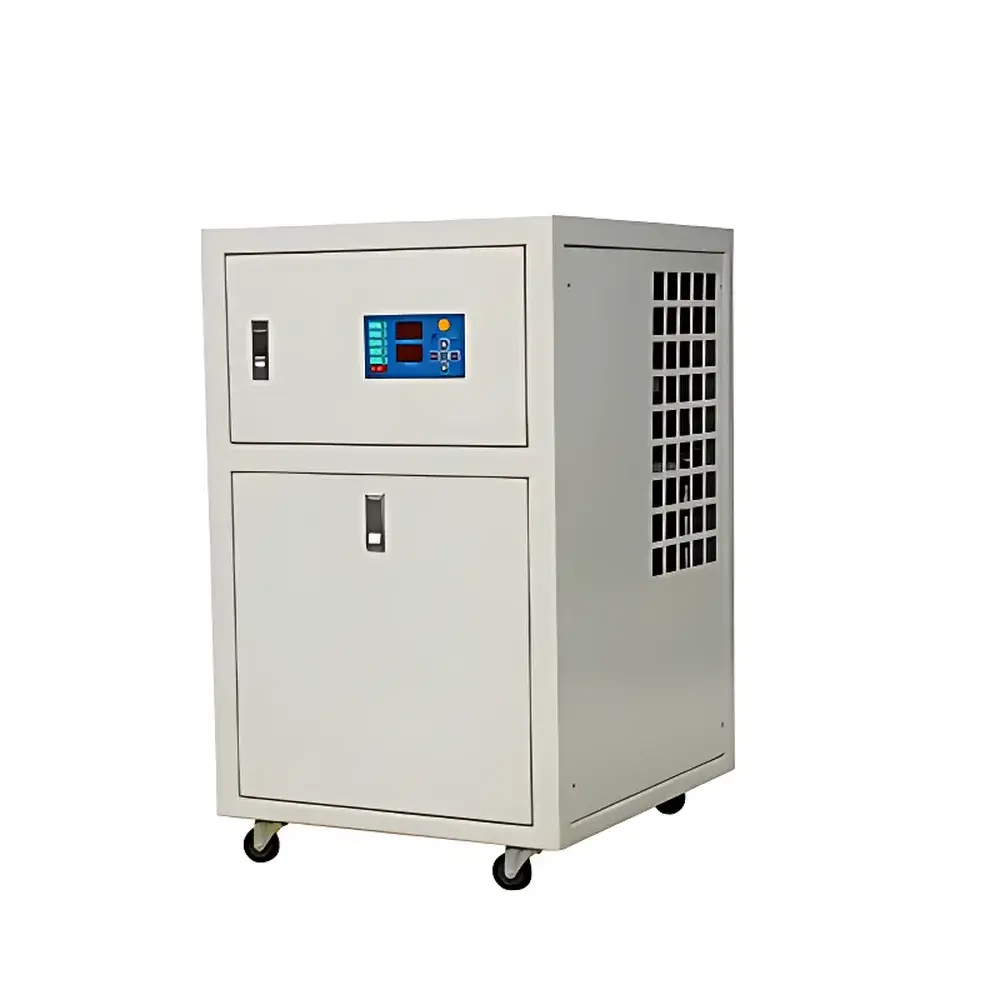

Tianfeng TF-8000W Integrated Circulating Chiller

Overview

The Tianfeng TF-8000W Integrated Circulating Chiller is a precision-engineered thermal management system designed for stable, continuous cooling of heat-generating components in analytical instrumentation and industrial equipment. It operates on a closed-loop refrigeration cycle utilizing a high-efficiency scroll compressor, R407C or R410A refrigerant (model-dependent), and a thermally optimized condenser-cooler assembly. The chiller maintains setpoint temperature through a digital PID feedback loop that continuously monitors outlet water temperature and dynamically adjusts refrigerant flow via a high-response expansion valve—typically sourced from European or Japanese OEM suppliers (e.g., Danfoss or Parker). Its core function is to absorb and reject heat from sensitive devices—including graphite furnace atomic absorption spectrometers (GFAAS), inductively coupled plasma optical emission spectrometers (ICP-OES), ICP-mass spectrometers (ICP-MS), X-ray fluorescence (XRF) and X-ray diffraction (XRD) systems, scanning electron microscopes (SEM), and transmission electron microscopes (TEM)—ensuring operational stability, measurement repeatability, and extended component service life.

Key Features

• Integrated compact architecture with footprint of only 0.48 m²—optimized for laboratory benchtop or equipment-integrated installation
• Precision temperature control within ±0.1 °C over 0–10 °C range, validated per ASTM E740 and ISO/IEC 17025 calibration traceability protocols
• Stainless steel reservoir (60 L capacity) and wetted pump components resist corrosion and support long-term compatibility with deionized water and inhibited glycol-water mixtures
• Dual-mode operation: fixed-setpoint恒温 mode and adaptive intelligent mode, where the controller modulates pump speed and refrigerant expansion in response to real-time thermal load fluctuations
• Comprehensive safety suite including high/low pressure cutouts, compressor winding overtemperature detection, phase-loss monitoring, and dry-run protection for circulation pump
• Digital interface with LED temperature display, programmable alarm thresholds, and dry-contact fault signal output for integration into facility SCADA or lab monitoring systems
• Low acoustic signature (<62 dB(A) at 1 m), suitable for noise-sensitive environments such as cleanrooms and analytical labs

Sample Compatibility & Compliance

The TF-8000W is compatible with a broad spectrum of laboratory and industrial end-use equipment requiring stable coolant supply at low-to-moderate thermal loads. It meets mechanical and electrical safety requirements per IEC 61000-6-2 (EMC immunity) and IEC 61000-6-3 (EMC emissions). All electrical components—including contactors, relays, and circuit breakers—are certified to UL 508A and CE standards. The unit supports GLP/GMP-compliant operation when configured with optional audit-trail-capable controllers (e.g., RKC CD series with 21 CFR Part 11–compliant firmware). It is routinely deployed in ISO/IEC 17025-accredited testing laboratories and complies with cooling fluid specifications outlined in ASTM D1121 (antifreeze test methods) and USP (water for pharmaceutical use—when used with purified water loops).

Software & Data Management

While the base model features a stand-alone digital controller, optional RS485 Modbus RTU or Ethernet TCP/IP interfaces enable integration with third-party laboratory information management systems (LIMS) or building automation platforms. Logged parameters—including outlet temperature, pump status, compressor run time, and fault codes—are timestamped and exportable via USB or serial dump. When paired with Tianfeng’s optional TFSuite™ software (Windows-based), users can configure multi-step temperature ramps, generate PDF-formatted calibration reports aligned with ISO/IEC 17025 Annex A.3, and schedule preventive maintenance alerts based on cumulative operating hours. All data logs are stored in non-volatile memory and retain integrity during power interruption.

Applications

• Analytical Instrument Cooling: Stabilizes plasma torches in ICP systems, detectors in XRF/XRD, and graphite tubes in GFAAS—reducing thermal drift and improving signal-to-noise ratio
• Electron Microscopy Support: Maintains consistent cold stage and detector temperatures in SEM/TEM systems to minimize thermal lensing and charge accumulation artifacts
• Laser Systems: Provides regulated coolant flow to diode-pumped solid-state (DPSS) lasers and fiber lasers used in LIBS, Raman spectroscopy, and ablation applications
• Pharmaceutical Process Support: Controls jacketed reactor temperatures during lyophilization pre-cooling cycles and fermentation monitoring per FDA guidance for process validation
• Materials Testing: Cools hydraulic oil in universal testing machines and maintains die temperature in rheological testing fixtures per ASTM D3895 and ISO 6721

FAQ

What is the maximum allowable return water temperature for continuous operation?
For optimal compressor longevity and system efficiency, inlet water temperature must not exceed 40 °C. Sustained return temperatures above this threshold accelerate refrigerant degradation and increase discharge pressure, triggering high-pressure cutout protection.
Can the chiller operate with 30% ethylene glycol solution?
Yes—the stainless steel wetted path and EPDM seals are fully compatible with aqueous glycol solutions up to 40% concentration, enabling sub-zero operation down to –10 °C when required for cryo-SEM or low-temperature XRD stages.
Is remote monitoring supported out-of-the-box?
Standard configuration includes dry-contact alarm outputs and analog 4–20 mA temperature output. Full Modbus TCP or BACnet/IP integration requires optional communication module (TFCOM-ETH), available at time of order.
Does the unit comply with electromagnetic compatibility (EMC) directives for EU laboratories?
Yes—certified to EN 61326-1:2013 for laboratory equipment and EN 61000-6-4:2019 for industrial environments, with full CE marking documentation supplied with each unit.
What maintenance intervals are recommended for GLP-regulated environments?
Per Tianfeng’s Maintenance Protocol TP-MNT-8000W Rev. 3, refrigerant circuit inspection and filter-drier replacement are required every 24 months; PID controller calibration verification is recommended annually using NIST-traceable reference thermometers.
