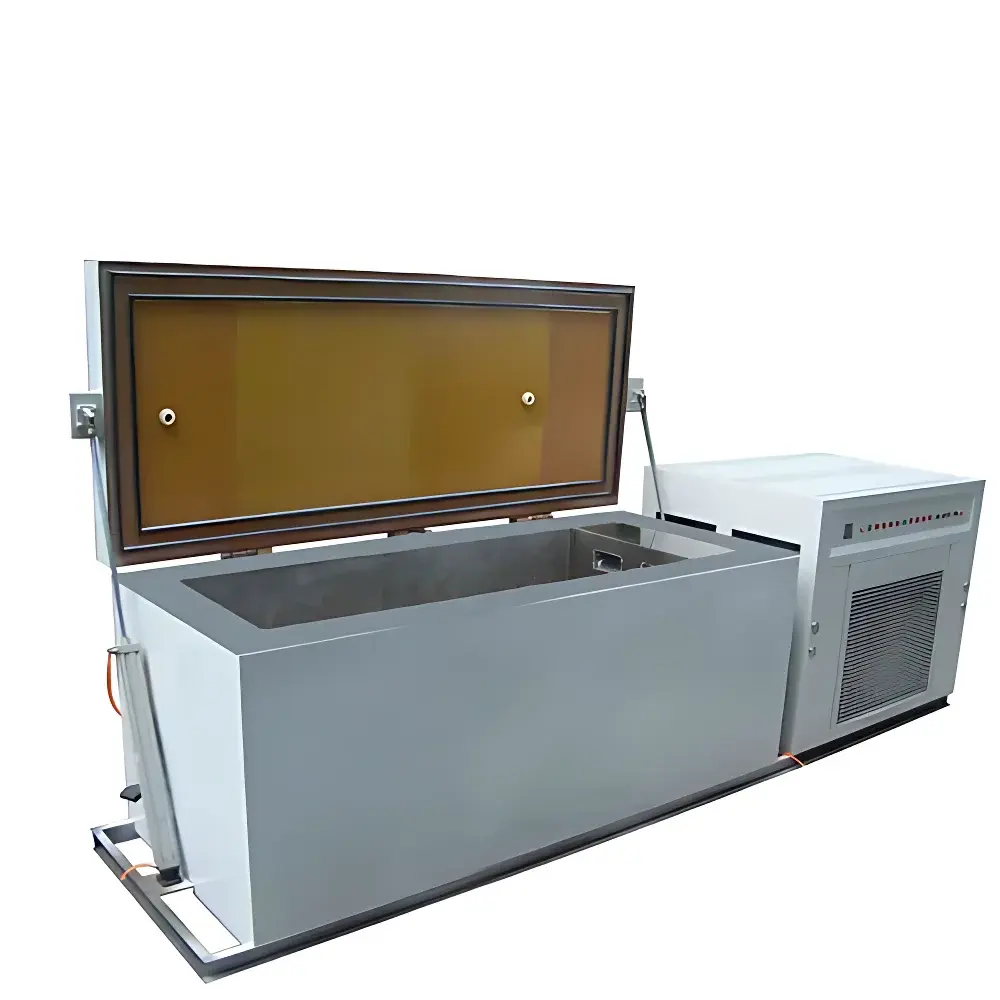

Tianfeng TF-86-938-LA Ultra Low Temperature Freezer

Overview

The Tianfeng TF-86-938-LA Ultra Low Temperature Freezer is an engineered solution for long-term cryogenic storage of biologics, clinical specimens, and temperature-sensitive reagents at sustained temperatures ranging from −40 °C to −86 °C. Designed and manufactured in Shanghai under ISO 9001:2000-certified quality management systems, this unit employs a dual-stage cascade refrigeration architecture utilizing environmentally compliant refrigerants (e.g., R23/R508B or equivalent low-GWP blends), eliminating ozone-depleting substances while maintaining thermodynamic efficiency. Its hybrid heat rejection system—combining passive natural convection with active fan-assisted condensation—enhances operational resilience in ambient environments up to 35 °C and particulate-rich laboratory or industrial settings where conventional air-cooled units may suffer reduced reliability due to condenser fouling.

Key Features

• Stainless steel (AISI 304) interior chamber and inner doors, featuring seamless, radius-corner construction for easy decontamination and compliance with GLP-aligned cleaning protocols.
• Four independently sealed inner doors minimize cold air loss during frequent access, preserving thermal stability across the full 938 L usable volume.
• Adjustable three-tier stainless steel shelving system supports flexible sample organization and accommodates diverse container formats (e.g., cryoboxes, vials, bags, racks).
• Acoustically optimized compressor enclosure and vibration-dampened mounting reduce operational noise to ≤57 dB(A), suitable for shared laboratory spaces without acoustic isolation.
• Dual-mode condenser design ensures continued operation even under partial airflow restriction—critical for facilities lacking dedicated HVAC maintenance schedules.
• Integrated mechanical door lock and power switch lock prevent unauthorized access and accidental power interruption during critical storage cycles.
• RS-232 serial interface (optional) enables integration with centralized lab monitoring platforms for remote temperature logging, alarm forwarding, and audit-trail generation per FDA 21 CFR Part 11 requirements.
• Front-accessible dust filter with tool-free removal simplifies routine maintenance without requiring disassembly of rear panels or service downtime.

Sample Compatibility & Compliance

This ultra-low temperature freezer is validated for stable storage of human plasma, peripheral blood mononuclear cells (PBMCs), stem cell suspensions, vaccine formulations, microbial cultures (including anaerobes and lyophilized strains), tissue explants, and nucleic acid libraries. Its uniform temperature distribution (±2.5 °C max deviation across load zone per IEC 61000-4-2 validation protocol) meets essential criteria for ISO/IEC 17025-accredited biorepositories and CLIA-certified clinical labs. The unit conforms to electromagnetic compatibility (EMC) standards EN 61326-1 and safety standard EN 61010-1. All electrical components are CE-marked; refrigerant handling complies with EU F-Gas Regulation (No. 517/2014) and China’s GB/T 7778–2017 classification for low-global-warming-potential alternatives.

Software & Data Management

While the base model operates via intuitive electromechanical controls with digital LED display, the optional RS-232 port supports ASCII-based serial communication for integration into existing laboratory information management systems (LIMS) or building automation networks. Compatible third-party software packages can record timestamped temperature readings at user-defined intervals (1–60 min), generate PDF reports with digital signatures, and trigger email/SMS alerts upon threshold violation (e.g., >−70 °C for >5 min). Audit logs—including door-open events, setpoint changes, and alarm acknowledgments—are retained locally for ≥30 days and exportable for regulatory review. No proprietary cloud platform is required; data sovereignty remains fully under institutional control.

Applications

• Bio-banking: Long-term archiving of primary human tissues, cord blood units, and induced pluripotent stem cell (iPSC) lines.
• Vaccine development: Cold chain integrity assurance for mRNA-lipid nanoparticle formulations and viral vector stocks.
• Transfusion medicine: Storage of frozen red blood cells (glycerolized), platelet concentrates, and coagulation factor preparations.
• Industrial R&D: Cryopreservation of specialty catalysts, polymer precursors, and high-purity electronic-grade chemicals.
• Field-deployable operations: Used by national fisheries research vessels and remote epidemiological surveillance stations due to its compact height (2000 mm total) and tolerance to voltage fluctuations (±10% of nominal 220 V).

FAQ

What is the recommended ambient operating temperature range?
The unit is rated for continuous operation in ambient conditions between +10 °C and +35 °C, with relative humidity ≤80% non-condensing.
How frequently should the condenser dust filter be cleaned?
Under typical laboratory conditions, inspection and cleaning every 3 months is advised; in high-particulate environments (e.g., near centrifuges or powder handling stations), monthly cleaning is recommended.
Does the freezer support 21 CFR Part 11-compliant electronic records?
Yes—when paired with validated third-party data acquisition software and configured with user authentication, electronic signatures, and immutable audit trails.
Is validation documentation available for IQ/OQ/PQ protocols?
Factory-generated test reports (temperature mapping, alarm response verification, recovery time assessment) are supplied with each unit; full GxP validation kits—including blank templates and acceptance criteria—are available upon request.
What maintenance is required beyond routine cleaning?
Annual calibration of the internal platinum resistance thermometer (PT100) sensor by an accredited metrology lab is advised; compressor oil analysis is not required due to hermetic sealing and lifetime lubrication design.
