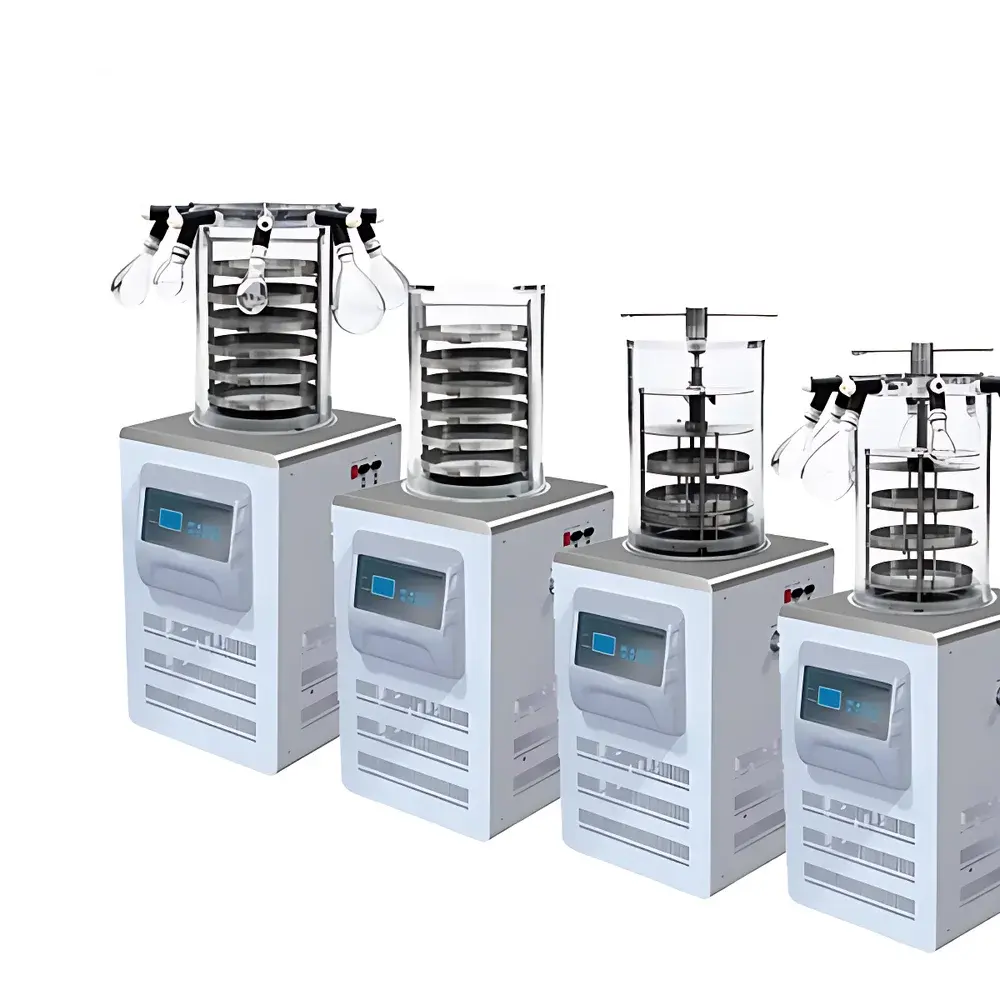

Tianfeng TF-FD-1L Manifold-Type Laboratory Freeze Dryer

Overview

The Tianfeng TF-FD-1L Manifold-Type Laboratory Freeze Dryer is an engineered solution for primary and secondary drying of heat-sensitive biological, pharmaceutical, and food samples under controlled low-temperature vacuum conditions. Based on the principle of sublimation—where ice transitions directly from solid to vapor phase without passing through liquid—the system removes water from frozen specimens while preserving structural integrity, enzymatic activity, and chemical stability. Designed specifically for benchtop laboratory environments, the TF-FD-1L integrates a high-efficiency hermetic refrigeration unit capable of maintaining condenser temperatures below −80 °C, ensuring rapid and complete vapor capture during extended drying cycles. Its manifold configuration enables parallel processing of up to eight independently sealed samples—ideal for comparative lyophilization studies, small-batch formulation optimization, or multi-sample screening in QC/QA and early-stage R&D workflows.

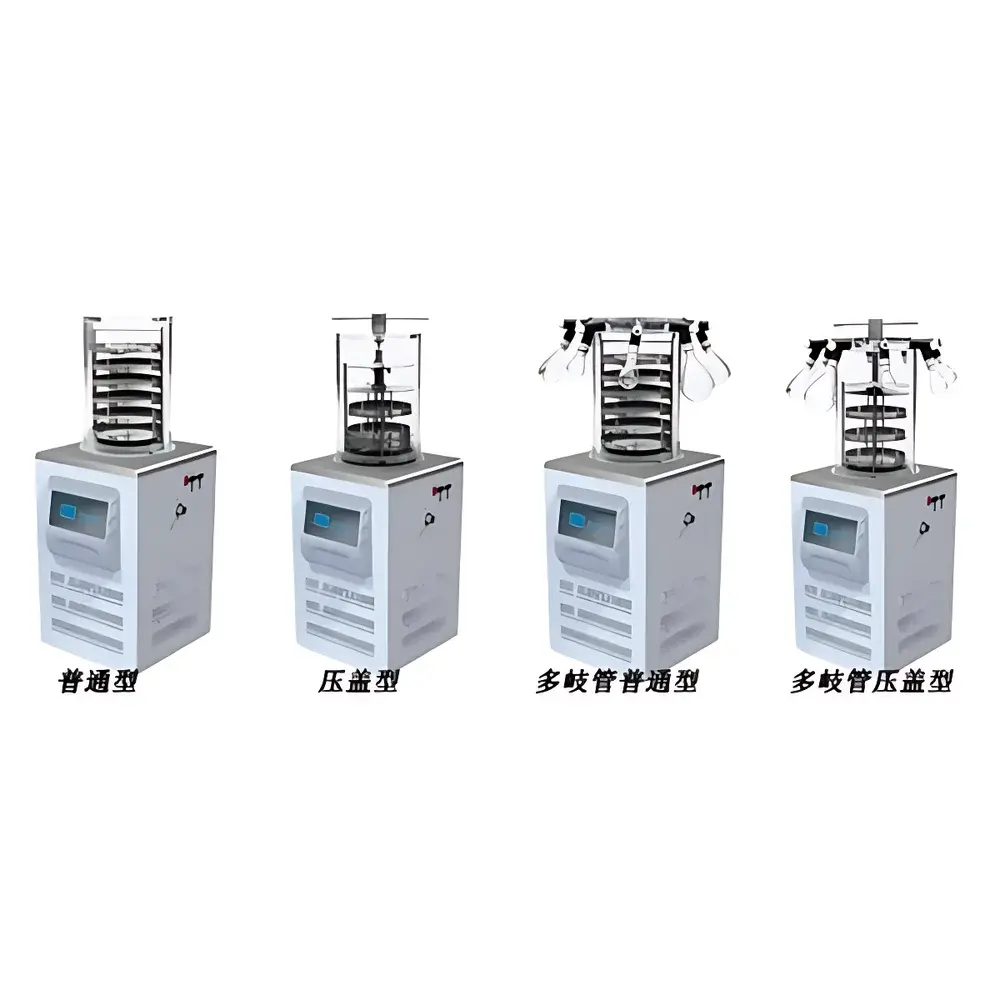

Key Features

• Hermetically sealed, imported compressor-based refrigeration system delivering stable condenser temperatures ≤ −80 °C—optimized for high water vapor load handling and consistent ice trapping performance.
• Manifold interface with standardized ISO-KF 25 vacuum fittings; ensures leak-tight connections, tool-free flask attachment/detachment, and long-term sealing reliability per ASTM F2752–19 guidelines for vacuum integrity.
• Dual-channel LED digital display showing real-time condenser temperature and chamber pressure (in Pa), enabling precise process monitoring and deviation detection during freeze-drying runs.
• Ergonomic touch-sensitive soft-key control panel with intuitive menu navigation—supports rapid parameter recall, timer setting, and manual vacuum regulation without software dependency.

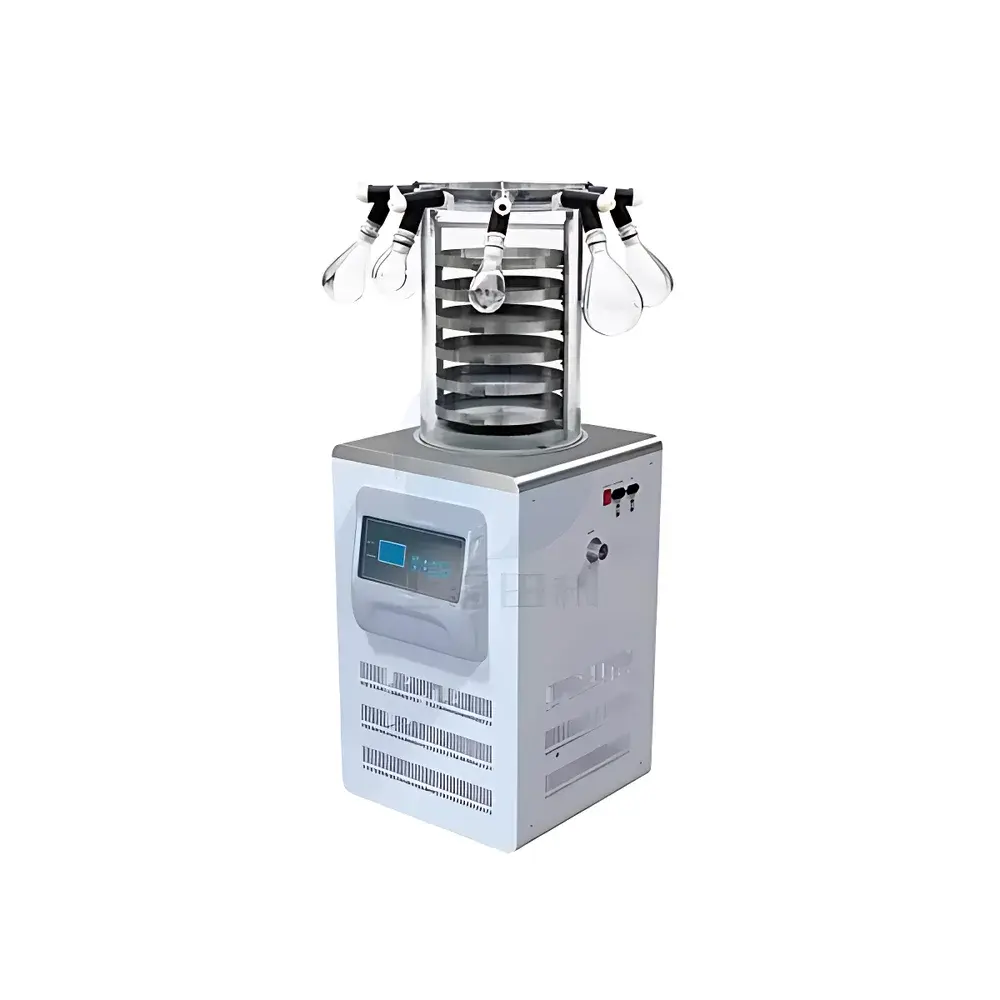

• Transparent acrylic bell jar chamber (Ø300 mm × H450 mm) providing full visual access to sample status, ice formation, and drying progression—critical for method development and troubleshooting.
• Adjustable 4-tier stainless steel sample shelf (Φ200 mm trays) with tool-less height calibration; accommodates heterogeneous flask sizes (50–1000 mL) and supports flexible layer spacing for optimal heat transfer uniformity.
• Corrosion-resistant 304 stainless steel cold trap and work surface—compliant with ISO 14644-1 Class 8 cleanroom-compatible cleaning protocols and compatible with ethanol/IPA-based decontamination.

Sample Compatibility & Compliance

The TF-FD-1L is validated for use with aqueous solutions, protein suspensions, microbial cultures, herbal extracts, and food matrices requiring thermal-labile preservation. It supports lyophilization of samples contained in standard conical flasks (50–1000 mL), including those used in USP lyophilized product characterization and ICH Q5C stability testing. While not certified for GMP manufacturing, its design adheres to foundational principles of GLP-compliant instrumentation: traceable vacuum calibration, non-volatile internal memory for run logs (via optional RS232 output), and mechanical interlocks preventing accidental chamber opening under vacuum. All wetted parts meet FDA 21 CFR 177.2600 criteria for repeated contact with food- and pharma-grade materials.

Software & Data Management

The TF-FD-1L operates as a standalone instrument with embedded firmware—no external PC or proprietary software required. Process data (condenser temp, chamber pressure, elapsed time) are displayed continuously and can be manually logged for audit trail purposes. For laboratories implementing electronic record systems, optional analog voltage outputs (0–5 V) or RS232 serial interface enable integration with LabArchives, ELN platforms, or custom SCADA dashboards. Though lacking built-in 21 CFR Part 11 compliance features (e.g., user authentication, electronic signatures), the device supports ALCOA+ data integrity principles when paired with documented SOPs for manual data transcription and retention.

Applications

• Pre-formulation studies of biologics, vaccines, and monoclonal antibodies where residual moisture content must remain <1.5% w/w post-lyophilization.
• Rapid dehydration of botanical extracts and traditional Chinese medicine decoctions for stability assessment per Chinese Pharmacopoeia Vol. IV Section 0901.
• Preservation of bacterial and fungal strains in microbiology labs—enabling long-term viability (>5 years at −20 °C storage) without cryoprotectant supplementation.
• Production of reference standards for HPLC and GC analysis, where matrix consistency and water activity control directly impact calibration accuracy.
• Food science research involving texture, rehydration kinetics, and volatile compound retention in freeze-dried fruits, herbs, and functional ingredients.

FAQ

What is the maximum batch size supported by the TF-FD-1L?
With 0.12 m² shelf area and 8-port manifold, the system accommodates up to 3 kg of ice-equivalent material over 24 hours—typically corresponding to 1.2–1.8 L of 5–10% w/v aqueous solution, depending on solute thermal properties.
Can the unit be operated without a pre-freezing step?
No. Samples must be fully frozen prior to manifold connection; the TF-FD-1L does not include an in-chamber freezing function. Pre-freezing is performed externally using a −80 °C ultra-low temperature freezer or dedicated shelf-freezer.
Is the vacuum pump oil-free?
The included rotary vane pump uses mineral oil lubrication; oil changes are recommended every 500 operating hours or per ISO 8573-1 Class 4 particulate/Class 3 moisture specifications.
Does the system support shelf temperature control?
No—this is a manifold-type (non-shelf-heated) freeze dryer. Product heating occurs solely via ambient radiation and conduction through the flask walls; no active shelf temperature ramping or regulation is available.
What maintenance intervals are recommended?
Condenser defrosting every 3–5 runs; O-ring inspection and vacuum grease reapplication every 6 months; refrigerant pressure verification annually by qualified service technician per EN 378-2 safety standards.
