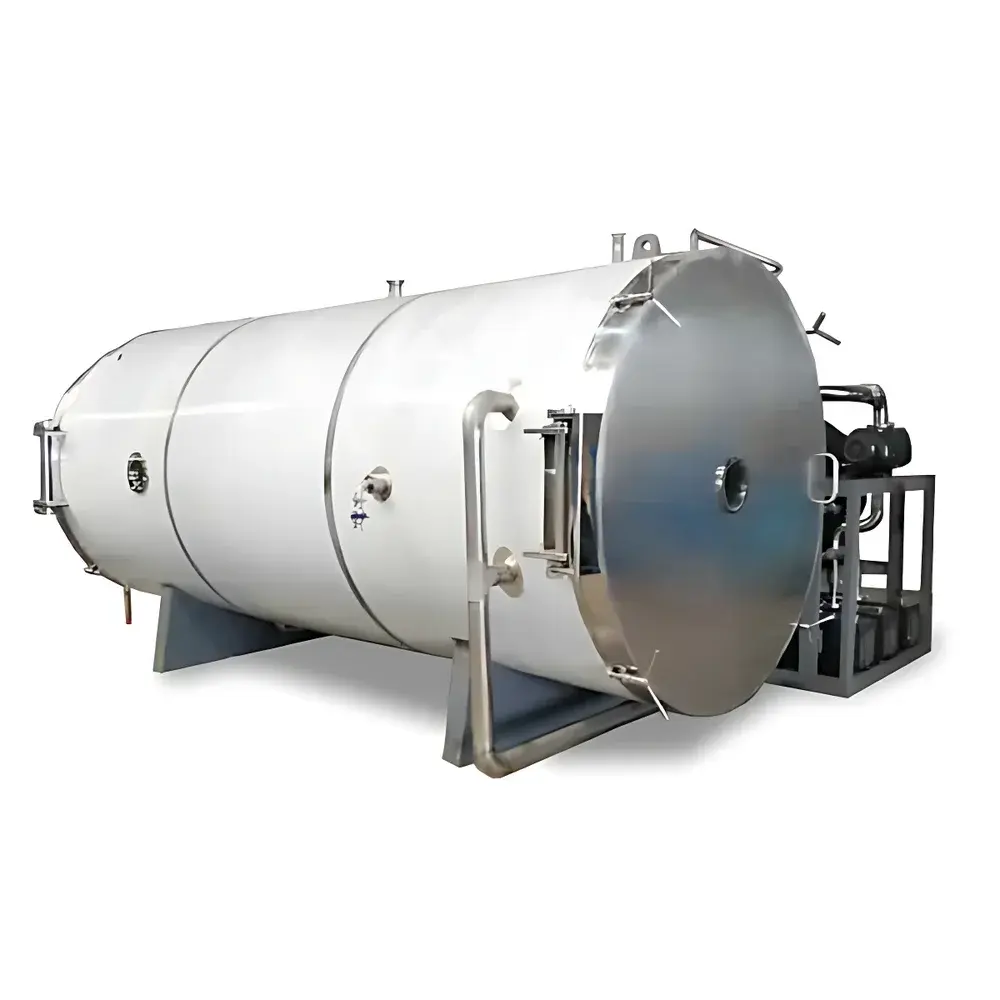

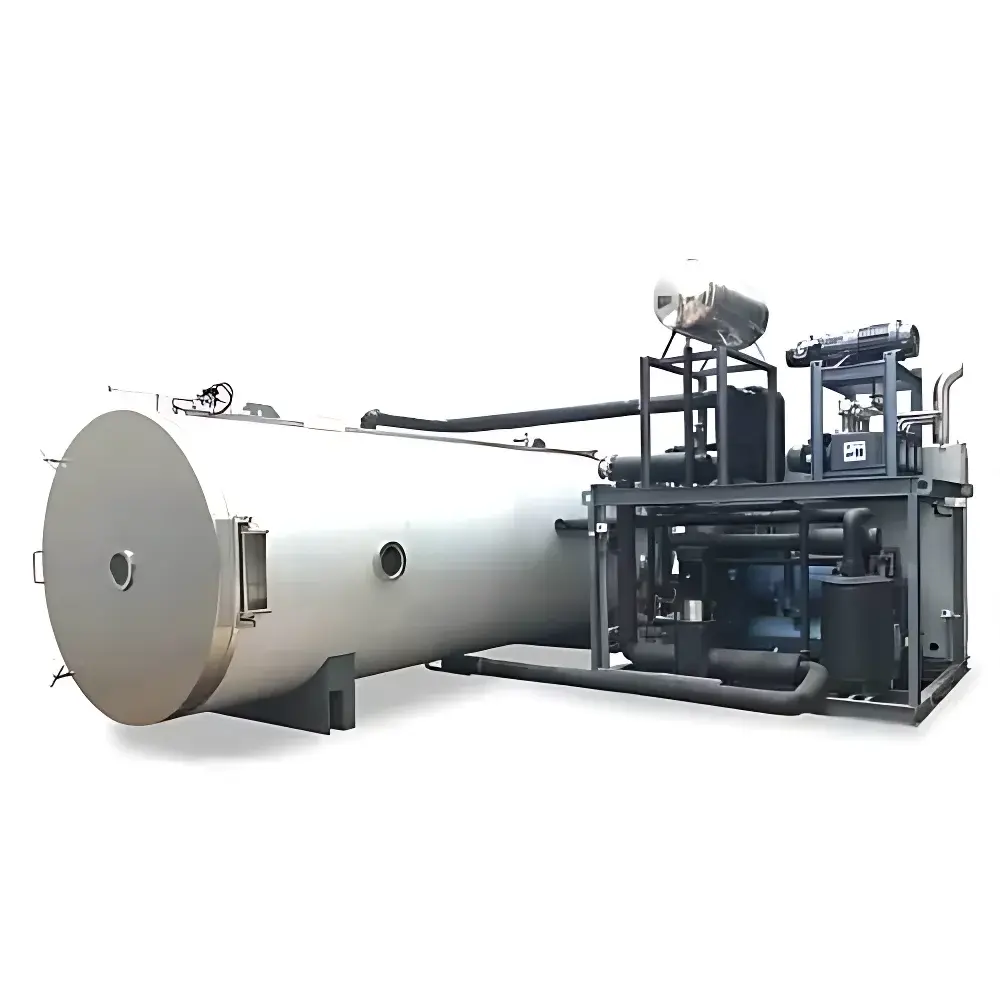

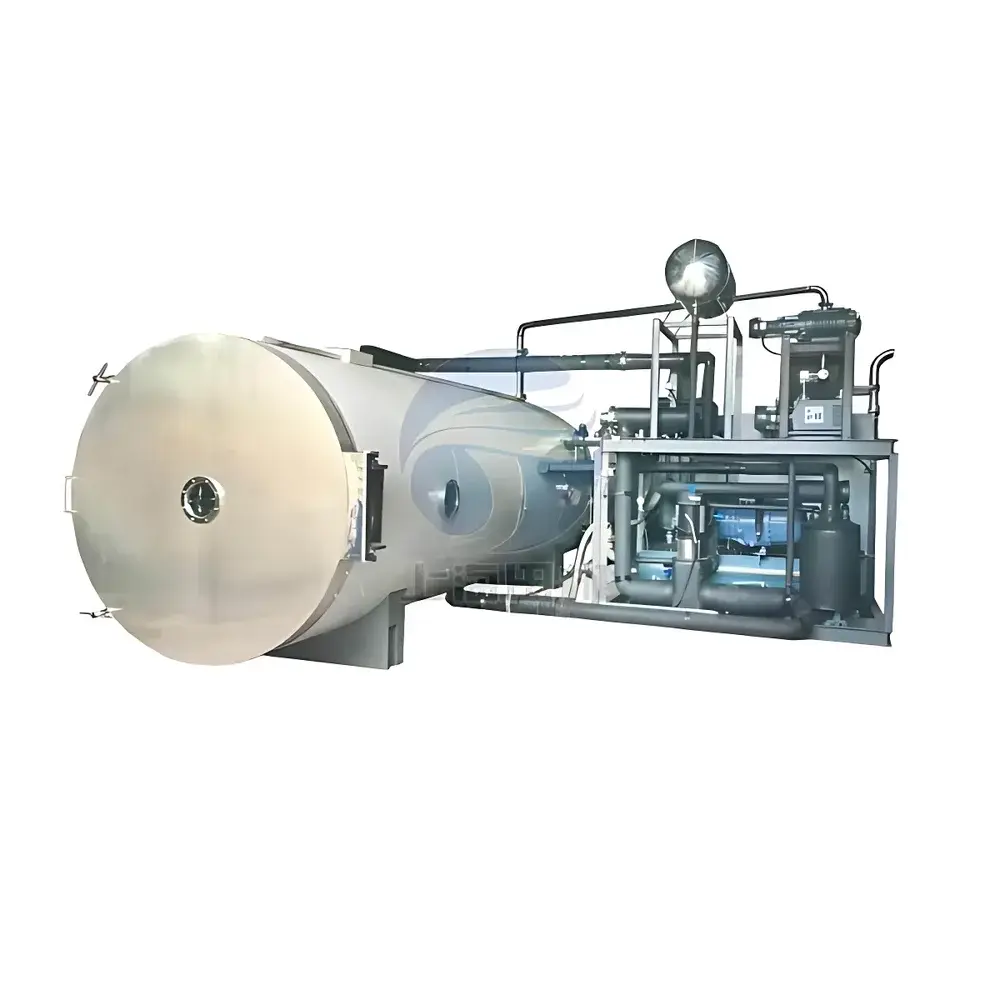

Tianfeng TF-FZG-100 Industrial-Scale Food Freeze Dryer

Overview

The Tianfeng TF-FZG-100 is an industrial-scale vacuum freeze dryer engineered for continuous, high-throughput lyophilization of heat-sensitive food matrices—including fruits, vegetables, coffee extracts, seafood, pet nutrition, and ready-to-eat meals. Operating on the fundamental principle of sublimation—where ice transitions directly from solid to vapor under controlled low-pressure and low-temperature conditions—the system removes moisture while preserving structural integrity, volatile aromatics, enzymatic activity, and nutritional profiles. Unlike conventional hot-air or spray drying methods, freeze drying minimizes thermal degradation and oxidation, making it essential for premium-grade instant coffee powder production, functional fruit powders, and shelf-stable nutraceuticals. The TF-FZG-100 integrates a monolithic chamber–cold trap architecture with front-chamber/rear-trap configuration, enabling rapid pressure equilibration, uniform heat transfer across large-area shelves, and efficient vapor migration toward the condenser. Its design complies with core hygienic engineering principles required for food-grade manufacturing environments.

Key Features

• Stainless steel 304 construction throughout the drying chamber and shelf assembly, with mirror-finish internal surfaces meeting GMP-compliant surface roughness (Ra ≤ 0.8 µm) and cleanability standards.
• Modular shelf system comprising (15+1)×2 adjustable layers (total 32 shelves), with customizable material options: high-conductivity aluminum extrusions (brushed finish) or electropolished 304 stainless steel plates—both optimized for thermal uniformity and residue-free cleaning.
• Integrated refrigeration system utilizing premium imported compressors and high-efficiency condenser coils, achieving cold trap temperatures ≤ −65 °C and stable shelf temperature control from −45 °C to +80 °C.
• Dual-mode defrost system: steam-assisted or immersion-based, ensuring rapid, residue-free ice removal without manual intervention or chamber opening.
• Omron PLC-based control architecture paired with industrial IPC running proprietary HMI software; supports Wi-Fi connectivity, remote monitoring, and secure remote diagnostics via encrypted protocols.
• Observation windows with integrated LED illumination and anti-fog coating, facilitating real-time visual inspection without compromising vacuum integrity or sterility.

Sample Compatibility & Compliance

The TF-FZG-100 accommodates diverse food formats—including bulk trays, stainless steel trolleys (4 units, SUS304), and stacked multi-layer packaging—enabling scalable processing of raw materials ranging from sliced mangoes to agglomerated coffee slurry. Shelf spacing (77 mm) and tray dimensions (608 × 540 × 18 mm) are optimized for airflow distribution and vapor path efficiency. All wetted surfaces conform to FDA 21 CFR Part 11–compatible data logging requirements when configured with audit-trail-enabled firmware. While not certified for pharmaceutical use out-of-the-box, the system’s mechanical design, material traceability, and documentation framework align with ISO 22000, HACCP, and EU Regulation (EC) No 852/2004 prerequisites for food processing equipment. Optional IQ/OQ documentation packages are available upon request for validation in regulated food manufacturing facilities.

Software & Data Management

The embedded control interface supports up to 99 user-defined drying protocols, each containing multiple ramp-hold segments with independent setpoints for shelf temperature, chamber pressure, and condenser load. During operation, all critical parameters—including real-time vacuum level (Pirani + capacitance manometer), shelf surface temperature (PT100 sensors, ±0.3 °C accuracy), and condensate mass accumulation—are logged at configurable intervals (1–60 s). Data export is supported in CSV and PDF formats, with optional integration into MES or LIMS platforms via OPC UA or Modbus TCP. System-level security includes role-based access control (operator, engineer, administrator), electronic signatures for batch release, and tamper-proof audit trails compliant with ALCOA+ principles. Firmware updates are delivered via authenticated USB media or secure OTA channels.

Applications

This freeze dryer serves as a primary unit in commercial food ingredient manufacturing lines—particularly for producing soluble coffee powder with >98% solubility retention and minimal Maillard browning; freeze-dried fruit pieces retaining >92% vitamin C content after 12-month ambient storage; and stabilized probiotic-enriched pet treats requiring ≤1.5% residual moisture. It is also deployed in R&D pilot plants evaluating novel drying kinetics for plant-based meat analogs and functional mushroom extracts. Process scalability is validated through correlation studies between lab-scale (e.g., Labconco FreeZone) and TF-FZG-100 performance metrics—including primary drying time, collapse temperature detection via PAT-compatible IR sensors, and final product reconstitution ratio.

FAQ

Is the TF-FZG-100 suitable for GMP-certified food production facilities?
Yes—its 304 stainless steel construction, sanitary welds, sloped drainage design, and documentation-ready control system support compliance with GMP hygiene requirements for food-grade equipment.
Can shelf temperature be independently controlled per layer?
No—shelves operate in parallel mode with unified thermal regulation; however, inter-shelf temperature uniformity is maintained within ±1.2 °C across the full 98.68 m² area under standard operating conditions.
What vacuum pump configurations are supported?
Standard configuration uses ULVAC (formerly Unisem) dry scroll pumps; optional upgrades include oil-lubricated dual-stage rotary vane pumps or hybrid turbo-molecular pump systems for ultra-high vacuum applications.
Does the system support automated recipe transfer between batches?
Yes—via USB import/export or network synchronization; recipes retain all parameter history, operator annotations, and alarm thresholds.
What is the typical lead time for factory acceptance testing (FAT)?
FAT is scheduled within 10 working days following mechanical completion; customers may attend remotely via live-streamed video verification with witnessed protocol execution.
