Tianfeng TF-FZG-30 Industrial-Scale Food Freeze Dryer System

Overview

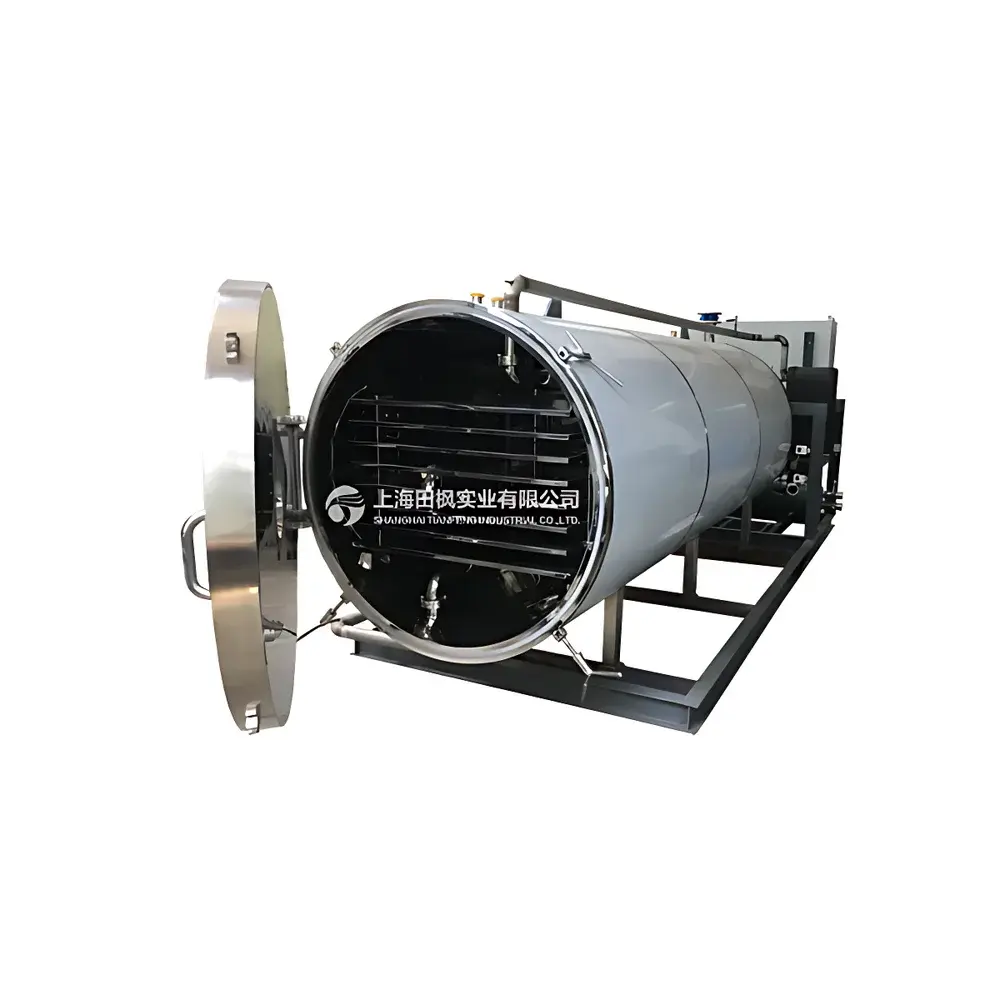

The Tianfeng TF-FZG-30 is an industrial-scale freeze drying system engineered for continuous, high-throughput lyophilization of heat-sensitive food matrices—including fruits, vegetables, herbs, and functional ingredients—while preserving structural integrity, enzymatic activity, color, flavor, and nutritional profile. Based on the fundamental principles of sublimation under deep vacuum and cryogenic condensation, this system operates by freezing product below its eutectic temperature, then reducing chamber pressure to induce direct phase transition from ice to vapor without passing through the liquid state. The integrated cold trap captures water vapor at ≤ −65 °C, achieving a stable ultimate vacuum of ≤ 2.7 Pa—sufficient to support primary drying of low-moisture foods and secondary drying of hygroscopic botanicals. Designed for production-line integration, the TF-FZG-30 delivers 30.1 m² of effective shelf area across 28 precisely temperature-controlled shelves, enabling batch capacities up to several tons per cycle.

Key Features

• GMP-compliant chamber and shelf construction: 304 stainless steel cylindrical chamber with mirror-finish interior, zero-weld crevices, and CIP/SIP-ready sanitary design.
• Integrated front-chamber/rear-trap architecture: Compact monoblock layout minimizes thermal bridging and simplifies validation; includes dual-view observation windows with LED illumination for real-time process monitoring.
• Dual-material shelf options: Extruded aluminum shelves (surface-finished for optimal thermal conductivity) or electropolished 304 stainless steel shelves (validated for cleanability and corrosion resistance).
• High-capacity refrigeration: Multi-stage cascade system with premium imported compressors ensures rapid cooldown (< 2.5 h from ambient to −65 °C) and stable shelf temperature control (±0.5 °C over full range).
• Modular vacuum train: Configurable vacuum pump packages—including ULVAC (formerly Anelva) dry scroll and oil-lubricated roots pumps—support both fast evacuation and long-term vacuum stability during extended drying cycles.
• Intelligent control architecture: Omron CJ2M PLC coupled with industrial PC (IPC), supporting recipe-based automation, real-time data logging, audit trail generation, and remote diagnostics via encrypted Wi-Fi or Ethernet.

Sample Compatibility & Compliance

The TF-FZG-30 accommodates diverse food formats—whole berries, sliced root vegetables, pureed concentrates, and particulate blends—on standardized stainless steel trays or custom-designed carriers. Its shelf geometry (214 × 54 × 1.8 cm per shelf) supports uniform heat transfer and minimal edge effects. All wetted surfaces meet FDA 21 CFR Part 11 readiness requirements for electronic records and signatures when paired with validated software protocols. The system adheres to ISO 22000 hygiene principles and aligns with Codex Alimentarius guidelines for dried fruit and vegetable processing. Optional CIP/SIP interfaces enable automated cleaning and sterilization cycles compliant with EU Annex 1 and USP sterility assurance expectations for high-value nutraceutical applications.

Software & Data Management

The embedded HMI features a 15-inch touchscreen interface with multilingual support (English, Spanish, Arabic, Chinese). Process recipes—including shelf ramp rates, hold durations, vacuum setpoints, and pressure-controlled drying steps—are stored in non-volatile memory with timestamped version control. All operational parameters (shelf temp, chamber pressure, condenser temp, vacuum pump status, power consumption) are logged at 1-second intervals and exportable as CSV or PDF reports. The IPC supports OPC UA connectivity for MES/SCADA integration and includes built-in alarm management with SMS/email notification triggers. Audit trails comply with ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available) for regulatory submissions.

Applications

• Commercial freeze-drying of strawberries, mangoes, spinach, and kale for snack, infant food, and meal-replacement markets.
• Stabilization of probiotic cultures, enzyme powders, and plant extracts requiring residual moisture < 2% w/w.
• Preparation of shelf-stable intermediates for ready-to-mix beverages and functional food bars.
• Contract manufacturing services where clients require validated, repeatable drying profiles under documented quality systems.
• Process development scale-up from laboratory (e.g., Labconco FreeZone) to pilot (TF-FZG-5) and full production (TF-FZG-30) platforms.

FAQ

Is the TF-FZG-30 suitable for organic-certified food processing?

Yes—the system’s 304 stainless steel contact surfaces, absence of lubricants in the drying chamber, and CIP/SIP capability support compliance with USDA NOP and EU EC 834/2007 organic handling standards when operated under certified procedures.
Can shelf temperature be independently controlled per zone?

No—shelves operate in uniform thermal zones (front/middle/rear), but each zone has dedicated PID loops and independent heating/cooling circuits to minimize gradient deviation.
What vacuum pump configurations are available for high-humidity feedstocks?

For high-water-load batches (e.g., juiced pulp or mashed vegetables), we recommend a hybrid vacuum train: ULVAC DS-101D dry scroll pump for initial evacuation + Edwards nXR90i roots booster for sustained low-pressure operation during primary drying.
Does the system support GLP/GMP-compliant validation documentation?

Yes—Tianfeng provides IQ/OQ protocols, calibration certificates for all critical sensors (PT100, capacitance manometer, thermocouples), and FAT/SAT reports upon request.
What maintenance intervals are recommended for the refrigeration system?

Compressor oil analysis every 2,000 operating hours; condenser coil inspection quarterly; cold trap defrost cycle verification biannually; full refrigerant leak test annually per ISO 5149.
