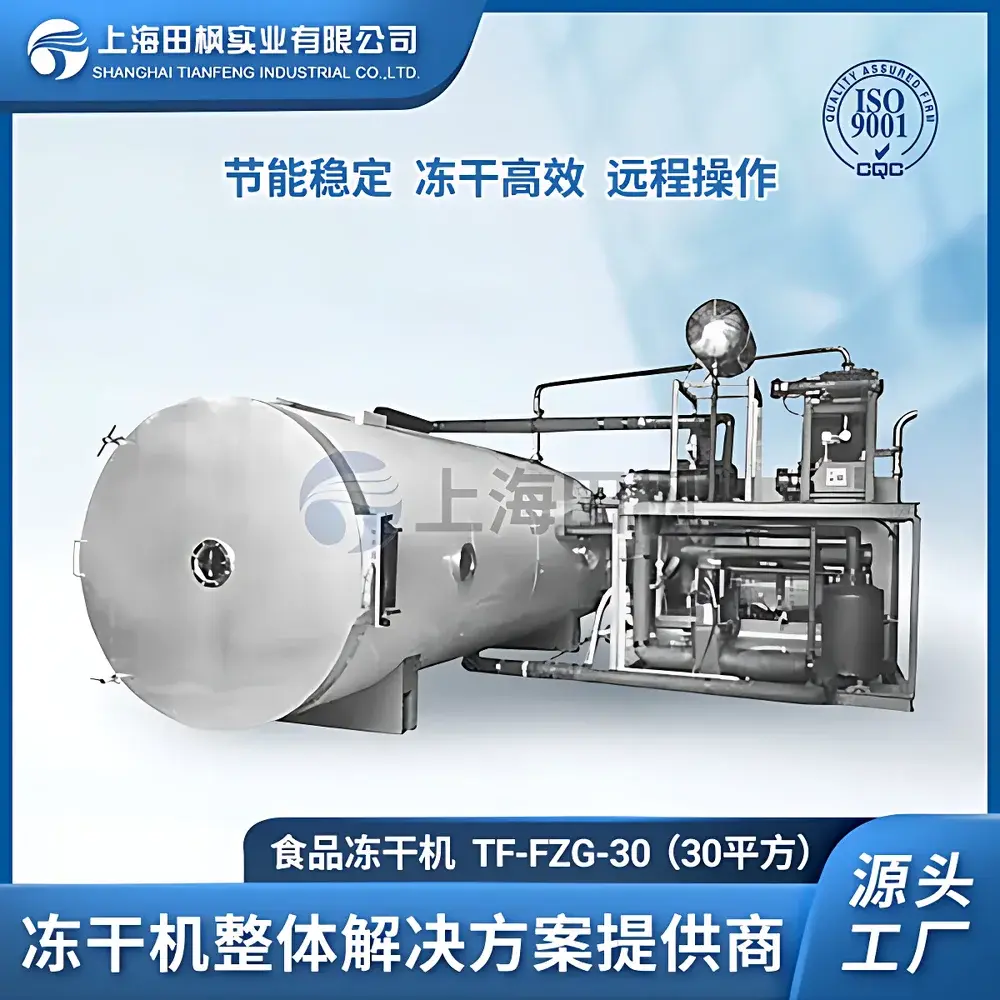

Tianfeng TF-FZG-30 Industrial-Scale Freeze Dryer for Marine Collagen (Sea Cucumber Extract), Hawthorn, and Strawberry Processing

Overview

The Tianfeng TF-FZG-30 is an industrial-scale, shelf-type freeze dryer engineered for reproducible, GMP-aligned lyophilization of thermolabile biological and botanical materials—including marine-derived extracts (e.g., sea cucumber collagen), fruit-based actives (e.g., hawthorn polyphenols and strawberry anthocyanins), and other high-value nutraceuticals. Operating on the fundamental principles of sublimation under deep vacuum and controlled thermal input, the system removes water from frozen samples via primary drying (ice sublimation) followed by secondary drying (adsorbed moisture desorption), preserving structural integrity, bioactivity, and long-term stability. Its 30.1 m² effective drying area supports batch processing of up to several hundred kilograms of raw material—making it suitable for pilot-to-production transition in contract manufacturing organizations (CMOs), functional food R&D centers, and biopharmaceutical excipient development labs.

Key Features

• GMP-compliant chamber and shelf construction: AISI 304 stainless steel body with mirror-finish interior (Ra ≤ 0.4 µm), zero dead-leg geometry, and fully drainable design to eliminate microbial retention zones.

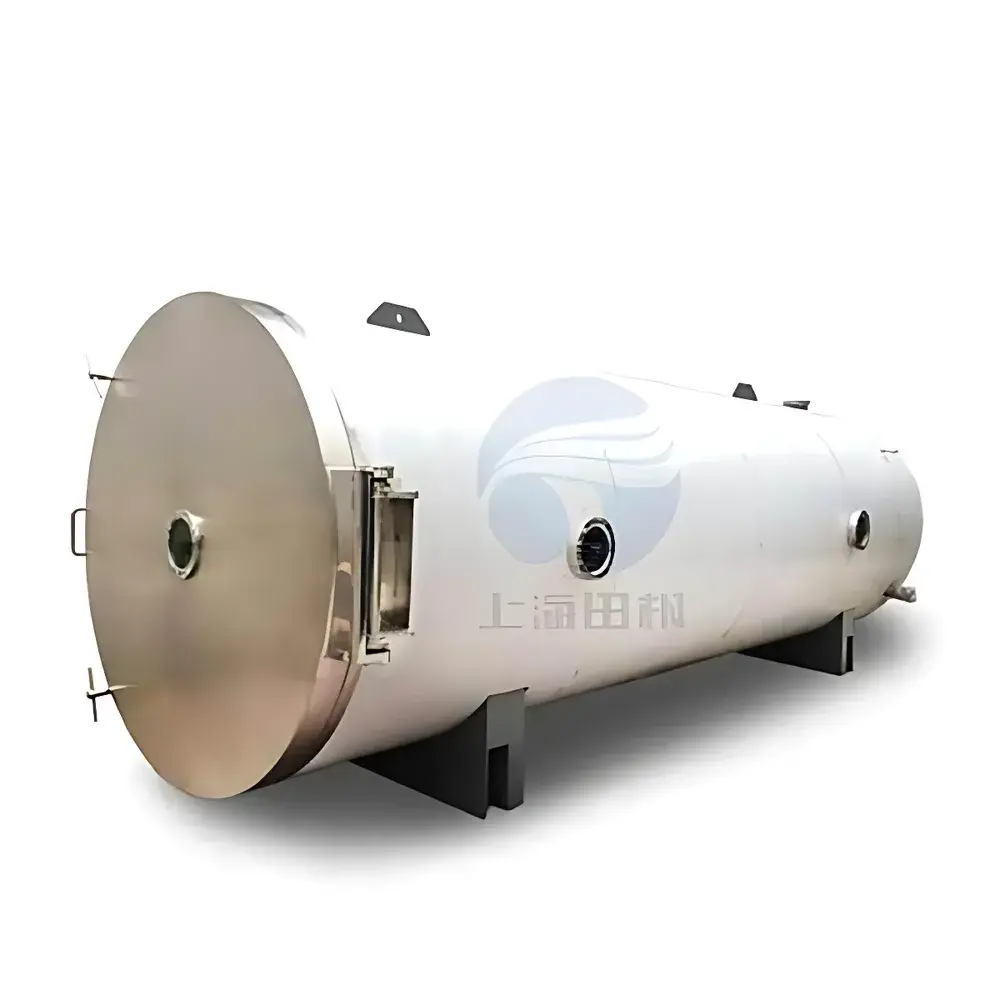

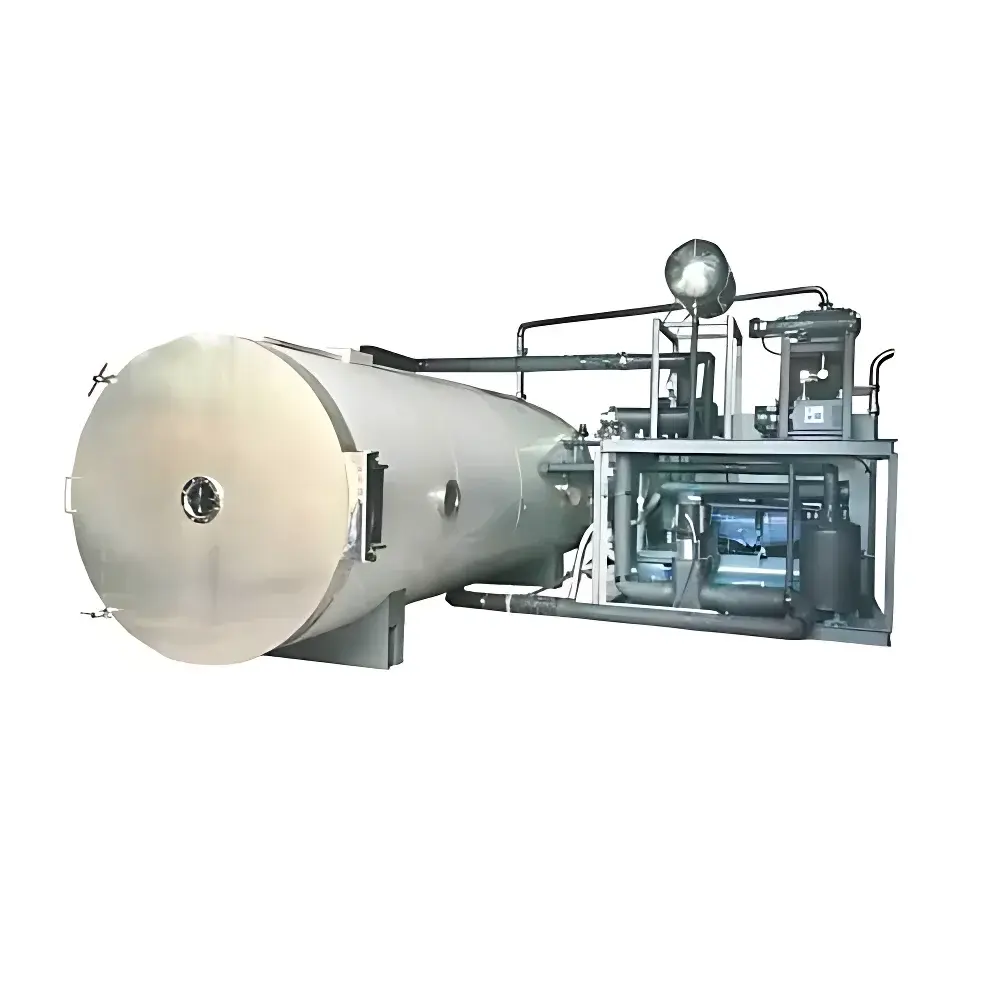

• Integrated front-chamber/rear-condenser architecture: Compact footprint (7 × 2.5 × 3.6 m), reinforced observation window with LED illumination, and ergonomic service access points.
• Dual-material shelf options: Precision-extruded aluminum shelves (enhanced thermal conductivity) or electropolished 304 stainless steel shelves (optimal for sterile or cleaning-in-place (CIP) workflows).
• High-capacity condensation system: Clean-grade stainless steel coil condenser rated for ≤ −65 °C operating temperature and 600 kg/24 h ice load—validated per ISO 20517:2018 for sustained low-pressure performance.
• Robust refrigeration architecture: Multi-stage cascade system using premium imported compressors, ensuring rapid cooldown (< 120 min from ambient to −60 °C) and stable shelf temperature control (±0.5 °C over full range).
• Modular vacuum train: ULVAC-certified high-vacuum pumping station with redundant pressure monitoring (Pirani + capacitance manometer), capable of achieving ≤ 2.7 Pa ultimate pressure and maintaining ≤ 10 Pa during primary drying.
• Omron CJ2M PLC + IPC-based control platform: Compliant with IEC 61131-3 programming standards; supports audit-trail-enabled recipe management, real-time data logging (≥1 Hz sampling), and remote diagnostics via encrypted Wi-Fi or Ethernet.

Sample Compatibility & Compliance

The TF-FZG-30 accommodates a broad spectrum of sample formats—including bulk trays (up to 214 × 54 cm), stoppered vials (2R–50R), and custom molds—enabling direct scale-up from laboratory freeze dryers (e.g., Labconco FreeZone series) to commercial production. Its hygienic design conforms to FDA 21 CFR Part 11 requirements for electronic records and signatures when configured with user authentication, change control, and time-stamped event logs. All wetted surfaces meet ASME BPE-2021 surface finish specifications, and the system is routinely validated per ISO 13408-1 (sterile processing) and USP (lyophilization process validation). It supports IQ/OQ/PQ documentation packages aligned with EU Annex 15 and PIC/S guidelines.

Software & Data Management

The embedded IPC runs Tianfeng’s proprietary LyoControl™ v4.2 software—a deterministic, multi-threaded application built on Windows IoT Enterprise. It provides full lifecycle data governance: recipe creation (with ≥99 user-defined steps), real-time trend visualization (shelf temp, chamber pressure, condenser temp, product resistance), automated deviation alerts (email/SMS), and export to CSV, PDF, or SQL-compatible databases. All operational events—including manual interventions, parameter overrides, and alarm acknowledgments—are recorded with immutable timestamps and operator IDs. Optional 21 CFR Part 11 compliance package includes digital signature integration, role-based access control (RBAC), and electronic audit trail review functionality.

Applications

• Marine bioactive stabilization: Lyophilization of enzymatically hydrolyzed sea cucumber peptides without denaturation or Maillard degradation.
• Fruit phytochemical preservation: Retention of heat-sensitive anthocyanins (strawberry), flavonoids (hawthorn), and vitamin C across >500 L batch volumes.
• Nutraceutical intermediate processing: Conversion of aqueous botanical concentrates into free-flowing, low-moisture powders with ≤ 1.5% residual water content (determined by Karl Fischer titration).
• Vaccine adjuvant formulation support: Preclinical drying of aluminum hydroxide–antigen composites under controlled nucleation conditions.
• Contract manufacturing services: Validated cycle transfer from R&D freeze dryers (e.g., SP Scientific Virtis Genesis) to TF-FZG-30 using Design Space modeling (QbD principles).

FAQ

Is the TF-FZG-30 compliant with current Good Manufacturing Practice (cGMP) requirements for pharmaceutical use?
Yes—when installed with optional GMP configuration (e.g., qualified alarms, calibrated sensors traceable to NIST standards, and full validation documentation), the system meets baseline cGMP expectations for non-sterile intermediate processing per FDA Guidance for Industry (2022) and EMA Annex 15.
Can shelf temperature be independently controlled per layer during drying?
No—the system employs uniform heating/cooling across all 28 shelves via integrated fluid circulation; however, individual shelf temperature mapping is supported during qualification to confirm thermal homogeneity (±0.8 °C max deviation).
What vacuum pump technologies are available as alternatives to the standard ULVAC unit?
Options include Edwards nXDS dry scroll pumps (for oil-free operation), Pfeiffer HiCube hybrid turbomolecular systems (for ultra-high vacuum applications), and Busch COBRA screw pumps (for high vapor load resilience).
Does the system support automated defrost cycles with validation documentation?
Yes—both immersion and steam-assisted defrost modes are programmable, with cycle parameters (temperature ramp rate, dwell time, condensate drainage verification) logged and exportable for regulatory submission.
Is remote monitoring and control available outside the local network?
Yes—via TLS 1.2–secured web interface accessible through authenticated corporate VPN or Tianfeng’s cloud gateway (optional subscription), enabling real-time supervision and emergency intervention from offsite locations.
