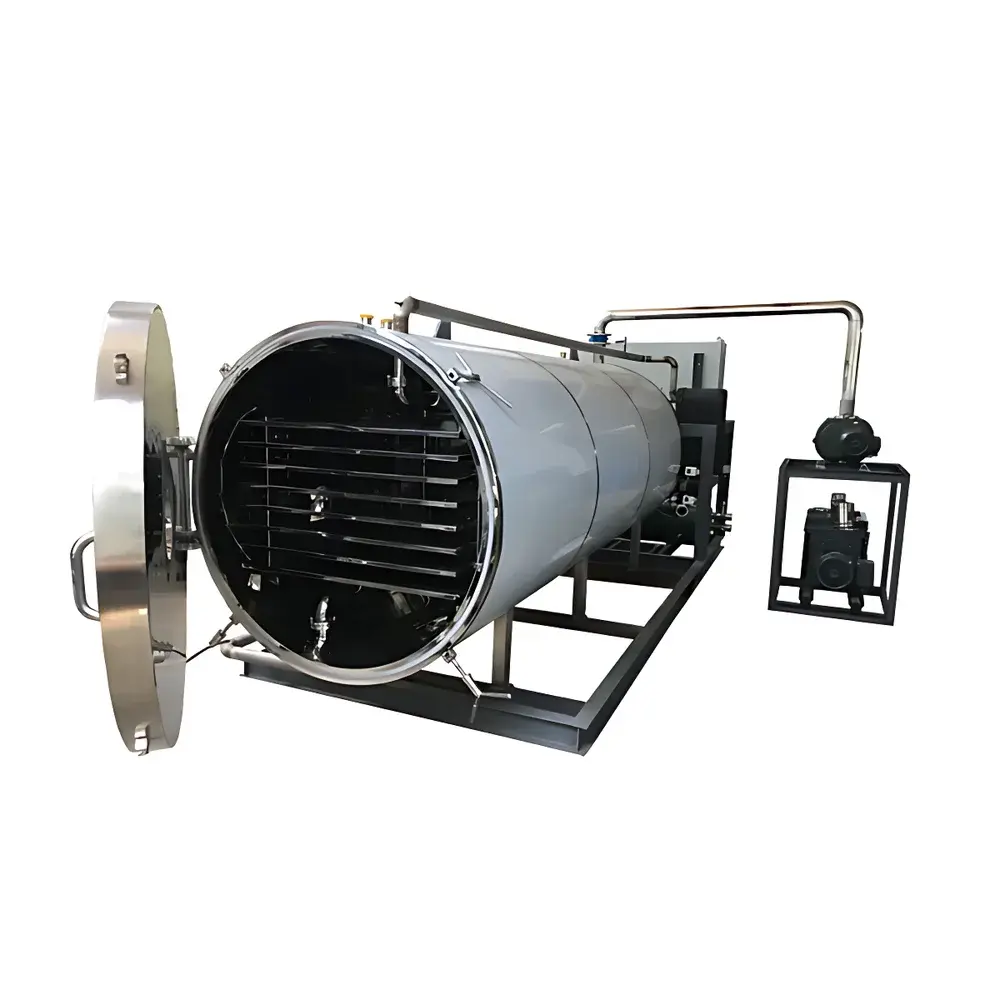

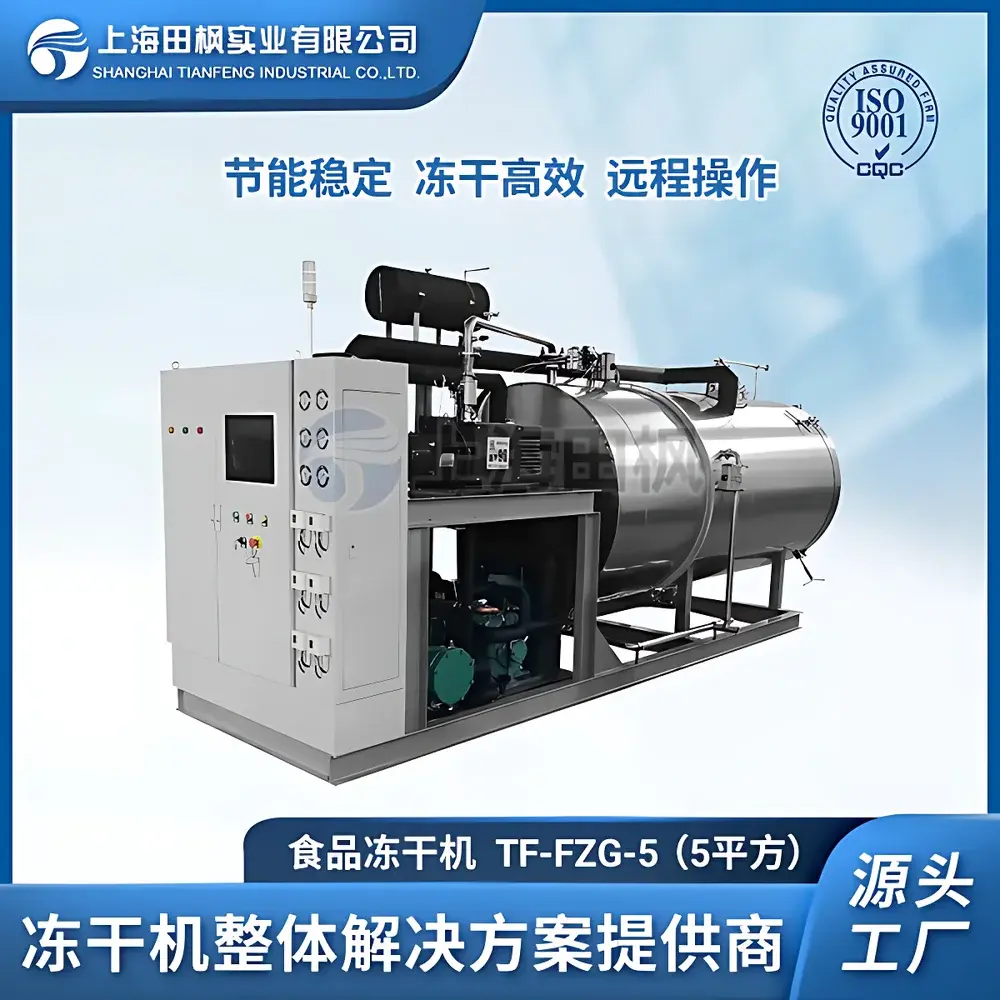

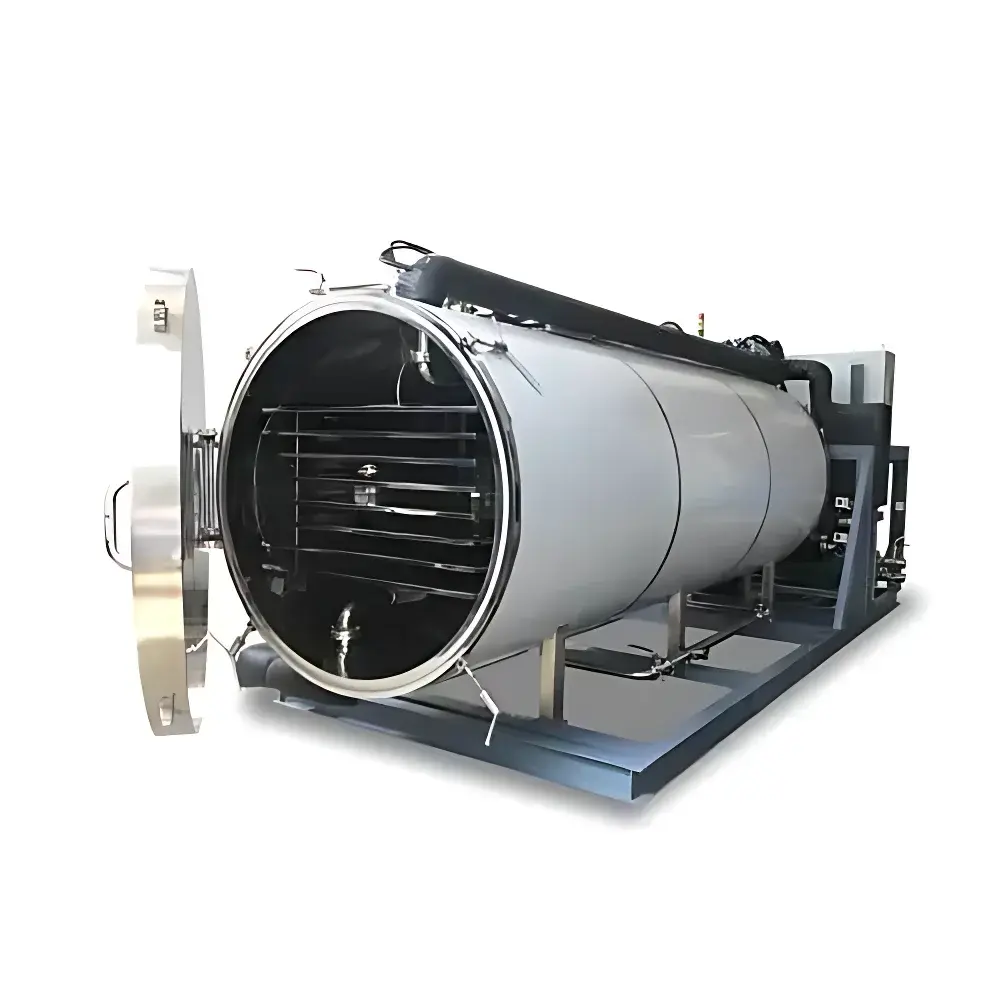

Tianfeng TF-FZG-5 Industrial Freeze Dryer – 5 m² Shelf-Type Food Lyophilization System

Overview

The Tianfeng TF-FZG-5 Industrial Freeze Dryer is a GMP-compliant, production-scale lyophilization system engineered for consistent, scalable vacuum freeze-drying of heat-sensitive food matrices—including fruit powders (e.g., strawberry), instant coffee granules, functional ingredients, and premium nutraceuticals. Operating on the fundamental principle of sublimation—where frozen water transitions directly from solid to vapor under controlled low-pressure and low-temperature conditions—the TF-FZG-5 preserves native molecular structure, volatile aroma compounds, enzymatic activity, and thermolabile nutrients far more effectively than conventional thermal drying methods. Its integrated chamber-and-cold-trap architecture minimizes footprint while maximizing condensation efficiency, enabling continuous batch processing across pharmaceutical-grade hygienic standards. Designed for 24/7 operational reliability in pilot plants and small-to-mid-scale food manufacturing facilities, the system delivers reproducible primary and secondary drying profiles through precise, closed-loop regulation of shelf temperature, chamber pressure, and condenser load.

Key Features

• GMP-aligned construction: 304 stainless steel vacuum chamber and shelves with electropolished, mirror-finish interior; zero dead-leg design and fully drainable geometry for CIP/SIP compatibility.
• Modular shelf configuration: 5+1 customizable shelves (aluminum extrusion or 304 SS); 65 mm inter-shelf spacing; ±0.5 °C uniformity across full shelf surface at all setpoints (−45 °C to +80 °C).
• High-capacity cold trap: ≤ −65 °C minimum operating temperature; 100 kg/24 h ice condensation capacity using clean stainless steel coil geometry; optional split or monolithic trap configurations.
• Stable vacuum performance: ULVAC-grade high-vacuum pumping system achieving ≤ 2.7 Pa ultimate pressure; real-time pressure monitoring with Pirani + capacitance manometer redundancy.
• Intelligent process control: Omron CJ2M PLC with HMI-integrated industrial PC; supports ≥100 user-defined drying protocols; dynamic recipe editing during active cycles including step-jump and parameter override.
• Remote operability: Built-in Wi-Fi and Ethernet connectivity; secure remote monitoring and intervention via encrypted web interface compliant with IEC 62443-3-3 cybersecurity baseline.

Sample Compatibility & Compliance

The TF-FZG-5 accommodates diverse food matrices requiring structural integrity retention: whole berries (strawberry, blueberry), pureed fruits, brewed coffee concentrates, dairy-based emulsions, hydrocolloid gels, and herbal extracts. Shelf loading supports standard ISO 285 trays (up to 500 mm × 500 mm) or custom stainless steel pans. All wetted surfaces meet FDA 21 CFR Part 11 requirements for electronic record integrity when paired with audit-trail-enabled software modules. The system conforms to ISO 22000 food safety management principles and supports validation documentation packages aligned with ASTM F2476 (Standard Guide for Validation of Freeze Drying Processes) and EU Annex 1 (Manufacture of Sterile Medicinal Products) hygienic design criteria.

Software & Data Management

Tianfeng’s proprietary LyoControl™ software (v4.2+) runs on the embedded industrial PC and provides full lifecycle data governance. It records time-stamped, tamper-evident logs for shelf temperature, chamber pressure, condenser temperature, vacuum pump current, and door interlock status—meeting ALCOA+ (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available) data integrity requirements. Raw datasets export in CSV and PDF formats; trend analysis tools support drying rate calculation, endpoint determination (via pressure rise test), and deviation investigation. Optional 21 CFR Part 11 compliance package includes role-based access control, electronic signatures, and automated backup to NAS or cloud storage.

Applications

• Strawberry powder production: Maintains anthocyanin stability, natural red hue, and volatile ester profile (e.g., ethyl butyrate, furaneol) across 50–200 kg/batch throughput.
• Instant coffee freeze-drying: Enables high-solubility granule formation with <5% moisture content, minimal Maillard browning, and preserved chlorogenic acid levels.
• Nutraceutical preservation: Lyophilizes bee pollen, royal jelly, and traditional herb extracts without organic solvent residues or thermal degradation.
• Ready-to-eat meal components: Stabilizes cooked meats, vegetables, and sauces while retaining texture rehydration kinetics and microbial safety (validated to ≥5-log reduction of vegetative pathogens).
• R&D scale-up support: Identical thermal mass and vacuum dynamics as larger commercial units—facilitating seamless transition from lab (TF-LD series) to production deployment.

FAQ

Is the TF-FZG-5 suitable for FDA-regulated food facility validation?
Yes. The system is constructed to GMP hygienic standards, includes full traceability logging, and supports IQ/OQ/PQ protocol execution with third-party calibration certificates available for all critical sensors.
Can shelf temperature be ramped independently per layer?
No—shelves operate in synchronous mode to ensure uniform heat transfer; however, individual shelf thermocouples provide per-layer monitoring for profile verification.
What vacuum pump options are available beyond the standard ULVAC configuration?
Optional configurations include dual-stage oil-lubricated pumps (for cost-sensitive operations), dry scroll pumps (for oil-free environments), and hybrid turbo-molecular systems (for ultra-high vacuum applications such as peptide lyophilization).
Does the system support steam sterilization of the chamber?
Not natively—steam SIP requires additional jacketed vessel design and autoclave-rated seals; however, the chamber is fully compatible with validated VHP (vaporized hydrogen peroxide) bio-decontamination cycles.
What is the expected mean time between failures (MTBF) for the refrigeration system?
Based on field data from >120 installed units, MTBF exceeds 18,000 operational hours under nominal load, with compressor assemblies sourced from Danfoss and Bitzer meeting ISO 5171 reliability benchmarks.
