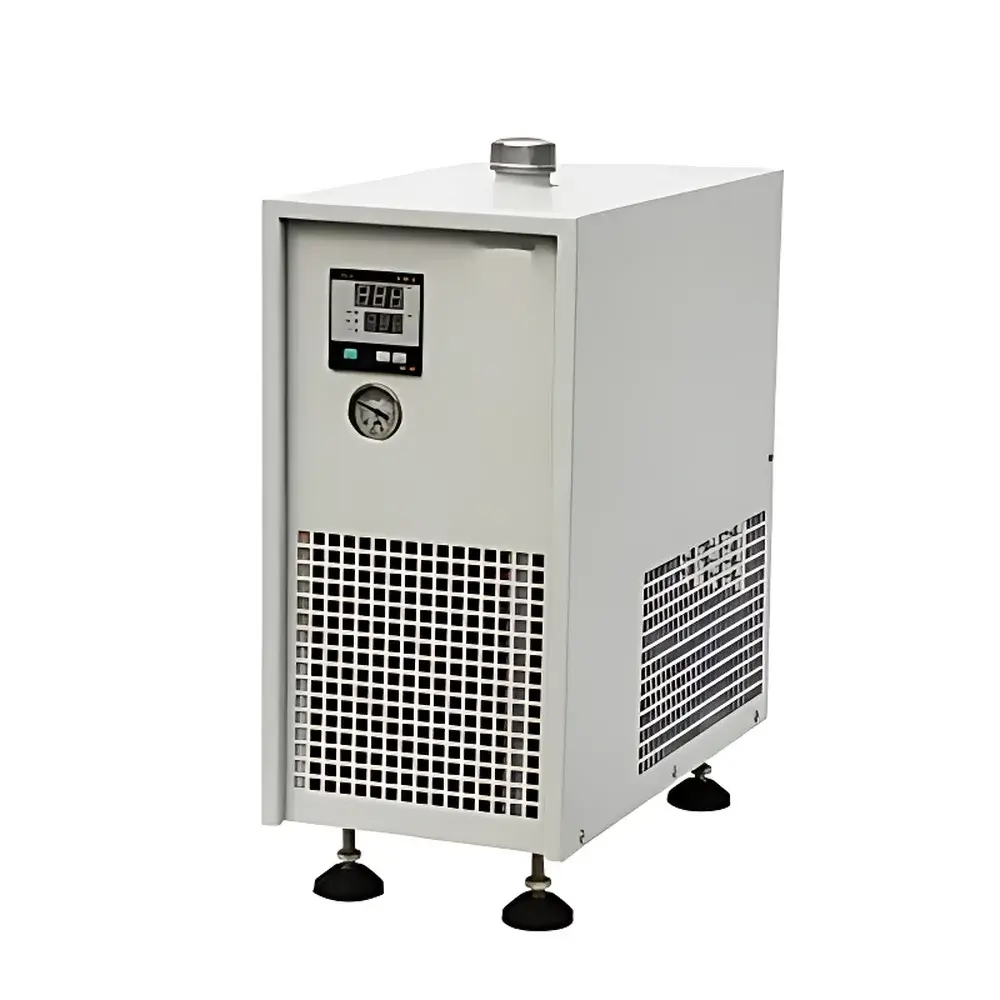

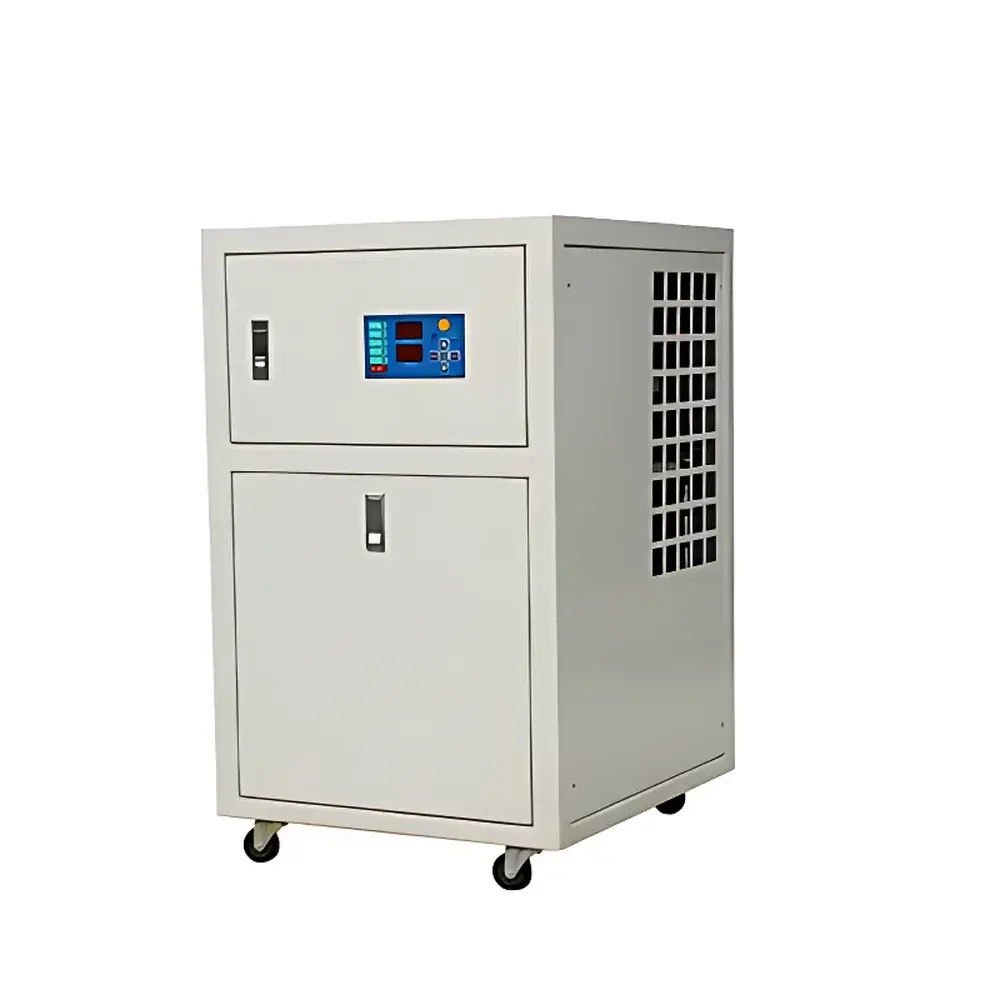

Tianfeng TF-LS-20000W Air-Cooled Circulating Chiller

Overview

The Tianfeng TF-LS-20000W is an integrated air-cooled circulating chiller engineered for high-precision thermal management in demanding laboratory and industrial environments. Unlike water-cooled chillers requiring external cooling towers or facility water loops, this unit utilizes ambient air as its heat rejection medium—eliminating dependency on municipal water supply, reducing installation complexity, and enhancing operational flexibility. Its core thermodynamic architecture employs a scroll compressor paired with high-efficiency copper-aluminum finned condensers and precision expansion valves (sourced from Italy and Germany), enabling stable refrigerant cycle performance under variable ambient conditions (up to 40 °C inlet air). The chiller maintains process fluid temperature within ±0.1 ℃ over the 0–10 ℃ operating band—critical for applications where thermal drift directly impacts measurement integrity, such as atomic absorption spectroscopy, plasma-based analytical instrumentation (ICP-OES/ICP-MS), X-ray fluorescence (XRF), electron microscopy (SEM/TEM), and X-ray diffraction (XRD). Designed for continuous-duty operation, it delivers consistent 20 kW cooling capacity at standard conditions (7 ℃ outlet / 12 ℃ inlet water, 30 → 40 ℃ ambient air rise), with full stainless-steel wetted components ensuring corrosion resistance and long-term fluid purity.

Key Features

• Integrated air-cooled architecture with no external water loop or cooling tower required—ideal for labs with limited infrastructure or water conservation mandates
• High-stability PID temperature control system with digital display; optional upgrade to RKC (Japan) controller for enhanced repeatability and programmable ramp/soak profiles
• Full stainless-steel reservoir (180 L) and circulation pump—prevents microbial growth, metal ion leaching, and degradation of sensitive coolant formulations
• Dual-mode operation: constant-temperature mode for fixed-point stability and intelligent adaptive mode that dynamically adjusts setpoint based on real-time load feedback
• Industrial-grade electrical components (Siemens, Schneider, Omron) certified to IEC 61000-4 EMC standards; built-in over-temperature, low-flow, and high-head pressure protection circuits
• Low-noise scroll compressor (<65 dB[A] at 1 m) with oil return optimization—minimizes acoustic interference in noise-sensitive analytical labs
• Modular internal layout supporting field-serviceable refrigerant circuit diagnostics and component-level replacement without system evacuation

Sample Compatibility & Compliance

The TF-LS-20000W is compatible with deionized water, glycol-water mixtures (up to 30% v/v), and other non-corrosive heat transfer fluids meeting ASTM D1384 and ISO 21068 specifications. Its fluid path meets USP conductivity limits when operated with purified water, supporting GLP-compliant instrument cooling in regulated pharmaceutical and clinical laboratories. All control logic and data logging functions comply with FDA 21 CFR Part 11 requirements when paired with validated software (e.g., Tianfeng’s optional LabLink™ interface module). The unit is manufactured under ISO 9001:2000 quality management systems, with full traceability of critical components—including compressors, expansion valves, and temperature sensors—documented per ISO/IEC 17025 calibration chain principles. It satisfies CE marking essential requirements for electromagnetic compatibility (EMC Directive 2014/30/EU) and low-voltage safety (LVD Directive 2014/35/EU).

Software & Data Management

While the base model features a standalone digital controller with local setpoint adjustment and alarm status indication, optional LabLink™ connectivity enables integration into centralized lab infrastructure. Via RS-485 Modbus RTU or Ethernet TCP/IP, the chiller transmits real-time parameters—including actual/reservoir temperature, flow rate, compressor run time, fault codes, and energy consumption—to LIMS or SCADA platforms. Audit trails record all parameter changes with user ID, timestamp, and reason code—supporting 21 CFR Part 11 electronic signature validation when deployed with qualified authentication protocols. Historical data is stored onboard for ≥30 days (configurable) and exportable via USB or network transfer in CSV format for trending analysis in JMP, MATLAB, or Python-based QC workflows.

Applications

• Analytical Instrument Cooling: Stable thermal management for graphite furnace AAS, ICP spectrometers, XRF/XRD systems, SEM/TEM cold stages, and laser-based detectors—preventing thermal lensing, detector drift, and spectral baseline instability
• Plasma & Laser Systems: Heat extraction from RF generators, vacuum chamber jackets, and optical mounts in plasma etching, PVD/CVD tools, and high-power laser sources (CO₂, fiber, ultrafast)
• Materials Testing: Temperature-controlled conditioning of tensile test specimens, rheometer sample cells, and DSC reference pans during dynamic mechanical analysis
• Pharmaceutical Process Support: Precise jacket cooling for bioreactors, chromatography columns (HPLC/UHPLC), and lyophilizer condenser plates in GMP-compliant manufacturing suites
• Electronics & Metrology: Thermal stabilization of coordinate measuring machine (CMM) granite beds, laser interferometers, and semiconductor wafer probers

FAQ

What is the maximum allowable return water temperature?
The chiller is rated for continuous operation with return water ≤40 °C. Exceeding this threshold increases discharge pressure, accelerates compressor oil degradation, and may trigger high-pressure cutout—reducing mean time between failures (MTBF).
Can the unit operate with ethylene glycol solutions?
Yes—up to 30% (v/v) aqueous glycol mixtures are supported. Viscosity increase must be compensated by verifying minimum flow velocity (≥0.3 m/s) in connected tubing to prevent laminar flow-induced thermal stratification.
Is remote monitoring available without third-party SCADA?
Yes—Tianfeng’s LabLink™ firmware provides native web interface access (HTTPS) with real-time graphs, configurable alarms, and firmware update capability via secure OTA protocol.
How is temperature uniformity maintained across large-volume applications?
The 180 L reservoir includes baffled internal geometry and dual-pump recirculation paths to minimize thermal gradients; flow distribution manifolds (optional) ensure ≤0.3 ℃ inter-port deviation at 2 L/min total flow.
Does the chiller meet ISO 14644-1 Class 5 cleanroom requirements?
While not classified as a cleanroom device, its sealed refrigerant circuit, zero-oil-mist scroll compressor, and stainless-steel fluid path meet particle generation thresholds suitable for Class 5 adjacent support zones when installed with HEPA-filtered intake air.
