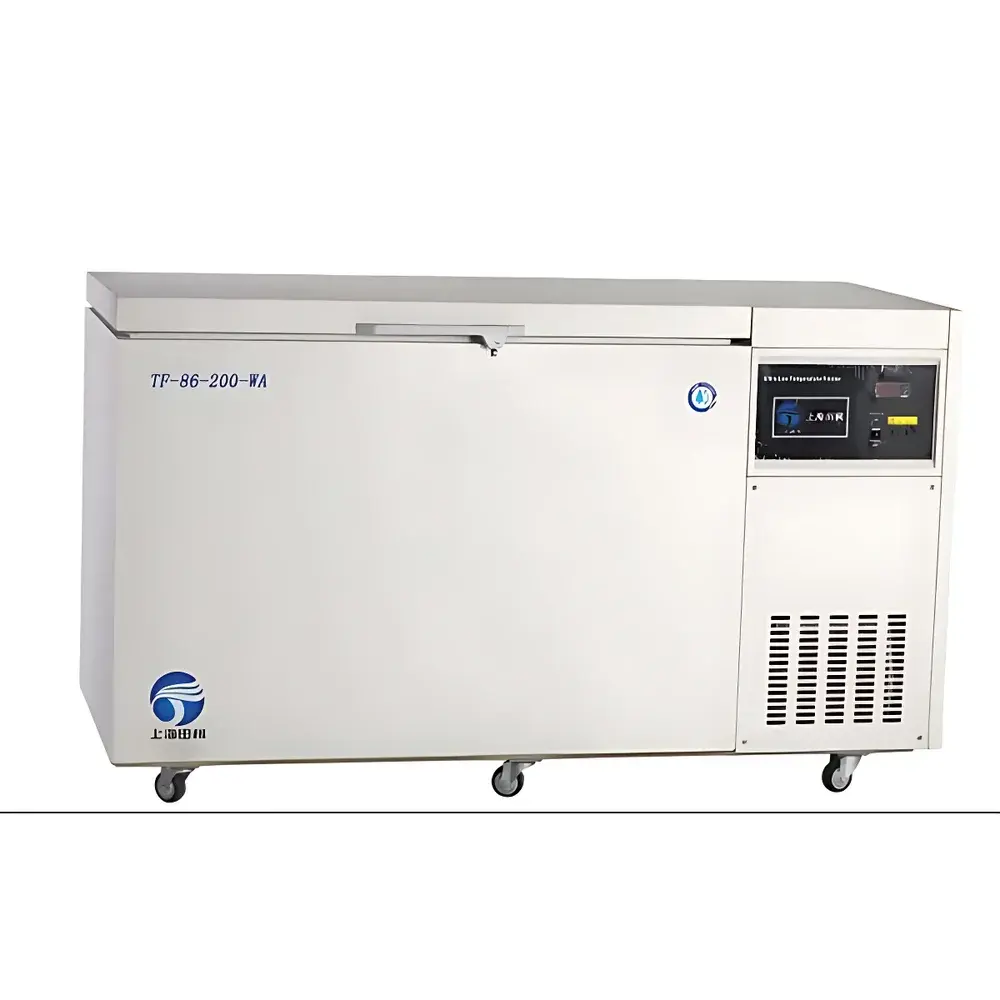

Tianfeng TF Series Ultra-Low Temperature Freezer

Overview

The Tianfeng TF Series Ultra-Low Temperature Freezer is an engineered solution for long-term cryogenic storage of biologics, clinical specimens, and temperature-sensitive research materials. Designed using a dual-stage cascade refrigeration architecture—featuring primary and secondary compressors operating in tandem—the system achieves stable, uniform chamber temperatures ranging from −15 °C to −136 °C across distinct model families (TF-40, TF-60, TF-86, and TF-136). This thermodynamic configuration enables high-efficiency heat rejection while maintaining precise setpoint control (±0.5 °C stability under standard load conditions) and minimizing thermal overshoot during door openings. Unlike single-stage systems, the cascade design isolates low-temperature circuitry from ambient fluctuations, ensuring reproducible storage integrity essential for biobanking, vaccine stabilization, and cell therapy workflows. All units comply with IEC 61010-1 safety standards for laboratory equipment and are constructed to support continuous operation in ambient environments up to 32 °C.

Key Features

• Dual-cascade refrigeration system with Danfoss (Denmark) compressors and EBM (Germany) condenser fans for enhanced reliability and extended service life
• 90 mm thick high-density polyurethane insulation with optimized thermal conductivity (≤0.018 W/m·K), achieving effective thermal barrier performance equivalent to 250 mm conventional foam
• Stainless steel interior chamber and removable inner doors with triple-seal gasket design to minimize cold loss and simplify decontamination
• Microprocessor-based temperature controller (RKC or Xiao Jingling) with real-time digital display, programmable setpoints, and ±0.3 °C factory calibration accuracy
• Comprehensive alarm system including audible/visual alerts for high/low temperature deviation, door ajar, power failure, and compressor fault—each with configurable relay outputs for building management integration
• Modular shelving system with three adjustable stainless steel trays and rounded internal corners for seamless cleaning and compliance with ISO 15189 pre-analytical handling guidelines
• RS232 serial interface (optional) supporting data logging and remote monitoring via compliant third-party LIMS or ELN platforms
• Energy-efficient fan-assisted condensation combined with passive convection zones—ensuring stable operation in dusty or high-ambient-temperature laboratories without risk of compressor overload

Sample Compatibility & Compliance

The TF Series accommodates diverse biospecimen formats including cryovials (0.5–5.0 mL),冻存管 racks, blood bags (up to 500 mL), tissue cassettes, and electronic components requiring thermal conditioning. Its validated temperature uniformity (±2.5 °C at 300 mm from walls per ASTM F2697-21 Annex A2) supports adherence to CAP, AABB, and ISBER best practices for biorepository operations. Units are configured for GLP/GMP-aligned workflows: alarm events generate time-stamped logs, controller firmware supports password-protected parameter locking, and optional RS232 output enables audit-trail generation compatible with FDA 21 CFR Part 11–compliant software environments. The use of non-ozone-depleting refrigerants (R404A/R23 blends, R134a) conforms to Montreal Protocol Phase-Out schedules and EU F-Gas Regulation (EU) No 517/2014.

Software & Data Management

While the base controller operates as a standalone embedded system, the optional RS232 port allows bidirectional communication with external data acquisition systems. Users may configure automated temperature logging intervals (1–60 min), export CSV-formatted records via terminal emulation, or integrate into enterprise-wide environmental monitoring platforms using Modbus RTU protocol adapters. Firmware supports user-defined alarm thresholds, hysteresis settings, and lockout modes to prevent unauthorized adjustments—critical for regulated QC/QA laboratories. No proprietary cloud platform is required; all data remains under institutional control. Controller event history retains ≥1,000 entries with timestamps, enabling root-cause analysis during CAPA investigations.

Applications

• Long-term archival storage of peripheral blood mononuclear cells (PBMCs), hematopoietic stem cells, and induced pluripotent stem cell (iPSC) lines at −86 °C or lower
• Cold chain maintenance for mRNA vaccine intermediates, viral vectors, and lyophilized therapeutics requiring strict thermal history documentation
• Preservation of tissue sections, nucleic acid extracts, and protein lysates subject to freeze-thaw degradation
• Industrial cryo-conditioning of precision bearings, aerospace alloys, and semiconductor substrates prior to metrology or assembly
• Field-deployable cold storage for marine bioprospecting missions and remote epidemiological surveillance programs
• Backup cold storage for hospital blood banks, national reference laboratories, and contract development and manufacturing organizations (CDMOs)

FAQ

What temperature ranges are supported across the TF Series?
The TF-40 series maintains −15 °C to −40 °C; TF-60 covers −25 °C to −65 °C; TF-86 achieves −40 °C to −86 °C; and the TF-136 model reaches −80 °C to −136 °C—each optimized for specific biological stability requirements.
Are these freezers suitable for GxP-regulated environments?
Yes. With configurable alarm logging, controller access controls, and optional RS232 data export, the units support alignment with FDA 21 CFR Part 11, EU Annex 11, and ISO/IEC 17025 documentation expectations when paired with validated procedures.
How is thermal uniformity validated inside the chamber?
Uniformity testing follows ASTM F2697-21 methodology using nine calibrated PT100 sensors placed at standardized locations; results are provided in factory acceptance test reports.
What maintenance intervals are recommended?
Condenser coil cleaning every 3 months in typical lab environments; annual verification of door seal integrity and temperature sensor calibration; compressor oil analysis recommended after 10,000 operating hours.
Can the freezer operate on standard 220–240 V single-phase supply?
Yes—all models are rated for 220–240 V AC, 50/60 Hz, single-phase input with built-in voltage regulation to tolerate ±10% fluctuation without performance impact.
