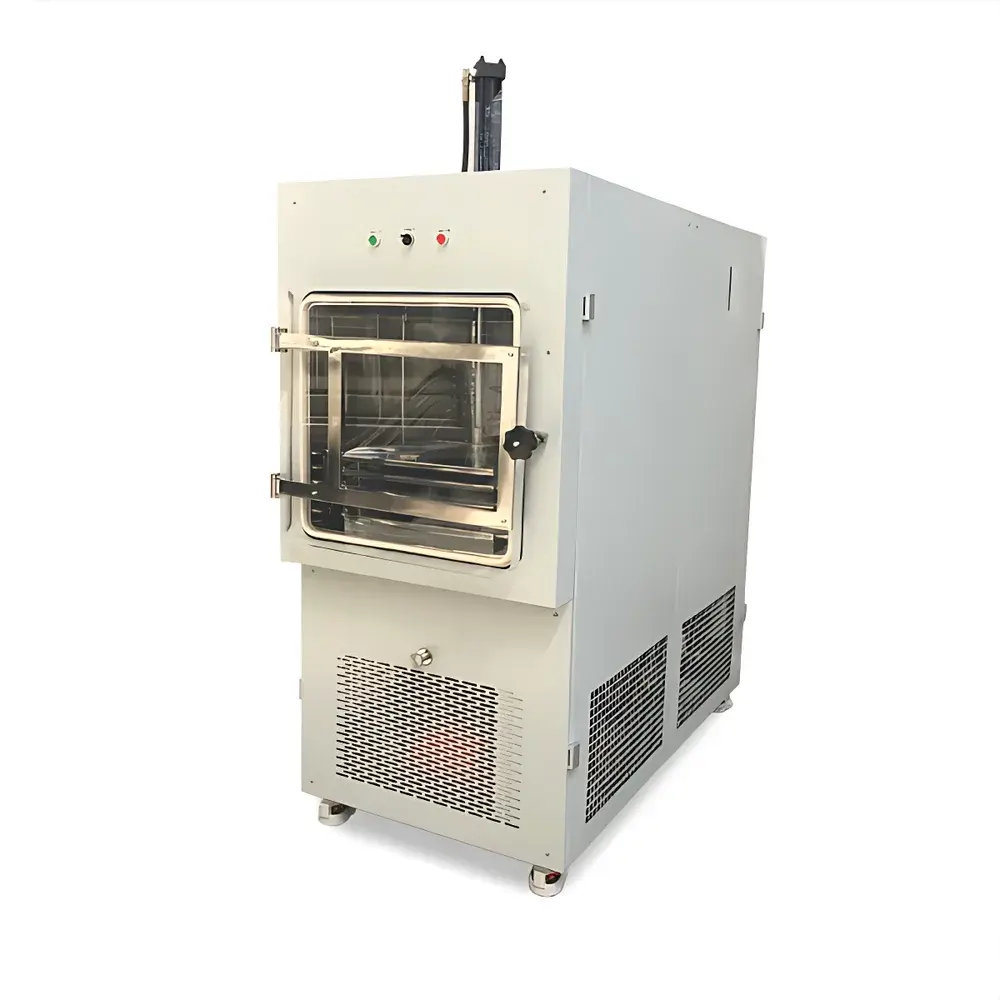

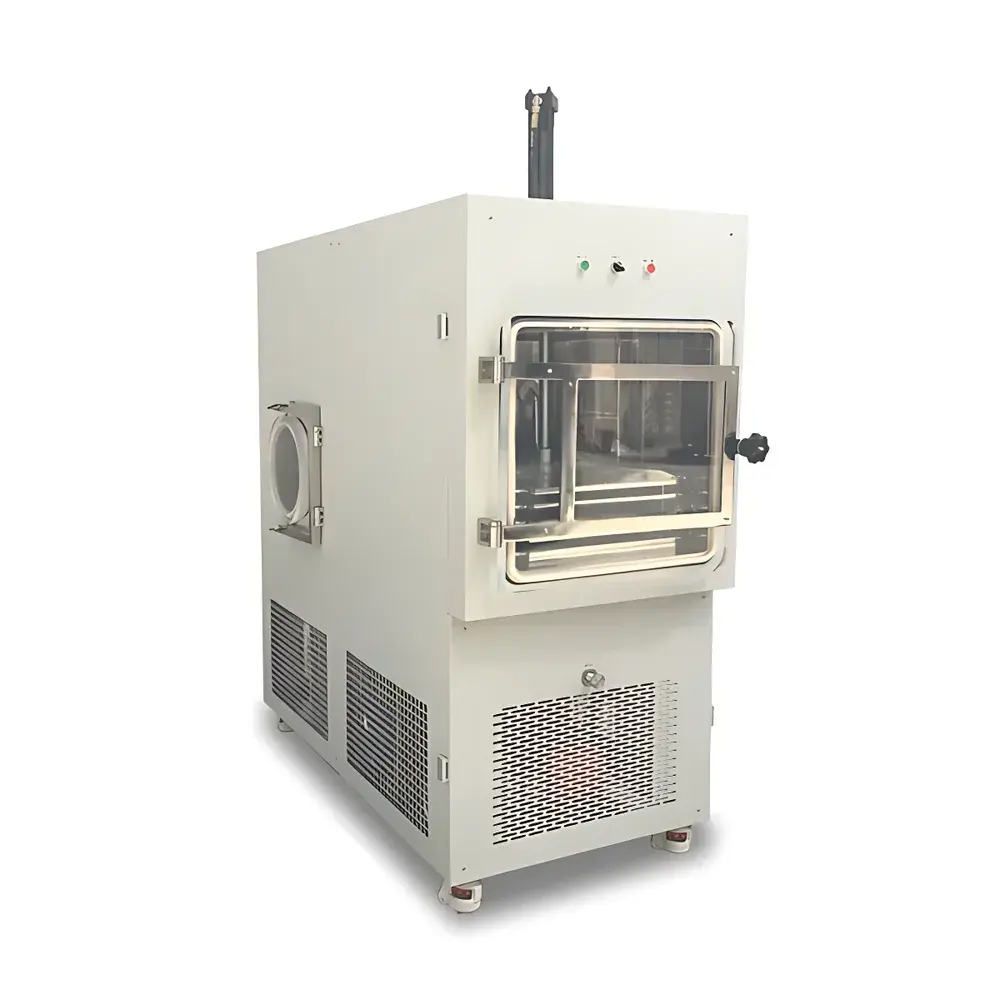

Tianfeng TF-SFD-10 Stoppering Freeze Dryer for Vaccine and Biopharmaceutical Processing

Overview

The Tianfeng TF-SFD-10 Stoppering Freeze Dryer is an engineered pilot-scale lyophilization system designed specifically for the stable, reproducible, and GMP-aligned processing of thermolabile biologics—including live-attenuated and subunit vaccines, monoclonal antibodies, recombinant proteins, diagnostic reagents, and cell-based therapeutics. It operates on the fundamental principle of sublimation under deep vacuum: frozen aqueous formulations are subjected to controlled primary drying (ice removal via升华) followed by secondary drying (desorption of bound water), preserving structural integrity, immunogenicity, enzymatic activity, and long-term stability without chemical degradation. Unlike benchtop units, the TF-SFD-10 integrates in-situ pre-freezing, programmable shelf temperature control, and stoppering capability—enabling full-cycle lyophilization within a single, closed, stainless-steel chamber. Its 1.05 m² effective shelf area and 16 kg/24 h condenser capacity support batch processing of up to 3900 vials (Φ16 mm), making it suitable for process development, clinical trial material production, and small-batch commercial manufacturing under GLP or early-phase GMP conditions.

Key Features

• In-situ freezing with silicone oil–heated shelves (−50 °C to +80 °C, ±1 °C uniformity), eliminating manual transfer and reducing contamination risk.
• High-efficiency cascade refrigeration system achieving ≤−70 °C condenser temperature and ≤5 Pa ultimate vacuum—critical for low-eutectic-point biologicals.
• Touchscreen HMI with real-time graphical display of shelf temperature, chamber pressure, condenser temperature, and lyophilization curves (time vs. T/P).
• PID-controlled shelf heating with multi-step programmability, supporting complex drying protocols including annealing, ramped primary drying, and isothermal secondary drying.
• Full 304 stainless steel interior and high-transparency acrylic chamber door for visual monitoring and corrosion-resistant operation.
• Integrated inert gas purge valve (N₂ or Ar) for oxygen-sensitive formulations and post-drying headspace conditioning.
• Optional eutectic point measurement module and automatic stopper compression unit for fully automated vial sealing under vacuum.
• Compliant with ISO 9001:2000 quality management standards across design, fabrication, testing, and documentation.

Sample Compatibility & Compliance

The TF-SFD-10 accommodates a broad range of sterile liquid formulations in standard pharmaceutical vials (Φ16 mm and Φ20 mm), serum bottles, and custom trays. It is routinely validated for use with viral vectors, bacterial lysates, plasmid DNA, ELISA reagents, stem cell suspensions, and tissue-derived matrices. While not certified to FDA 21 CFR Part 11 out-of-the-box, its architecture supports audit-trail-ready data logging when paired with optional compliant temperature recorders (IEC 60751 Class A Pt100 sensors, 0.1 °C resolution). The system meets ASTM F2476-21 requirements for lyophilizer performance qualification and aligns with ISO 22042 (lyophilization terminology) and USP (lyophilization of sterile products). All wetted surfaces comply with ASME BPE-2022 surface finish specifications (Ra ≤ 0.8 µm).

Software & Data Management

The embedded control system records timestamped process parameters at user-defined intervals (1–60 s), exporting CSV files via USB port for offline analysis in MATLAB, Python (pandas), or commercial CQV software. Optional data loggers provide 21 CFR Part 11–compliant electronic signatures, role-based access control, and encrypted storage with tamper-evident audit trails. Batch reports include critical process parameters (CPPs), critical quality attributes (CQAs) correlation maps, and deviation flags—facilitating root-cause analysis during tech transfer or regulatory submission (e.g., CMC sections of IND/BLA dossiers). Firmware updates are performed locally via secure firmware image upload; no cloud connectivity is required.

Applications

• Vaccine stabilization: Live-attenuated, inactivated, mRNA-LNP, and viral vector vaccines requiring retention of conformational epitopes.
• Diagnostic reagents: Lyophilized controls, calibrators, and enzyme-conjugated antibodies for IVD platforms.
• Cell therapy intermediates: Cryopreserved CAR-T cells, MSCs, and exosome preparations.
• Biochemical standards: Reference materials for mass spectrometry, ELISA, and PCR assay development.
• Natural product extracts: Herbal actives, polysaccharides, and polyphenols where thermal degradation must be avoided.
• Material science: Graphene oxide dispersions and nanocellulose suspensions requiring solvent-free solid-state preservation.

FAQ

What is the maximum batch size supported by the TF-SFD-10?
The system accommodates up to 3900 vials (Φ16 mm) or 2016 vials (Φ20 mm) per cycle, with a maximum liquid load of 13 L across five heated shelves.
Does the system support validation documentation (IQ/OQ/PQ)?
Yes—factory acceptance testing (FAT) reports, calibration certificates (shelves, pressure transducers, condenser sensors), and user requirement specification (URS) traceability matrices are provided upon request.
Can the TF-SFD-10 be integrated into a cleanroom environment?
The unit is designed for ISO Class 7/8 environments; optional HEPA-filtered air purge kits and pass-through interfaces are available for Grade A/B integration.
Is remote monitoring supported?
Local Ethernet port enables Modbus TCP communication for SCADA integration; however, no built-in cloud telemetry or remote desktop functionality is included.
What maintenance intervals are recommended?
Vacuum pump oil change every 500 operating hours; refrigerant leak check annually; shelf temperature sensor recalibration every 12 months or after 200 cycles.
