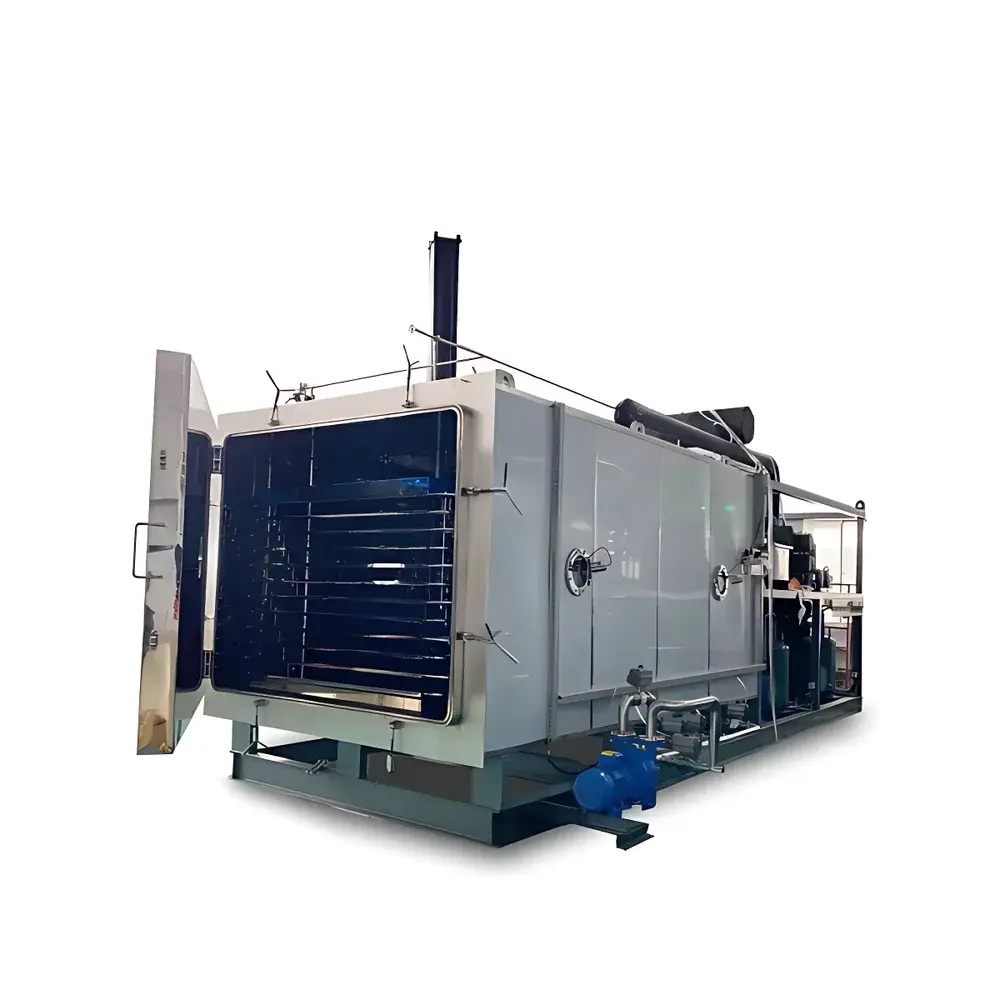

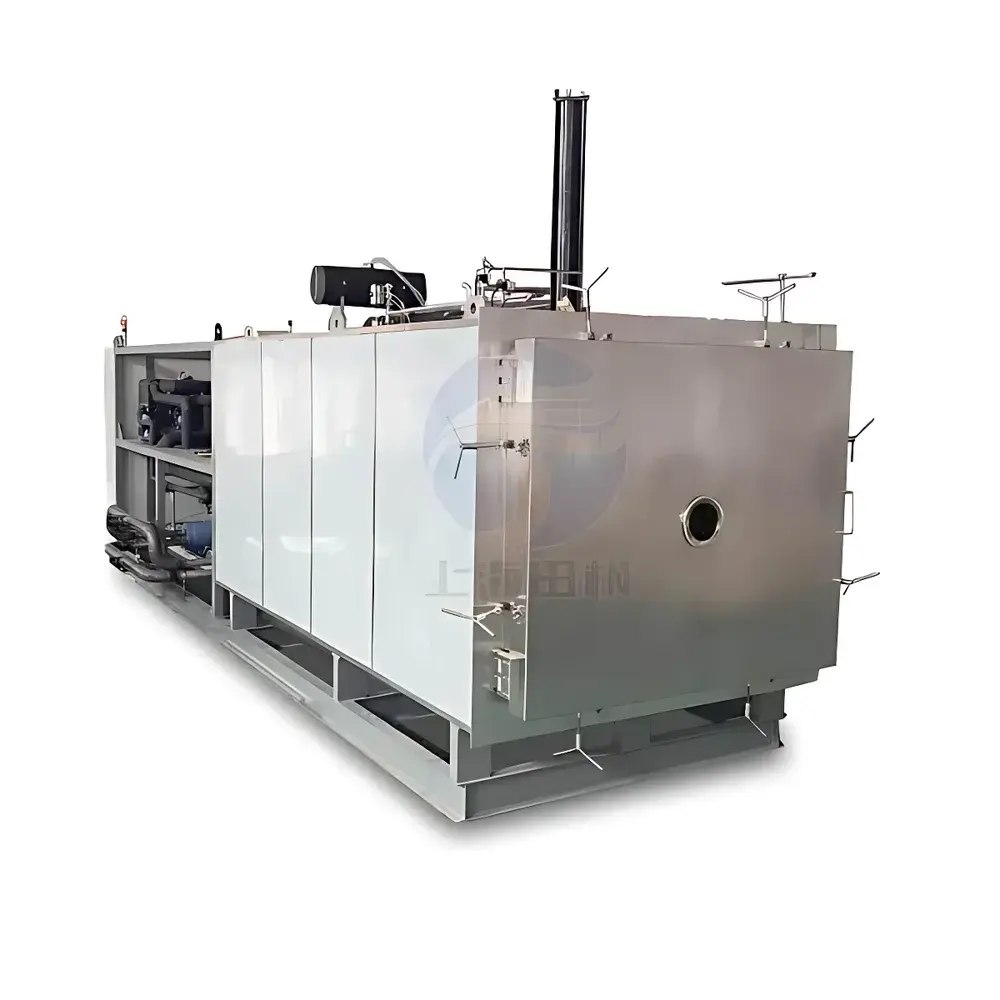

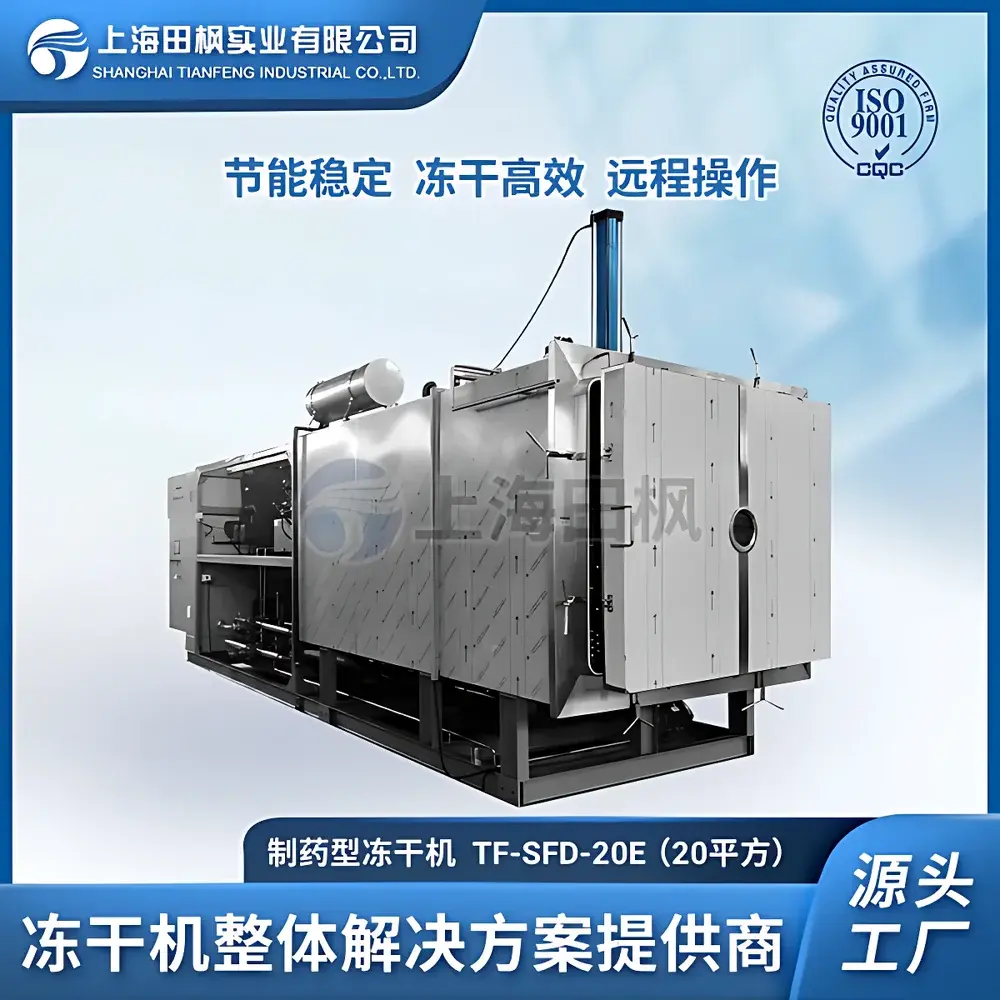

Tianfeng TF-SFD-20E Industrial-Scale Pharmaceutical Freeze Dryer

Overview

The Tianfeng TF-SFD-20E is an industrial-scale, shelf-type pharmaceutical freeze dryer engineered for robust, reproducible lyophilization of heat-sensitive biologics, APIs, and functional food matrices—including instant noodles, shiitake mushrooms, and sterile drug products. It operates on the fundamental principles of sublimation under controlled low-pressure and cryogenic conditions: frozen water in the product matrix transitions directly from solid to vapor phase without passing through liquid state, preserving structural integrity, bioactivity, and chemical stability. The system integrates a high-efficiency dual-stage refrigeration circuit, a large-surface-area condenser operating at -75 °C, and a vacuum system capable of sustaining ≤2.7 Pa—enabling rapid primary drying and precise secondary drying control across batches up to 480 L bulk solution or over 100,000 vials. Designed for continuous GMP-aligned operation, the TF-SFD-20E meets the mechanical, thermal, and documentation requirements for Phase III clinical manufacturing and commercial-scale production.

Key Features

• Stainless steel chamber (AISI 304) with fully polished, zero-dead-angle internal geometry—optimized for CIP/SIP compatibility and particulate minimization.
• 14-shelf configuration (13 active + 1 dummy), each machined from stress-relieved, uniformly heated plates ensuring ±0.5 °C temperature uniformity across shelf surface at extremes (-55 °C to +70 °C).
• Low-viscosity silicone oil as heat transfer medium—maintains stable thermal conductivity and minimal viscosity drift below -50 °C.
• High-capacity condenser (530 kg/24 h) with optimized fin geometry and direct-coupled cryo-compressor train for consistent ice entrapment and minimal backstreaming.
• PLC-based control architecture with redundant pressure and temperature sensors, real-time data logging, and configurable alarm thresholds per ASTM E2500 and ICH Q5C guidelines.
• Full compliance with cGMP design criteria per FDA Guidance for Industry (2022) and EU Annex 1 (2022), including traceable material certifications, weld map documentation, and surface roughness Ra ≤0.8 µm on all wetted parts.
• Integrated validation support: pre-validated sensor calibration protocols, electronic audit trail (21 CFR Part 11 compliant), and ready-to-execute IQ/OQ/PQ documentation packages.

Sample Compatibility & Compliance

The TF-SFD-20E accommodates diverse sample formats—bulk solutions (up to 480 L), standard serum vials (Φ16 mm and Φ22 mm), trays, and irregularly shaped food matrices—without requiring hardware modification. Its shelf spacing (100 mm) and vertical clearance permit flexible loading configurations while maintaining laminar airflow during drying. All materials contacting product or process gases conform to USP Class VI and ISO 10993-5 biocompatibility standards. The system supports sterilization-in-place (SIP) using saturated steam at 121 °C for ≥30 min, validated per HTM 2030 and PDA TR 1. The chamber and condenser are certified for leak integrity testing (≤0.1 Pa·m³/s), satisfying ISO 13485:2016 clause 7.5.10 and EU GMP Annex 15 section 4.2.

Software & Data Management

Control and monitoring are executed via a CE-marked, Windows-based HMI interface running deterministic PLC firmware (Siemens S7-1500 platform). Process recipes—including shelf ramp rates, hold durations, vacuum ramp profiles, and condenser defrost cycles—are stored in encrypted, version-controlled memory with user-level access permissions. All operational parameters (shelf temp, chamber pressure, condenser temp, vapor pressure, power draw) are sampled at 1-second intervals and archived in .csv and SQL-compatible formats. Audit trails record operator actions, parameter changes, and alarm events with timestamp, user ID, and reason-for-change fields—fully compliant with 21 CFR Part 11 Subpart B requirements. Optional integration with MES/SCADA systems via OPC UA or Modbus TCP enables centralized batch record compilation and real-time KPI dashboards.

Applications

• Pharmaceutical: Lyophilization of monoclonal antibodies, vaccines, peptide therapeutics, and small-molecule APIs requiring residual moisture <1.0 wt% and reconstitution time <60 s.
• Biotechnology: Stabilization of cell lysates, enzyme preparations, and diagnostic reagents where conformational integrity must be preserved.
• Functional Food & Nutraceuticals: High-fidelity dehydration of shiitake mushrooms, probiotic cultures, and instant noodle components—retaining volatile aromatics, enzymatic activity, and textural attributes.
• Academic & CMC Development: Scalable process transfer from lab-scale (e.g., TF-SFD-1E) to pilot (TF-SFD-10E) and production systems under identical control logic and thermal boundary conditions.
• Contract Manufacturing: Fully documented, auditable batches meeting client-specific release criteria (e.g., USP , EP 2.9.40, JP 17).

FAQ

Does the TF-SFD-20E support automated cycle development and optimization?
Yes—integrated process analytical technology (PAT) inputs (e.g., tunable diode laser absorption spectroscopy for vapor concentration, manometric temperature measurement for endpoint detection) can be configured upon request.
Is the system qualified for use in classified cleanrooms (ISO 5/Class A)?
The unit is designed for installation in ISO 7/Class 10,000 environments; optional HEPA-filtered chamber purge and isolator-integration kits enable ISO 5 alignment.
Can shelf temperature be independently controlled per zone?
No—the current architecture maintains uniform temperature across all shelves; however, multi-zone capability is available in the TF-SFD-20EX variant.
What validation documentation is included with delivery?
Standard delivery includes Factory Acceptance Test (FAT) report, material traceability dossiers, weld logs, surface finish verification, and a template set for IQ/OQ execution.
Are spare parts and service support available outside China?
Yes—Tianfeng maintains authorized service partners in Germany, USA, India, and Singapore, with 72-hour critical-component dispatch guarantee under extended warranty agreements.
