Tianfeng TF-SFD-5 Benchtop Pilot-Scale Freeze Dryer System for Oligopeptide Flash-Release Lyophilized Tablets and Fragrant Pear Processing

Overview

The Tianfeng TF-SFD-5 is a benchtop pilot-scale freeze dryer engineered for reproducible, scalable lyophilization of thermolabile biopharmaceuticals—including oligopeptides, venom-derived therapeutics, herbal extracts (e.g., fragrant pear concentrate), and other sensitive biomolecules. It operates on the fundamental principle of sublimation: aqueous samples are first solidified at cryogenic temperatures (≤−70 °C condenser, −50 °C shelves), then subjected to high-vacuum conditions (≤5 Pa) to enable direct phase transition of ice to vapor—bypassing the liquid phase entirely. This preserves structural integrity, enzymatic activity, and immunological potency critical for regulatory-compliant development of lyophilized tablets, injectables, and diagnostic reagents. Designed for GMP-aligned process development, the TF-SFD-5 bridges laboratory feasibility studies and early-stage manufacturing, supporting DOE-driven optimization of primary drying endpoints, annealing steps, and secondary drying profiles.

Key Features

• Original-position pre-freezing: Eliminates manual transfer, minimizing thermal shock and contamination risk during sample loading.
• Silicone oil heating/cooling system: Ensures precise shelf temperature control (±0.5 °C setpoint accuracy) and uniformity across all four shelves (≤1 °C inter-shelf deviation), essential for consistent cake morphology and residual moisture distribution.
• Programmable logic controller (PLC) with 7-inch resistive touchscreen: Supports up to five user-defined lyophilization protocols, each configurable with 24 independent time–temperature–vacuum segments; parameters modifiable in real time during active cycles.
• Comprehensive data acquisition: Continuous logging of shelf temperature, chamber pressure, condenser temperature, and elapsed time; all operational events—including login/logout, parameter changes, and alarm triggers—recorded with timestamp and operator ID for 21 CFR Part 11–compliant audit trails.
• High-efficiency condenser: Stainless steel coil design operating at ≤−70 °C, rated for 8 kg ice capture per 24-hour cycle—enabling robust drying of high-moisture botanical concentrates (e.g., fragrant pear puree) or viscous oligopeptide solutions.

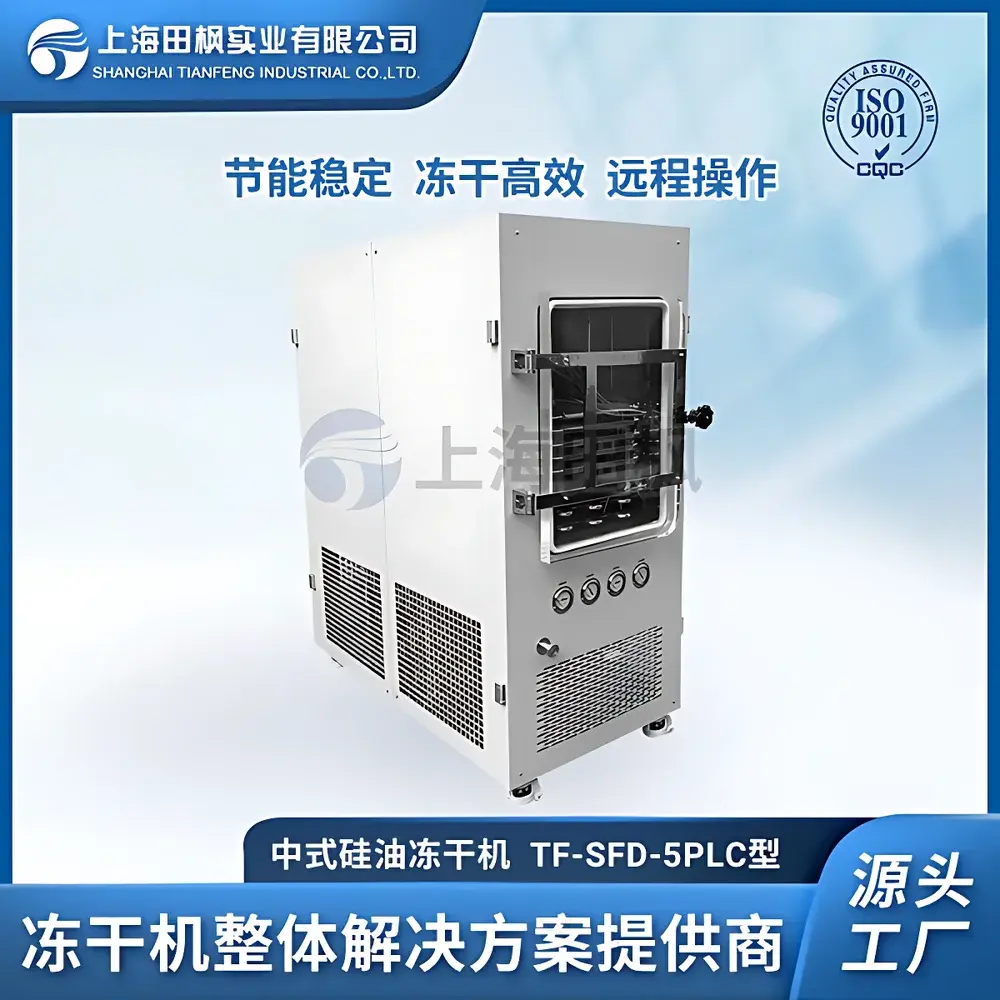

• Optical observation chamber: Front door constructed from optically clear, shatter-resistant acrylic (not glass), permitting non-invasive visual monitoring of cake formation, collapse onset, and desiccation progress without compromising vacuum integrity.
• Inert gas backfill capability: Integrated solenoid-controlled nitrogen (or argon) inlet valve allows controlled re-pressurization post-drying under oxygen-free atmosphere—critical for oxidation-prone peptides and polyphenol-rich plant matrices.

Sample Compatibility & Compliance

The TF-SFD-5 accommodates diverse sample formats: standard serum vials (Φ16 mm: 1914 units/batch; Φ20 mm: 1008 units), custom trays (max. 8 L total fill volume), and open-dish configurations for bulk botanical extracts. Its validated performance supports lyophilization of WHO-prequalified vaccines, USP -referenced sterile products, and ISO 22000–aligned food-grade powders. The system complies with ISO 9001:2015 quality management requirements; its architecture enables alignment with ICH Q5C (stability of biotechnological/biological products), FDA Guidance for Industry on Lyophilization Process Validation, and EU Annex 1 principles for aseptic processing—when integrated with appropriate cleanroom infrastructure and environmental monitoring.

Software & Data Management

Embedded firmware logs all process-critical variables at ≥1 Hz resolution, storing raw datasets internally for ≥30 days. Export options include CSV and PDF report generation (with digital signature support). Optional Ethernet connectivity enables integration into centralized SCADA or MES platforms via Modbus TCP. All software modules adhere to ALCOA+ data integrity principles: attributable, legible, contemporaneous, original, accurate, complete, consistent, enduring, and available. Audit trail functionality satisfies FDA 21 CFR Part 11 electronic records/electronic signatures requirements when deployed with role-based access control (password-protected operator levels) and secure user authentication.

Applications

• Pharmaceutical R&D: Development of fast-dissolving oligopeptide tablets requiring flash-release kinetics; stabilization of snake venom enzymes (phospholipase A2, metalloproteases) without activity loss.
• Botanical bioprocessing: Lyophilization of volatile-rich fragrant pear (Pyrus sinkiangensis) pulp to retain aroma-active compounds (e.g., hexyl acetate, cis-3-hexenol) and antioxidant capacity (ORAC assay retention >92%).
• Vaccine formulation: Cycle development for lyophilized viral vector suspensions and adjuvanted subunit antigens under low-temperature stress conditions.
• Diagnostic reagent manufacturing: Stabilization of monoclonal antibody conjugates, PCR master mixes, and ELISA substrates for ambient-temperature logistics.
• Academic research: Cryopreservation studies of microbial consortia, tissue-engineered constructs, and extracellular vesicles where ice crystal morphology directly impacts post-thaw viability.

FAQ

What is the maximum batch capacity for fragrant pear puree?

The system handles up to 8 L of liquid per cycle, equivalent to ~12–15 kg fresh fragrant pear pulp (assuming 85% moisture content), yielding ~1.2–1.8 kg dried powder depending on solids concentration.
Can the TF-SFD-5 be qualified for GMP manufacturing?

Yes—its design basis, documentation package (DQ/IQ/OQ templates available), and data integrity features support qualification per ASTM E2500 and ISPE Baseline Guide Vol. 5. Final validation requires site-specific PQ under actual product load conditions.
Is eutectic point mapping supported natively?

An optional in-situ resistance temperature detector (RTD) probe kit enables real-time determination of product collapse temperature (T_c) and eutectic melting onset (T_eu) during controlled ramp experiments.
How is shelf temperature uniformity verified?

Tianfeng provides factory calibration certificates traceable to NIST standards, confirming ≤1 °C deviation across all shelf zones at −30 °C, 0 °C, and +40 °C setpoints—verified using 9-point thermocouple mapping per ISO 13485 Annex C.
What maintenance intervals are recommended for the vacuum pump?

Oil-lubricated rotary vane pumps require oil replacement every 500 operational hours and filter element replacement every 1,000 hours; dry scroll pump variants (optional) eliminate oil change requirements and reduce particulate risk in sterile applications.
