TimePower TP1051 Portable Electrochemical Dew Point Meter for Compressed Air and Industrial Gases

Overview

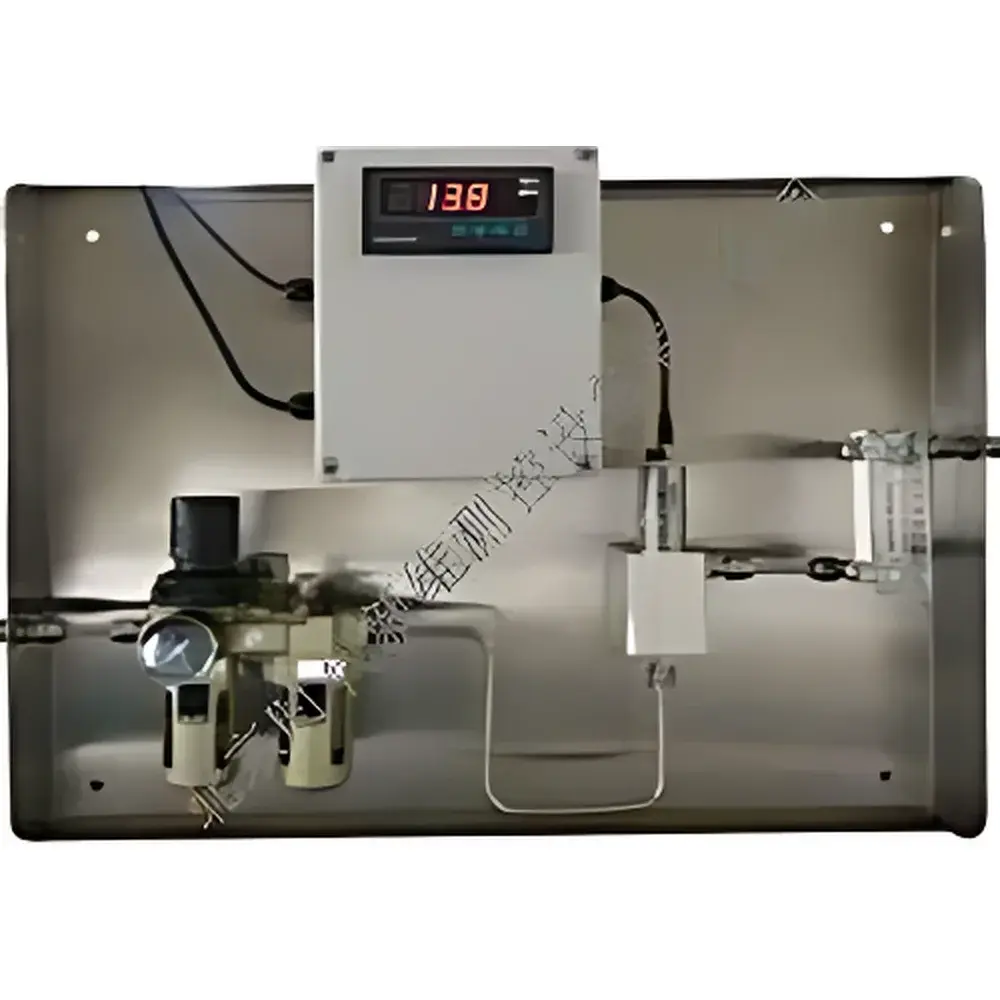

The TimePower TP1051 is a portable, microprocessor-controlled electrochemical dew point meter engineered for high-reliability moisture monitoring in compressed air systems and inert or reactive industrial process gases—including H₂, SF₆, N₂, O₂, Ar, CO₂, and synthetic gas mixtures. Unlike optical or capacitive hygrometers, the TP1051 integrates a Vaisala-originated electrochemical sensing element—designed with proprietary surface passivation and thermal stabilization—to deliver stable, trace-level dew point measurement down to −100 °C under low-humidity conditions. Its operational principle relies on temperature-controlled condensation equilibrium detection at the sensor interface, where water vapor partial pressure is translated into a calibrated dew/frost point value via thermodynamic algorithms compliant with ISO 8573-3 and ASTM D6304 Annex A3. The instrument is purpose-built for environments where rapid deployment, resistance to particulate contamination, and long-term baseline stability are critical—particularly in compressed air quality validation per ISO 8573-1 Class 2–4, pharmaceutical cleanroom supply monitoring, and SF₆ insulation gas verification in high-voltage switchgear.

Key Features

• Integrated stainless steel sintered filter (pore size ≤5 µm) providing ISO 4406 Class 17/14 particulate protection without flow restriction
• Auto-calibration routine triggered by user-defined intervals or manual initiation—minimizing drift accumulation and eliminating need for frequent field recalibration
• Dual-mode operation: dew point (above 0 °C) and frost point (below 0 °C), with automatic mode switching and thermodynamic correction applied in real time
• Robust mechanical architecture: IP65-rated enclosure, reinforced gas path with 316L stainless steel tubing (OD 6 mm / ID 4 mm), and pressure-rated fittings up to 0.6 MPa
• Configurable 4–20 mA analog output with user-settable alarm relays—supporting integration into PLC-based air quality management systems and SCADA networks
• Real-time response (T90 < 60 s at 1 L/min flow) with 0.1 °C dew point resolution and ±0.5 °C repeatability across full range

Sample Compatibility & Compliance

The TP1051 is validated for direct measurement of non-corrosive and mildly corrosive dry gases. It maintains metrological integrity when sampling H₂, N₂, O₂, Ar, CO₂, and compressed air containing trace hydrocarbons or lubricant vapors—provided inlet filtration is maintained per manufacturer guidelines. For SF₆ applications, the sensor’s chemical passivation layer prevents fluoride-induced degradation observed in uncoated aluminum oxide sensors. The system complies with ISO 8573-3:2014 (compressed air purity—moisture content), IEC 60480 (re-use of SF₆), and supports audit-ready documentation for GLP and GMP-regulated facilities. All firmware and calibration logs adhere to ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available) and may be exported for FDA 21 CFR Part 11–compliant review.

Software & Data Management

While the TP1051 operates as a standalone field instrument, its 4–20 mA output enables seamless connection to distributed control systems (DCS) or data loggers supporting Modbus RTU via optional signal converter. Internal non-volatile memory stores up to 10,000 timestamped dew point readings (UTC-synchronized if external clock input enabled). Calibration history—including date, operator ID, reference standard used (e.g., chilled mirror primary standard traceable to NIST SRM 2370), and deviation report—is retained indefinitely. Audit trail functionality meets requirements for ISO/IEC 17025 accredited laboratories performing moisture testing per USP and EP 2.5.12.

Applications

• Verification of compressed air dryness in pharmaceutical manufacturing (ISO 8573-1 Class 2 compliance for sterile processing)
• Moisture monitoring in SF₆-insulated GIS equipment to prevent dielectric breakdown and arc flash hazards
• In-process moisture control during nitrogen blanketing in chemical synthesis reactors and polymer drying lines
• Quality assurance of medical oxygen and anesthesia gas delivery systems per ISO 8573-7
• Field validation of desiccant dryer and membrane dryer performance in food packaging and electronics manufacturing
• Pre-commissioning moisture checks in cryogenic pipelines and LNG transfer systems

FAQ

What gases can the TP1051 measure accurately?
The instrument is validated for H₂, N₂, O₂, Ar, CO₂, SF₆, and compressed air. It is not recommended for continuous use with highly corrosive gases (e.g., Cl₂, NH₃, H₂S) or solvent-saturated streams without additional inline scrubbing.
Does the TP1051 require periodic zero/span calibration?
Yes—though its auto-calibration function reduces frequency. Annual verification against a NIST-traceable chilled mirror reference (e.g., Michell Optidew or MBW 373) is required for ISO 17025 compliance.
Can it operate continuously at −20 °C ambient temperature?
Intermittent operation is supported at −20 °C; however, continuous use below 0 °C requires external thermal jacketing of the sample line to prevent condensation upstream of the sensor.
Is the 4–20 mA output intrinsically safe for hazardous area installation?
No—the TP1051 is rated for general-purpose use only (non-ATEX/IECEx). For Zone 1/2 applications, it must be installed outside the hazardous area with sample drawn via conditioned, explosion-proof sampling system.
How does the stainless steel sintered filter affect maintenance intervals?
Under typical compressed air duty (ISO 8573-1 Class 4 particulate), filter service interval exceeds 12 months. Visual inspection and ultrasonic cleaning are recommended every 6 months in high-dust environments (e.g., metallurgical plants).
