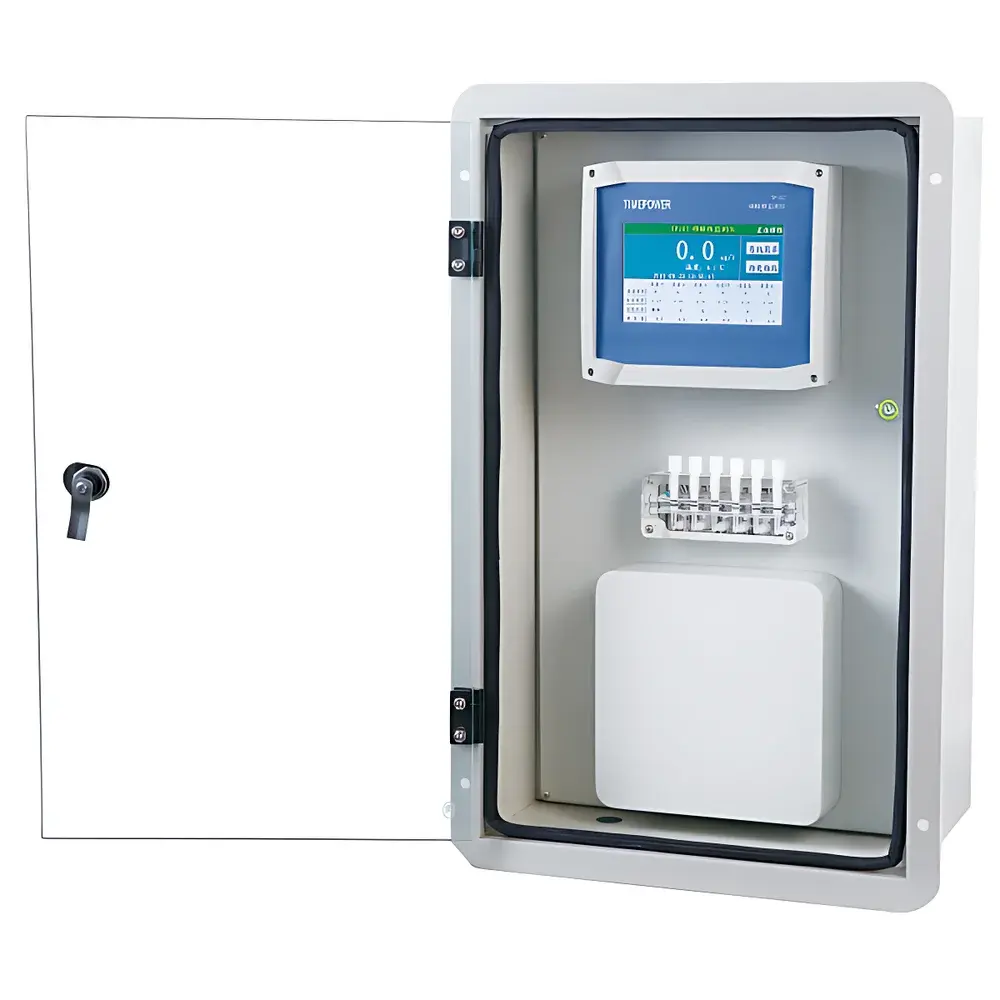

Timepower TP107 Online Phosphate Analyzer

Overview

The Timepower TP107 Online Phosphate Analyzer is a continuous, multi-channel photometric analyzer engineered for precise, real-time monitoring of orthophosphate (PO₄³⁻) concentration in aqueous process streams. It operates on the phosphovanadomolybdate colorimetric principle: in acidic medium, orthophosphate reacts with ammonium metavanadate and ammonium molybdate to form a stable yellow heteropoly acid complex—phosphovanadomolybdic acid—whose absorbance at 420 nm is directly proportional to phosphate concentration, in strict accordance with the Lambert-Beer law. Designed to meet the analytical requirements of GB/T 6913–2008 (“Methods for analysis of boiler water and cooling water — Determination of phosphate”), the TP107 delivers trace-level quantification in demanding industrial environments where long-term stability, minimal drift, and regulatory traceability are essential.

Key Features

• Configurable 1–6 independent measurement channels, enabling cost-effective scalability across multiple sampling points without redundant instrumentation.
• High-reliability imported solenoid valves ensure precise reagent dosing, sample aspiration, and fluidic sequencing—critical for reproducible color development and low carryover.
• Automated dual-point calibration at user-defined intervals (e.g., every 6, 12, or 24 hours), maintaining measurement integrity over extended unattended operation and reducing manual intervention by >70% versus manual calibration protocols.
• Integrated 7-inch color TFT-LCD touchscreen interface with Chinese-language UI; supports simultaneous display of real-time trend curves and historical traces for all active channels in distinct color coding.
• Long-life monochromatic cold light source (LED-based, 420 nm peak emission) guarantees optical stability, eliminates lamp replacement cycles, and minimizes thermal drift in absorbance detection.
• Isolated analog outputs (0–20 mA / 4–20 mA / 0–10 mA, software-selectable per channel) facilitate seamless integration with DCS, PLC, or automated chemical dosing systems for closed-loop phosphate control.
• Robust cabinet design with front-access panel and standardized cutout mounting (670 mm × 410 mm) simplifies field installation, service access, and module-level component replacement.

Sample Compatibility & Compliance

The TP107 is validated for use with clarified liquid samples meeting the following physical specifications: flow rate 10–40 L/h; temperature 5–50 °C; suspended solids <5 µm with no colloidal content. It complies with national standard GB/T 6913–2008 for phosphate determination in boiler feedwater, cooling water, and industrial effluents. While not certified to ISO/IEC 17025 for accredited testing, its architecture supports GLP-aligned operational practices—including time-stamped calibration logs, audit-ready event history (30 days stored locally), and configurable alarm triggers (flow loss, upper/lower limit violation, reagent depletion). All firmware and configuration changes are timestamped and non-volatile, supporting basic data integrity requirements under FDA 21 CFR Part 11 when deployed in pharmaceutical or biotech utility monitoring applications.

Software & Data Management

Embedded firmware provides local data logging with automatic timestamping for all measurements, calibrations, alarms, and system events. Raw absorbance values, calculated concentrations, and diagnostic flags (e.g., low flow, high turbidity warning) are retained for 30 days at 1-minute resolution. Data export is supported via USB flash drive in CSV format for offline trending and QA review. The interface allows password-protected user role assignment (Operator, Technician, Administrator) to restrict access to calibration parameters, output scaling, and system configuration. No cloud connectivity or remote telemetry is included by default—ensuring data sovereignty and compatibility with air-gapped industrial networks.

Applications

The TP107 serves as a dedicated online monitor in thermal power plants (boiler drum water, condensate polishing), chemical manufacturing (catalyst loop control, reaction quench streams), fertilizer production (phosphate liquor concentration verification), municipal water treatment (corrosion inhibitor dosing feedback), and pharmaceutical utilities (WFI and PW distribution loop surveillance). Its robustness against moderate particulate load and tolerance to variable temperature gradients make it suitable for raw water intakes, cooling tower sidestreams, and wastewater pre-treatment zones—provided upstream filtration meets the ≤5 µm specification.

FAQ

What is the measurement principle used by the TP107?
It employs the phosphovanadomolybdate spectrophotometric method (colorimetric assay at 420 nm) based on GB/T 6913–2008.
Can the instrument operate unattended for extended periods?
Yes—automated dual-point calibration, onboard 30-day data storage, and fault-triggered alarms enable reliable 24/7 operation with maintenance intervals typically exceeding 30 days.
Is the TP107 compliant with international standards such as ISO or ASTM?
It conforms specifically to GB/T 6913–2008. While not formally certified to ISO 8573 or ASTM D859, its performance specifications align with typical Class II online analyzers for inorganic anion monitoring.
What reagents are required for routine operation?
Vanadomolybdic acid reagent, sulfuric acid solution (for pH adjustment), and certified phosphate standard solutions (e.g., 1 mg/mL stock); consumption averages ~3 L/month per active channel.
Does the device support Modbus or other industrial communication protocols?
No—only isolated 4–20 mA analog outputs are provided. Digital communication (e.g., Modbus RTU) requires external protocol converter hardware.
