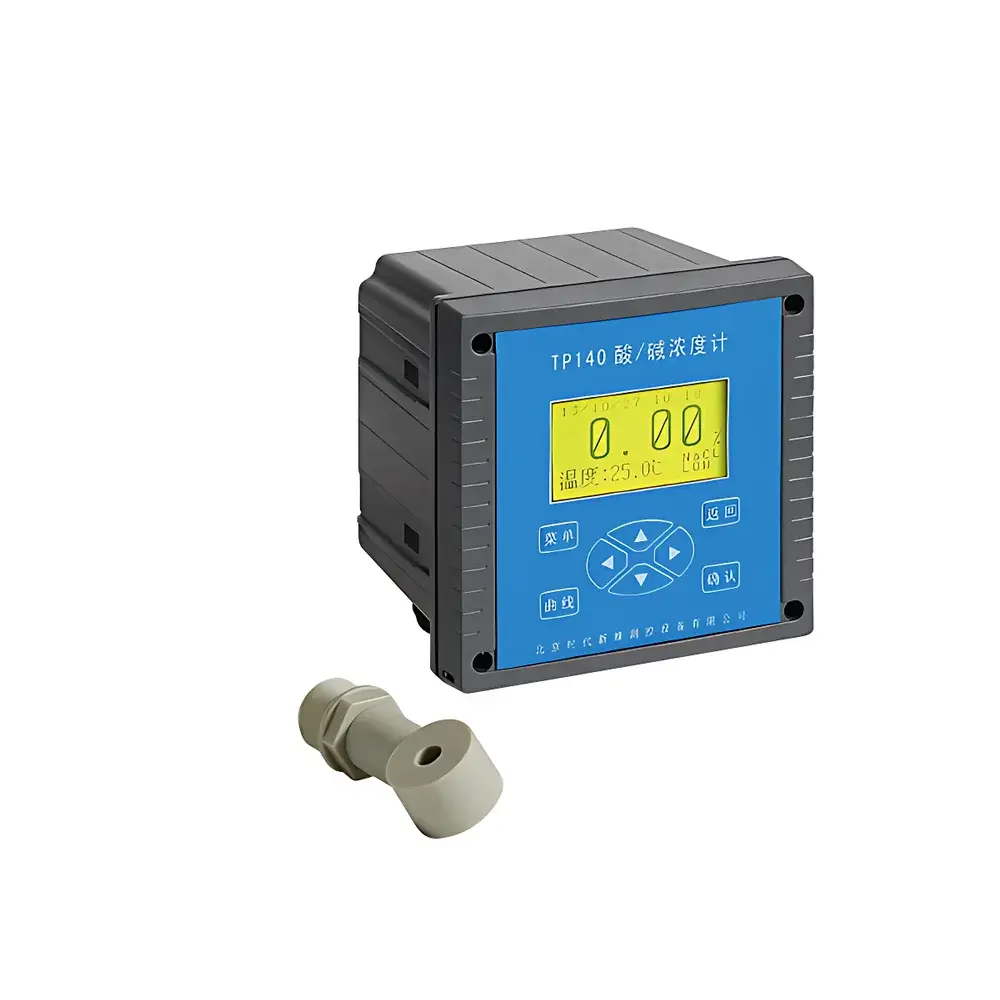

TimePower TP140 Online pH and Conductivity-Based Acid-Base Concentration Analyzer

Overview

The TimePower TP140 Online Acid-Base Concentration Analyzer is a microprocessor-controlled, potentiometric measurement system engineered for continuous, in-line monitoring of acidic and alkaline solution concentrations in industrial water treatment and chemical process environments. Unlike conventional pH meters, the TP140 integrates dual-sensor input—pH electrode potential and Pt1000 temperature-compensated conductivity—to compute concentration values for six common reagents: HCl (0–10.00%), NaOH (0–10.00%), H₂SO₄ (0–20.00%), NaCl (0–20.00%), HNO₃ (0–15.00%), and Na₂CO₃ (0–10.00%). Its operational principle relies on empirically calibrated conductivity–concentration relationships, corrected in real time using Nernst-equation-derived pH response and linearized thermal compensation (0–60 °C). The instrument is purpose-built for applications including ion exchange regeneration cycle control, boiler cleaning solution preparation, and pipeline acid wash concentration verification—where repeatable, drift-resistant measurements under variable flow and temperature conditions are critical.

Key Features

• Corrosion-resistant pH electrode assembly compatible with aggressive acid/alkali media; optimized for long-term stability in continuous-flow installations
• High-resolution 24-bit A/D converter ensures measurement repeatability better than 1% of full scale and accuracy within ±2% FS across all supported chemistries
• Integrated Pt1000 temperature sensor enables automatic thermal compensation per IEC 60751 standards, minimizing density- and viscosity-related errors
• Industrial-grade embedded architecture based on low-power MCU platform; supports uninterrupted operation under fluctuating AC supply (85–265 V, 45–65 Hz)
• Bilingual (English/Chinese) menu-driven interface on 128×64 dot-matrix LCD; intuitive navigation without external PC dependency
• Configurable analog outputs (0–10 mA, 0–20 mA, or 4–20 mA) with galvanic isolation; two programmable relay outputs (AC220 V/3 A or DC30 V/3 A) for alarm or control interlocking
• Non-volatile memory retains calibration coefficients, historical readings, and configuration settings for >10 years after power loss

Sample Compatibility & Compliance

The TP140 is validated for aqueous solutions within 5–50 °C sample temperature range and ambient operating conditions of 5–45 °C / ≤90% RH (non-condensing). Electrode mounting options include inline flow-through cells, submersible probes, and flanged housings—custom configurations available per ASME B16.5 or DIN EN 1092-1 flange standards. The analyzer meets IP65 ingress protection for front-panel housing, enabling deployment in humid or splash-prone utility corridors. While not certified to IEC 61508 or SIL-2, its architecture supports integration into safety-instrumented systems via hardwired relay interfaces. Data logging complies with basic GLP traceability requirements: timestamps, operator ID (if enabled via optional keypad), and calibration event records are stored with cyclic overwrite management.

Software & Data Management

No proprietary PC software is required for routine operation; all setup, calibration, and diagnostics are performed locally via the front-panel interface. The device stores up to 1,024 timestamped concentration readings internally, automatically overwriting oldest entries upon buffer saturation. Calibration history—including date, standard used, slope/mV offset, and temperature at calibration—is retained separately. Output signals are compatible with third-party SCADA platforms (e.g., Siemens Desigo, Honeywell Experion) via standard 4–20 mA current loops. Optional Modbus RTU (RS-485) communication module supports remote parameter readout and alarm status polling—fully compliant with Modbus Application Protocol v1.1b.

Applications

• Monitoring HCl or NaOH concentration during regeneration of mixed-bed or cation/anion exchange resins in high-purity water generation plants
• Real-time verification of sulfuric or nitric acid concentration in heat exchanger descaling protocols
• Control of sodium carbonate dosing in CO₂ removal or pH stabilization loops for feedwater conditioning
• Verification of cleaning-in-place (CIP) solution strength prior to equipment sanitization in pharmaceutical utilities
• Process validation support for ASME BPE-compliant piping systems requiring documented concentration consistency

FAQ

What concentration ranges does the TP140 support for sulfuric acid?

The TP140 measures H₂SO₄ concentration from 0.00% to 20.00% by weight, optimized for typical industrial regeneration and cleaning applications.
Is temperature compensation mandatory for accurate readings?

Yes—Pt1000-based temperature compensation is integral to the concentration algorithm; measurements outside the 0–60 °C compensation range are flagged as invalid.
Can the TP140 be integrated into a DCS with Modbus communication?

Yes, when equipped with the optional RS-485 Modbus RTU interface, it functions as a slave node supporting function codes 03h (read holding registers) and 06h (write single register).
What is the minimum sample flow rate required for flow-through electrode installation?

A minimum linear velocity of 0.3 m/s is recommended to ensure stable boundary layer conditions and avoid air entrapment in the sensing chamber.
Does the TP140 meet FDA 21 CFR Part 11 requirements?

The base unit does not provide electronic signature, audit trail, or role-based access control; however, its analog outputs and relay events may be captured in a Part 11-compliant DCS or LIMS environment.
