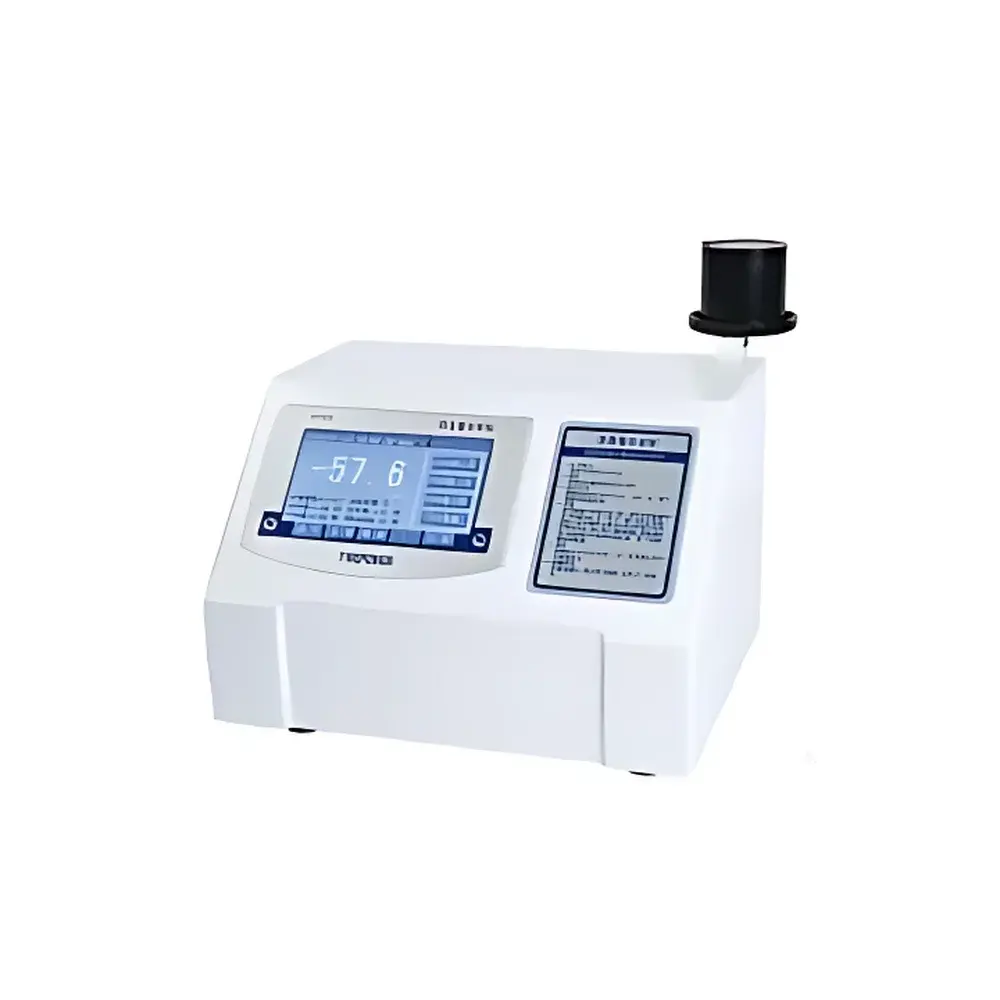

TimePower TP305 Copper Content Analyzer (Colorimetric Method)

Overview

The TimePower TP305 Copper Content Analyzer is a dedicated benchtop photometric instrument engineered for trace-level copper quantification in ultra-pure water systems used across thermal power generation, nuclear facilities, and high-reliability industrial cooling circuits. It operates on the fundamental principle of absorption photometry—specifically, the Beer–Lambert law—which establishes a linear relationship between absorbance (A) and analyte concentration when monochromatic light passes through a solution containing a chromogenic complex. In this system, copper ions (Cu²⁺) react quantitatively with bis-cyclohexanone oxalyldihydrazone (BCO) under controlled pH and temperature conditions to form a stable, intensely colored chelate complex with maximum absorbance near 530 nm. The analyzer measures absorbance at this wavelength using a precision-calibrated cold LED light source and high-stability photodetector assembly, enabling reliable detection down to 0.1 µg/L in aqueous matrices.

Key Features

• 5.0-inch capacitive color touchscreen interface with intuitive Chinese-language navigation—designed for rapid operation by plant chemists and shift technicians without specialized software training.
• Monolithic PCB architecture incorporating surface-mount technology (SMT) and embedded microcontroller unit (MCU) firmware optimized for low-power, long-term stability in continuous monitoring environments.
• Imported narrow-band cold LED light source ensures minimal thermal drift, consistent spectral output, and extended operational lifetime (>10,000 hours), eliminating the need for frequent lamp replacement.
• Integrated automatic timing module provides audible and visual prompts for reaction incubation intervals—critical for adherence to standardized BCO complexation kinetics per GB/T 6908–2018.
• Dual-stage calibration protocol: zero-point blank calibration compensates for optical path contamination and electronic offset; periodic full-range curve verification mitigates cumulative drift from ambient temperature fluctuations or reagent aging.
• Cyclic non-volatile memory stores up to 256 measurement records with timestamp, sample ID, and operator tag—supporting internal QA documentation and trend analysis without external data export.

Sample Compatibility & Compliance

The TP305 is validated for use with deionized, demineralized, and condensate-grade waters meeting ASTM D1193 Type I or ISO 3696 Grade 1 specifications. It supports direct analysis of boiler feedwater, turbine condensate, generator stator cooling water, steam drum samples, and natural surface waters following appropriate pre-filtration (0.45 µm membrane) and acidification (if required). All analytical procedures align with the nationally endorsed dual-cyclohexanone oxalyldihydrazone colorimetric method (GB/T 6908–2018), which is harmonized with ISO 8586 and referenced in DL/T 912–2018 (Supercritical Unit Water Chemistry Guidelines). While not certified to FDA 21 CFR Part 11 or EU Annex 11, its audit-ready data log structure and calibration traceability support GLP-aligned internal quality assurance protocols in regulated utility environments.

Software & Data Management

No external PC software or proprietary drivers are required. All configuration, calibration, and reporting functions reside within the onboard firmware. Measurement data—including date/time stamp, measured value (µg/L), calibration status flag, and user-entered sample identifier—are stored in chronological order. When memory reaches capacity, the oldest record is automatically overwritten—a design choice prioritizing operational continuity over archival depth. Data retrieval is performed via on-screen scroll navigation; export functionality is intentionally omitted to maintain system integrity and reduce cybersecurity exposure in isolated plant networks. Firmware updates (if released) are delivered via USB flash drive with SHA-256 checksum validation.

Applications

• Real-time copper monitoring in high-pressure boiler feedwater circuits to prevent copper oxide deposition on superheater tubes and turbine blades.
• Verification of copper leaching from brass and copper-nickel alloy piping in closed-loop condensate return systems.
• Quality control of generator hydrogen-cooling water and stator winding coolant where copper ion concentrations >20 µg/L indicate early-stage corrosion or resin degradation.
• Compliance testing of makeup water pretreatment trains prior to mixed-bed ion exchange polishing stages.
• Field-deployable verification of copper removal efficiency in chelant-based cleaning cycles during outage maintenance.

FAQ

What reagent purity is required for accurate results?
Analytical-grade (≥99.9%) bis-cyclohexanone oxalyldihydrazone and high-purity hydrochloric acid (≥37%) must be used. All solutions must be prepared with Type I ultrapure water (resistivity ≥18.2 MΩ·cm at 25 °C) generated by a properly maintained mixed-bed ion exchange system.
How often should calibration be performed?
A blank calibration is mandatory before each analytical session. A full multi-point calibration curve must be verified every 14 days—or immediately after reagent batch change, sensor cleaning, or environmental temperature shifts exceeding ±5 °C.
Can the instrument measure other metals?
No. The TP305 is a single-parameter analyzer configured exclusively for copper using the BCO method. Its optical filter set, reagent delivery path, and calibration algorithm are not adaptable to other elements.
Is the device suitable for outdoor or uncontrolled environments?
It is rated for indoor laboratory or control room deployment only. Ambient operating conditions must remain within 5–45 °C and ≤90% RH (non-condensing); prolonged exposure to direct sunlight or vibration sources will degrade photometric stability.
What maintenance is required beyond calibration?
Monthly inspection of the cuvette chamber for residue buildup, quarterly verification of LED intensity output using the built-in reference check routine, and annual verification of touchscreen responsiveness and memory retention integrity.
